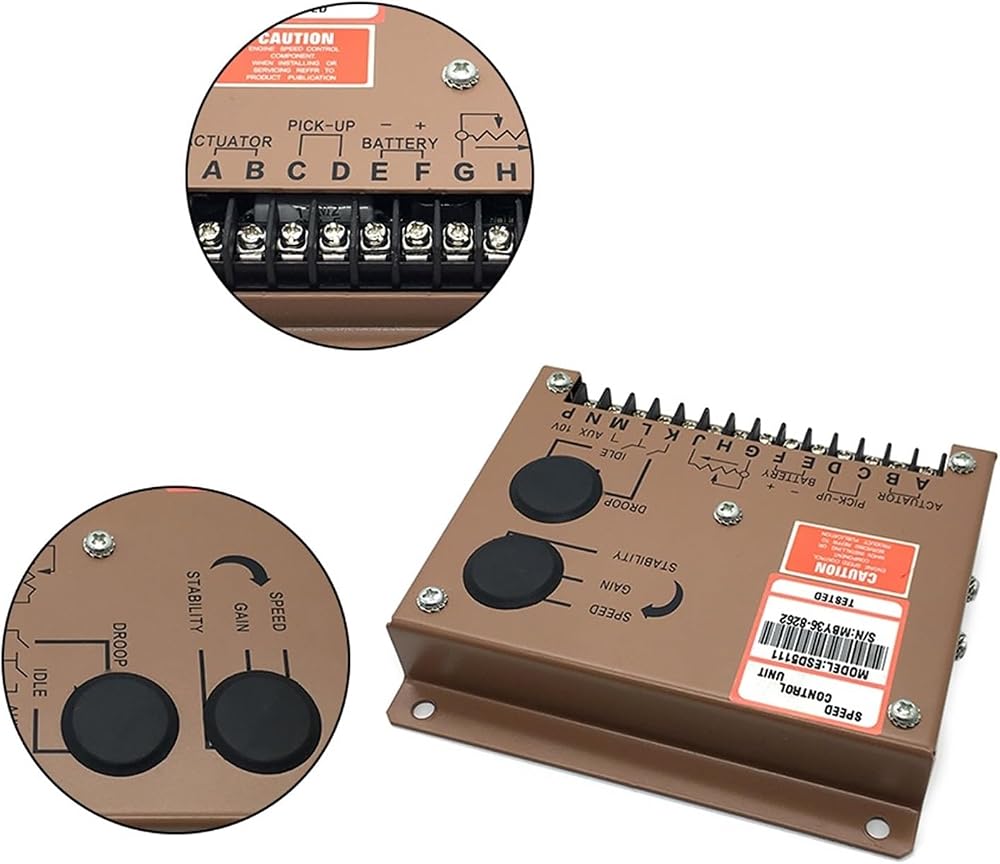

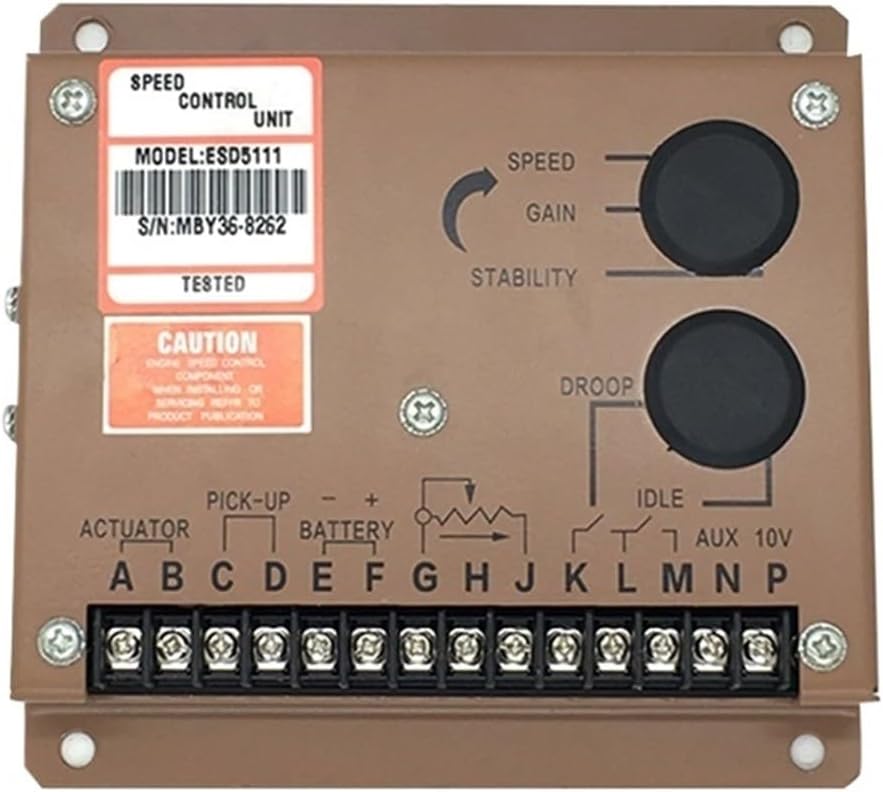

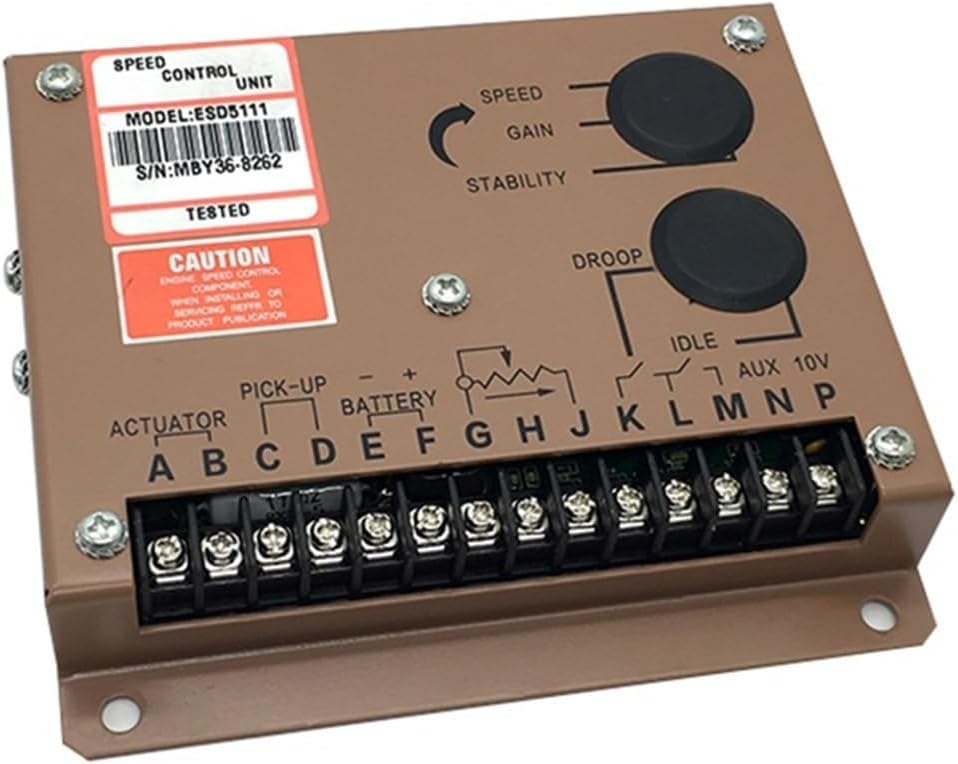

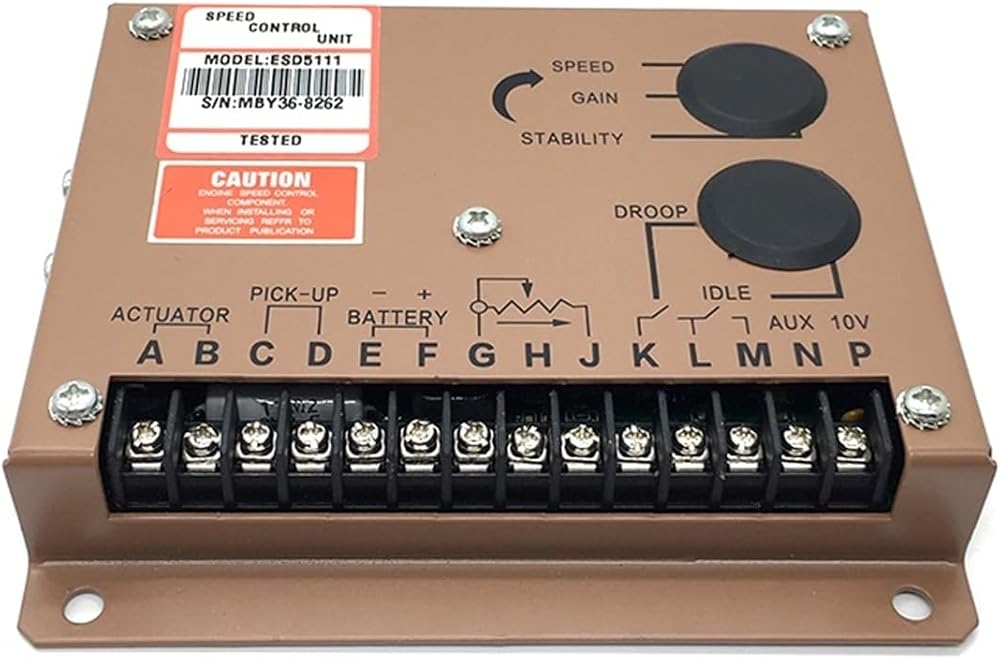

ESD5111 Engine Motor Speed Controller For Diesel Genset Controller Power Supply Generator Parts 12v 24v Speed Govornor
Features
Engine Speed Controller ESD5111 Governor For Generator is rugged enough to be placed in a control cabinet or engine mounted encosure with other dedicated control equipment. If water, mist or condensation may come in contact with controller, it should be mounted certically. This will allow the fluid to drain away from the speed control unit.
Performance techinical data as following detail
Speed Range: 1KHz ~ 7.5KHz
Thermal stability: Max ±1%
IDLE Regulation: 160±20Hz
DROOP Regulation: Minimum 15Hz ±6Hz/ Amp
Maximum: 400Hz ±75Hz/ Amp
External Speed Regulation: ±200Hz (with 1 K connected)
AUX Input Sensitivity: 148Hz / 1V., ±10Hz
Impedance: 1M
Working Temp Range: -40 ~ 85
ENVIRONMENT:
Working Humidity Range: Maximum 95%
Stocking Temp: -55 ~ 92°C
Shocking: 20-100HZ 500mm/Sec.
INPUT POWER SUPPLY
Voltage: 12/24V
Grounding Pole: Negative pole
Power Supply: 50mA
Actuator Continuous Current: Minimum 2.5A, Maximum 10A
MPU
Signal:0.5-120 RMS
NOTE: Above-Mentioned parameters are tested with a 4000Hz working frequency
==========
Hign-concerned Chemical : None
Model Number : ESD5111
Product Name : ESD5111
Keyword : Engine Motor Speed Regulator
Usage : Generator
Speed Range : 1KHz ~ 7.5KHz
Idle adjustment : 160±20Hz
