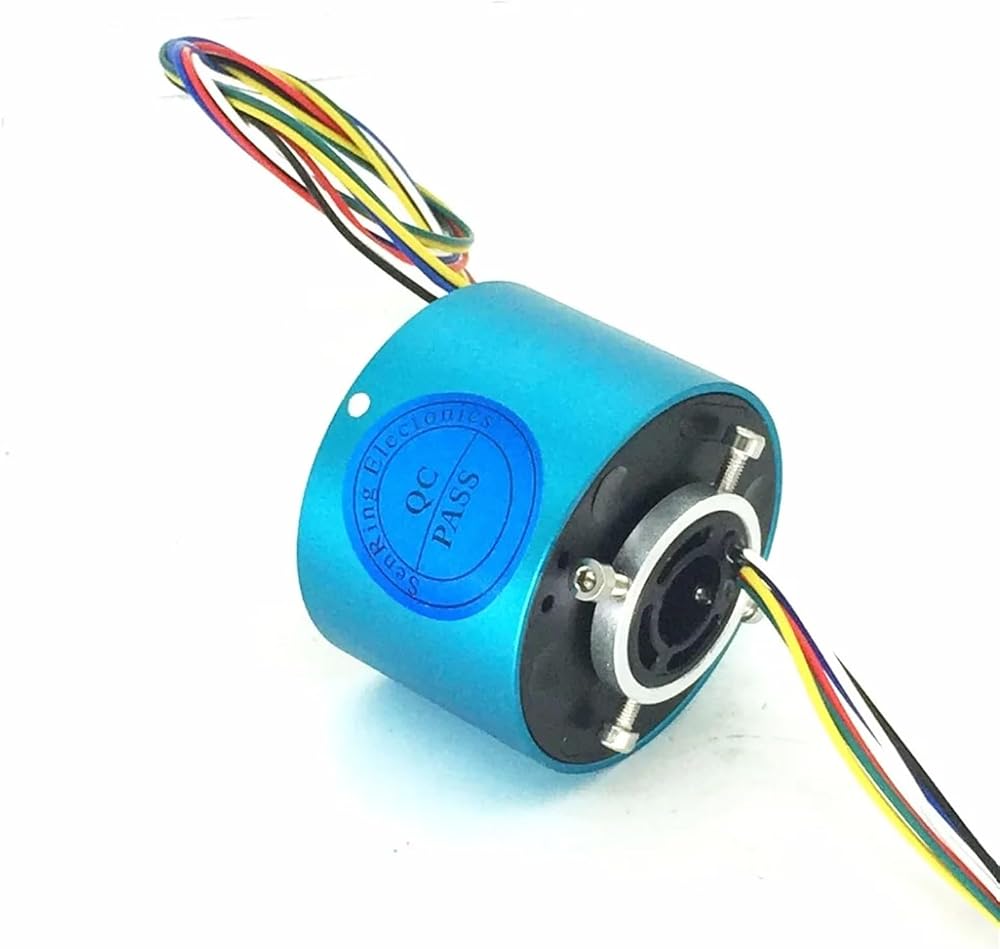

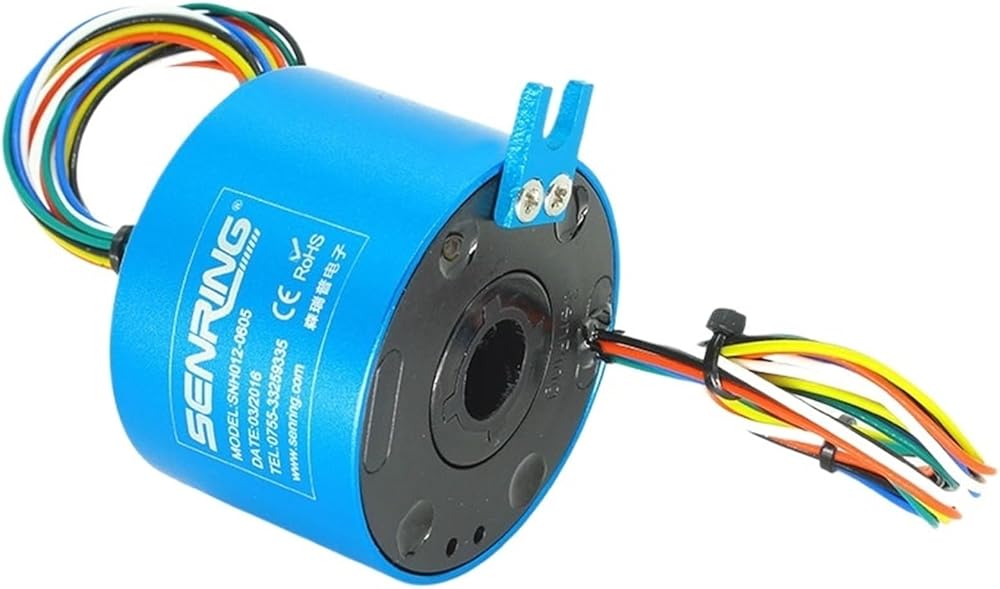

The SNH012, with 12.7mm through bore size and compact 56mm outside diameter, uses 's fiber technology which offers several advantages over conventional slip ring contacts including multiple points of contact per bundle, low contact per fiber and low contact wear rates.
SNH012(Standard) Dimensions
SNH012 Specifications(Standard)
Contact Material Precious metal ,Silver plated rings
Current Rating 5A per circuit
Number of Circuits 4
Operating Speed 600 rpm* continuous
Lead Wire Teflon Awg28,Awg22,Awg16(200 mm)
Voltage 400 VAC
Operating Temp. -40°C to 80°C
Working Humidity 60%RH
Approx. 8.25 g.m (for reference )
Dielectric Strength 800V@50Hz between each circuit
Insulation Resistance 700M@ 400VDC
Noise Less than 50 m @ 6 VDC, 50 mA, 5 rpm
Housing Material Aluminum Alloy
Protection IP51
==========
Brand/Model :
hole size : 12.7mm
OD : 56mm
power circuits : 4 circuits each 5A
Model Number : SNH012-0405
