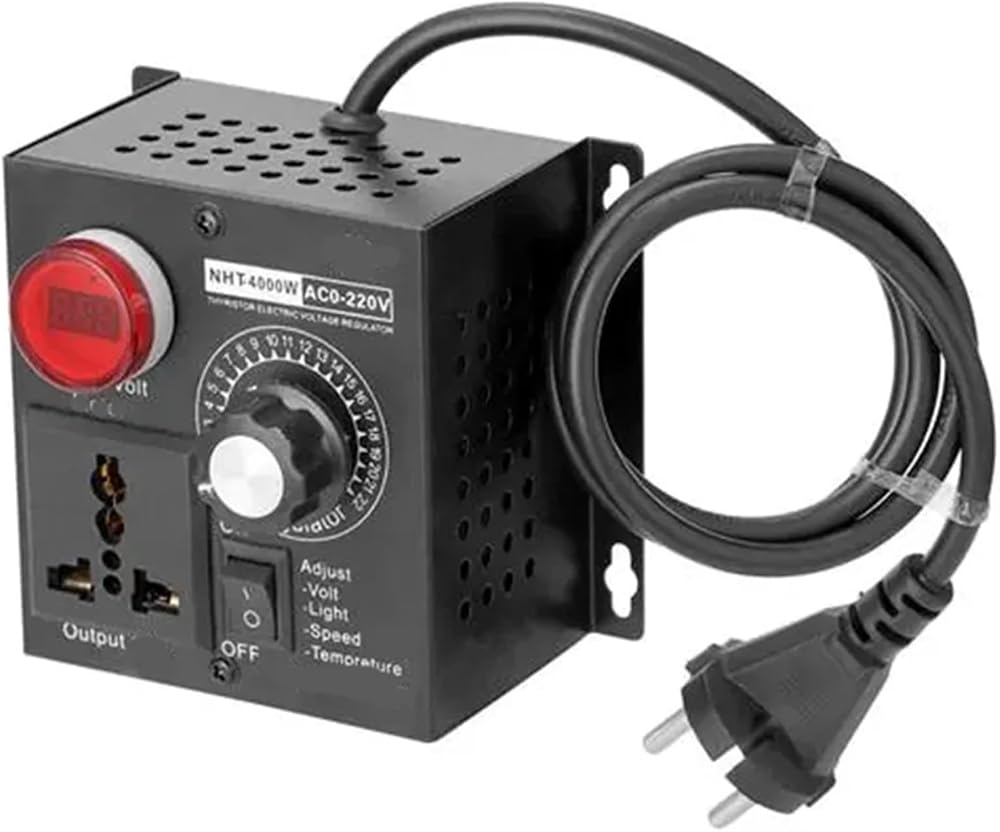

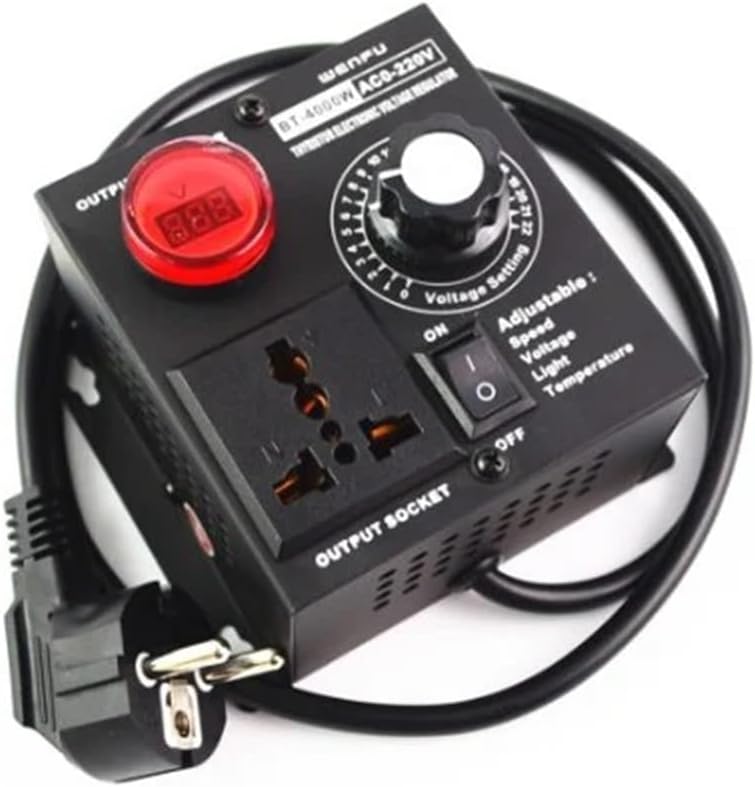

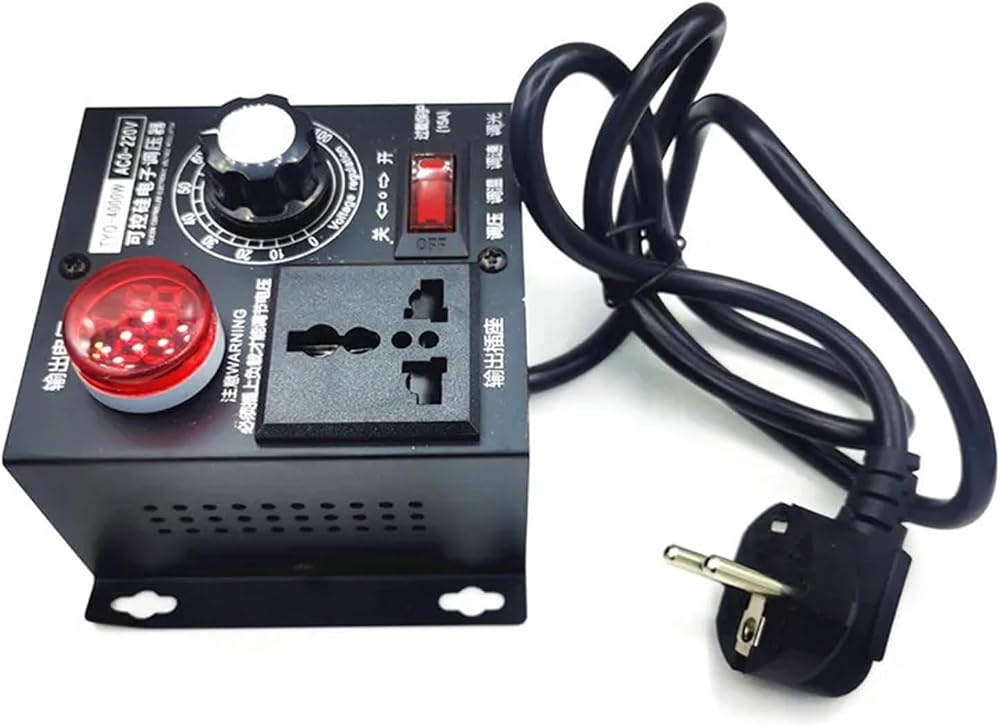

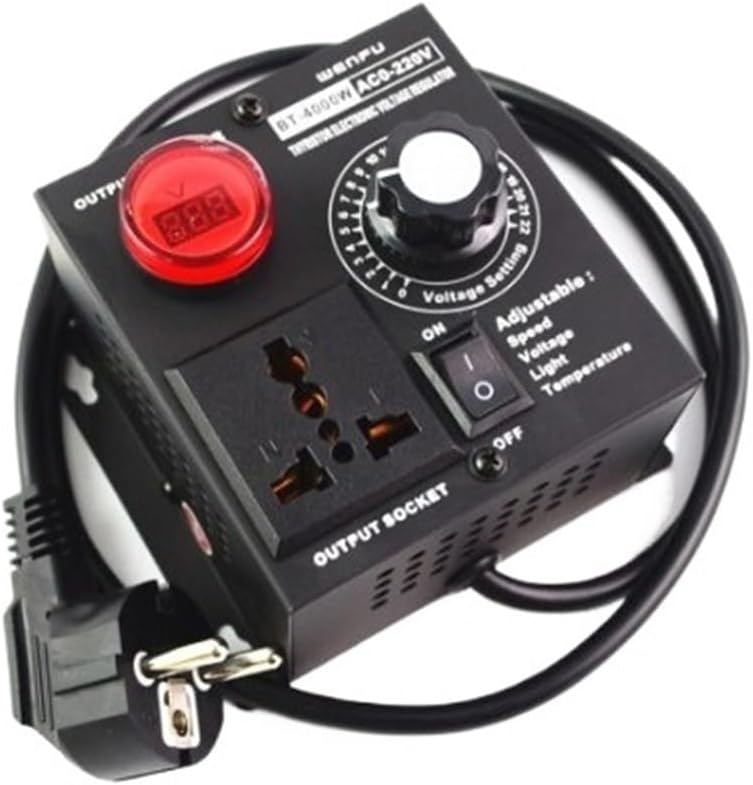

220V 4000W Electronic Voltage Regulator Single-Phase AC Adjustable Motor Speed Controller Heating Temperature Regulation
specification
Product name: silicon controlled electronic voltage regulator
Product model: BTA-4000W
Input voltage AC220V
Output voltage: 0-220V adjustable (when the output voltage is lower than 5V, the voltmeter will not work)
Ultimate power: 4000W (suitable for 2000W-3000W resistive load)
Range of voltage regulation: 0-220V stepless adjustable (under load) to 0V, starting from 10V.
Rated current: 9A
Limit current: 18A
Product features: zero delay, zero delay, voltage absorption circuit with wave crest can effectively protect high-power silicon controlled rectifier, and prevent surge, peak and RC absorption.
SCR model: STC
Silicon controlled rectifier, BTA41-600B/800B
Precautions and instructions for use
1. When the machine is empty, the measured output voltage is a virtual voltage. The correct output voltage can only be measured when a load of more than 20W is connected.
2. Input AC power and output AC power, not power.
3. The 4000W mentioned above refers to the limit power when working under resistive load, one-third of resistive load when carrying inductive load, resistive load refers to tungsten filament lamp, heating wire, etc., inductive load refers to series excited motor, etc., and electronic products with circuit board shall be used with caution.
4. The metal shell of this product must be safely grounded.
Electronic Voltage Regulator*1
==========
Motor Type : AC Motor
