Speed Control
AC 220V Motor Speed Controller Deceleration forward and reverse Engine speed regulator 6 Single row connection port 6W-250W

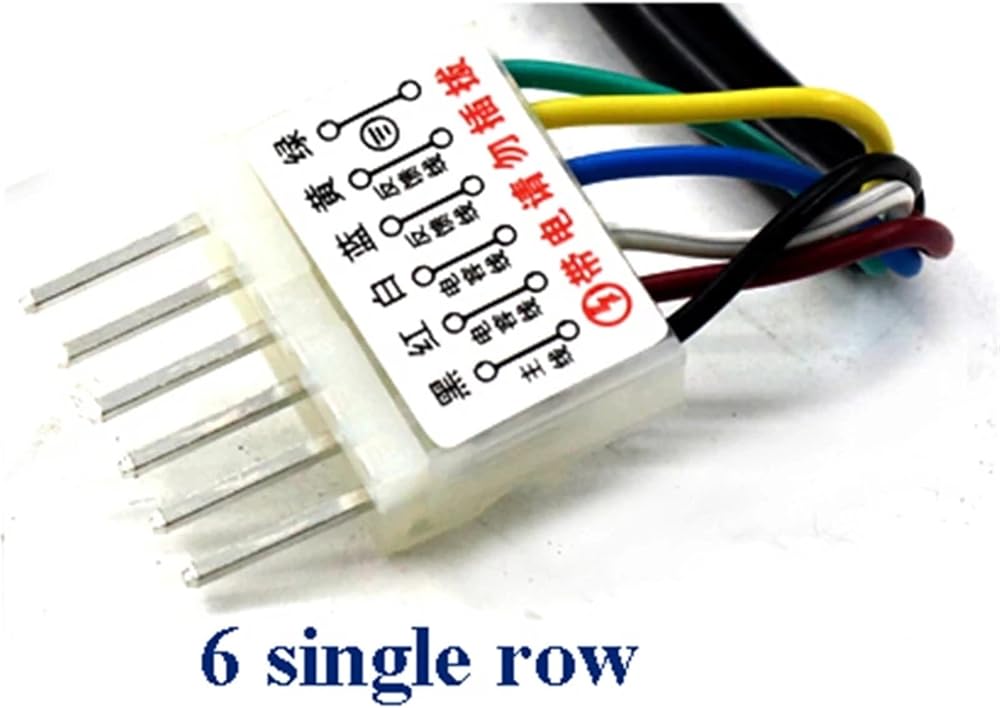

This product is 6 Single row interface
The of the speed controller:
Input voltage: 220 V AC 50 / 60Hz ± 10%
Rated power: 6 W, 15 W, 25 W, 40 W, 60 W, 90 W, 120 W, 200 W, 250 W
Range of speed regulation: 0-100%

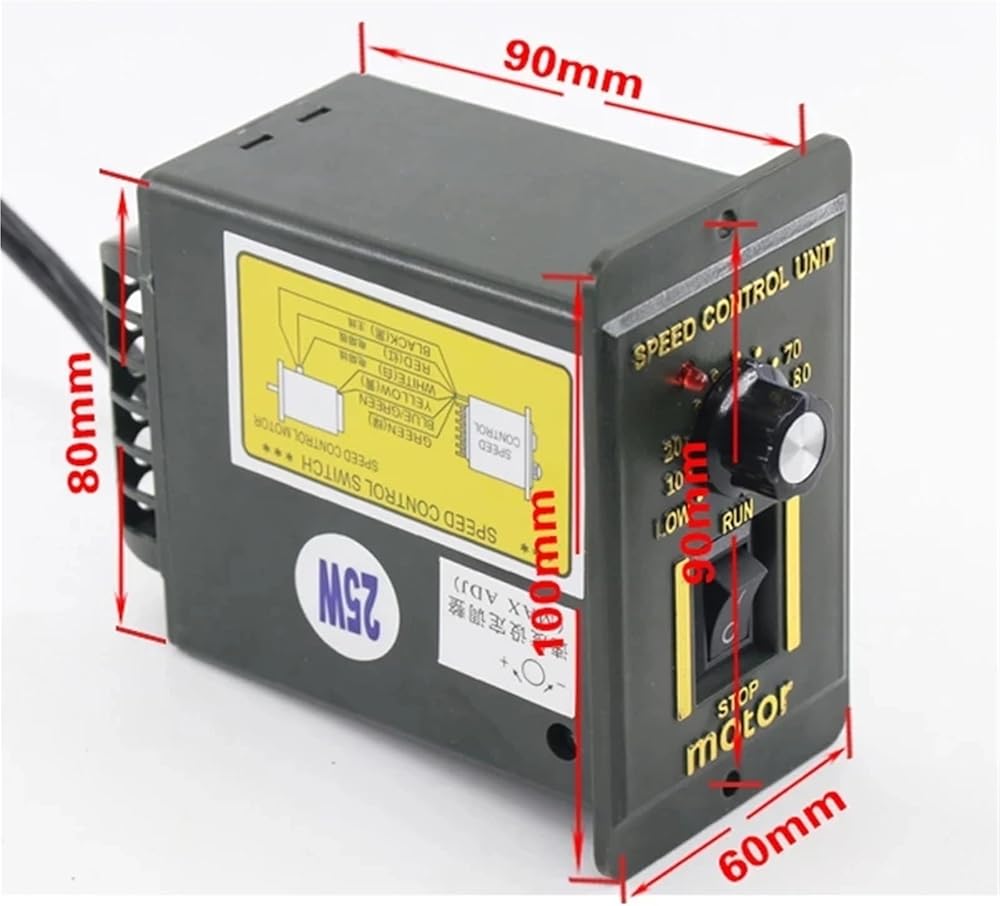

Dimension: 97 * 100mm
Ambient temperature: -10 ~ + 50
Speed range: 90-1400r / min 50Hz, 90-1700r / min 60Hz

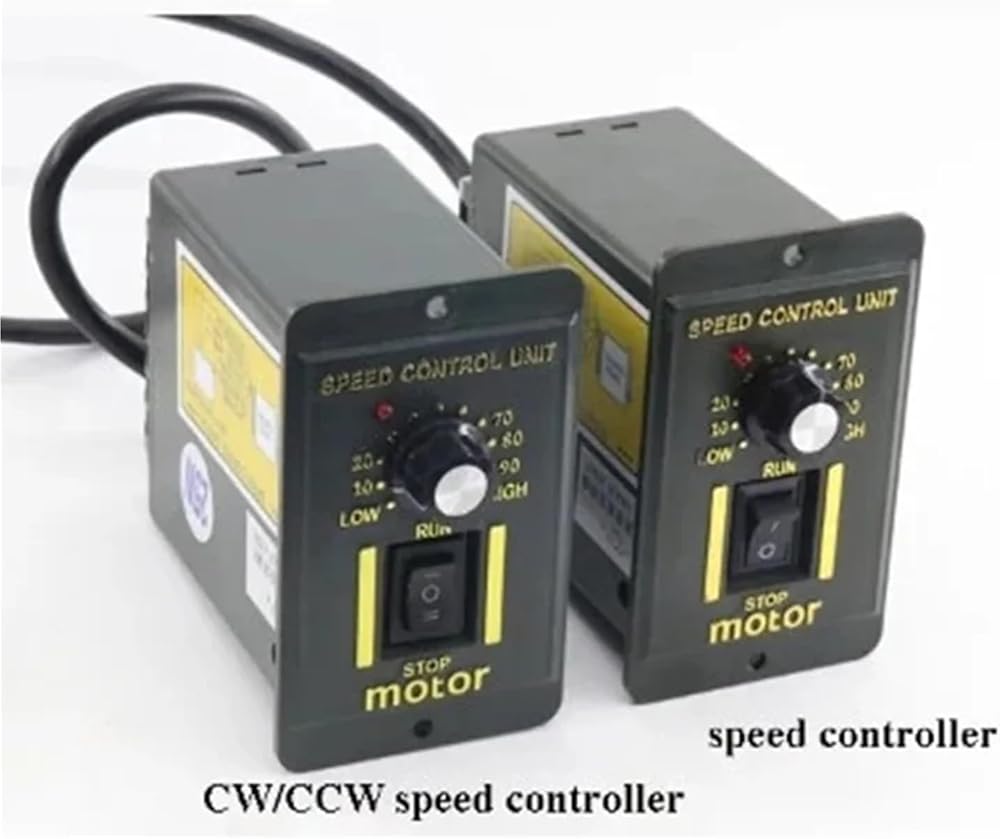

The Speed controller has 2 models : AC Speed controller and AC forward and reverse Speed controller.
The Speed controller has 2 interfaces: Single row six-pin interface and Double row type A interface.And the default interface is a single-row six-pin interface.
Notice:Be sure to set the regulator knob to "0" to avoid a large instantaneous current,causing damage to the controller !
==========
Type : 6 Single row interface
