Selector Switch
Dimensions
size
e:
Clamping thickness: 1 to 6 mm / 0.04 to 0.24 inches
Installation and clearance
Panel openings for buttons, switches, and indicators (holes for installation)
Connection by screw-type clamp terminal or plug-in connector or connection on a printed circuit board
Connection via connector
(1)
Aperture on finished board or stand
(2)
40 mm (minimum) / 1.57 inches minimum
(3)
30 mm (minimum) / 1.18 inches minimum
(4)
Ø 22.5 mm / 0.89 inch recommended (Ø 22.3 mm 0 +0.4 / 0.88 inch 0 +0.016 )
(5)
45 mm (minimum) / 1.78 inches (minimum)
(6)
32 mm (minimum) / 1.26 inches (minimum)
main information
Product Series
Harmony XB4
product type

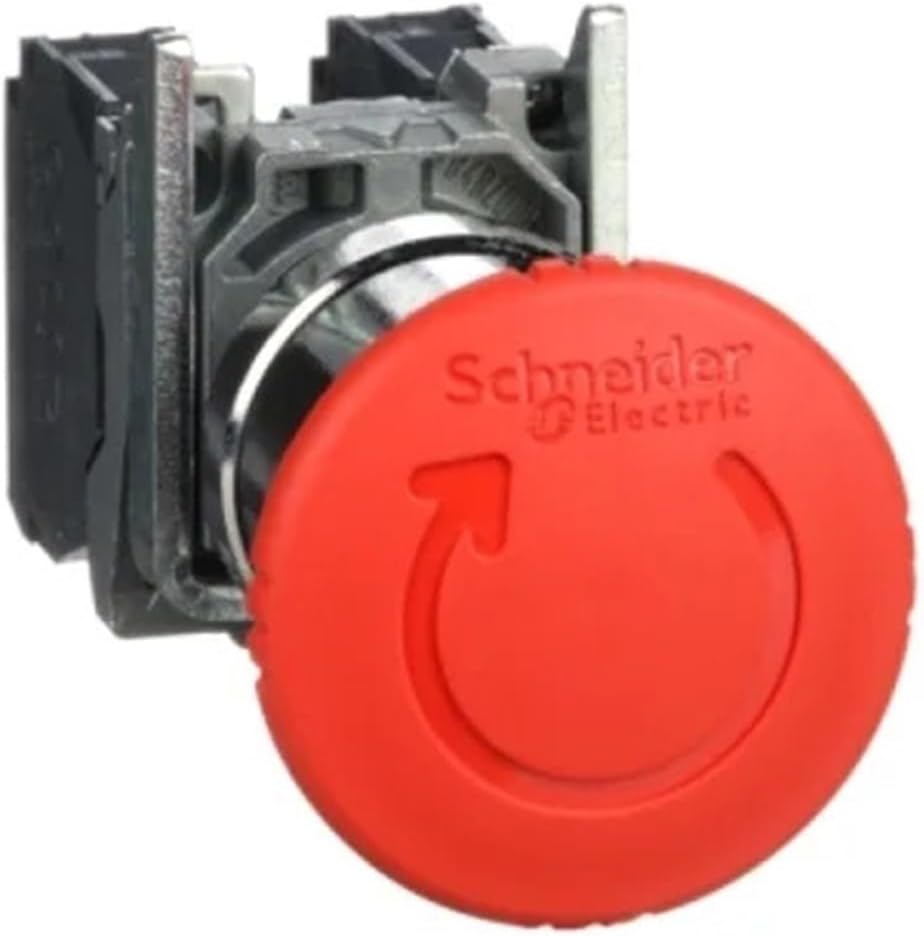

Emergency switching off push-button
Emergency stop push-button
Product short name
XB4
Border material
Nickel-plated metal
Material of retaining ring
Zamak
Mounting diameter
22 mm
Individual sales quantity
1
Signal unit head shape
Round
Operator type
Triggering and mechanical locking
Joystick type
standard
Reset
Rotation reset
Joystick shape
Red mushroom head Ø 40 mm, unlabeled
Contact type
1NO + 1NC
Contact action
Slow break
Wiring capacity
Bolt tightening,> = 1 x 0.22 mm² without ferrule terminal in accordance with EN 60947-1
Additional information
height
47 mm
width
40 mm
depth
82 mm
ISO n ° 1 terminal
(13-14) NO
product weight
0.13 kg
High-pressure washer impedance
7000000 Pa at 55 ° C, Distance: 0.1 m
Touch line use
Standard contacts
Force open
With Annex K in accordance with EN / IEC 60947-5-1
Operational Communication
1.5 mm (NC changes electrical state)
2.6 mm (NO changes electrical state)
4.3 mm (total stroke)
Control
44 N
Mechanical life
300000 times
Tightening
0.8 1.2 Nm conforming to EN 60947-1
Screw head shape
Cross compatible with no 1 screwdriver
Cross compatible with pozidriv No 1 screwdriver
Slotted slot compatible with flat Ø 4 mm
Slotted slot compatible with flat Ø 5.5 mm screwdriver
Contact material
Silver alloy (silver / nickel)
Short circuit protection
10 A fuse type gG conforming to EN / IEC 60947-5-1
Conventional heating current [Ith]
10 A conforming to EN / IEC 60947-5-1
Rated insulation voltage [Ui]
600 V (pollution degree 3) conforming to EN 60947-1
Rated impulse withstand voltage [Uimp]
6 kV conforming to EN 60947-1
Rated operating current [Ie]
3 A at 240 V, AC-15, A600 conforming to EN / IEC 60947-5-1
6 A at 120 V, AC-15, A600 conforming to EN / IEC 60947-5-1
0.1 A at 600 V, DC-13, Q600 conforming to EN / IEC 60947-5-1
0.27 A at 250 V, DC-13, Q600 conforming to EN / IEC 60947-5-1
0.55 A at 126 V, DC-13, Q600 conforming to EN / IEC 60947-5-1
1.2 A at 600 V, AC-15, A600 conforming to EN / IEC 60947-5-1
Electrical life
Electrical reliability
Equipment Introduction
Products (non-parts)
surroundings
Protective treatment
TH
Ambient storage temperature
-40 70 ° C
Operating temperature
-40 70 ° C
Electric shock protection level
Class I conforming to IEC 60536
IP protection level
IP66 conforming to IEC 60529
IP67
IP69
IP69K
protection rating
13
4X
IK protection level
IK06 according to IEC 50102
Standards compliant
EN / IEC 60204-1
EN / IEC 60947-1
UL 508
IEC 60364-5-53
EN / ISO 13850
CSA C22.2 No 14
EN / IEC 60947-5-1
EN / IEC 60947-5-4
JIS C8201-5 -1
EN / IEC 60947-5-5
JIS C8201-1
certified product
RINA
BV
GL
LROS (Lloyds register of shipping)
DNV
CSA
is UL recognized
Anti-vibration
5 gn (f = 2 500 Hz) conforming to IEC 60068-2-6
Impact resistance
30 gn (duration = 18 ms) for half-sine impact according to IEC 60068-2-27
50 gn (duration = 11 ms) for half-sine impact according to IEC 60068-2-27
==========
Current : 10A
Material : plastic
Switch Type : Knob switch
Model Number : XB4BS8445
Item Type : SWITCHES
Features : 22 mm
