Description:

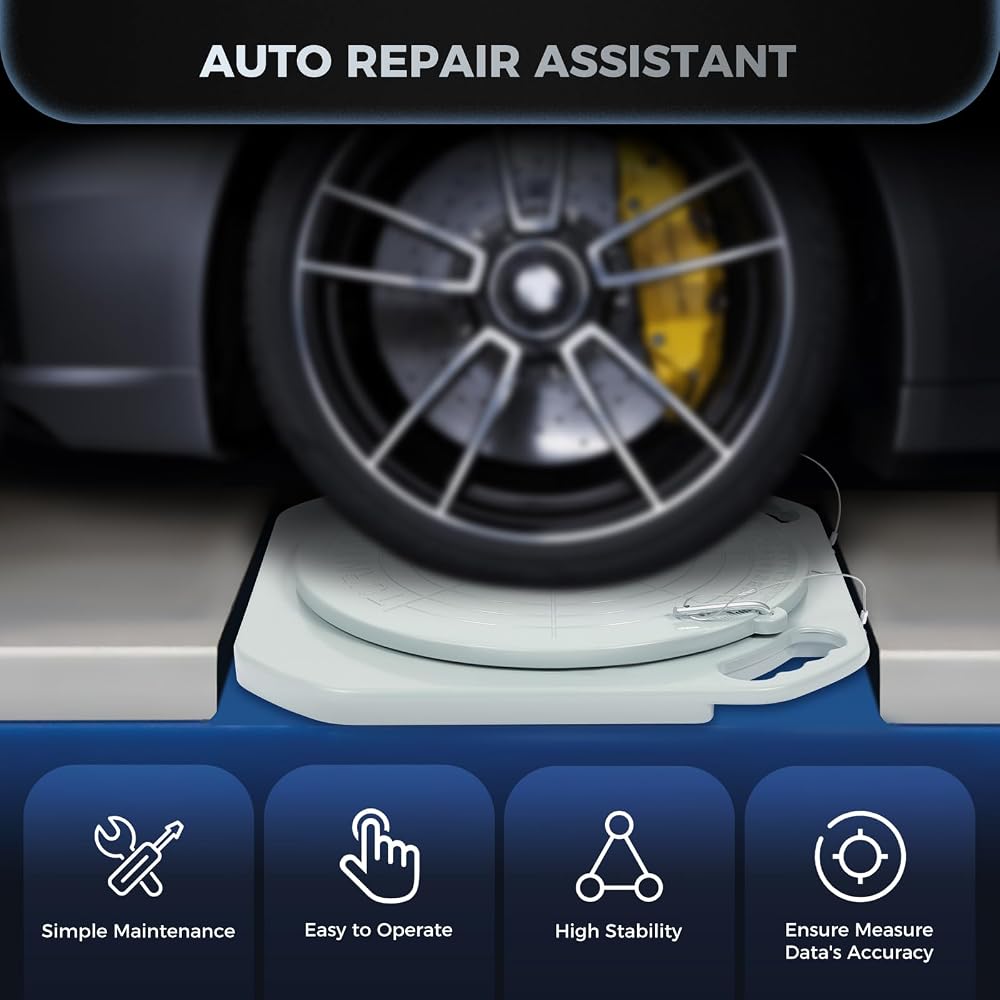

The wheel alignment turn plates are one of the important components of the four-wheel alignment instrument, which can facilitate the measurement of steering angle and ensure adjustment accuracy as the necessary supporting product during the four-wheel alignment. Meanwhile, as technical equipment in four-wheel alignment, the wheel alignment turn plates have become a good assistant for improving the quality and efficiency of automotive maintenance due to their excellent measurement accuracy, wide applicability, sturdy and durable structure, and simple operation process.

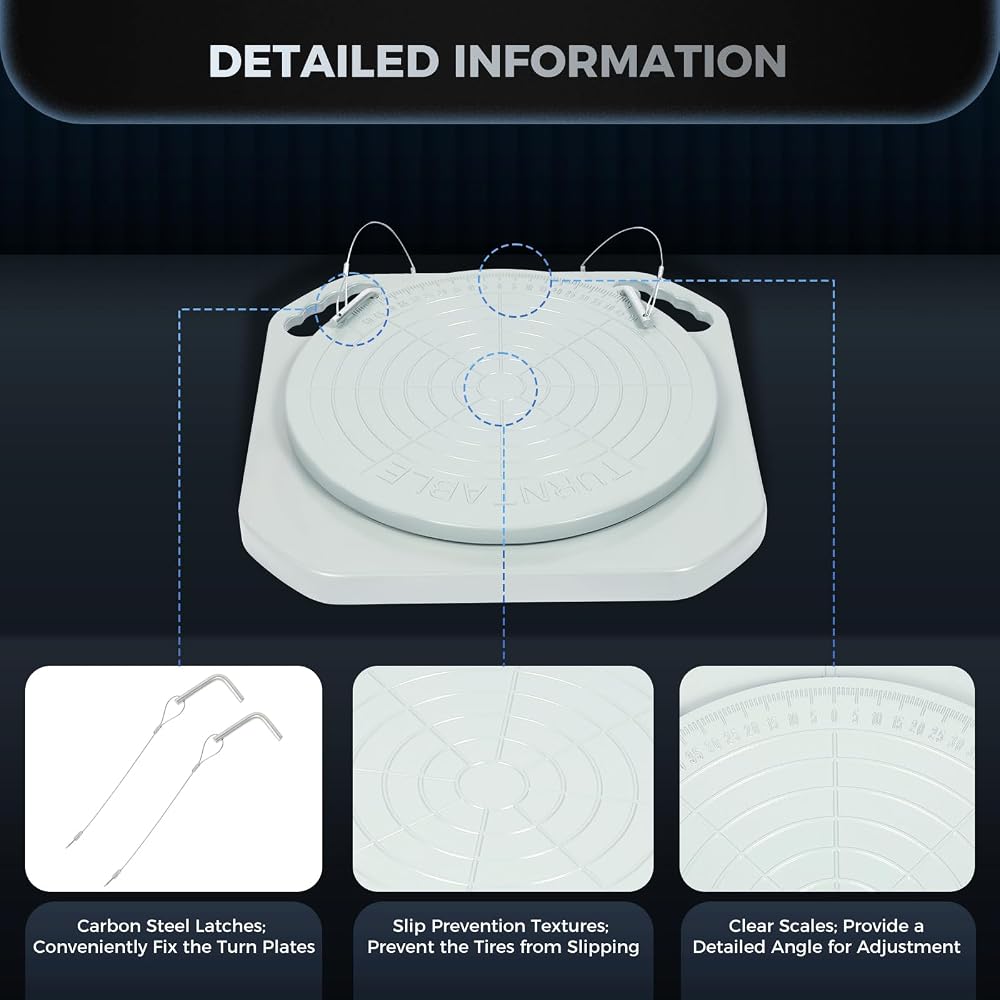

Details:
Latches: They are made of high-quality carbon steel and conveniently fix the turn plates.
Anti-slip Textures: They are on the surface of turn plates and can prevent the tires from slipping.

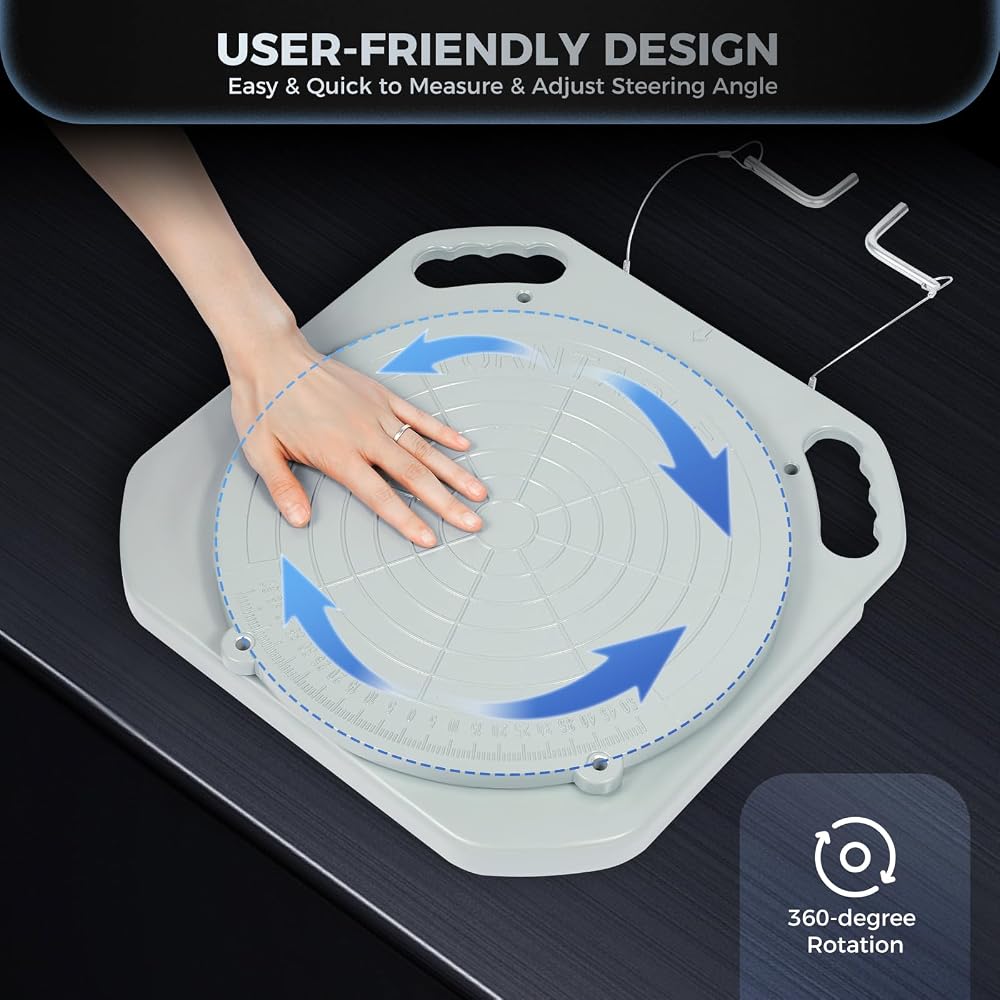

Clear Scales: They are beside the handles and can provide a detailed angle for adjustment without a computer display.

Application:

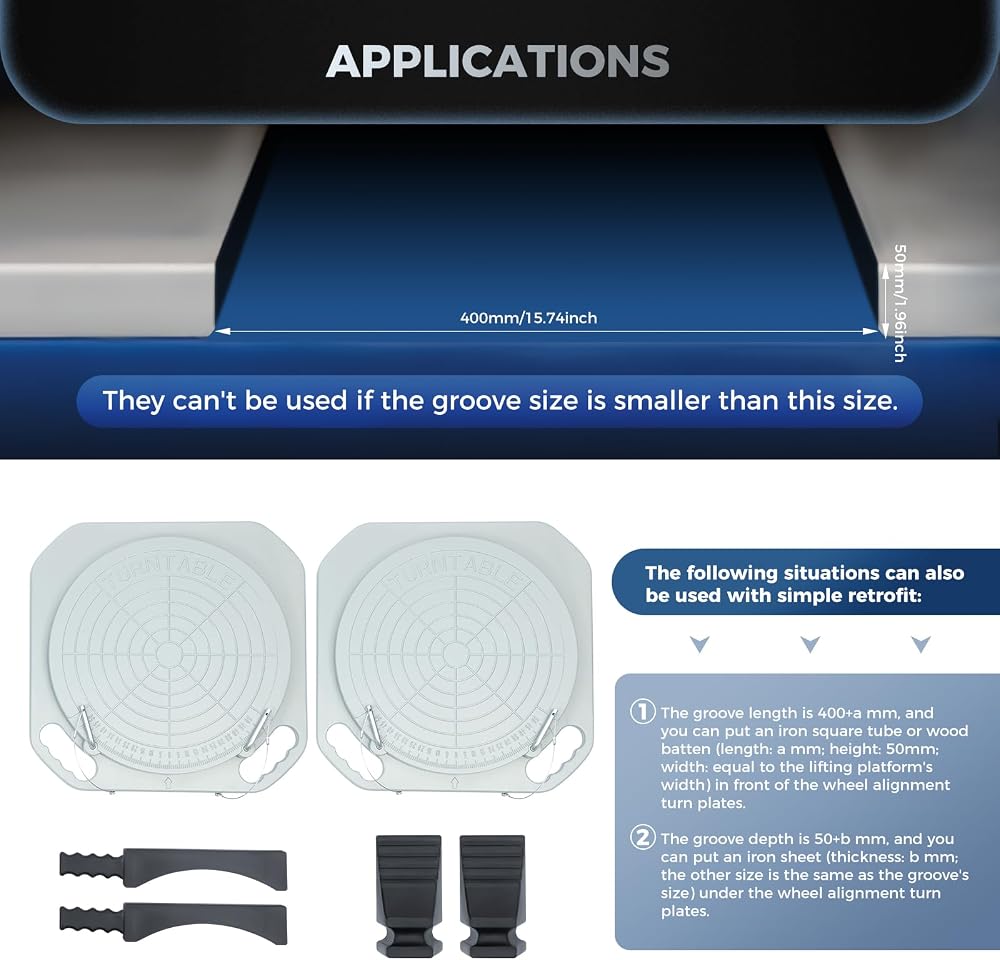

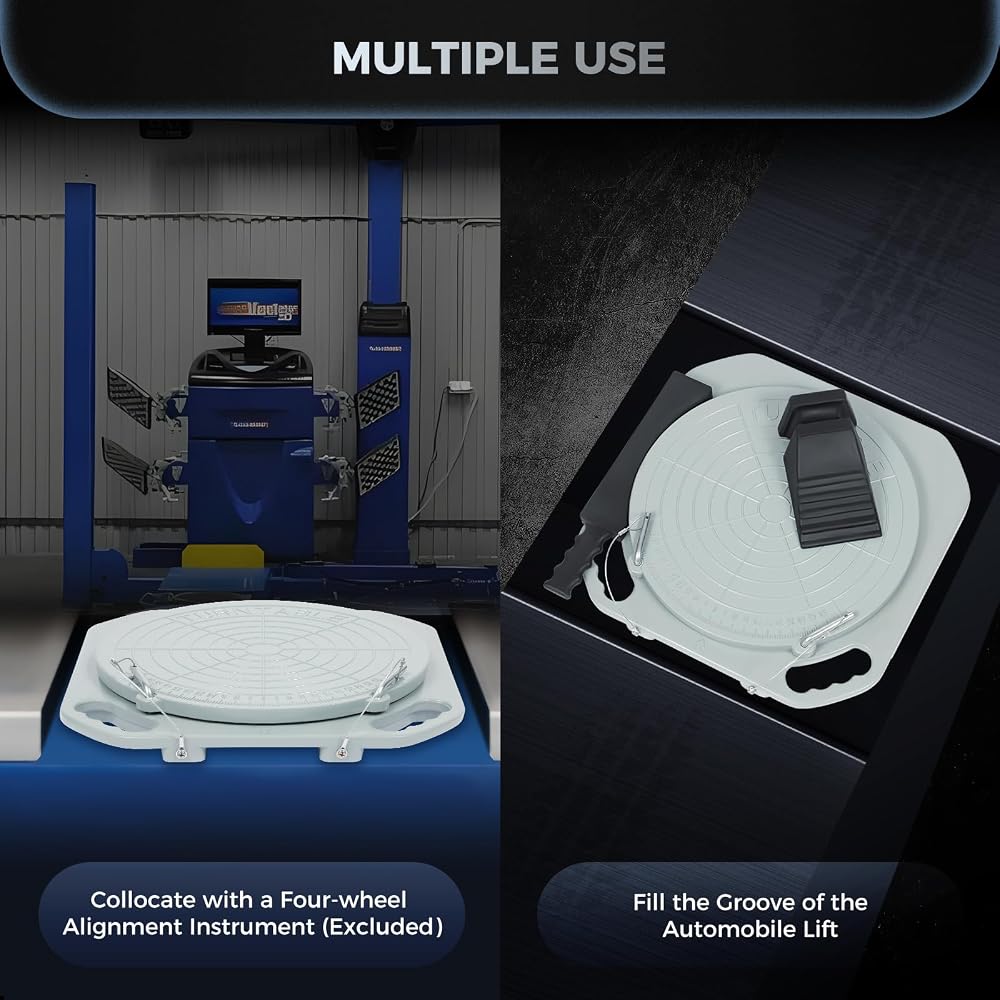

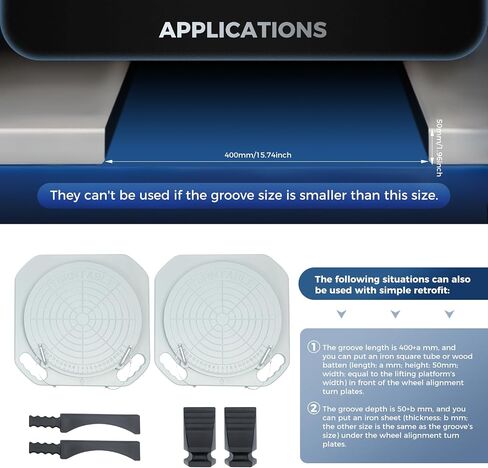

They can be applied to the automobile lift's groove and the groove size is 15.74 (length) * 1.93 (depth) inches. They can't be used if the groove size is smaller than the size. The following situations can also be used with simple retrofit: the groove length is 400+a mm, and you can put an iron square tube or wood batten (length: a mm; height: 50mm; width: equal to the lifting platform's width) in front of the wheel alignment turn plates; the groove depth is 50+b mm, and you can put an iron sheet (thickness: b mm; the other size is the same as the groove's size) under the wheel alignment turn plates.

Specifications:
Color: Grey

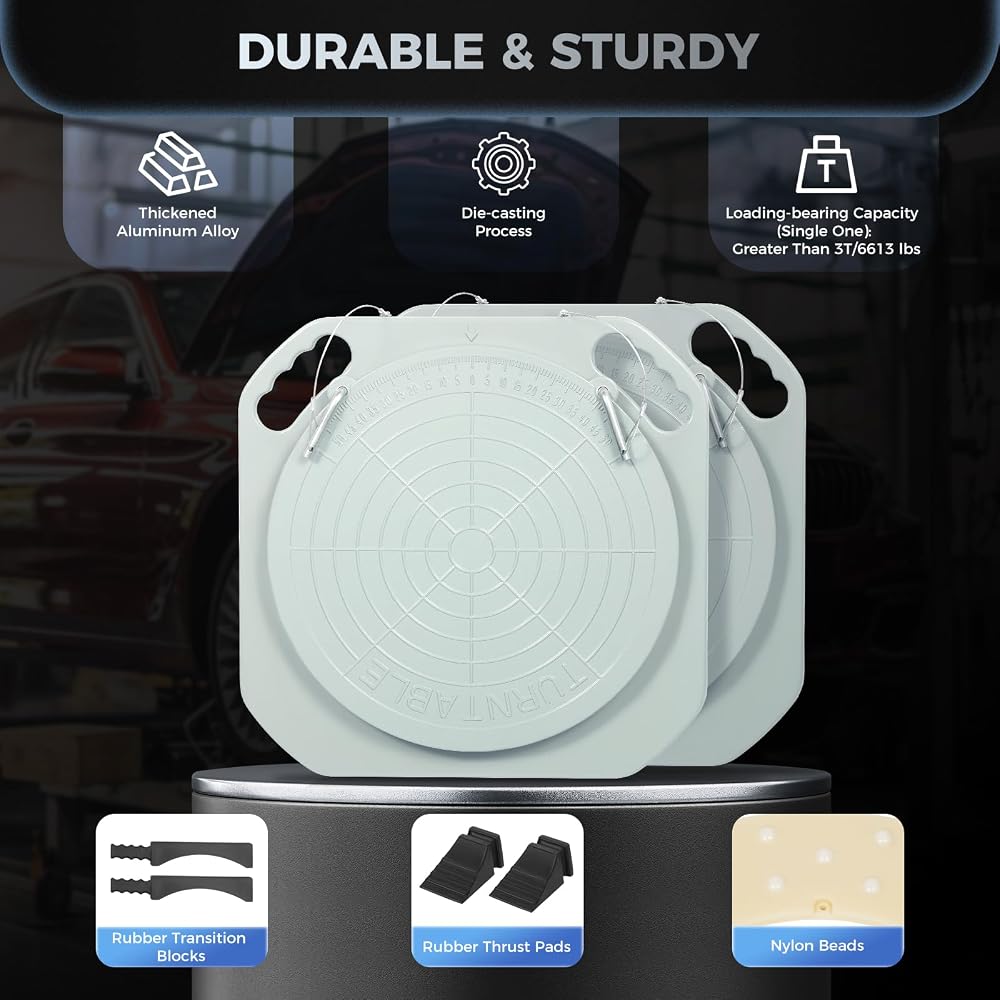

Material: Aluminum Alloy, Rubber, Nylon, Carbon Steel
Process: Die-casting Process
Loading-bearing Capacity (Single One): Greater Than 3T/6613 lbs
Suitable Groove's Size(Length*Depth): 400*50mm/15.74*1.96inch
Gross Weight: 15.8kg/34.83lbs

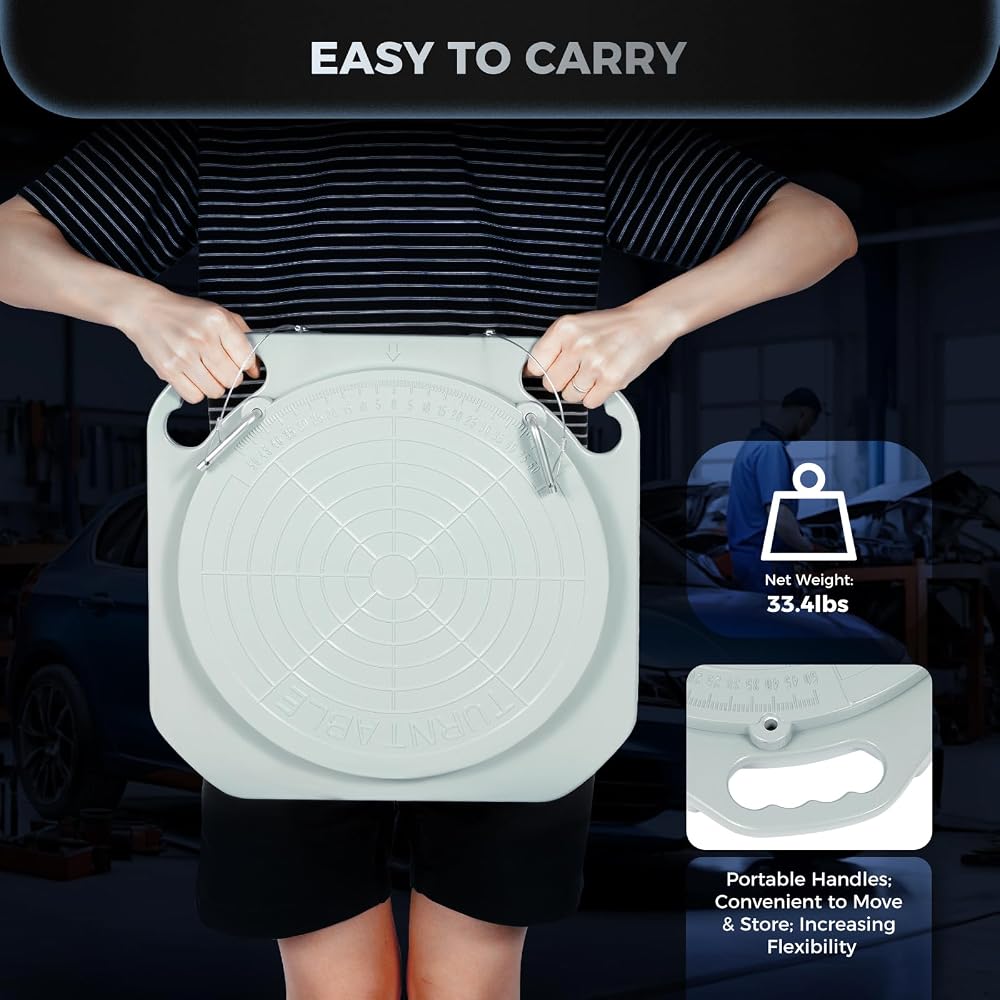

Net Weight: 15.15kg/33.4lbs

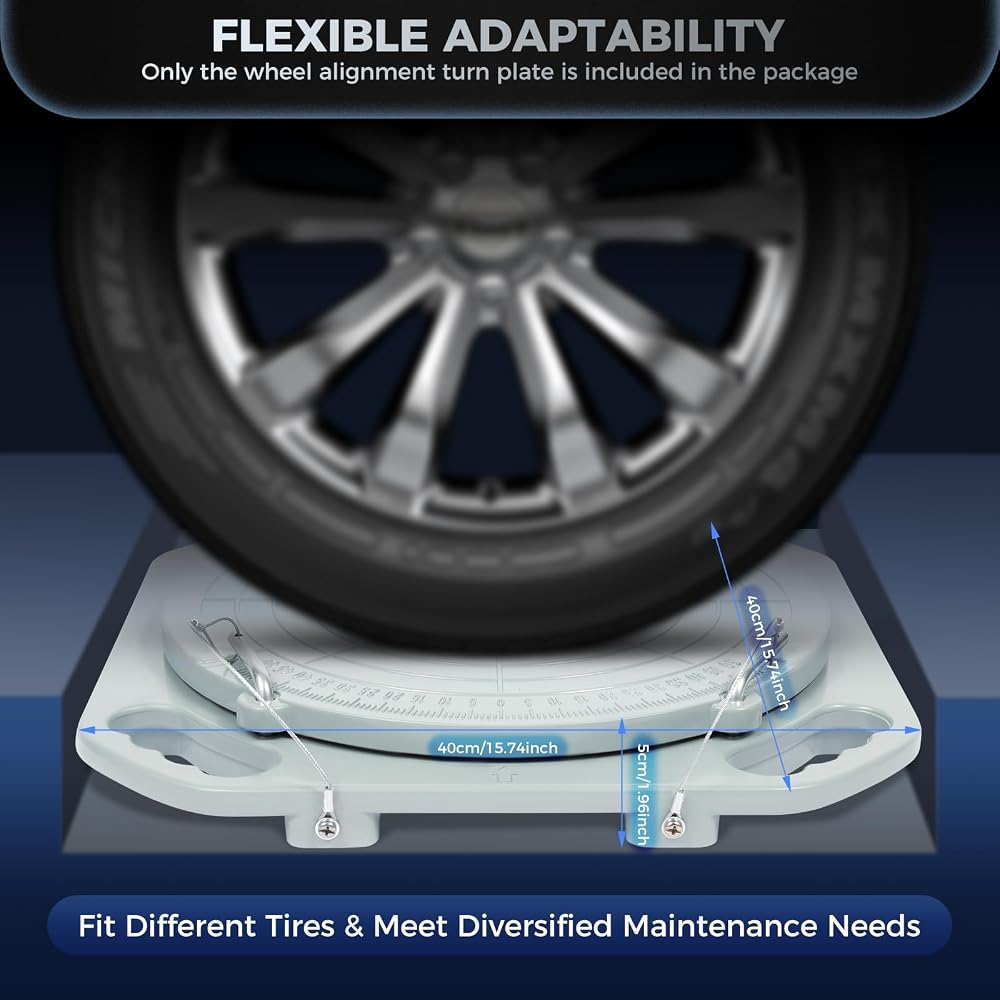

Single Product Size: 40*40*5cm/15.74*15.74*1.96inch
Package Size: 48*41.5*12cm/18.89*16.33*4.72inch

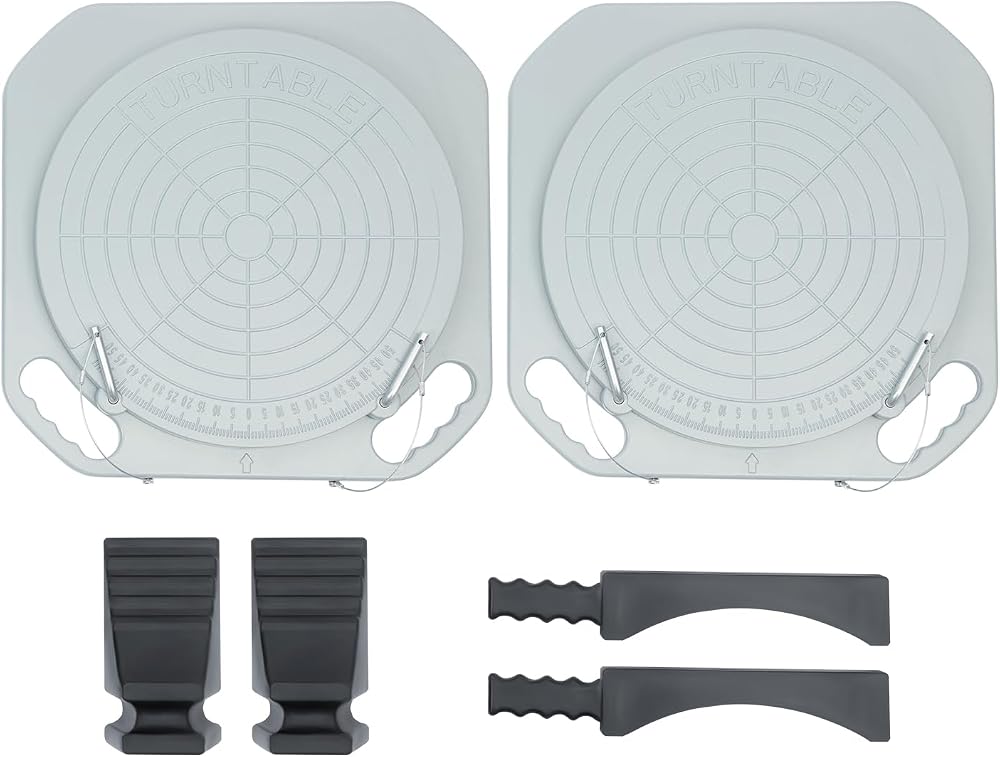

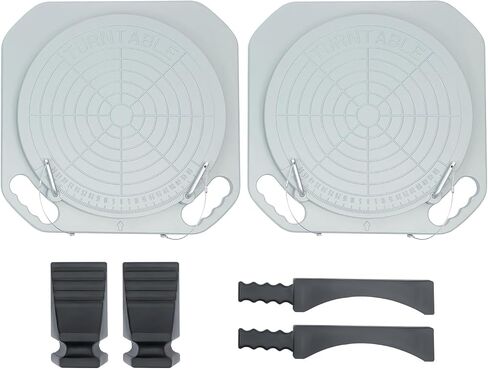

Package Included:
2*Wheel Alignment Turn Plates
2*Transition Blocks
2*Thrust Pads
2 Pairs*Latches

Notes:
1.Please try to avoid small particles entering the inner disk and they can't be washed with water. The compressed air is available for cleaning.
