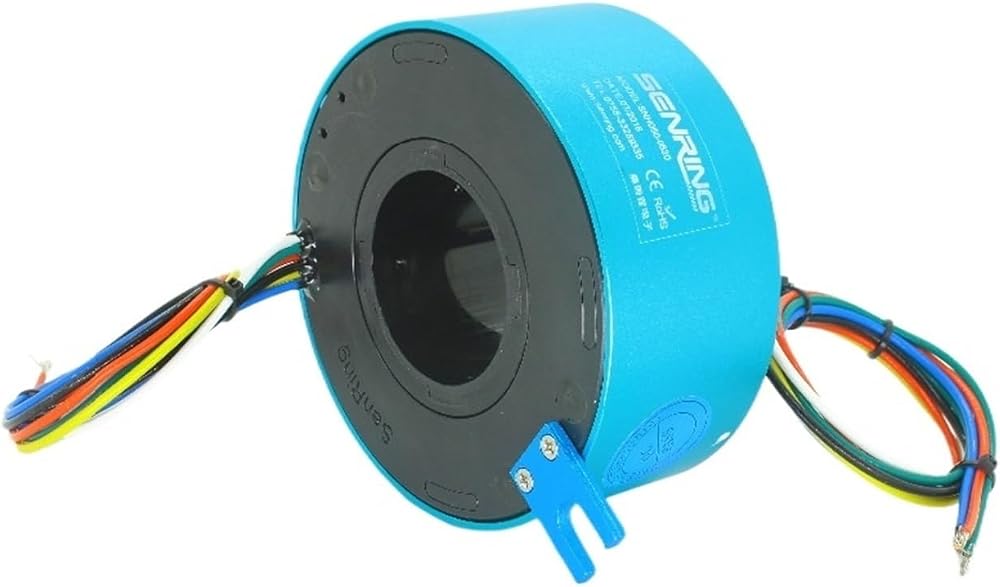

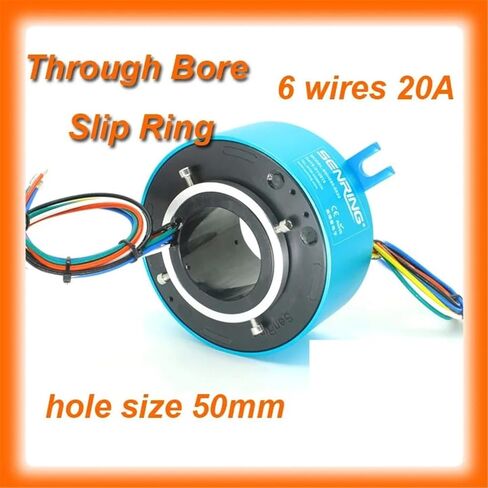

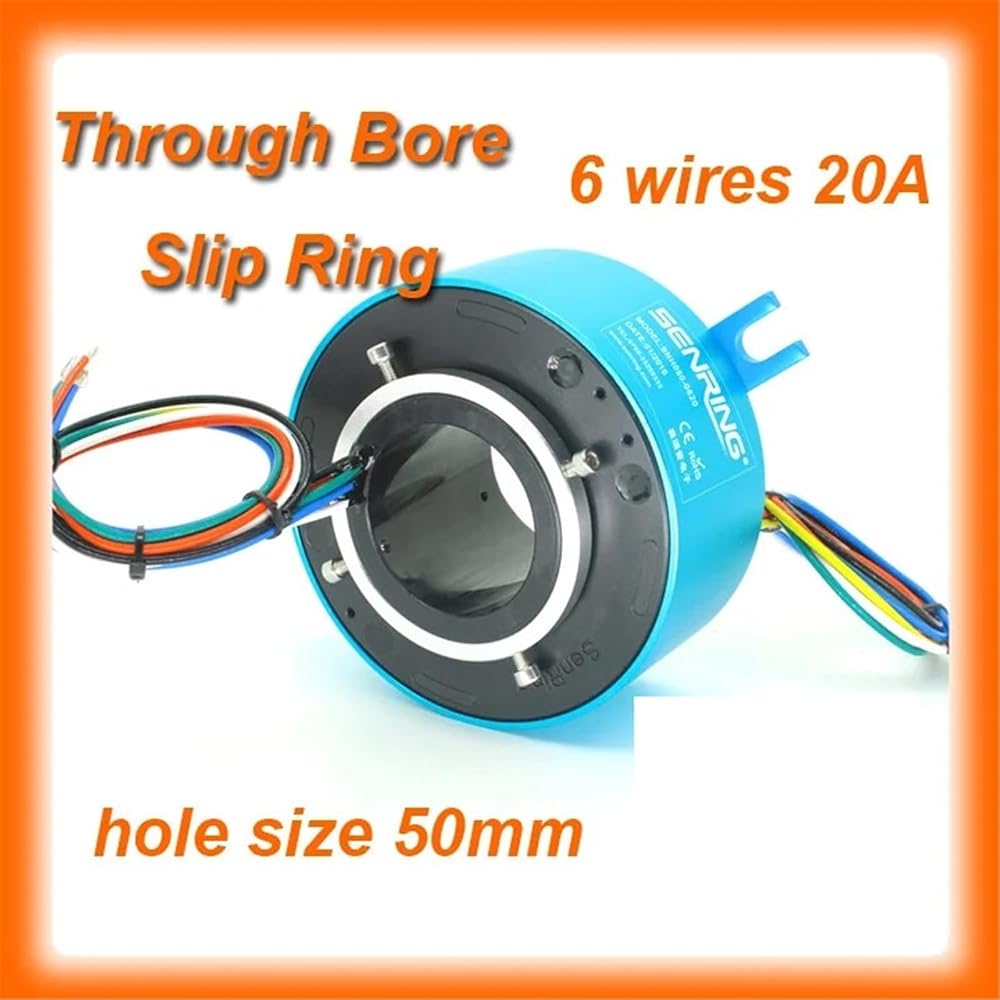

The SNH050, with 50.00mm through bore size and compact 120mm outside diameter, uses 's fiber technology which offers several advantages over conventional slip ring contacts including multiple points of contact per bundle, low contact per fiber and low contact wear rates.
SNH050(Standard) Dimensions
SNH050 Specifications(Standard)
Contact Material Precious metal ,Silver plated rings
Current Rating 20A
Number of Circuits 6
Operating Speed 300 rpm* continuous
Lead Wire Teflon Awg28,Awg22,Awg16,Awg10 (200 mm)
Voltage 600 VAC
Operating Temp. -40°C to 80°C
Working Humidity 60%RH
Approx. 9.95 g.m (for reference )
Dielectric Strength 1000V@50Hz between each circuit
Insulation Resistance 1000M@ 600VDC
Noise Less than 50 m @ 6 VDC, 50 mA, 5 rpm
Housing Material Aluminum Alloy
Protection IP54
==========
Model Number : black
Brand/Model :
hole size : 50mm
OD : 120mm
power circuits : 6 circuits each 20A
Model Number : SNH050-0620
