Speed Control

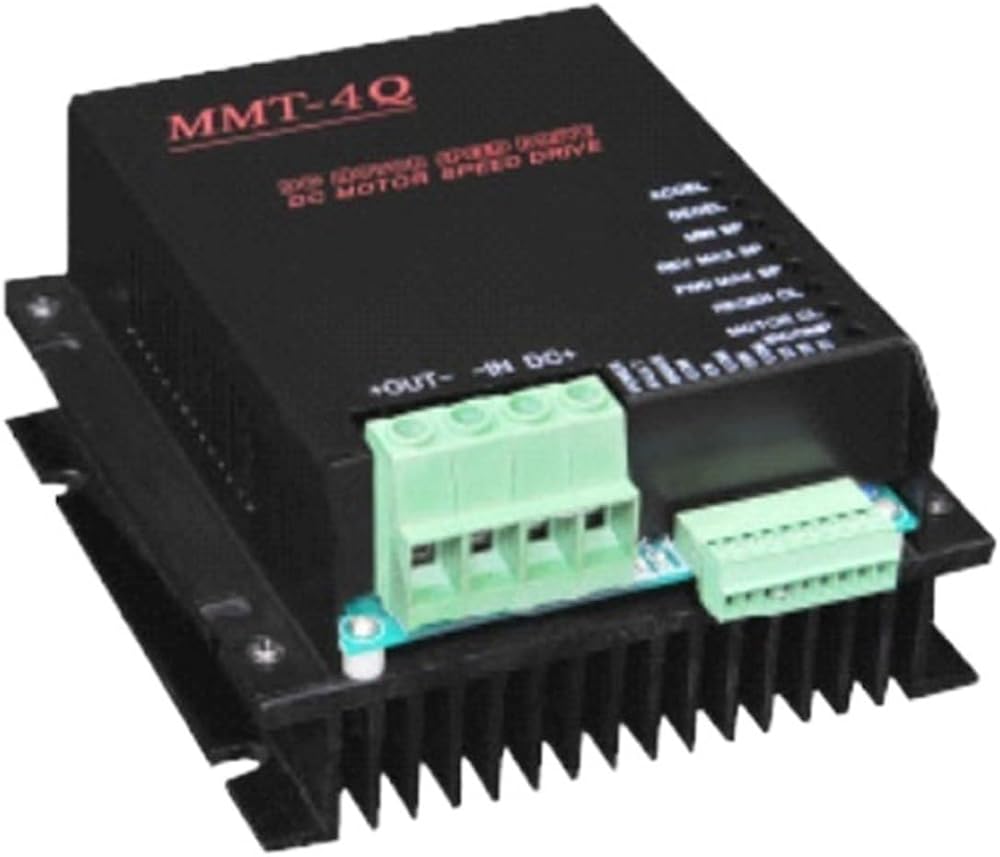

48v 800w 1000W regen pwm motor speed controller brake forward&reverse 48v motor controller
DC48RT50BL
1 PULSE WIDTH MODULATION:Motor runs quieter, with greater efficiency and less maintenance, longer life.
2. FOUR QUADRANT REVERSIBLE OPERATION
3. REGENERATIVE BRAKING:No contactors required. No electromechanical components to overheat or wear out.

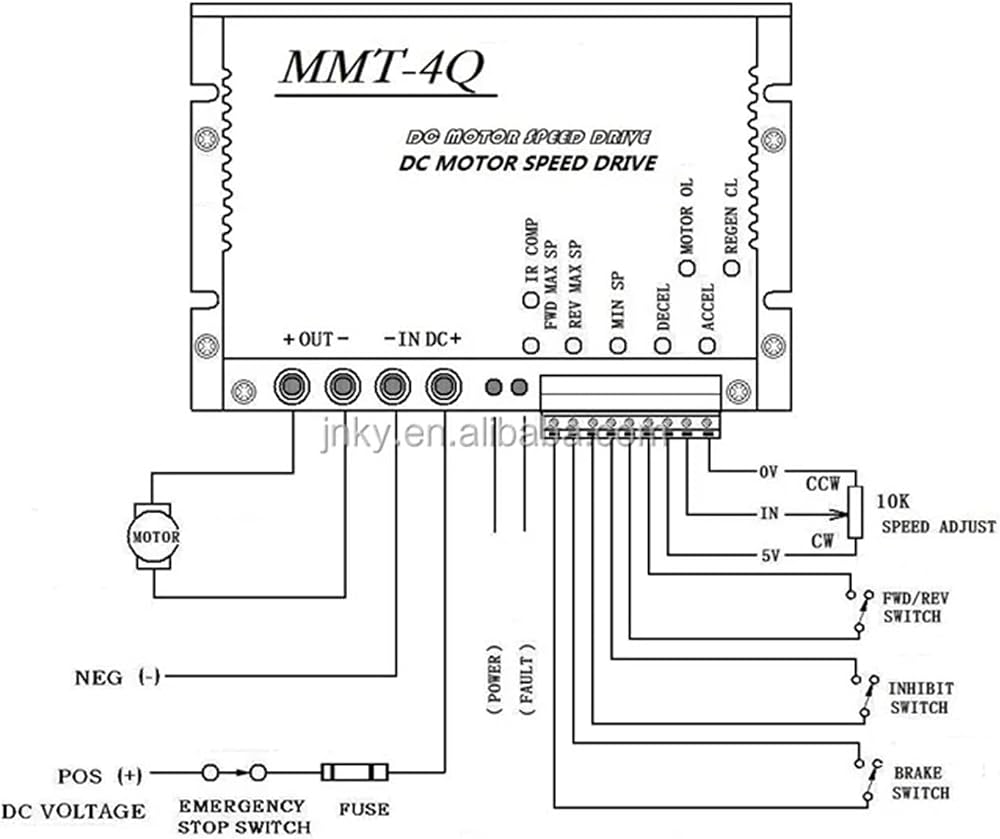

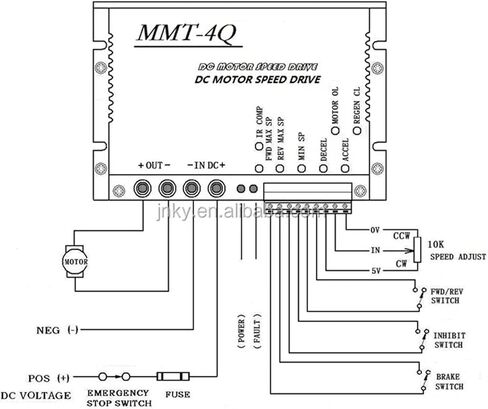

4. ENABLE / BRAKE / DIRECTION TERMINALS
Choose a function by simply opening or closing a dry contact or through an open collector transistor.
5. STATUS LEDs:Power and Fault LEDs provide a visual status of the drive.
6. Forward and reverse can be set separately
7. Output current can be set
8. Braking current can be set
9. compensatioN
10. Standard analog control mode: Analog:0-5V or potentiometer
11. Over voltage & less voltage protection
12 OVER TEMPERATURE PROTECTION
Drive will fold the output power back to prevent from overheating Drive will fault if it still remains
Technical parameters
Input voltage range
DC48V
Max output current
50A
Operating mode
Speed mode mode, Four-quatrant mode, Regenerative Bracking
Control ways
Potentiometer, pwm, analog signal 0-5V
Protection
Abnormalitise like over current, overheating, over voltage, less voltage and short circuit will start the protection
Temperature protection
When the temperature is 70, the controller will reduce output by overheating protection and stop output.
Working Temperature
-10 -- +60
Ambient humidity
Relative humidity less than 80RH
Size
L*W*H = 135*135*70 mm
Weight
900g
48v 800w 1000W 1500W regen pwm motor speed controller brake forward&reverse 48v motor controller
48v 800w 1000W 1500W regen pwm motor speed controller brake forwardreverse 48v motor controller
Four-Quadrant
==========
Model Number : MMT-DC48RT50BL
Motor Type : Motor
