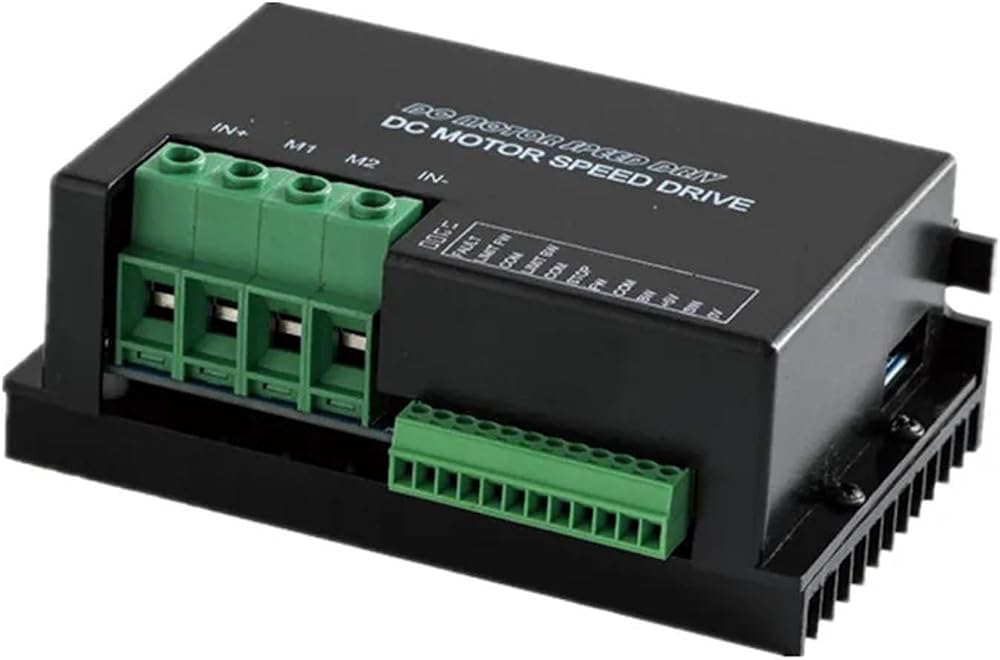

12V-24V-36V-48VPWM Brush Motor Controller/Reversing, Enable / Brake / Direction Terminals
variety of control mode: potentiometer analog control pulse width control
Wide Input Range
Small size
TECHNICAL PARAMETERS
Soft start time: 0.2-5S
Soft stop time: 0.2-5S
Analog control signal: 0-5V (wired to earth ground)
Signal input impedance more than 200K
Speed accuracy: 1%
Speed adjustable range: 100:1
Speed Ratio: 1:80
Ambient temperature: 0 Celsius degree - 50 Celsius degree
Relative Humidity: Below dew point
Weight:300g
FEATURES
series drive is DC-4Q Regenerative & Braking Reversible PWM series Drive, it has quickly dynamic response, smooth operating, works well and perfect functions.
Pulse Width Modulation
Motor runs quieter, with greater efficiency and less maintenance, longer life.
Four Quadrant Regenerative Operation
Regenerative Braking
No contactors required. No electromechanical components to overheat or wear out.

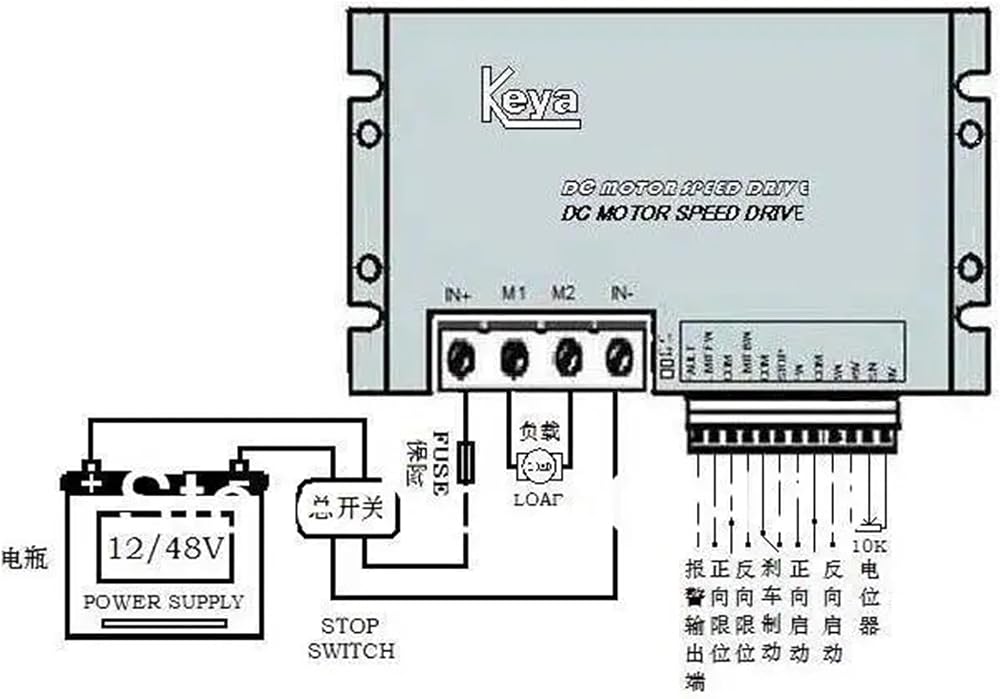

ENABLE / BRAKE / DIRECTION TERMINALS
Choose a function by simply opening or closing a dry contact or through an open collector transistor.
Status LEDs
Power and Fault LEDs provide a visual status of the drive.
Forward and reverse can be set separately
Output current can be set
Braking current can be set
compensation function
Standard analog control mode:
Analog: 0-5V or potentiometer
Over Temperature Protection
Drive will fold the output power back to prevent from overheating. Drive will fault if it still remains too .
==========
Model Number : DC12/48RT50BL-XW
Motor Type : Motor
Ambient temperature: : 0- 80
weight : 300g
dimension : 123mm * 85mm * 42mm
Type : Motor Controller
input volt : 12-48VDC
out put volt : 0-48VDC
rated current : 20A
controller current : 40A
control mode : 0-10V or potentiometer
