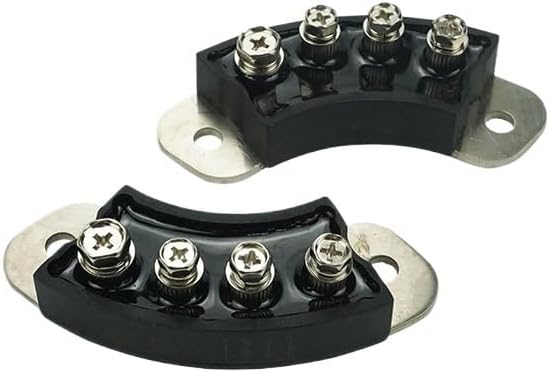

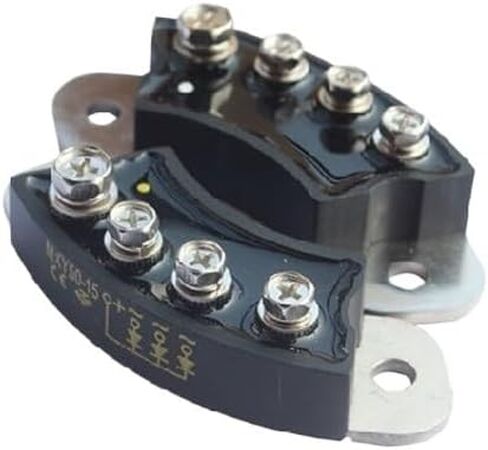

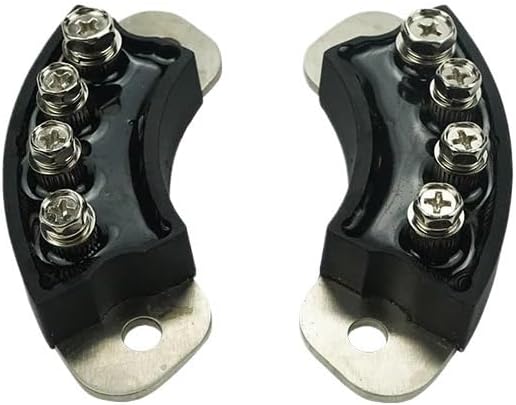

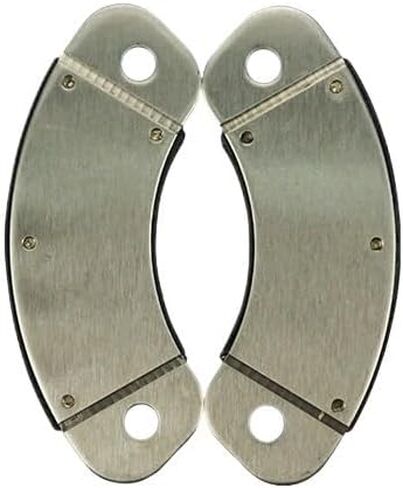

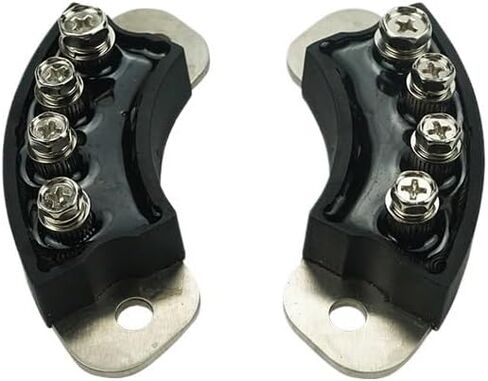

Bridge Rectifier Module MXG(Y)50-15 MXG50-15 Three Phase Half Wave Rectifier Bridge Diode for brushless genset
Diode Bridge Rectifier MXG50-15 MXY50-15 Rotating Type For Generator
Rotating diode bridge MXG/Y for generator parts is help brushless generator to adjust the Amper to standard level. Can widely used for most of the generators from 16A to 150A
Rated output average current: 50A
Maximum junction temperature:150°C
Operation ambient temperature:-20~+85 °C
Storage temperature:-40~+150 °C
Mounting torque: 2.0N.m2.5N.m
Peak forward voltage: VFM1.3V ( IO×. 25)
Peak reverse repetitive current: IRRM 3mA T=150 °C
Isolation voltage VISO (each terminal and the crust): 2500V
pitch of the Installation dimention: 70mm
