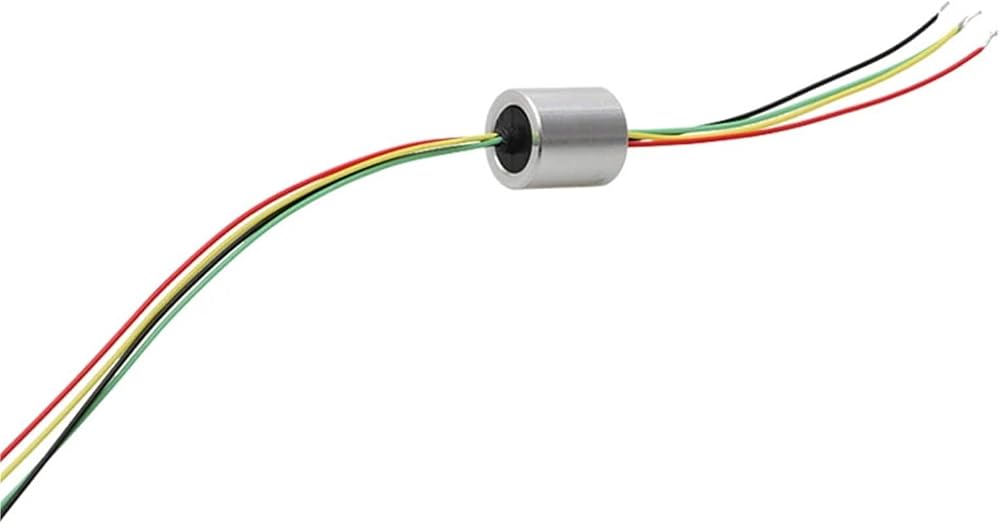

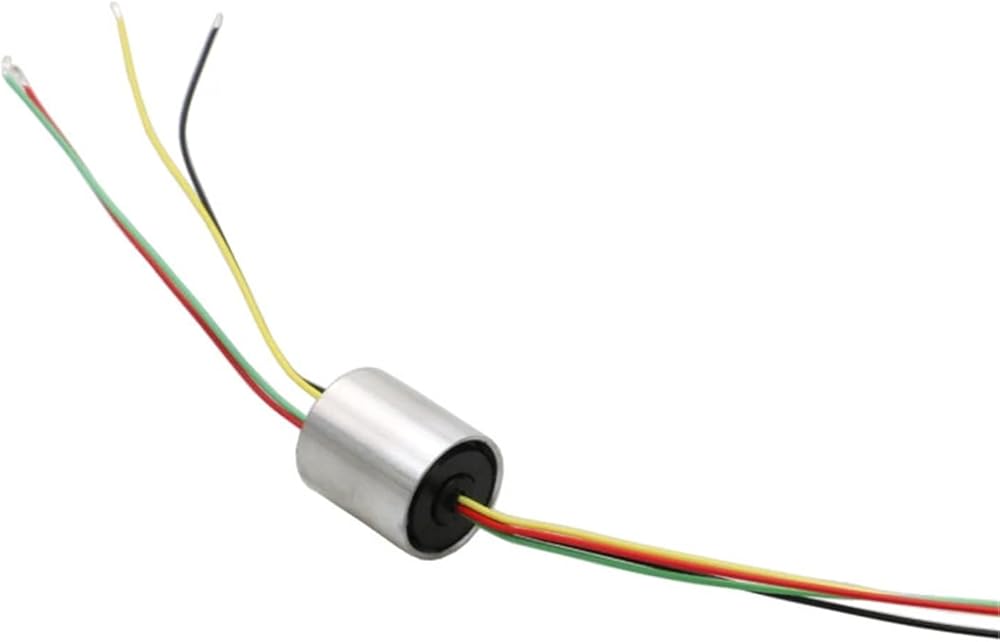

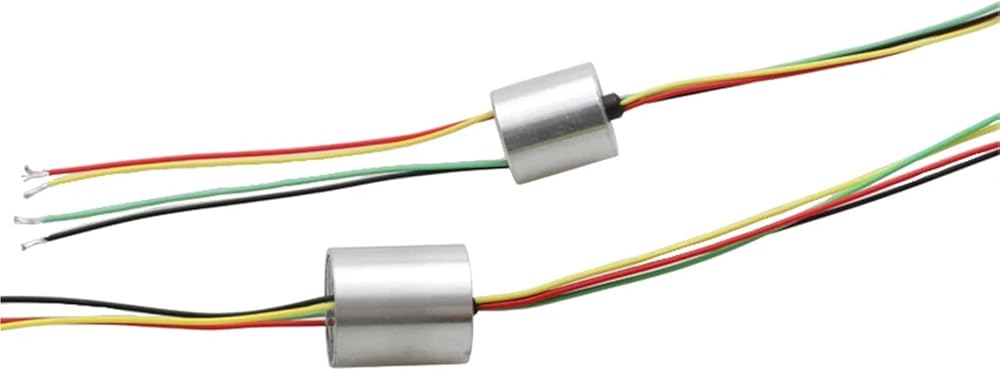

1PCS OD 8mm/11mm/12.4mm Mini Gimbal/Visual Fishing Wheel Metal Slip Ring 360 degree Anchor Fish 4CH 2A Conductive Slipring
Specification:

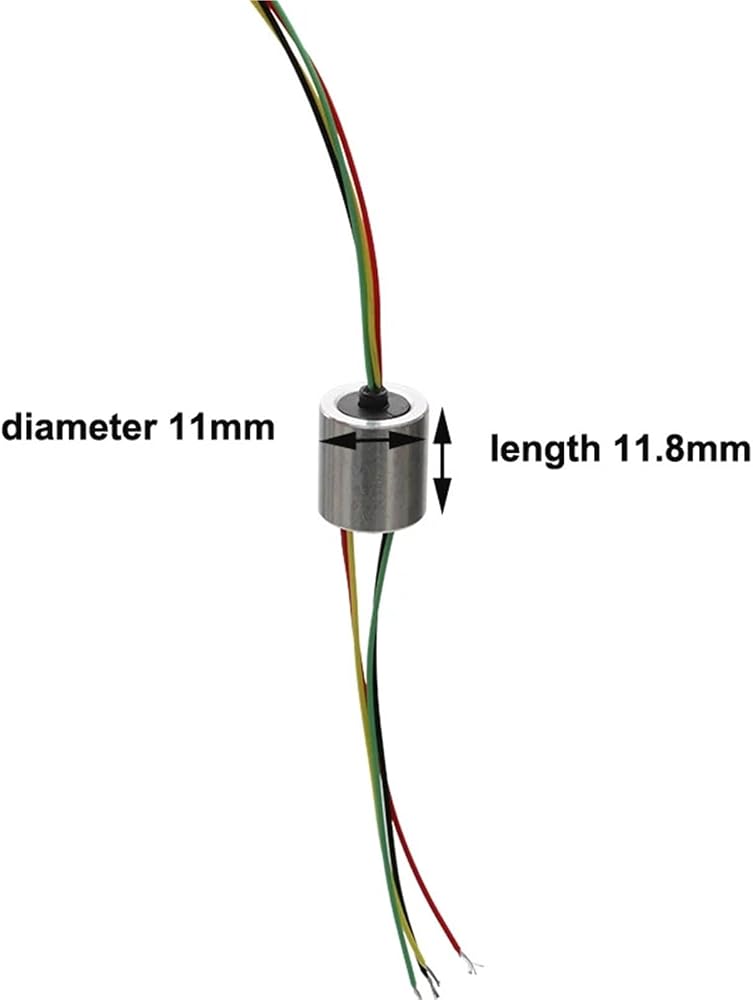

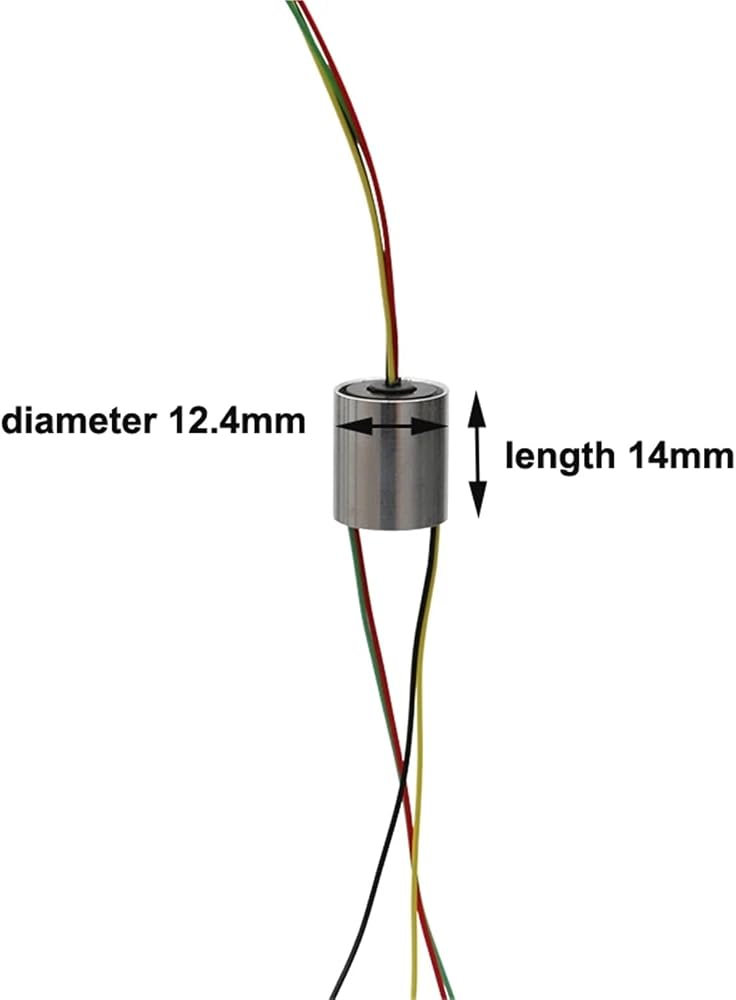

- Outer diameter: 8mm, 11mm, 12.4mm
- Channel: 4CH
- Current: 2A
- Rated voltage: 240VDC
- Working speed: 0-250rpm
- Contact material: precious metal
- Shell material: aluminum alloy
- Insulation strength: 500VAC@50Hz, 60S
- Insulation resistance: 500MQ/500VDC
- Dynamic contact resistance fluctuation value: 10m
- Cable: AWG28
- Cable length: 50mm+150mm
- Protection level: IP51
- Operating temperature: -20 ~ +80
Package incldue:
1pcs x slipring
Note:
- size is manual measurement, there are exist errors
- for OD 8mm and other size slipring, PLS feel free to contact with our customer service,thanks.
==========
Hign-concerned Chemical : None
Is Electric : No Battery
Quantity : 1 pcs
Wheelbase : Screws
Size : Outer diameter: 8mm, 11mm, 12.4mm
Technical parameters : KV1100
Model Number : for rc
For Vehicle Type : Airplanes
Tool Supplies : Assembled class
Four-wheel Drive Attributes : Assemblage
Remote Control Peripherals/Devices : Slipring
Upgrade Parts/Accessories : Conductive Slipring
RC Parts & Accs : Metal Slip Ring
Material : Composite Material
Use : Vehicles & Remote Control Toys
