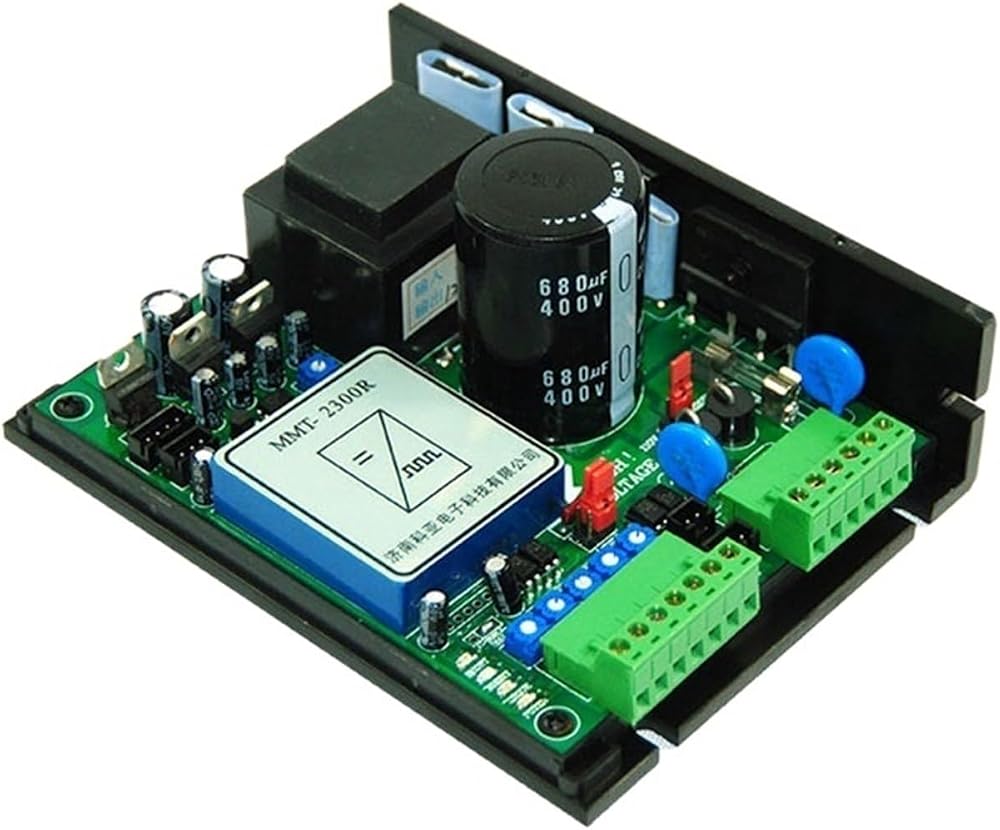

Input ac 220v output 180v 220v pwm controller 8A
Model: 220DP08BL
Product Description
1. PWM pulse width modulation technology, low noise
2. Speed regulation ratio 1:100 (open-loop)
3. The starting at low speed is big
4. Double closed loops PI regulation
5. Current settings, current limiting protection, over-current warning, output stop.
6. Setting function of soft starting. (0.3-10 seconds adjustable)
7. compensation adjustment
8. The maximum output limit function
9. Short-circuit protection
10. Self-inspection alarm output function
11. With fast response and good following.
12. Function of enabling block control.
Specification for 220DP08BL
Input voltage range 220VAC
Max output current 8A
Continue current 4A
Output voltage 220VDC (if you need 180VDC, kindly leave a message when place the order)

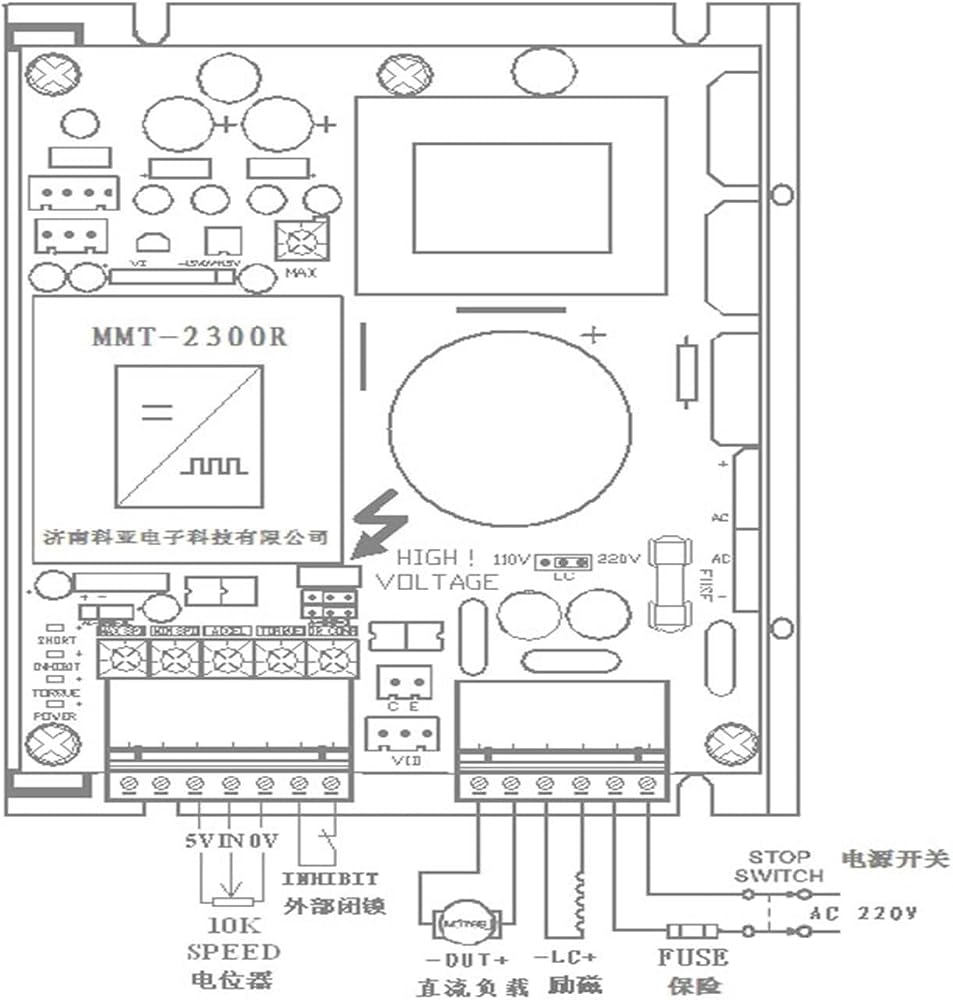

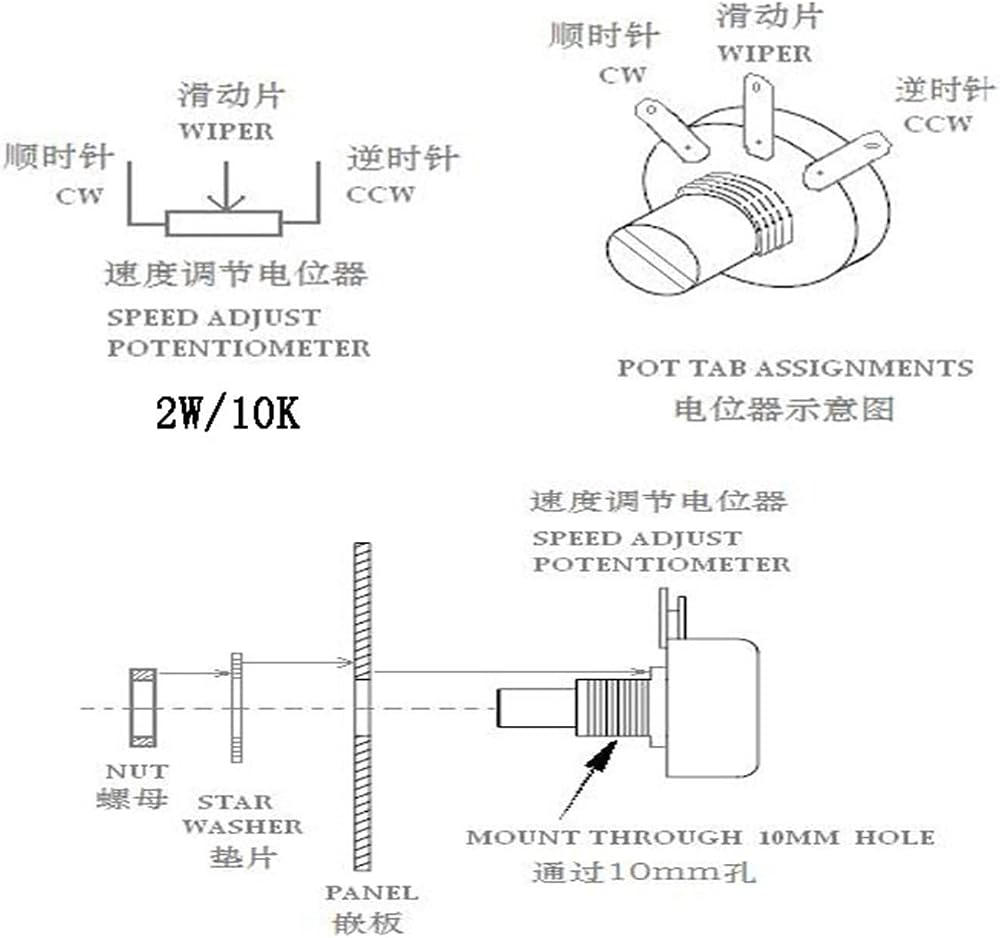

Control ways Potentiometer
Protection Abnormalitise like over current, overheating, over voltage, less voltage and short circuit will start the protection function.
Temperature protection When the temperature is 70, the controller will reduce output by overheating protection and stop output.
Working Temperature -10 -- +60
Ambient humidity Relative humidity less than 80RH

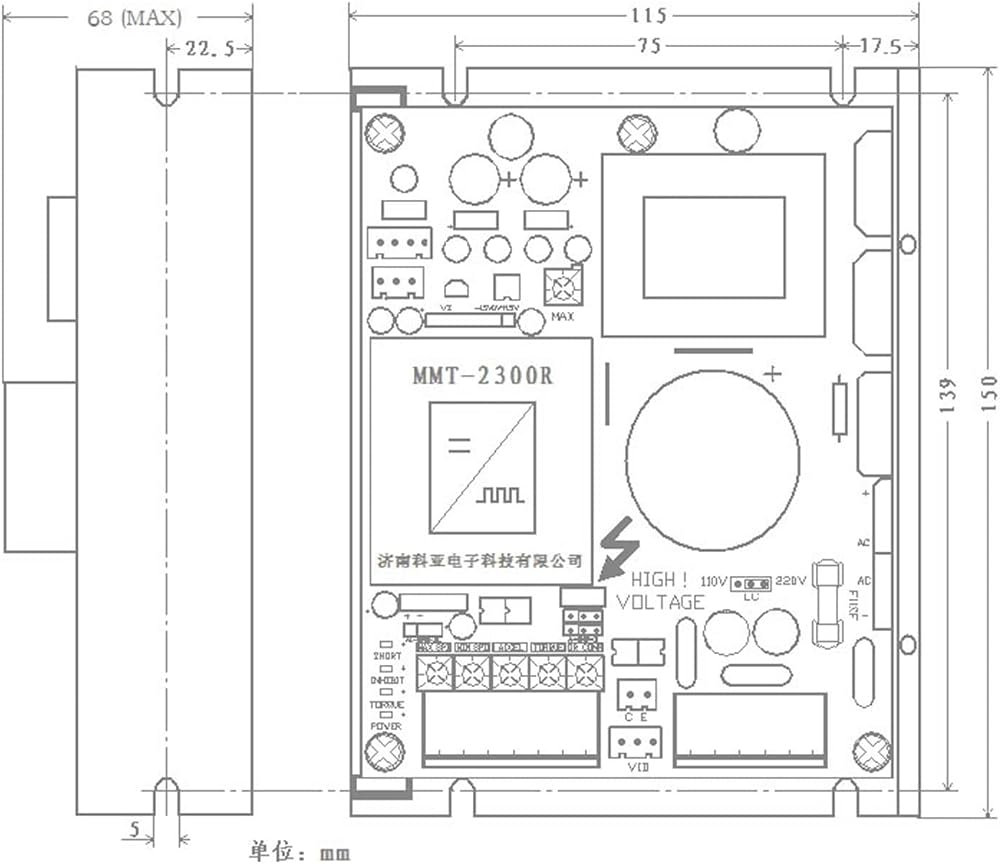

Size L*W*H = 150*115*68 mm
Weight 0.8kg
Product Overview
Producing
input ac 220v output 180v 220v pwm controller 8A
======================
Model Number : 220DP08BL
Motor Type : Motor
