DB Electrical

Whatever you drive, we have the part for it!

DB Electrical is your go-to source for quality electrical parts for vehicles of every shape and size – from motorcycles and ATVs to cars, trucks, and boats. Our engineers closely partner with leading factories to develop electrical components that perform and fit OEM standards.

Selling from the heartland of America located in Kingsport, Tennessee, the people of DB Electrical make it their goal is to get your vehicle back on the road, field, trail, or water. They take great pride in providing top-quality products that keep you moving forward.

Specs:

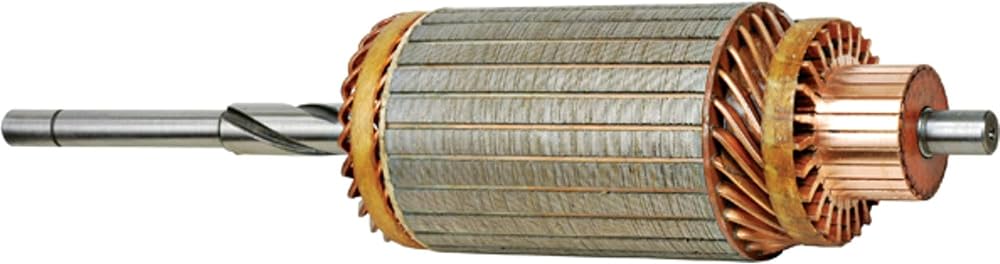

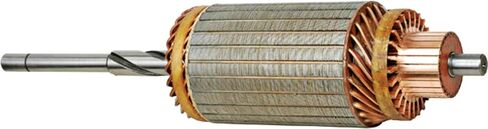

Description: Armature
Volt: 12
Quality Type: Standard
Rotation Direction: Clockwise
Body OD: 3.331" / 84.600mm
CE OD: 0.563" / 14.300mm
DE OD: 0.563" / 14.300mm
Length: 15.500" / 393.700 mm
CE to Stop: 20.200
DE to Stop: 191.700
Lam Stack Thickness: 4.827" / 122.600mm
Number of Splines: 3
Splines Type: Spiral
Notes: Riserless Commutator

Replaces OEM Number:

Arrowhead: 300-12015, SDR3024
Delco: 1946391, 1948999, 1967045, 2525283
J&N Electrical Products: 300-12015, 300-12015R, 300-12105, 300-12141
Lester: 2080, RSA2080
**Verify the part fits before purchasing**
