Hot Racing light weight hardened steel 18T/58T 32 pitch pinion and spur gear set for the TRA Bandit, Rustler, 2WD Slash, and 2WD Stampede
FEATURES:
- CNC machined and lightened hardened steel construction
- Replaces stock nylon spur gear
- Rugged 0.8 Module/32pitch teeth for total reliability on brushless power
- Aluminum pinion sleeve to allow for either 1/8 inch or 5mm motor shafts
- Black oxide coated gear for durability and corrosion resistance
- Blue anodized countersunk aluminum washers
- High strength hardware
YOU WILL RECEIVE:

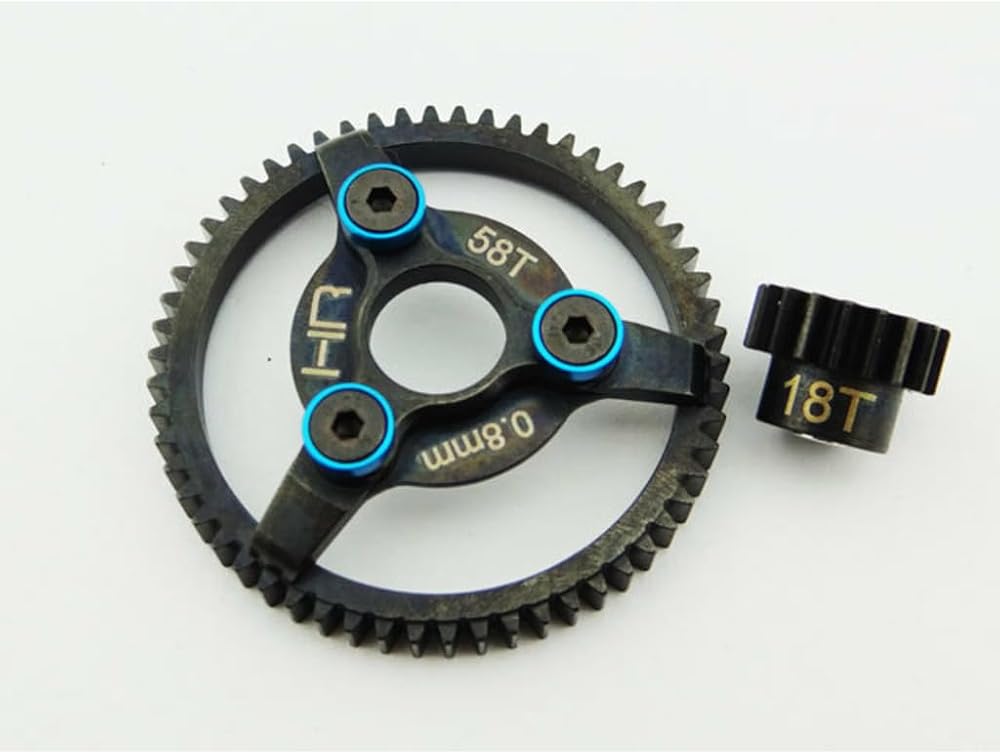

- One (1) 18 tooth 32 pitch (0.8 Mod) pinion gear
- One (1) 58 tooth 32 pitch (0.8 Mod) spur gear
- Three (3) mounting screws
- Three (3) blue anodized countersunk washers
- One (1) pinion adapter sleeve
- Three (3) washers (use as needed underneath countersunk washers to prevent screw ends from protruding too far through spur backing plate)
SPECIFICATIONS:
- Number of Teeth: 18T/58T
- Gear Pitch: 32 pitch (0.8 module)
- Mounting Holes: 3
- Tooth Face width: ~5mm
COMMENTS:
- Consider using Hot Racing motor lock plate TE18L06 for secure motor mounting
- Motor should no way exceed 180F. ESC should not exceed 160F. Excessive temperatures will shorten the life of the motor and ESC.
description revised by: SN July 19, 2017
