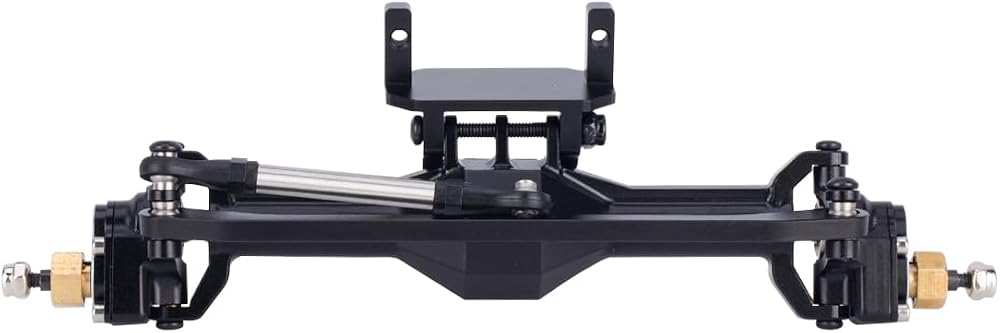

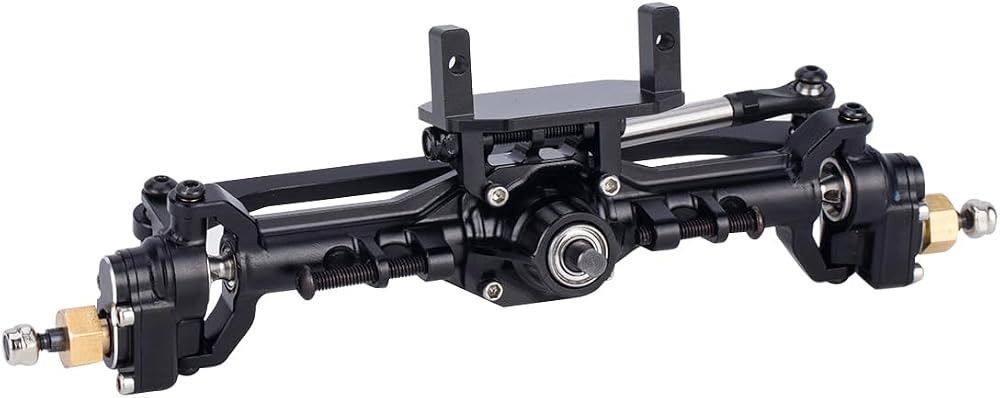

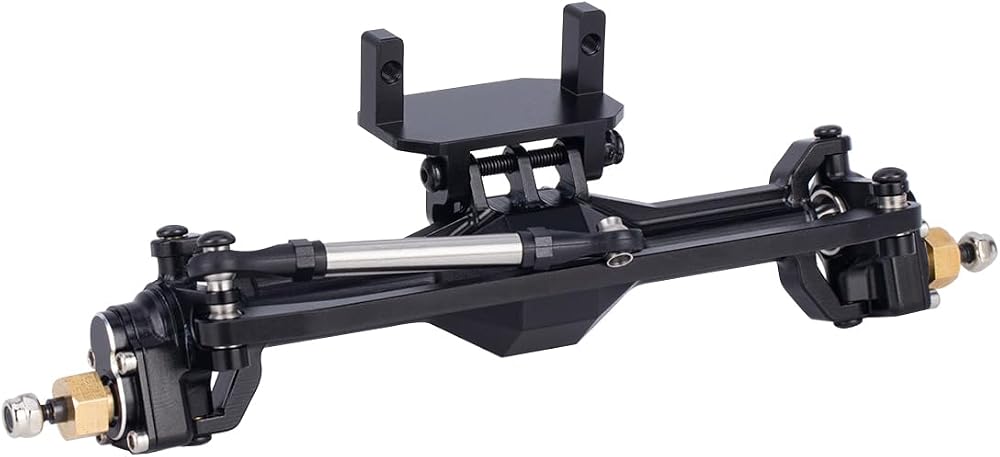

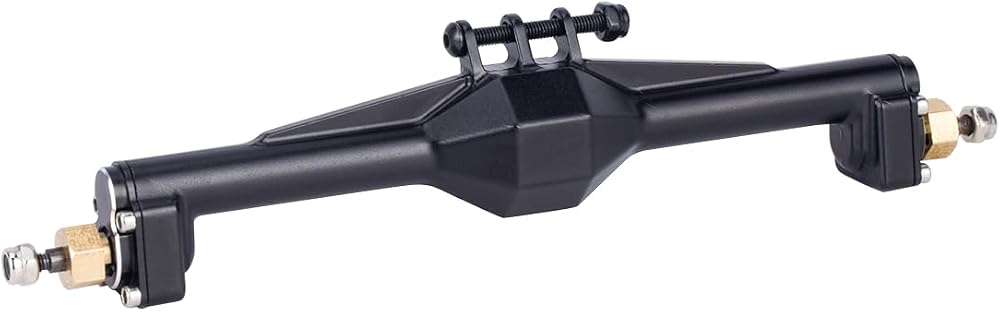

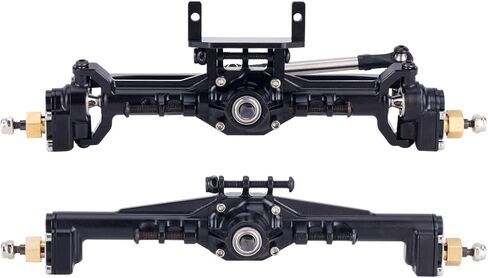

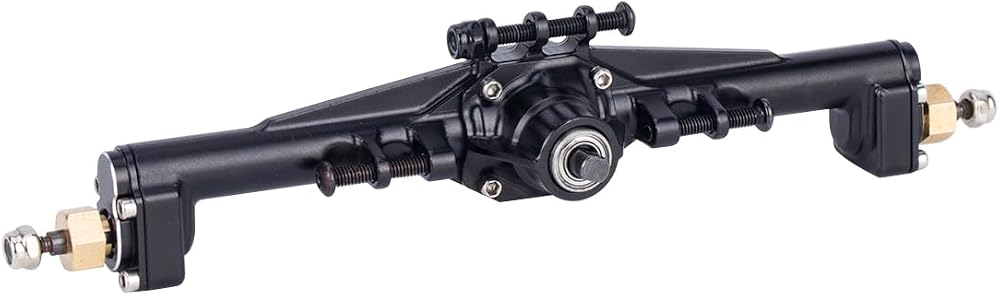

Aluminum CNC Portal Axle +10mm with Lay Down Servo Mount & Links for 1/18 RC Crawler Car TRX4M Axle Upgrade parts

Features：
Aluminum alloy CNC,anodized
Rhomboid Differential Cover,Full of texture
Portal axles, providing sufficient ground clearance

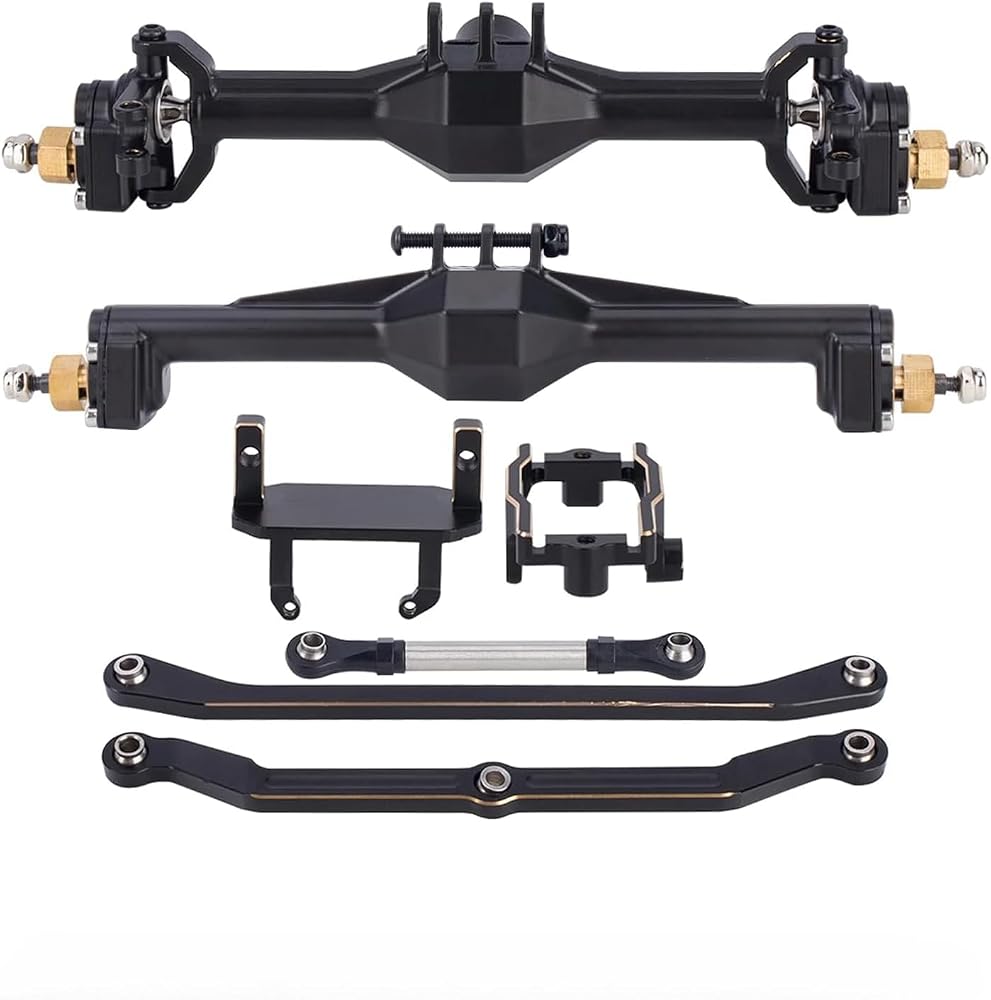

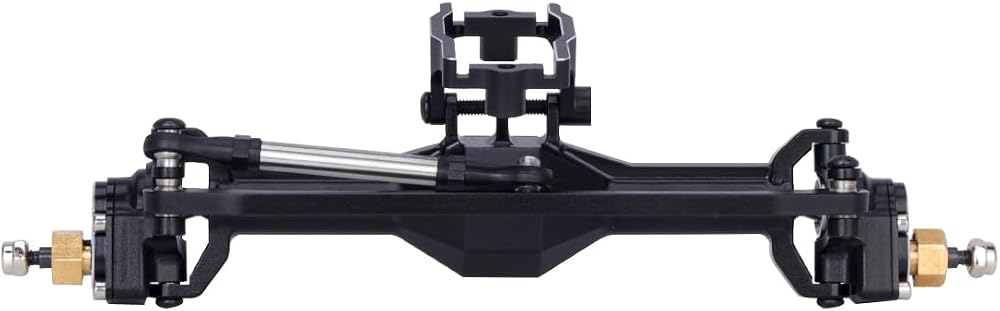

Equipped with 2 different servo mounts

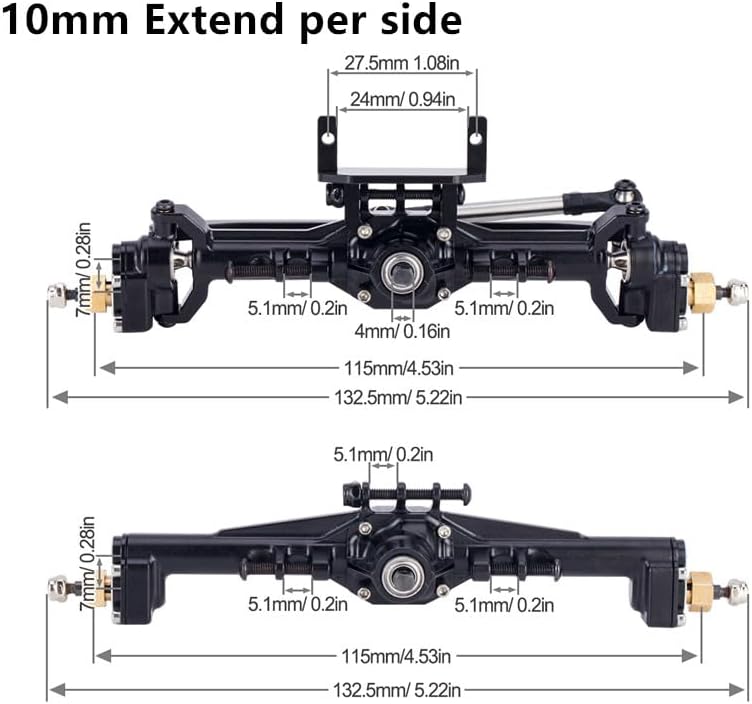

+10mm axles increase the width of each side by 10mm, increase total length by 20 mm
The entire axles have been extended, not just the dogbone shafts, which prevents the dogbone shafts from being overburdened
Come with Hardened CVD shafts, 12/24T axle gears, 12/22T portal gears, brass wheel hexes and nuts.

Specifications:

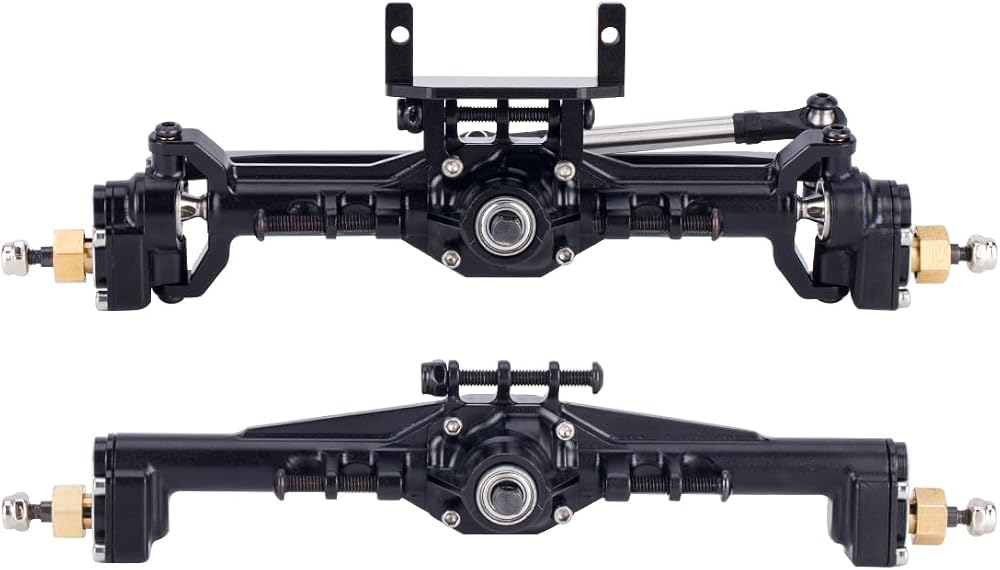

Front and rear axles/sets
Color: Black, Silver
Material: Aluminum alloy(Axle Housing), Stainless steel (CVD shafts, servo rod),Carbon steel (output shaft/gear),brass (wheel Hex), plastic (ball head)
Axle Gears: 24T/12T
Underdrive Portal Gears: 12T/22T
Axle gear ratio: 3.67:1
Output shaft: 3mm
Steering angle: about 45 °
Connector specification: 7mm，thickness(4mm)
Net weight: about 109.6g
Total Length: 132.5mm
Packaging box size: 140 * 60 * 50mm

Package include：
1 set TRX4M Portal Axle

Note:
Not compatible with stock TRX4M chassis as the lay lown servo mount is wider than stock.
Not compatible with original TRX4M size dogbone shafts as the axle housings are 10mm extended per side.
Compatible with both and stock TRX4M upgrade parts: axle gears
Not compatible with stock TRX4M chaissis as the lay lown servo mount is wider than stock,Compatible with chassis available in stores
