Hot Racing 90mm internal spring air damper shock set for rock crawlers or other custom projects

FEATURES:
- CNC machined aluminum shock bodies, black anodized
- CNC machined aluminum upper shock cap with o-ring seal, black anodized
- CNC machined aluminum lower shock cap with shock shaft guide, black anodized
- Precision machined 7mm stainless steel shock shaft for durability
- Double o-ring lower shaft seal
- Air damping
- Internal springs with three rates included: Gold (soft), Black (medium), Silver (stiff)
- All aluminum is anodized for durability, corrosion resistance, and great looks

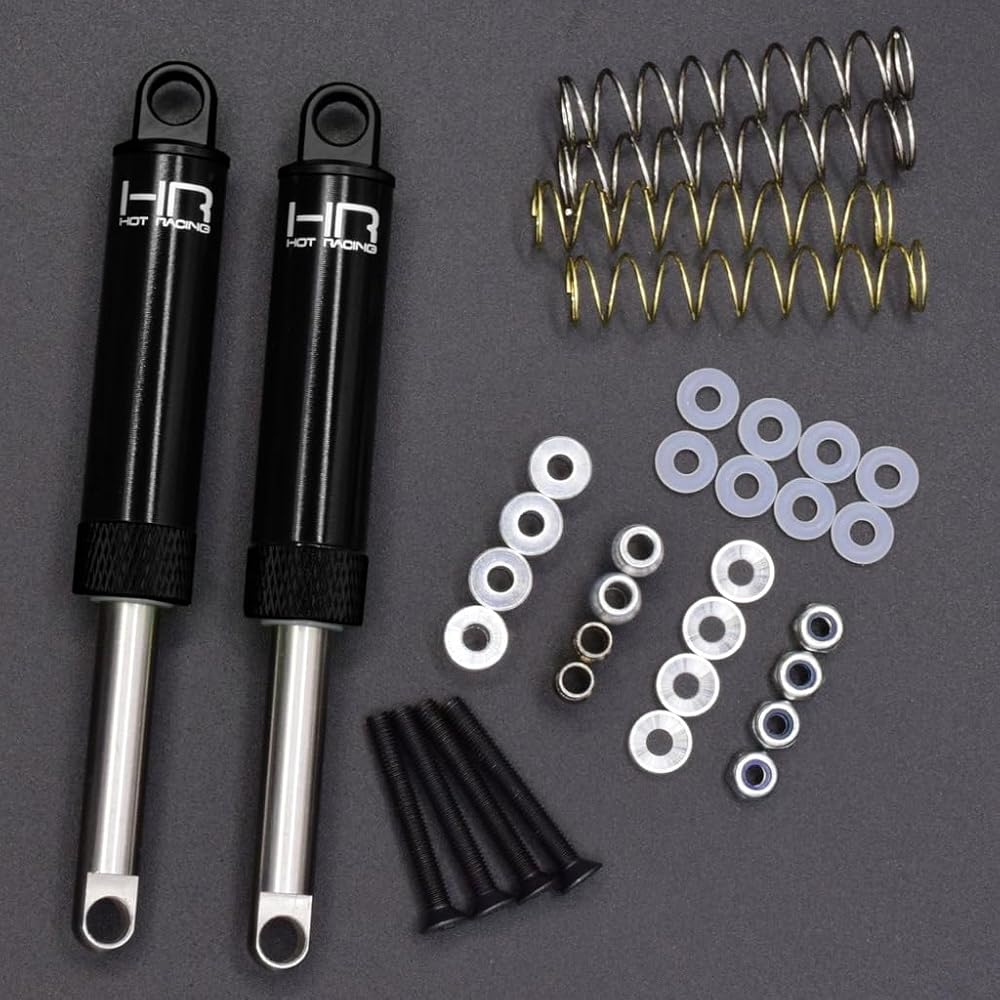

YOU WILL RECEIVE:
- Two (2) assembled shocks
- Two (2) gold (soft) springs
- Two (2) black (medium) springs
- Two (2) silver (stiff) springs
- Two (2) 4.8mm ball mounts
- Two (2) 5.8mm ball mounts
- Four (4) 5x7mm offset spacers
- Four (4) 3mm countersunk washers
- Four (4) 3x25mm flat head cap screws
- Eight (8) 3mm o-rings
- Four (4) lock nuts

REQUIREMENTS:
- Installation on vehicle
- Recommended to use Team Associated Green Slime ASC1105 on lower o-ring seals to assist sealing and increase smoothness

SPECIFICATIONS:
- Extended center to center length: 90mm (3.5 inch)
- Compressed center to center length: 62mm (2.4 inch)
- Overall length: 98mm (3.9 inch)
- Body diameter: 13mm (0.5 inch)
- Shaft diameter: 7mm (0.3 inch)

COMMENTS:
- Available colors include: Black (TD90T01), Red (TD90T02), Green (TD90T05), Blue (TD90T06), and Silver (TD90T08)
- Replacement o-rings are Hot Racing RTD48RR

description revised by: SN April 10, 2015
