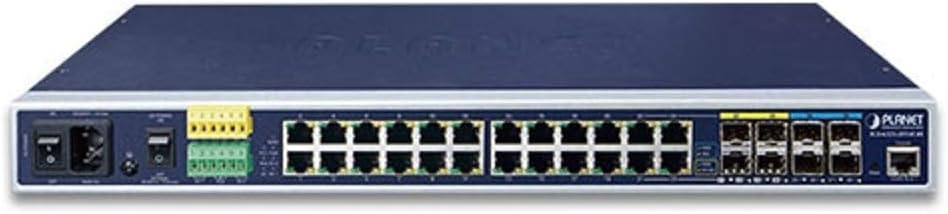

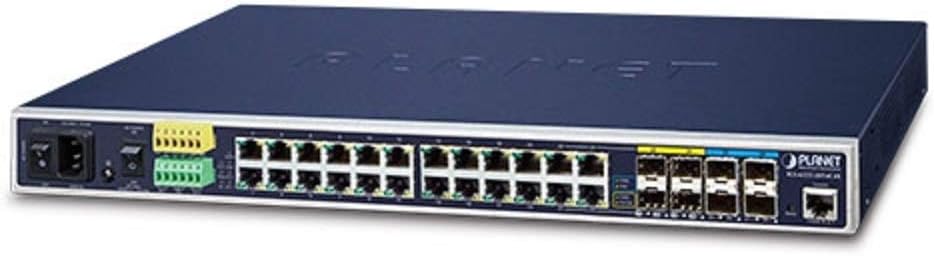

IGS-6325-20T4C4X الطبقة الصناعية 3 مفتاح Ethernet مُدار مع 20 منفذًا 10/100/1000T ، وربط Gigabit TP/SFP Combo ، 4-Port 10G SFP+ الوصلة الصاعدة ، وقوة زائدة ، وحماية صناعية قوية in Saudi Arabia IGS-6325-20T4C4X الطبقة الصناعية 3 مفتاح Ethernet مُدار مع 20 منفذًا 10/100/1000T ، وربط Gigabit TP/SFP Combo ، 4-Port 10G SFP+ الوصلة الصاعدة ، وقوة زائدة ، وحماية صناعية قوية in Saudi Arabia IGS-6325-20T4C4X الطبقة الصناعية 3 مفتاح Ethernet مُدار مع 20 منفذًا 10/100/1000T ، وربط Gigabit TP/SFP Combo ، 4-Port 10G SFP+ الوصلة الصاعدة ، وقوة زائدة ، وحماية صناعية قوية in Saudi Arabia IGS-6325-20T4C4X الطبقة الصناعية 3 مفتاح Ethernet مُدار مع 20 منفذًا 10/100/1000T ، وربط Gigabit TP/SFP Combo ، 4-Port 10G SFP+ الوصلة الصاعدة ، وقوة زائدة ، وحماية صناعية قوية in Saudi Arabia

IGS-6325-20T4C4X الطبقة الصناعية 3 مفتاح Ethernet مُدار مع 20 منفذًا 10/100/1000T ، وربط Gigabit TP/SFP Combo ، 4-Port 10G SFP+ الوصلة الصاعدة ، وقوة زائدة ، وحماية صناعية قوية

SAR 7,107
الاجهزه الالكترونيات الامريكية قد تحتاج الى محمول فولت من ١١٠ الى ٢٢٠. قد تحتاج إلى محول كهرباء
– 1 +

مميزات خاصة

  • Comprehensive Port Configuration: Offers 20 10/100/1000BASE-T RJ45 ports, 4 Gigabit TP/SFP combo slots (100/1000BASE-X mini-GBIC, compatible with 100BASE-FX SFP), and 4 10GBASE-SR/LR SFP+ uplink ports supporting 1000BASE-SX/LX/BX fiber connectivity for versatile and scalable network deployments.
  • Industrial-Grade Hardware Design: Features IP30-rated rugged metal casing, wide operating temperature range (-40°C to 75°C), EFT protection up to 6000V DC for power lines, and 6000V DC Ethernet ESD surge immunity for reliable operation in harsh environments.
  • Dual Redundant Power Supplies: Supports one 100-240V AC or dual 36-60V DC power inputs with polarity reverse protection and active-active redundant power failure mechanisms to ensure continuous operation and fault tolerance.
  • Advanced Layer 3 Routing: Supports up to 128 static routes, OSPFv2 dynamic routing, and per VLAN routing interface, enabling flexible and efficient IP traffic management.
  • Extensive Layer 2 Features: Provides IEEE 802.1Q VLANs (up to 256 groups), VLAN Q-in-Q (802.1ad), private VLAN edge, protocol/MAC/IP subnet-based VLANs, voice VLAN, and advanced spanning tree protocols (STP, RSTP, MSTP) with BPDU guard to enhance network segmentation and resilience.
  • High Availability and Traffic Optimization: Includes Link Aggregation (LACP and static), supporting 14 trunk groups with up to 16 ports each (up to 32Gbps full duplex), port mirroring, loop protection, and Ethernet Ring Protection Switching (ITU-T G.8032 ERPS) for rapid recovery and high uptime.
  • Quality of Service (QoS): Implements ingress shaping, egress rate limiting per port, 8 priority queues, traffic classification by 802.1p CoS, DSCP, IP/TCP/UDP port numbers, strict priority and Weighted Round Robin (WRR), traffic policing, and DSCP remarking to guarantee smooth, prioritized traffic flows.
  • Robust Multicast Support: Supports IGMP Snooping (v1/v2/v3), MLD Snooping (v1/v2), querier mode, IGMP/MLD snooping port filtering, and Multicast VLAN Registration (MVR) for efficient multicast traffic management.
  • Enterprise-Level Security: Enforces IEEE 802.1x port/MAC-based authentication with guest VLAN, built-in RADIUS client, TACACS+ authentication, IP/MAC-based ACLs, DHCP snooping, dynamic ARP inspection, IP source guard, and DoS attack defense to safeguard network integrity.
  • Comprehensive Management Tools: Supports IPv4/IPv6 dual stack, console/Telnet CLI, web management, SNMP v1/v2c/v3, SSH/SSL, TFTP, BOOTP, DHCP, dual firmware images, reset and factory default buttons, DHCP relay, NTP, LLDP/LLDP-MED, and Smart Discovery Utility.

وصف

The IGS-6325-20T4C4X is a high-performance industrial Layer 3 managed Ethernet switch engineered for demanding environments such as data centers, service providers, telecom, and industrial automation. It delivers 20 10/100/1000BASE-T copper ports alongside 4 gigabit TP/SFP combo slots and 4 10G SFP+ uplink ports, enabling flexible high-speed connectivity and long-distance fiber transmission up to 10 kilometers. Designed with advanced redundancy and fault tolerance, this switch features dual 100-240V AC or 36-60V DC power inputs with active-active redundant power failure protection and polarity reverse protection for maximum uptime. Housed in a rugged IP30 metal case with an extended operating temperature range of -40°C to 75°C, it withstands harsh industrial conditions and offers comprehensive EFT and ESD protection. The device supports rich Layer 3 IP routing protocols including OSPFv2, static routing, and per VLAN routing, alongside Layer 2 features such as VLAN Q-in-Q, private VLAN edge, spanning tree protocols, link aggregation, and Ethernet Ring Protection Switching (ERPS) for enhanced network resiliency. With extensive security measures including IEEE 802.1X authentication, ACLs, DHCP snooping, dynamic ARP inspection, and IP source guard, it protects against unauthorized access and network attacks. Management is seamless through dual-stack IPv4/IPv6 support, CLI, web interface, SNMP, and secure SSH/SSL. Integrated digital input/output ports facilitate sensor alarms and network alerts via email and SNMP traps, making the IGS-6325-20T4C4X a robust solution for mission-critical industrial networks requiring high bandwidth, reliability, and security.
