Overview

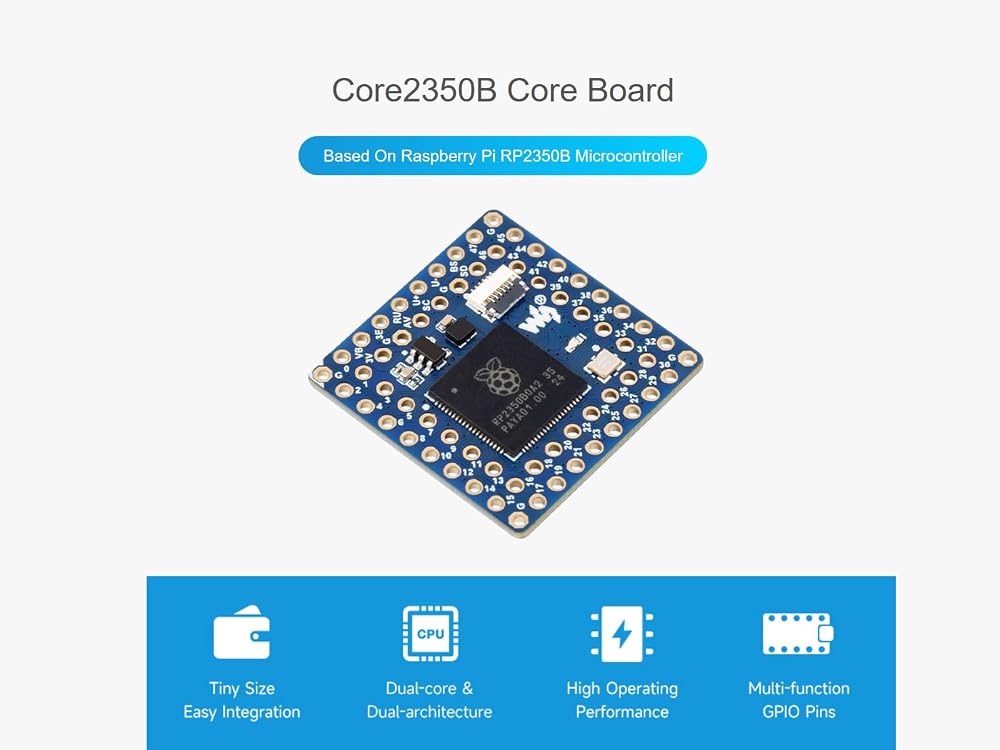

This product is a low-cost, high-performance MCU board designed by Waveshare. It features a compact size with onboard RP2350B main controller, adapting 48 multi-function GPIO pins for easy development and integration.

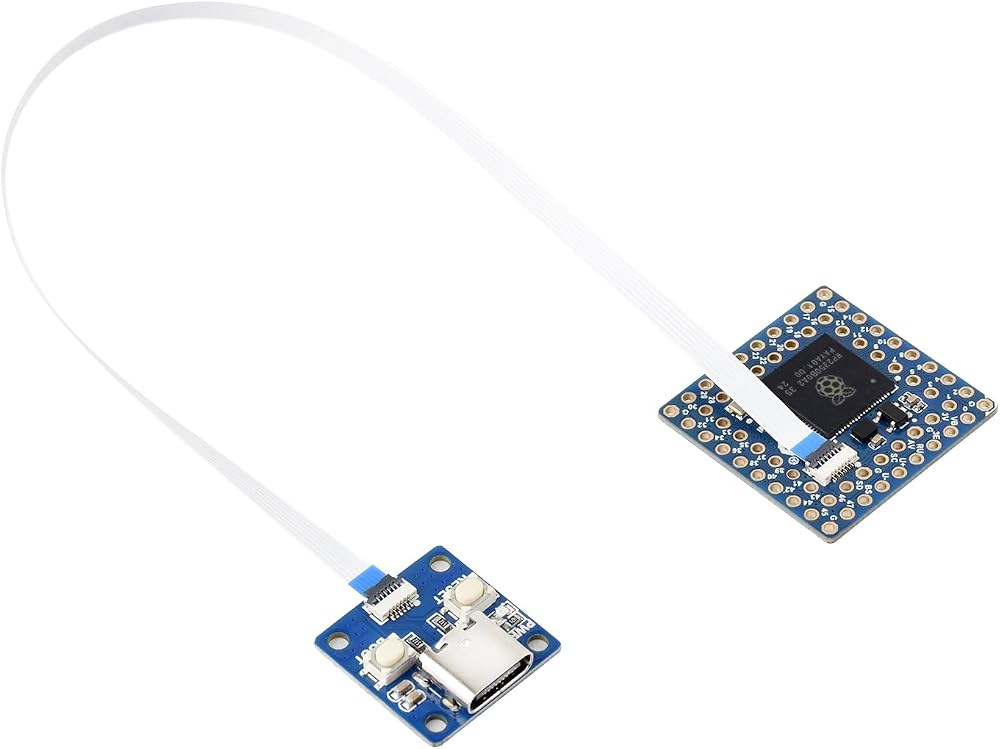

Core2350B1-Kit, include Core2350B1 core board + USB port adapter + FFC cable

Board specifications

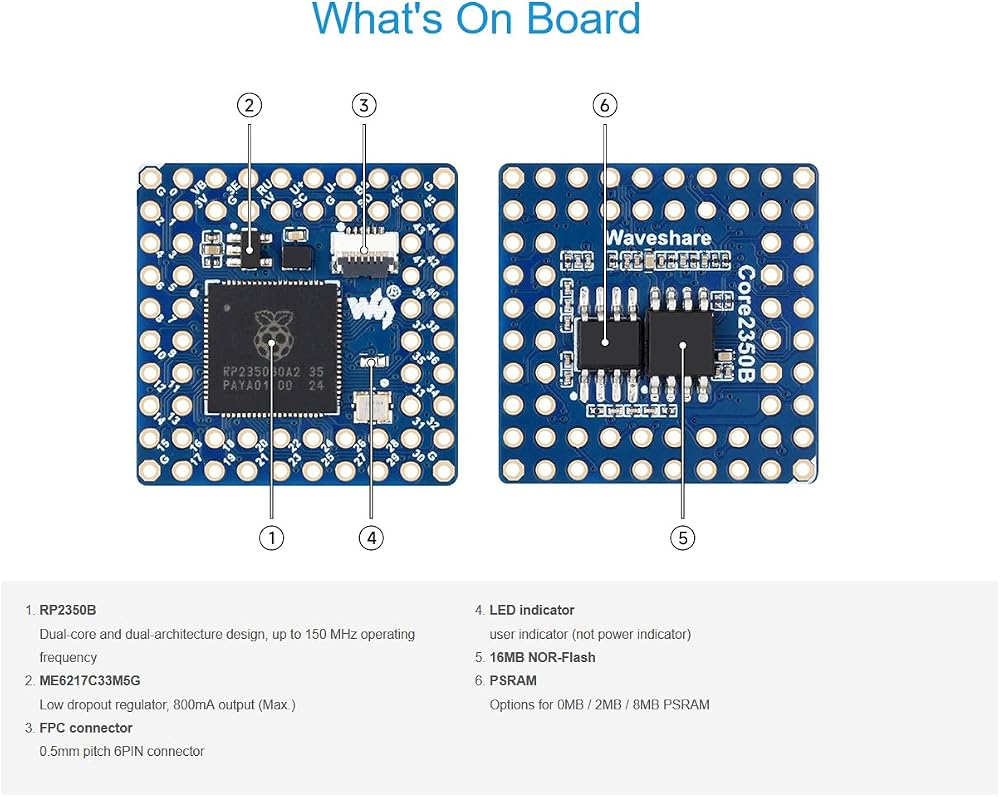

--RP2350B microcontroller chip designed by Raspberry Pi in the United Kingdom
--Adopts unique dual-core and dual-architecture design: dual ARM Cortex-M33 or dual Hazard3 RISC-V processors support, flexible clock running up to 150 MHz
--2MB PSRAM, with onboard 520KB S-R-A-M and 16MB Flash memory
--Onboard FPC 6PIN connector, adapting USB Type-C port via adapter board
--64 pins arranged in a standard 2.54 mm pitch for easy integration into carrier boards
--USB 1.1 with device and host support
--Low-power sleep and dormant modes
--Drag-and-drop programming using mass storage over USB

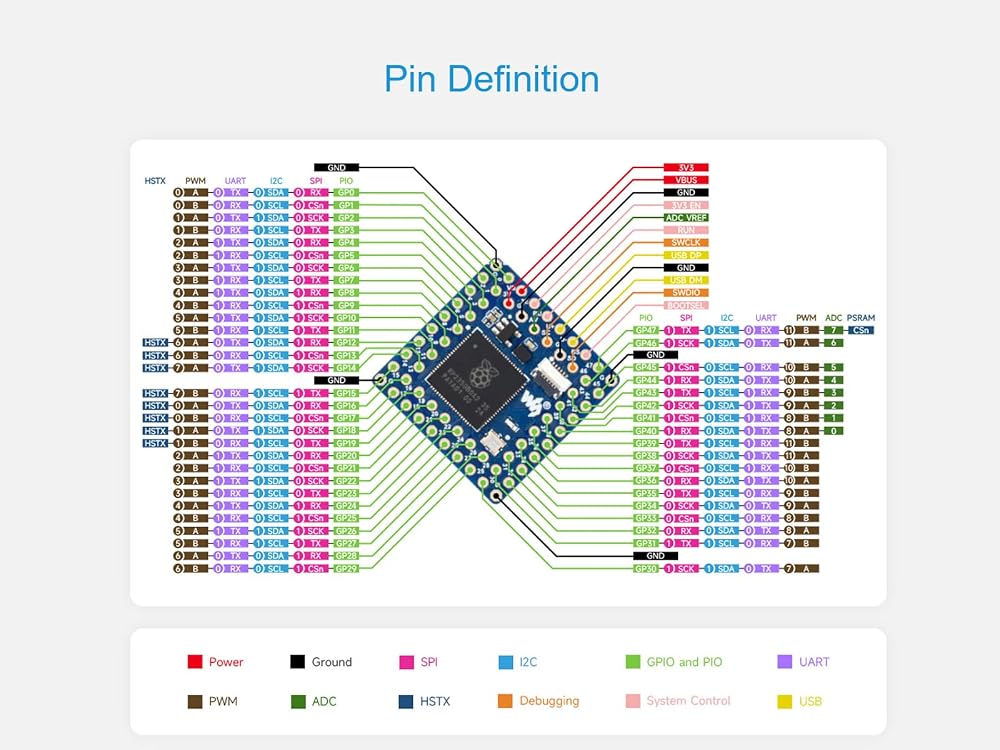

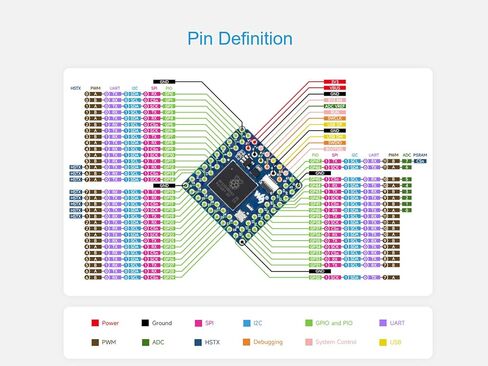

--48 × multi-function GPIO pins
--2 × I2C, 2 × UART, 8 × 12-bit ADC, 24 × controllable PWM channels
--Accurate clock and timer on-chip
--Temperature sensor
--12 × Programmable I/O (PIO) state machines for custom peripheral support

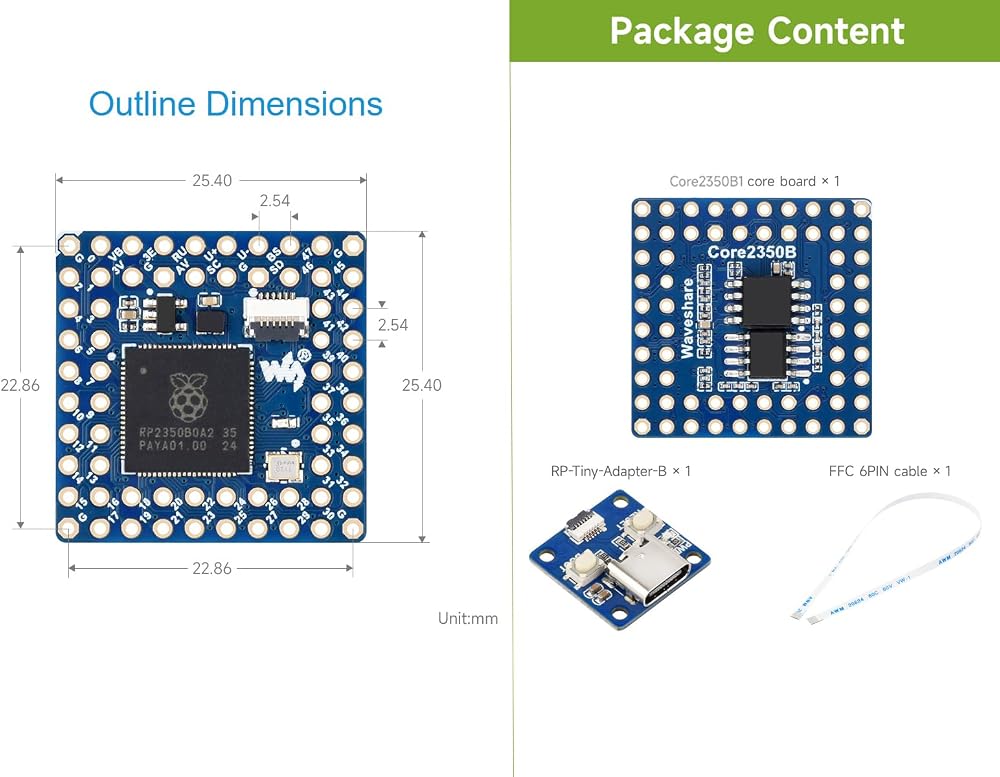

Package Content
Core2350B1 core board × 1
RP-Tiny-Adapter-B × 1
FFC 6PIN cable × 1

NOTE: Online Development Resources and Technical Support are provided, please feel free to contact us if you have any problem!
