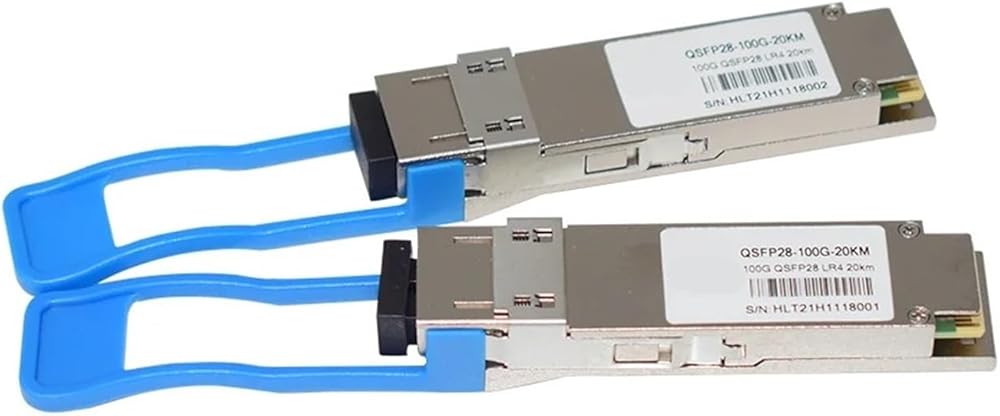

100GBASE-LR4 20KM QSFP28 BOX 1310nm LWDM4 SFP Transceiver Module
Product Features
Duplex LC receptacle optical interface
Single +3.3V power supply
Hot-pluggableQSFP28 form factor
4x25G Electrical Serial Interface
Compliant with 4x28G(CEI-28G-VSR)
AC coupling of CML signals
Transmitter: cooled 4x25Gb/s LAN WDM EML TOSA (1295.56, 1300.05, 1304.58, 1309.14nm)
Receiver: 4x25Gb/s PIN ROSA
Low power dissipation(Max:6W)
Built in digital diagnostic function
Operating case temperature range:0to 70
Compliant with 100GBASE-LR4
I2C Communication Interface
==========
Wireless function : No
Hign-concerned Chemical : None
Connector Type : LC/UPC
Model Number : QSFP28-100G-LR 20km
product name : 100G QSFP28 LR4 1310nm 20km Optical Module
Data transfer rate : 100G
Wavelength : 1310nm
: 20km
Fiber Connector : LC
Temperature : 0~70
