Waveshare RP2350 Microcontroller Development Board RP2350B-Plus-W, Equipped with Raspberry Pi Radio Module 2, Support Wi-Fi and Bluetooth, Built-in 520KB SRAM and 16MB on-chip Flash Memory

SAR 96
Brand
waveshare
Weight
5 g
All electronics ship with US style plugs. You may need a voltage converter or a plug adapter.
– 1 +

Special Features

  • RP2350B-Plus-W development board based on Raspberry Pi RP2350B microcontroller, adopts unique dual-core and dual-architecture design: dual ARM Cortex-M33 or dual Hazard3 RISC-V processors support, flexible clock running up to 150 MHz
  • RP2350 microcontroller development board equipped with Raspberry Pi Radio Module 2 module, supporting Wi-Fi 4 wireless network and Bluetooth 5.2
  • 520KB of S-R-A-M, and 16MB of onboard Flash memory, with reserved solder pads for PSRAM chip expansion. Support C/C++, MicroPython, Arduino IDE
  • Type-C connector, keeps it up to date, easier to use. 41 × multi-function GPIO pins. 1 × HSTX, 2 × SPI, 2 × I2C, 2 × UART, 6 × 12-bit ADC, 22 × controllable PWM channels. 12×Programmable I/O (PIO) state machines for custom peripheral support
  • USB 1.1 with device and host support. Low-power sleep and dormant modes. Drag-and-drop programming using mass storage over USB. Accurate clock and timer on-chip. Temperature sensor. Accelerated floating-point libraries on-chip

Description

Overview

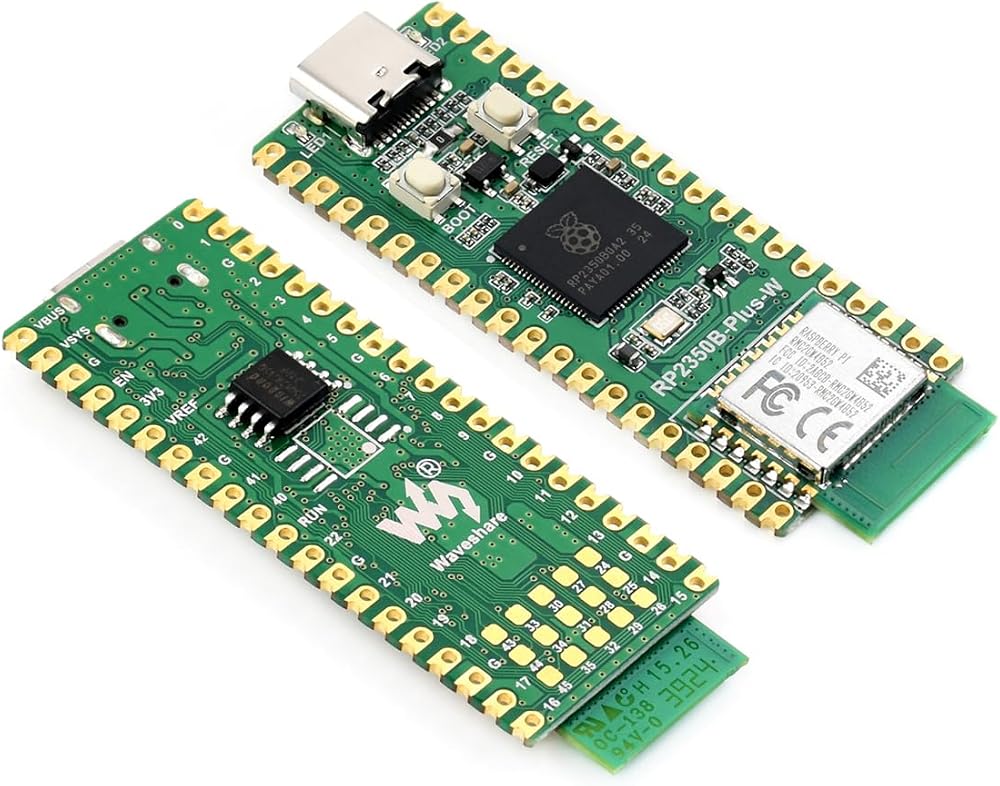

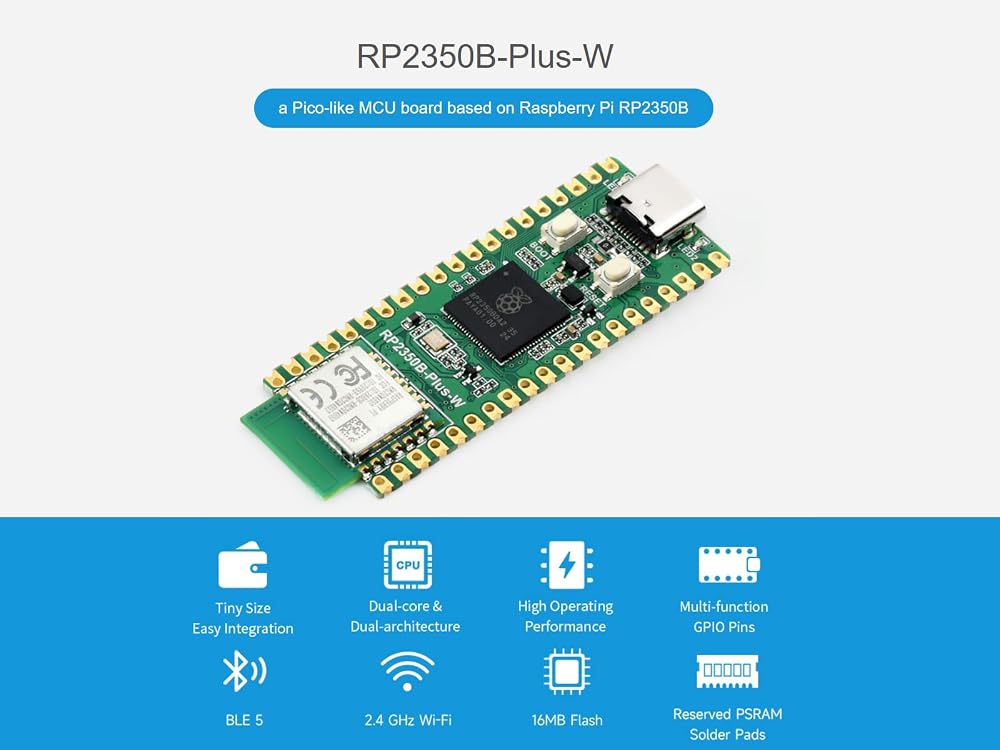

RP2350B-Plus-W is a tiny size, low-cost, high-performance MCU board designed by Waveshare. Based on Raspberry Pi RP2350B microcontroller, equipped with Raspberry Pi Radio Module 2, integrated with 16MB Flash memory and reserved solder pads for PSRAM chip expansion, which makes it easy for you to develop and integrate into products quickly.

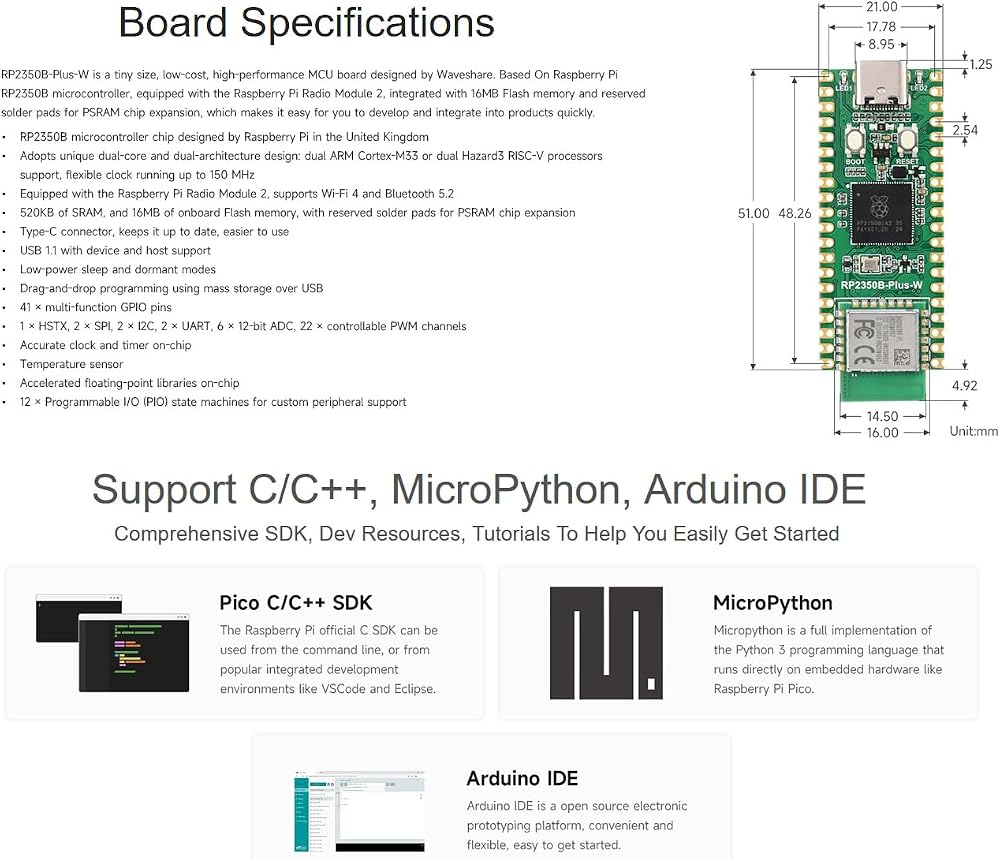

Board specifications
RP2350B microcontroller chip designed by Raspberry Pi in the United Kingdom
Adopts unique dual-core and dual-architecture design: dual ARM Cortex-M33 or dual Hazard3 RISC-V processors support, flexible clock running up to 150 MHz

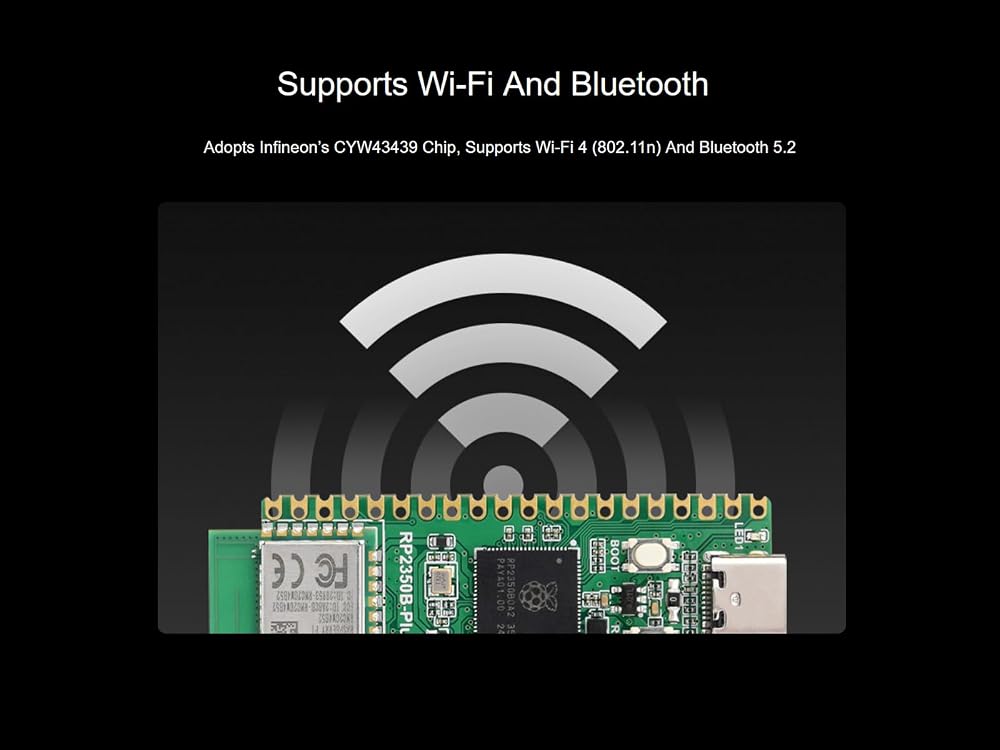

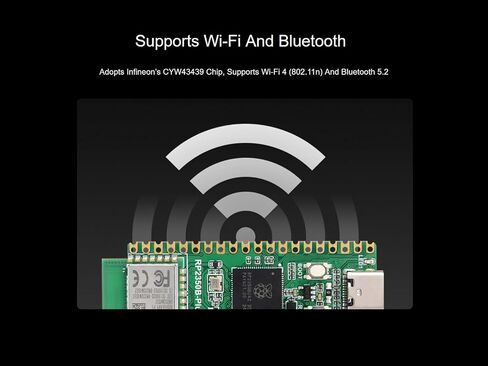

Equipped with Raspberry Pi Radio Module 2, supports Wi-Fi 4 and Bluetooth 5.2
520KB of S-R-A-M, and 16MB of onboard Flash memory, with reserved solder pads for PSRAM chip expansion
Type-C connector, keeps it up to date, easier to use
USB 1.1 with device and host support
Low-power sleep and dormant modes
Drag-and-drop programming using mass storage over USB

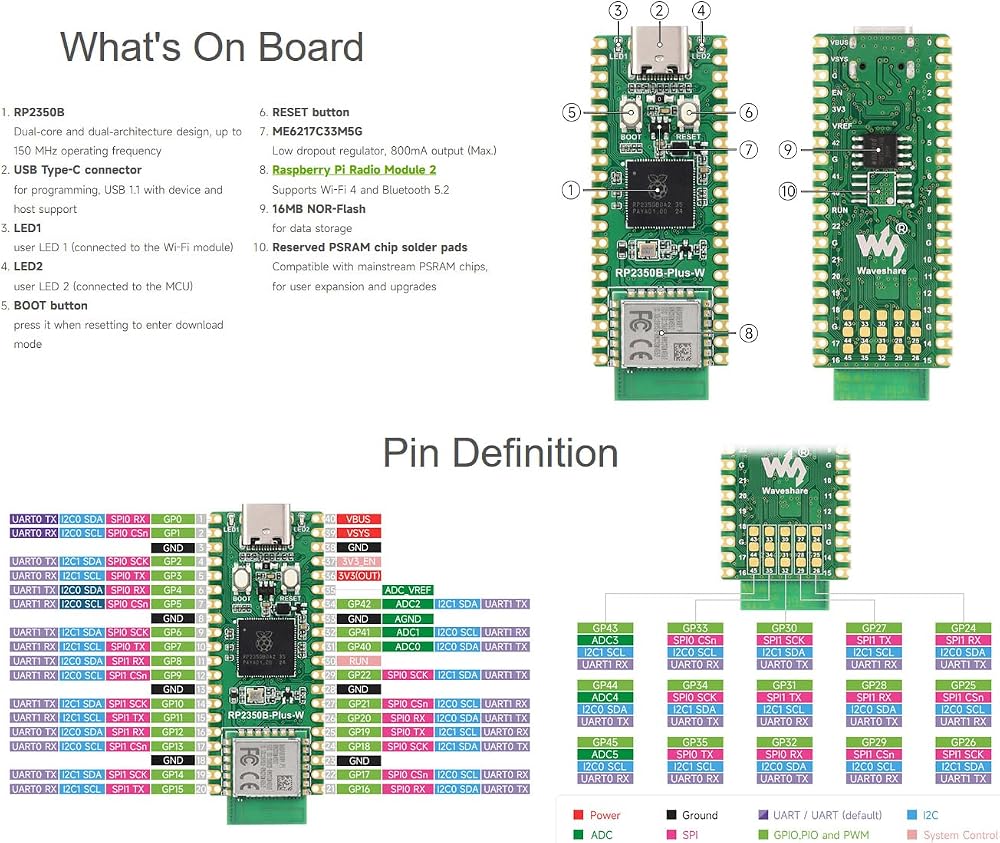

41 × multi-function GPIO pins
1 × HSTX, 2 × SPI, 2 × I2C, 2 × UART, 6 × 12-bit ADC, 22 × controllable PWM channels
Accurate clock and timer on-chip
Temperature sensor
Accelerated floating-point libraries on-chip
12 × Programmable I/O (PIO) state machines for custom peripheral support

Package Content
RP2350B-Plus-W x1

NOTE: Online Development Resources and Technical Support are provided, feel free to contact us if you need!
