Nano Base Board for Raspberry Pi Compute Module 5 Lite/eMMC Series Board, Same Size as CM5, with CM5 Socket/40PIN GPIO Header/RJ45 Gigabit Eth/16PIN PCIe/HDMI/USB 3.2/Audio/MIPI Interface etc. in Saudi Arabia Nano Base Board for Raspberry Pi Compute Module 5 Lite/eMMC Series Board, Same Size as CM5, with CM5 Socket/40PIN GPIO Header/RJ45 Gigabit Eth/16PIN PCIe/HDMI/USB 3.2/Audio/MIPI Interface etc. in Saudi Arabia Nano Base Board for Raspberry Pi Compute Module 5 Lite/eMMC Series Board, Same Size as CM5, with CM5 Socket/40PIN GPIO Header/RJ45 Gigabit Eth/16PIN PCIe/HDMI/USB 3.2/Audio/MIPI Interface etc. in Saudi Arabia Nano Base Board for Raspberry Pi Compute Module 5 Lite/eMMC Series Board, Same Size as CM5, with CM5 Socket/40PIN GPIO Header/RJ45 Gigabit Eth/16PIN PCIe/HDMI/USB 3.2/Audio/MIPI Interface etc. in Saudi Arabia Nano Base Board for Raspberry Pi Compute Module 5 Lite/eMMC Series Board, Same Size as CM5, with CM5 Socket/40PIN GPIO Header/RJ45 Gigabit Eth/16PIN PCIe/HDMI/USB 3.2/Audio/MIPI Interface etc. in Saudi Arabia Nano Base Board for Raspberry Pi Compute Module 5 Lite/eMMC Series Board, Same Size as CM5, with CM5 Socket/40PIN GPIO Header/RJ45 Gigabit Eth/16PIN PCIe/HDMI/USB 3.2/Audio/MIPI Interface etc. in Saudi Arabia Nano Base Board for Raspberry Pi Compute Module 5 Lite/eMMC Series Board, Same Size as CM5, with CM5 Socket/40PIN GPIO Header/RJ45 Gigabit Eth/16PIN PCIe/HDMI/USB 3.2/Audio/MIPI Interface etc. in Saudi Arabia

Nano Base Board for Raspberry Pi Compute Module 5 Lite/eMMC Series Board, Same Size as CM5, with CM5 Socket/40PIN GPIO Header/RJ45 Gigabit Eth/16PIN PCIe/HDMI/USB 3.2/Audio/MIPI Interface etc.

SAR 136
Brand
waveshare
Weight
20 g
All electronics ship with US style plugs. You may need a voltage converter or a plug adapter.
– 1 +

Special Features

  • Nano Base Board (B) for Raspberry Pi Compute Module 5 Lite / eMMC series module, same size as the CM5, with multiple peripheral interfaces, suitable for evaluating the Compute Module 5 or being integrated into end products
  • Onboard CM5 socket suitable for all variants of Compute Module 5, 40PIN GPIO interface for connecting to various HAT modules, RJ45 Gigabit Ethernet port for network access, USB 3.2 Gen1 high speed interface for connecting sorts of USB devices
  • Onboard Dual MIPI interfaces for connecting to DSI displays or CSI cameras, Mini HDMI port supports 4K output, 3.5mm jack for Audio output, 16PIN PCIe connector for connecting sorts of PI5 PCIe adapter boards, TF card socket for Compute Module 5 Lite (without eMMC) variants
  • It is forbidden to unplug and unplug any device other than USB when it is charged. Type C can be used as a USB SLAVE interface to flash images. Do not connect other devices when using Type C to flash. Insufficient power supply for burning will cause the device to be unrecognized
  • Onboard default USB 3.2 Gen1 port. USB TYPE A interface maximum power output 2A. The onboard BOOT button, you can press the BOOT button before powering on, and connect to the computer through Type C to let the device enter the flashing mode

Description

Overview

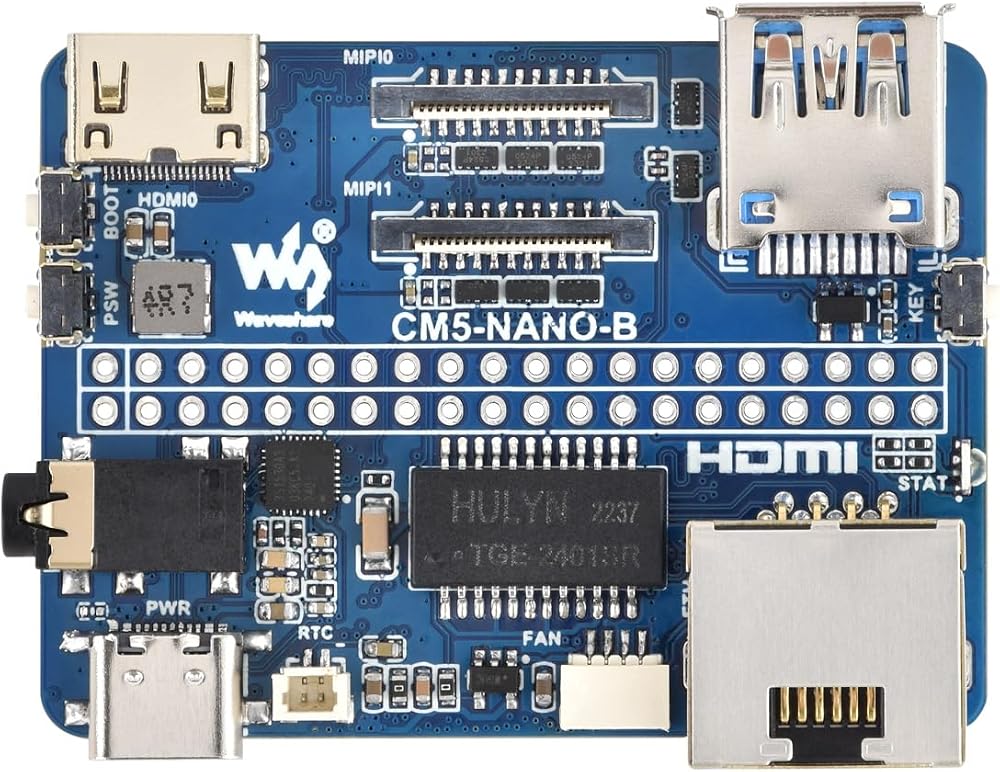

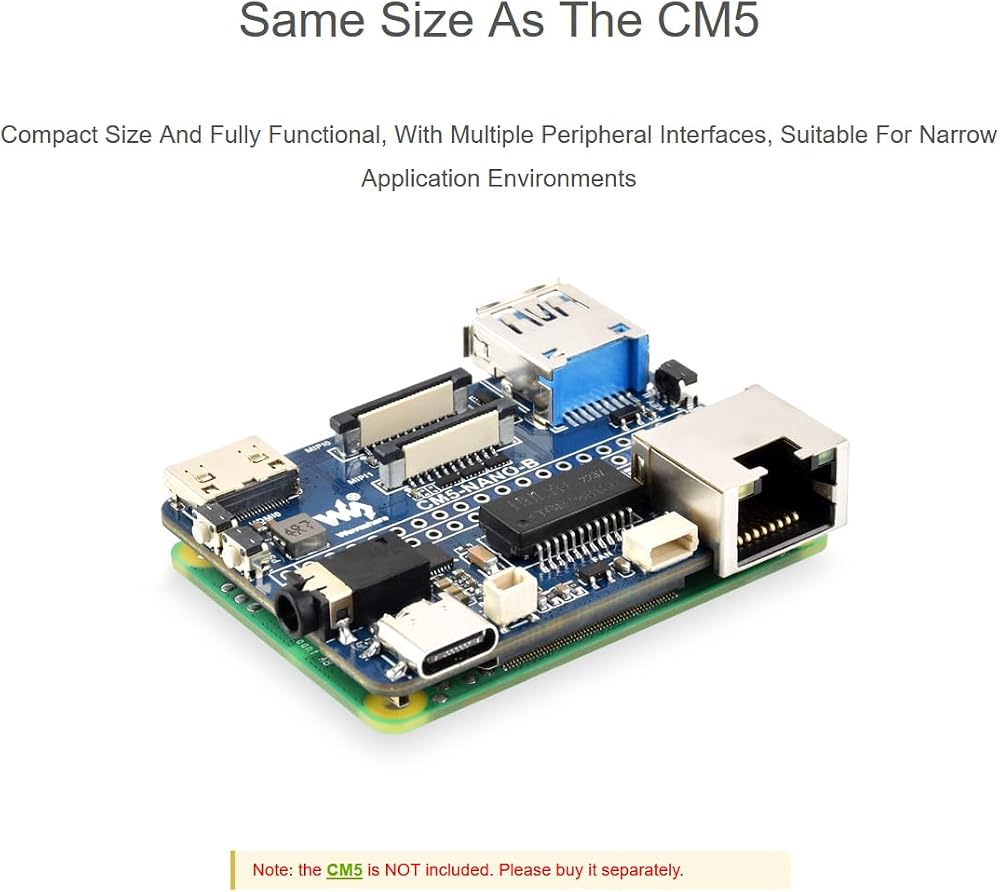

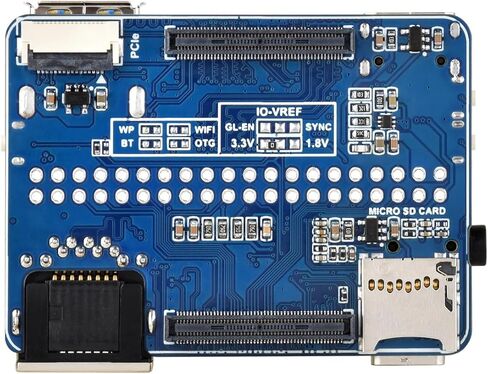

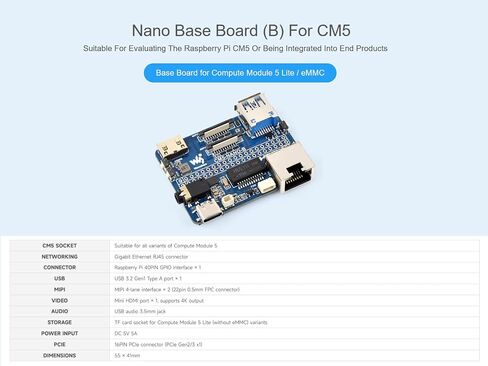

Nano Base Board (B) for Raspberry Pi Compute Module 5 Lite / eMMC Series Module, Same Size As The CM5, Suitable For Evaluating The Compute Module 5 or Being Integrated Into End Products

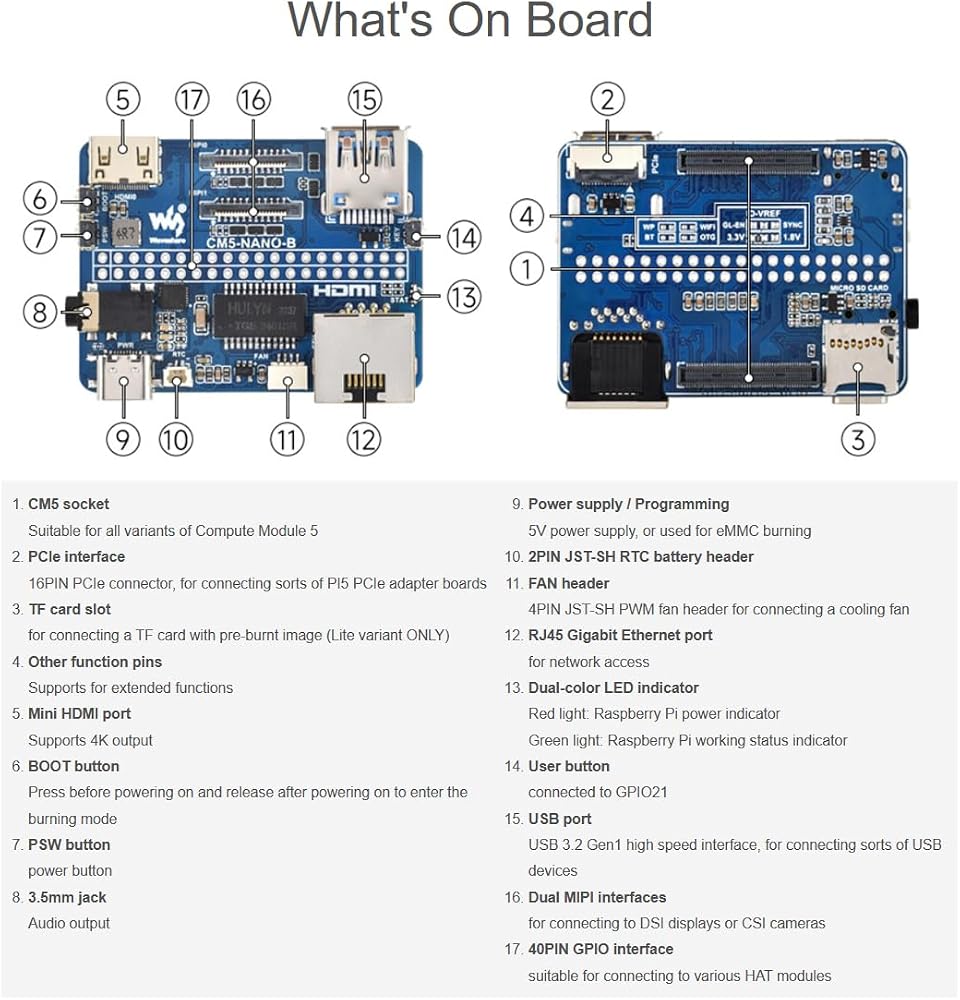

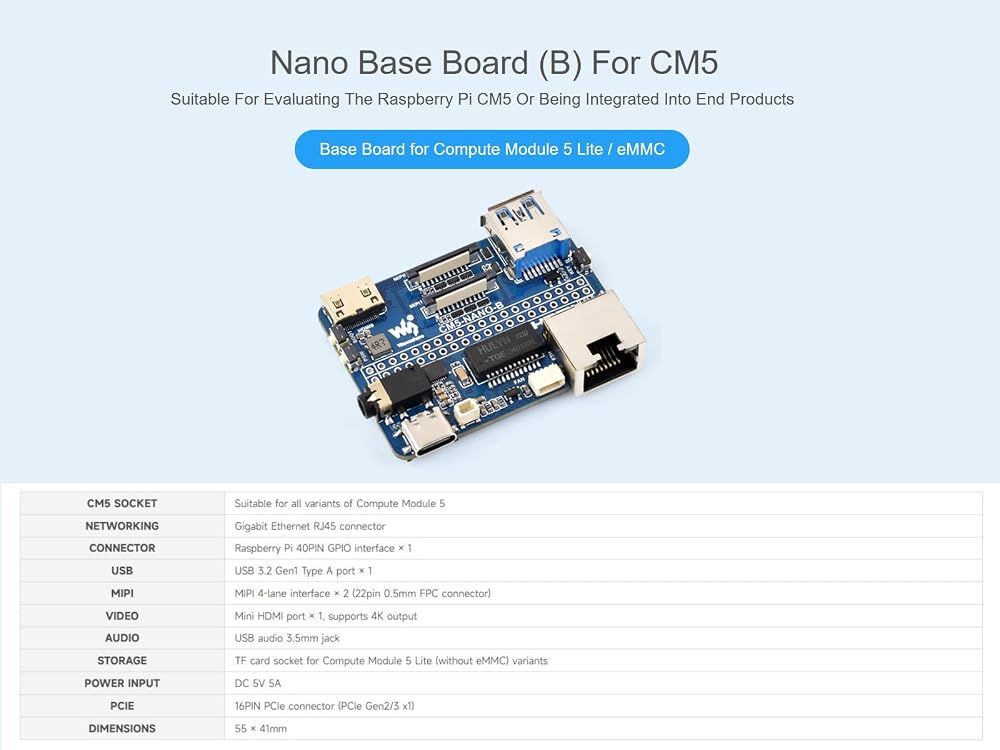

Specifications
CM5 socket-- Suitable for all variants of Compute Module 5
Networking-- Gigabit Ethernet RJ45 connector
Connector-- 40PIN GPIO interface × 1
USB-- USB 3.2 Gen1 Type A port × 1
MIPI-- MIPI 4-lane interface × 2 (22pin 0.5mm FPC connector)
Video-- Mini HDMI port × 1, supports 4K output
Audio-- USB audio 3.5mm jack
Storage-- TF card socket for Compute Module 5 Lite (without eMMC) variants
Power input-- DC 5V 5A
PCIe-- 16PIN PCIe connector (PCIe Gen2/3 x1)

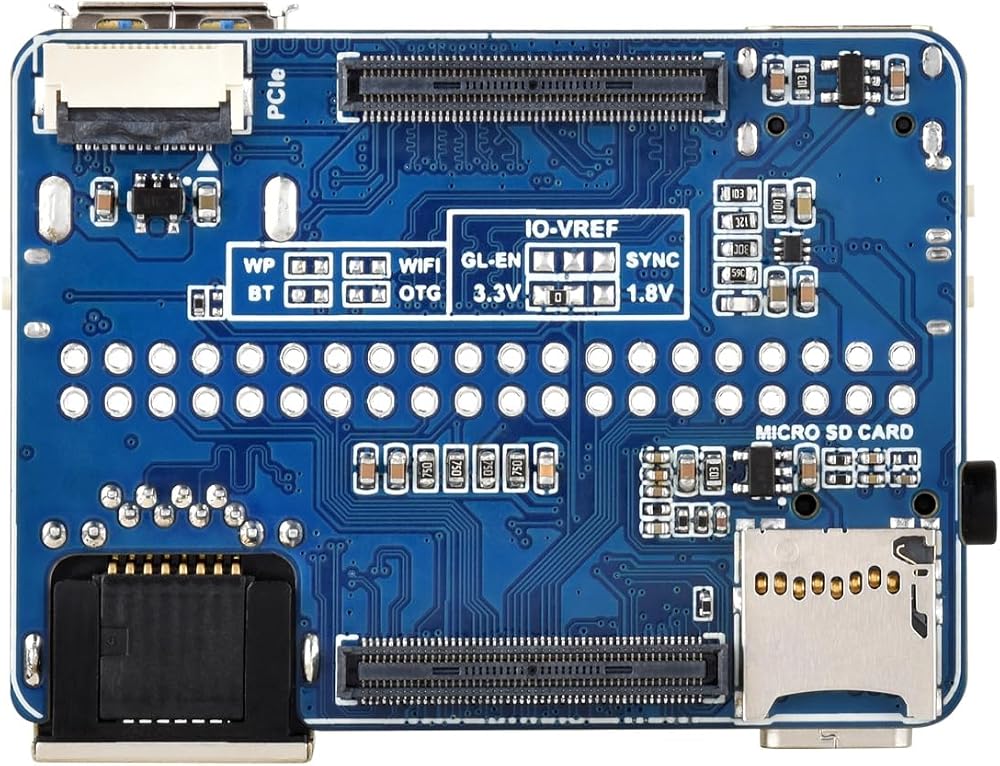

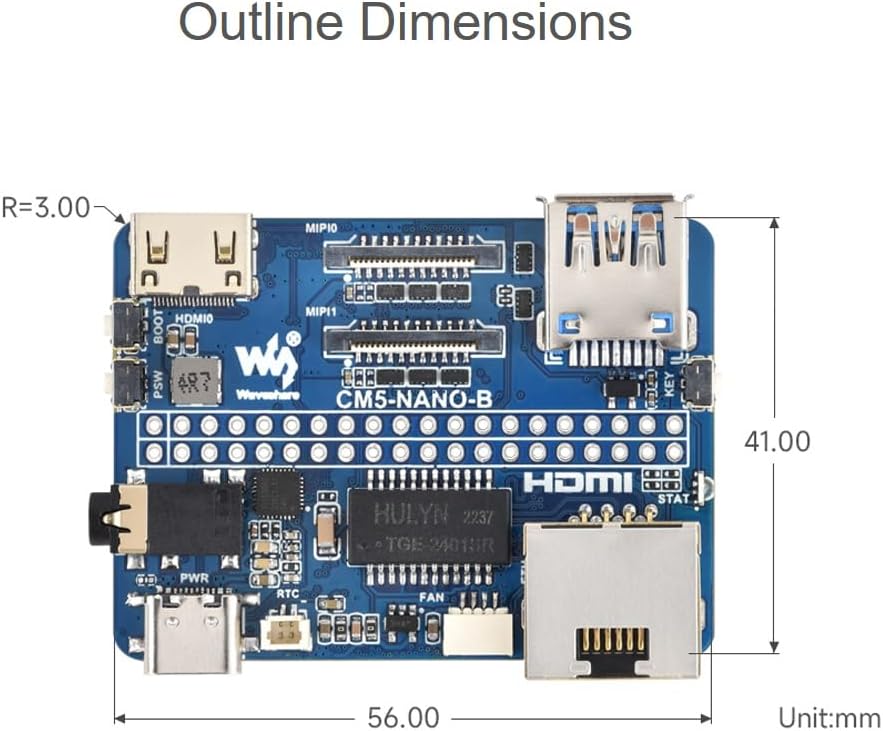

Dimensions-- 55 × 41mm

Precautions
1. It is forbidden to unplug and unplug any device other than USB when it is charged
2. Type C can be used as a USB SLAVE interface to flash images
3. Onboard default USB 3.2 Gen1 port
4. The onboard BOOT button, you can press the BOOT button before powering on, and connect to the computer through Type C to let the device enter the flashing mode
5. Do not connect other devices when using Type C to flash. Insufficient power supply for burning will cause the device to be unrecognized
6. USB TYPE A interface maximum power output 2A

Package Content

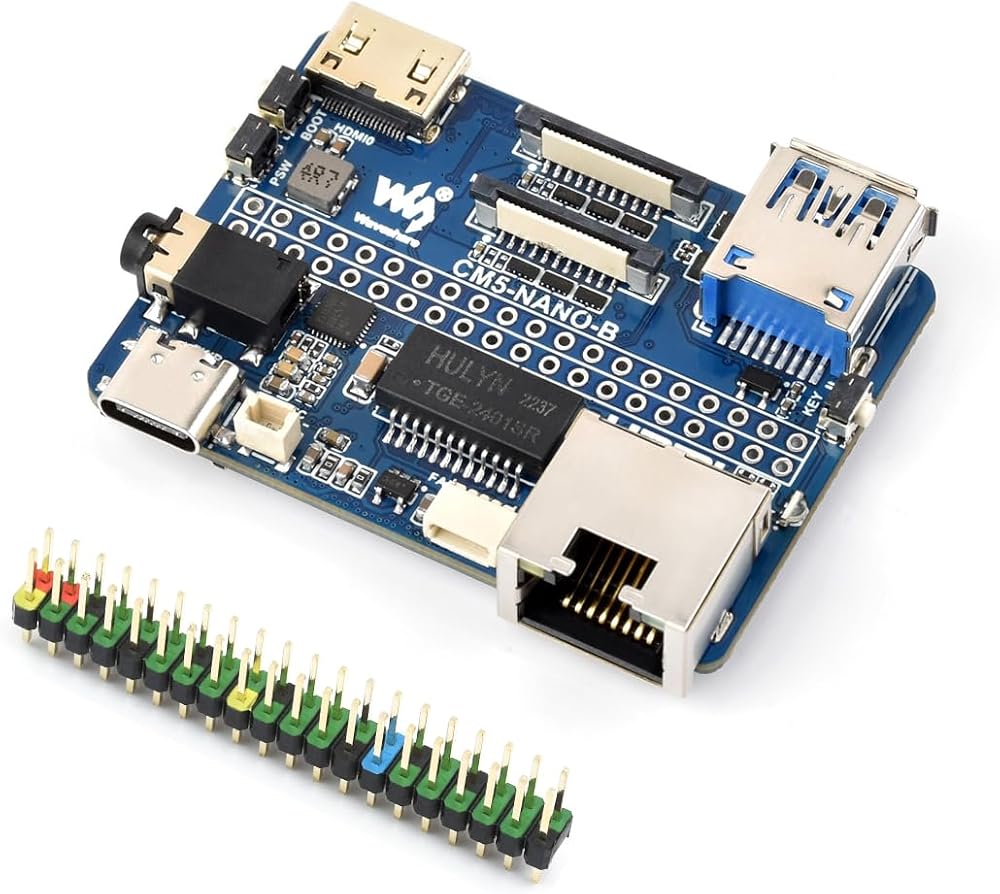

CM5-NANO-B x1
2*20PIN color-coded straight pinheader x1

NOTE: Online Development Resources and Technical Support are provided, please feel free to contact us if you have any problem!
