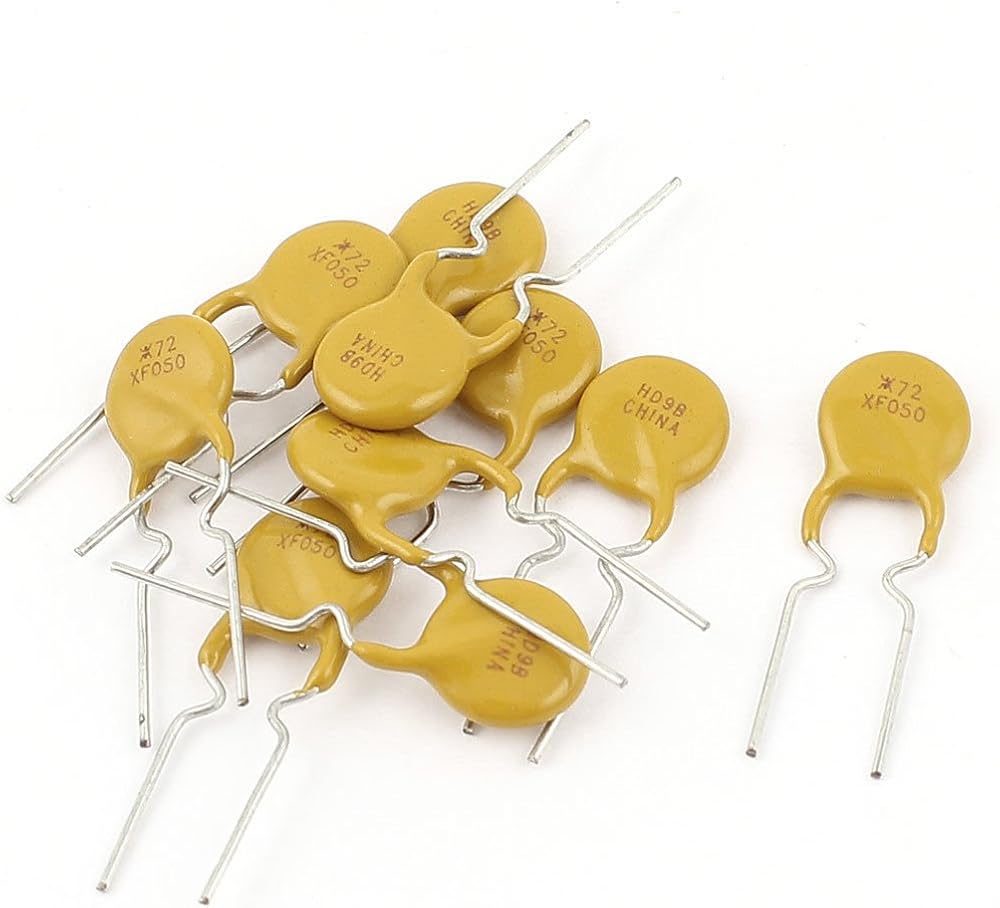

10pcs 72V 500mA 0.5A Resettable Fuse Radial PPTC Polyswitch X72 XF050
Specification:

Product Name: PPTC Resettable Fuse
Max. Voltage:72V
Max. Current:500mA
Trip Current:1A
Mounting Type:Through Hole
Termination Type:Radial Series
Pin Dia.：0.5mm/ 0.02"
Pin Spacing：5mm/ 0.2"
Disc Dia.:7mm/0.28"
Total Size:21 x 7mm/0.83" x 0.28"(L*W)
External Material：Polymeric, Carbon Black, Metal
Color：Yellow, Silver Tone
Net Weight:2g
Package Content:10 Pcs x PPTC Resettable Fuse

Description:
1、These resettable fuses are polymeric positive temperature coefficient (PPTC) device, which is used to help protect against harmful overcurrent surges and overtemperature faults. Like traditional fuses, these devices limit the flow of dangerously high current during fault conditions. However, the fuse resets after the fault is cleared and power to the circuit is removed.
2、The PPTC operates like a resistor. During normal operations it has a resistance of about 0.07 Ohm letting more than enough current flow through. During a fault condition the temperature and resistance of the fuse increases letting much less current through. When the fault has been rectified and the fuse cools down the resistance returns to its normal level.
3、Widely used in computer, multimedia, industrial equipment, general electronics, com-communications, ect.
