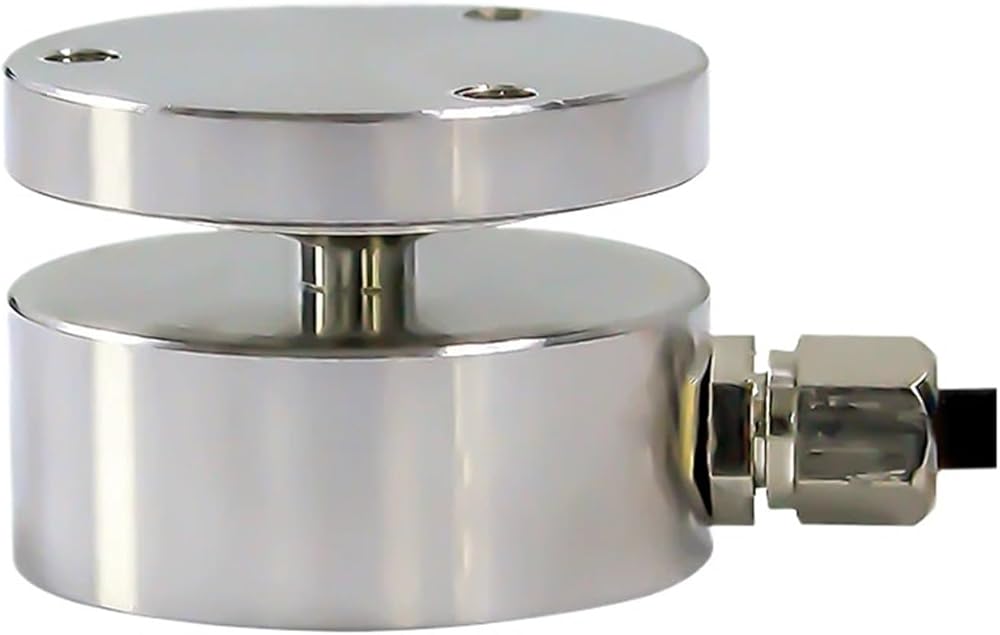

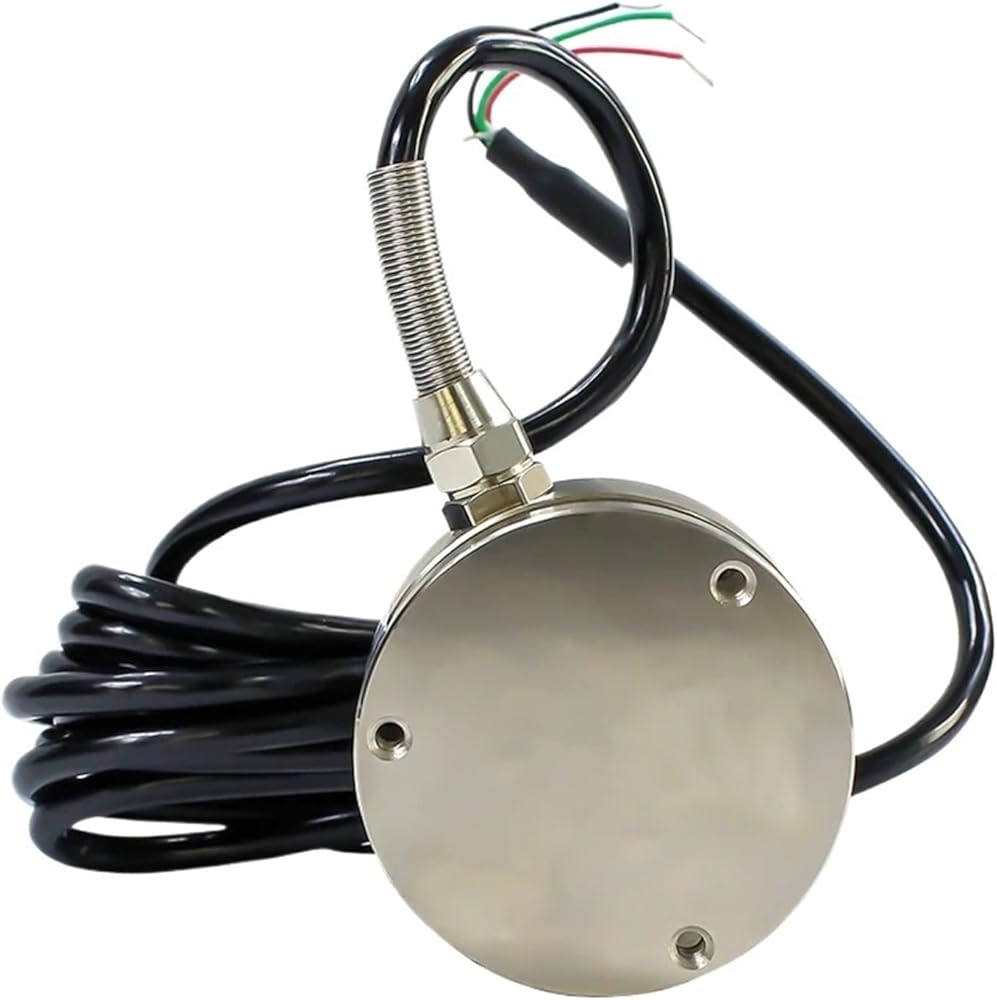

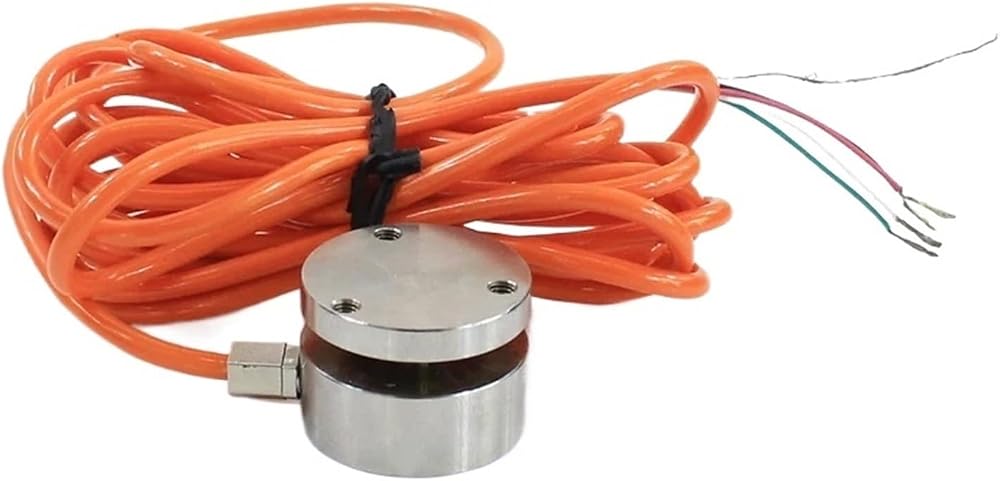

Flat Diaphragm Tension Compression Sensor 50kg-10T Miniature Round Pan Force Load Cell Transducer(3ton)

Sorry, this product is not available

Special Features

  • Transducers
  • Torque sensor is a strain gauge sensor for static torque measurement or torque wrench calibration
  • Compact structure
  • It can measure both forward and reverse torque
  • Measurement of torsional moments and conversion of physical changes into information
  • The principle of operation is based on the resistive strain principle

Description

Transducers
Specificationof Load Cell
Capacity
50kg-10t
Material
Alloy steel
Non-Linearity
0.1%F.S.
Impedance
700
Hysteresis
0.1%F.S.
Working voltage
5-15V
Repeatability
0.1%F.S.
Safe Overload
150%
Creep(30min)
0.1%F.S/30min
Maximum Overload
200%
Zero Balance
±2%F.S.

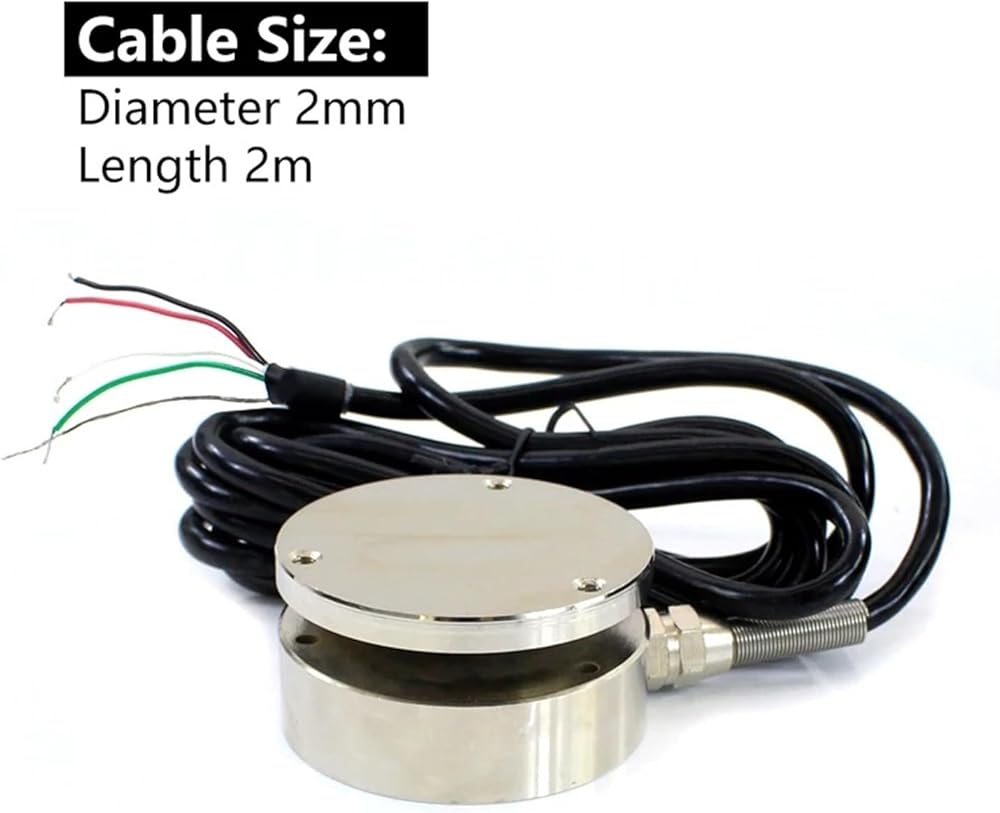

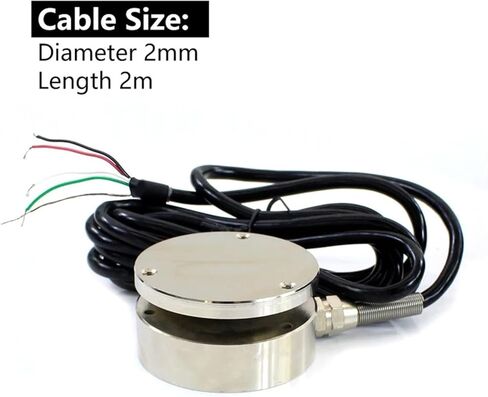

Cable Specifications
5*2m
Zero temperature coefficient
0.05%F.S./10
Operating Temp Range
-20-80
Response frequency
10kHz
==========
Model Number : DSMH-102
