Motors
Specification:

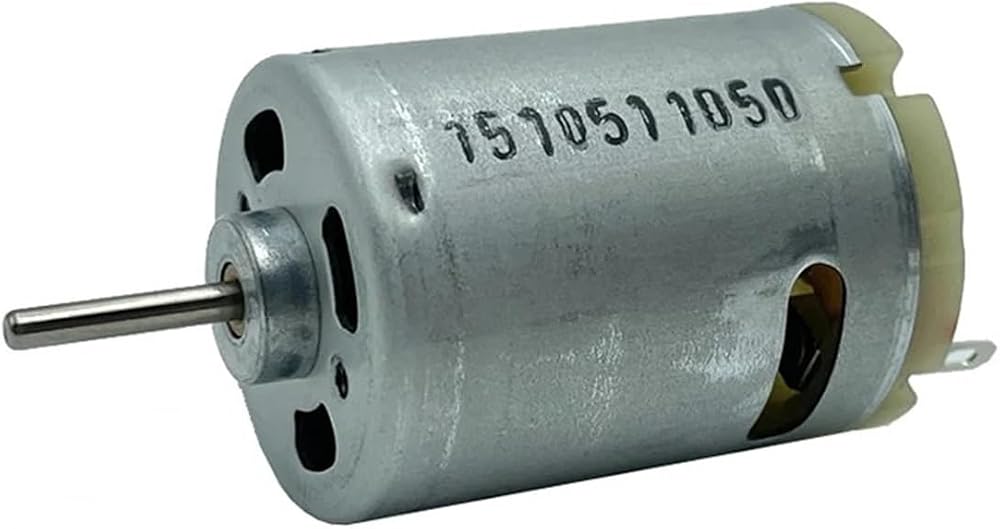

1.Model: RS-385SA-15105

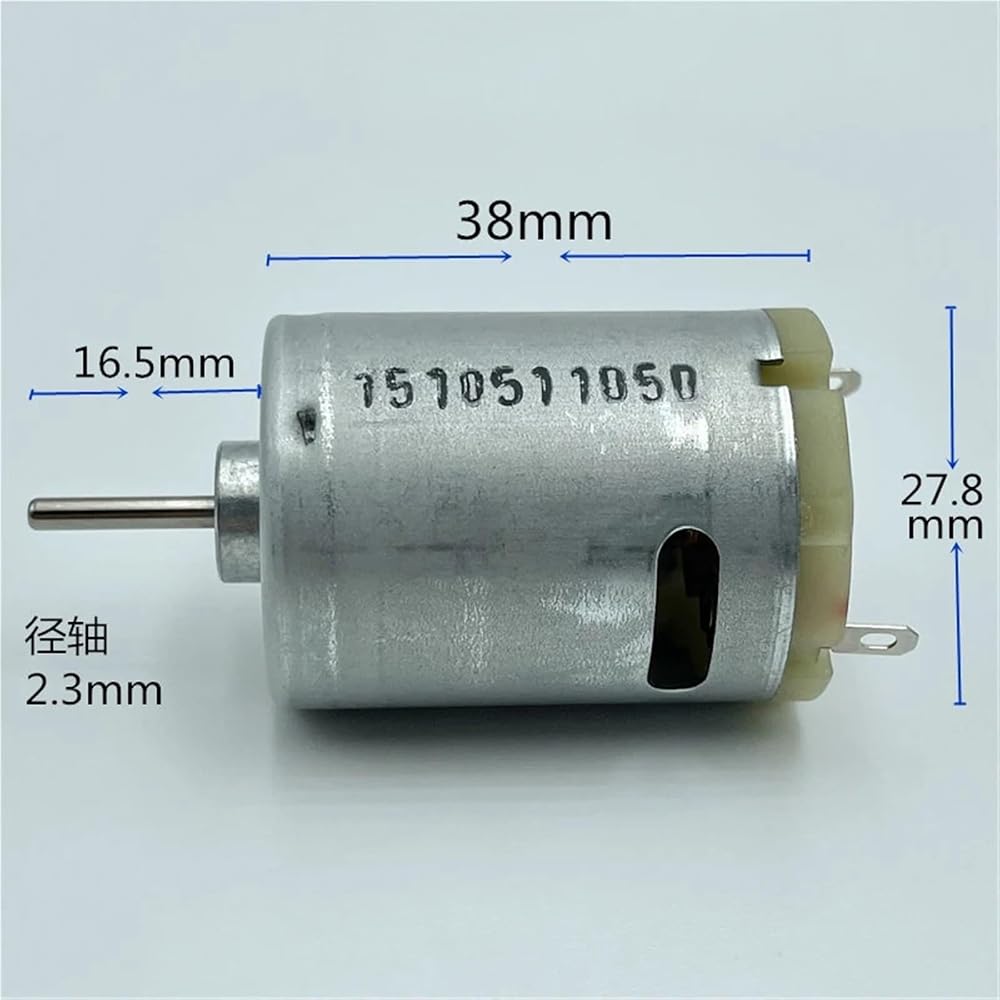

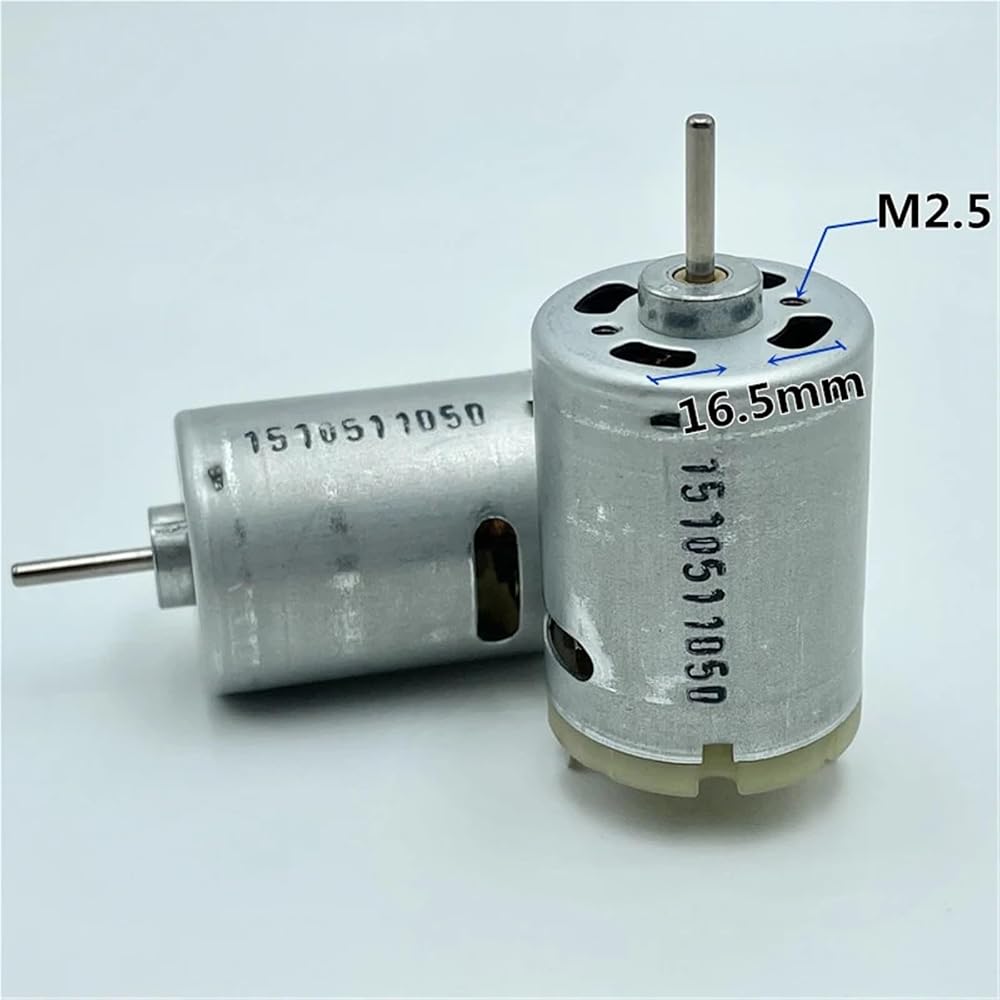

2.Motor size:27.8mm*38mm
3.Output shaft diameter: 2.3mm
4.Output shaft length: 16.5mm(include step height)
5.Weight: 65g
6.Voltage range: 6.0V-24.0V
7.Test data:
Voltage:6V No-load speed:3100RPM Current:80mA
Voltage:12V No-load speed:7000RPM Current:98mA
Voltage:18V No-load speed:10800RPM Current:105mA
Voltage:24V No-load speed:14500RPM Current:115mA
8.Appliation: Household appliances, massage sticks, hair dryers, air guns, drilling machines, toy diy, etc
Package List:
Motor x 1pc
==========
Model Number : RS-385SA-15105
Construction : Permanent Magnet
Type : Micro Motor
Protect Feature : Explosion-proof

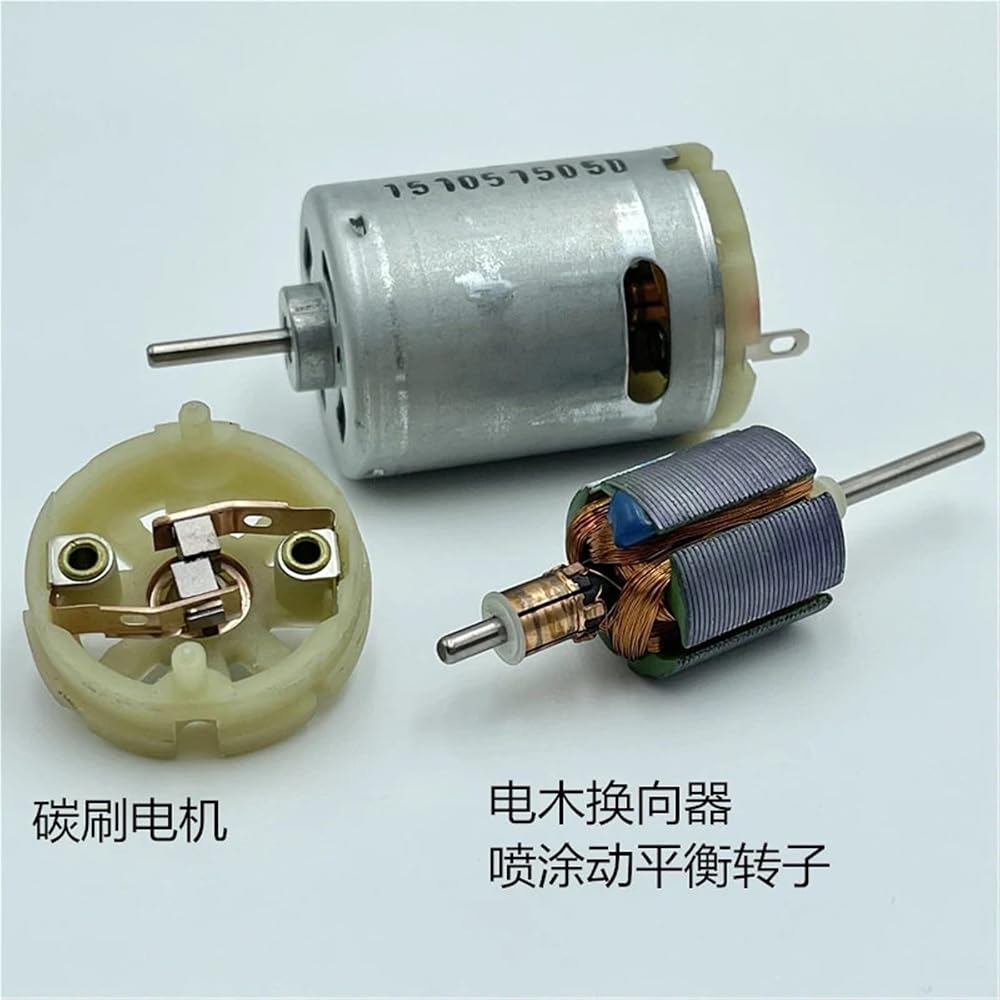

Commutation : Brush
Efficiency : IE 1
Use : Home Appliance
Special Motor Construction : Motor
Current Type :
Reversible/Non-Reversible : Reversible
Shaft Type : Straight
Shaft Diameter : 2.3mm
Voltage Range : 6V-24V
Speed Range : 3100RPM-14500RPM
Motor Diameter : 27.8mm
Motor Height : 38mm
