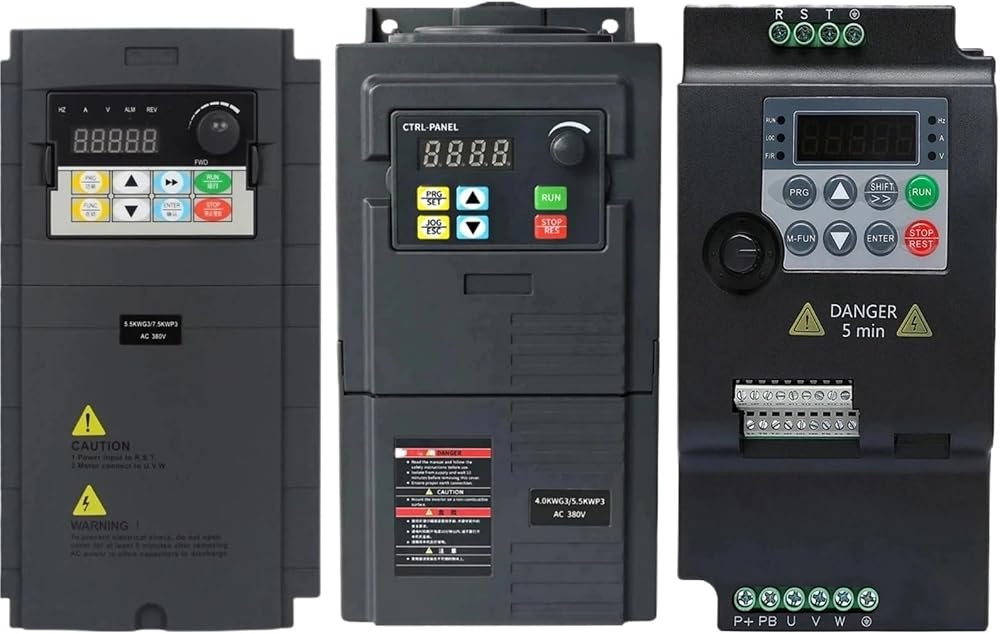

Frequency converter selection310/320/720/HE100)
For light loads, choose one grade larger (1.5kw motor chooses 2.2kw) and heavy load selection multiplies by 2 (2.2kw motor chooses 5.5kw). Because the voltage needs to be changed, the pressure on the inverter is relatively high, so choose to leave enough margin
Input voltage: 220V(170V-240V)/ 380V(330V-440V) Single phase/Three phase
Output voltage: 220V(170V-240V)/ 380V(330V-440V) Three phase
Frequency range: 0.1-600Hz
Output frequency accuracy: 0.1Hz
Overload protection: constant torque 150%/1 min, variable torque 120%/1 min.
Overvoltage protection: Overvoltage protection can be configured.
Undervoltage protection: protection can be set
Other protections: short circuit protect
Output Frequency : 0-999HZ

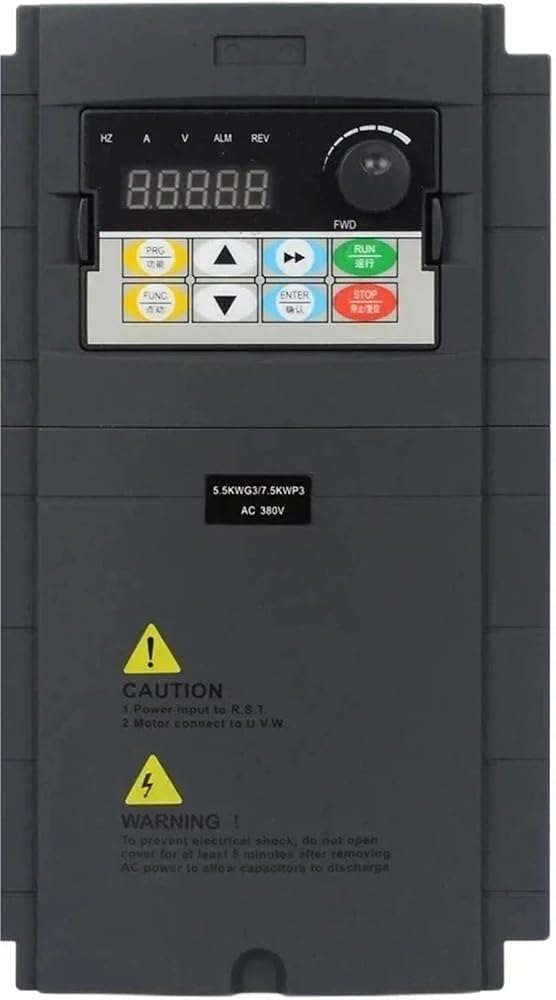

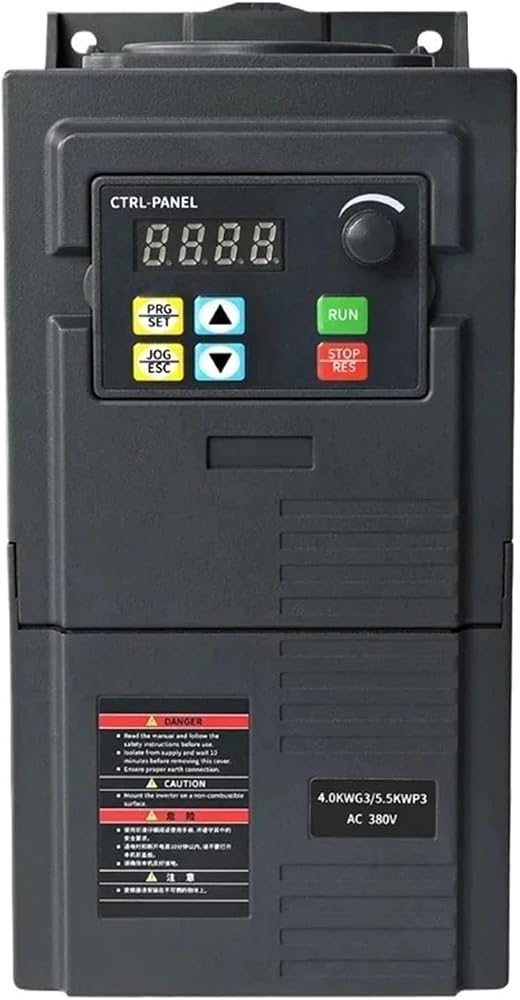

Model Number : SUSWE360/361
Output Power : 1 - 200KW
Type : AC/AC
Size : 170*78*135MM
Output Type : triple
power : 5.5KW /7.5kw/11kw/15kw/22KW
Input voltage : Single phase 220V-240V/three-phase 340-440V
The output voltage : Three-phase 220V-240V/three-phase 340-440V
Output frequency : 0-600HZ
