Advantages:
1. 7*24-hour real-time active balance whether it is charging, discharging or static status, improve battery efficiency by 95%.
2. Support Single battery cell voltage range 1V~5V, equalization accuracy ±5mV with high precision voltage acquisition (≤20mV) & high precision current acquisition (≤2%@FS) and Isolated power circuit
3. All in protection: With Balanced protection, over charge protection, over discharge protection, over current protection, short circuit protection, temperature protection, PCB protection, Disconnection protection protect your battery better.
4. Real-time active energy transfer equalization with super capacitor as the medium
5. With 0.6A balanced current, continuous 60A 80A 100A 120A 150A charge/discharge current, ensure battery consistency, improve battery cruising range, and delay battery aging, improving safety and avoid risk.
6. Smartphone APP operation with BT communication, real-time monitor & management of battery status, support Android and IOS operating systems.
7. Support series connection, suitable for 7-24S battery packs, fit for 24V to 84V usage.
8. Suitable for Li-ion NCM LFP/LiFePo4 LTO and other battery types.
9. Widely used for 2 wheels/3 wheels electric vehicles and electric tools.
10. Easy to Use

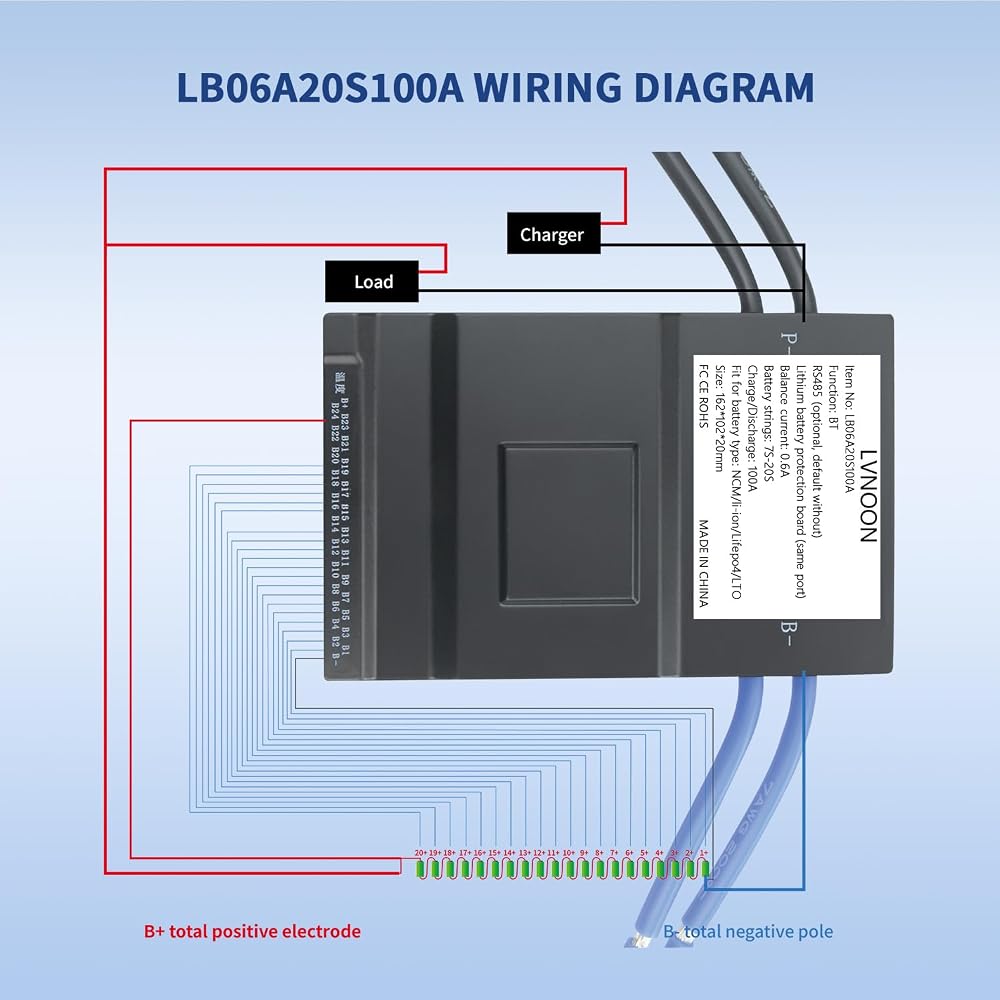

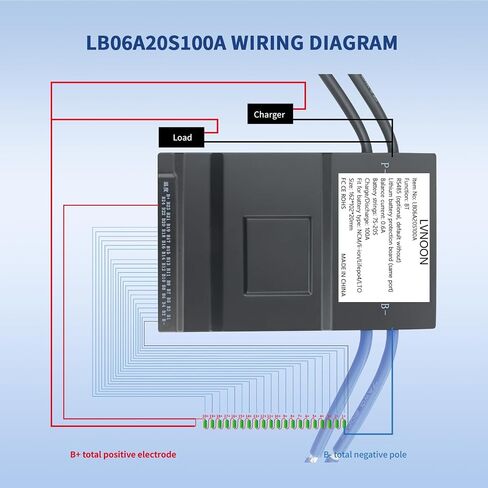

Weld the wires Download the APP & use switch to activate the BMS
Turn on smartphone BT and find the relevant serial number to check all the battery data Fit for IOS & Android smart phones
11. Support more communication: Can add extra RS485 module / GPS module /LCD displays to work with the BMS together. If you need "CAN function" or "heat function", please contact us in advance.
Operating temperature range: -30°C~70°C
Power requirements: 10V~100V
Power consumption: balanced state 10mA@100V, unbalanced state 6mA@100V
Number of battery strings(li-ion): 7S-17S (for 24V-60V usage)
Number of battery strings (Lifepo4): 8S-17S (for 24V-48V usage)
Number of battery strings (LTO): 12S-17S (for 24V-48V usage)

Number of battery strings(li-ion): 7S-20S (for 24V-72V usage)
Number of battery strings (Lifepo4): 8S-20S (for 24V-60V usage)
Number of battery strings (LTO): 12S-20S (for 24V-48V usage)

Number of battery strings(li-ion): 7S-24S (for 24V-84V usage)
Number of battery strings (Lifepo4): 8S-24S (for 24V-72V usage)
Number of battery strings (LTO): 12S-24S (for 24V-60V usage)

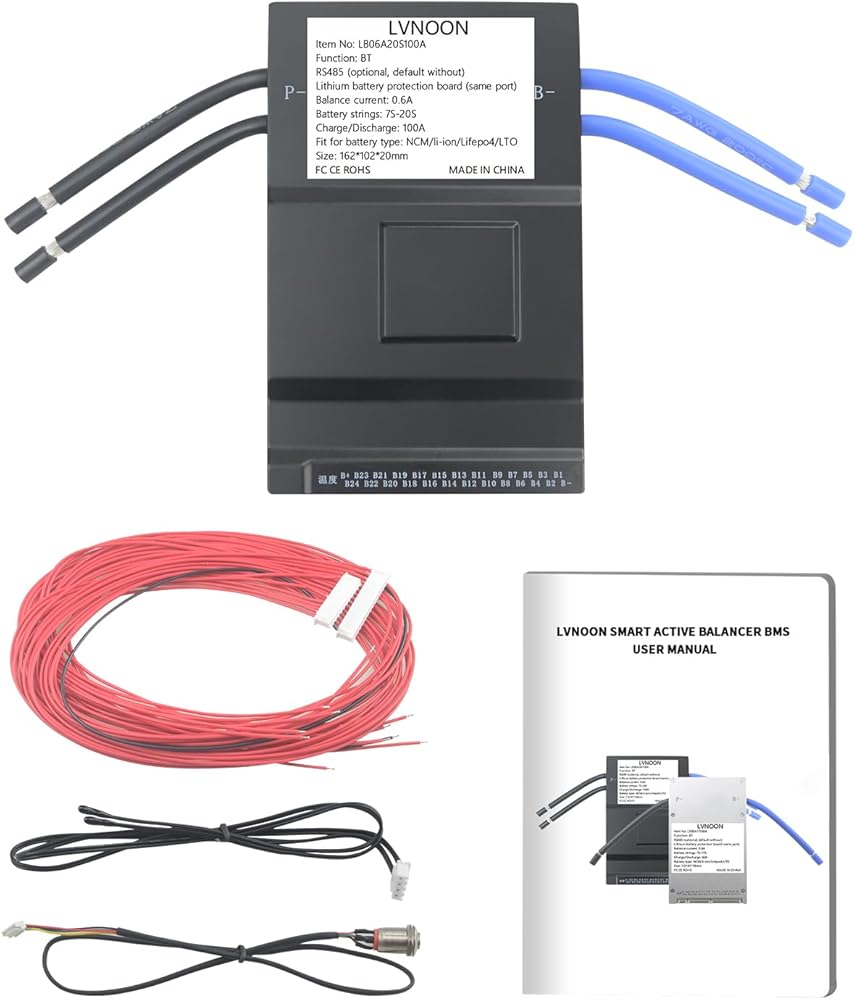

Packing list:
Active BMS protection board x1
Balance wire harness x2
Temperature sensor wire x1
Switch x1
User manual x1
