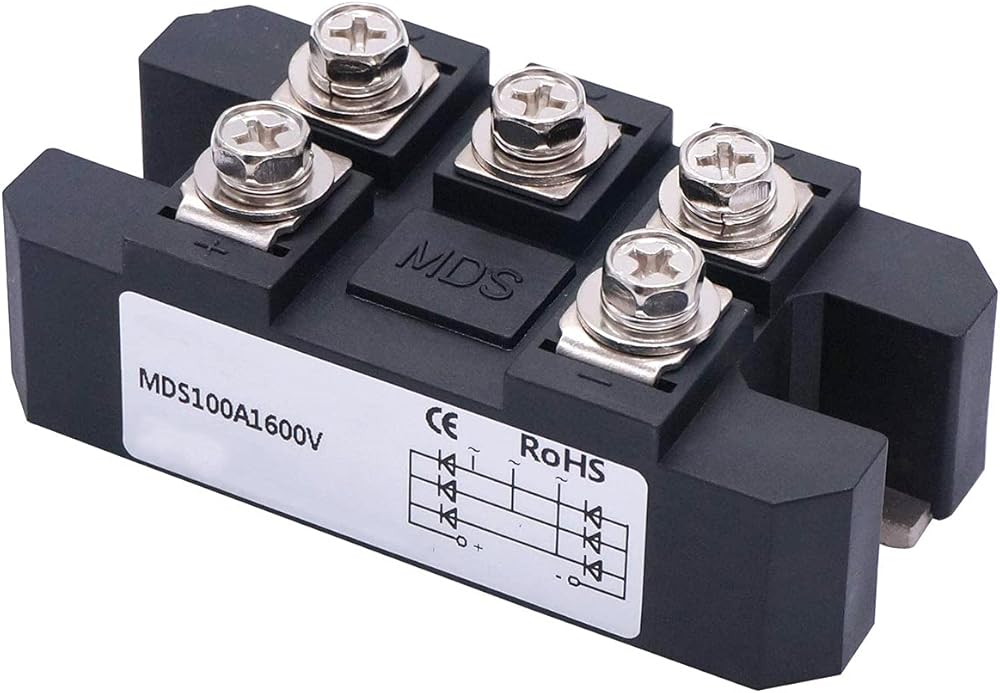

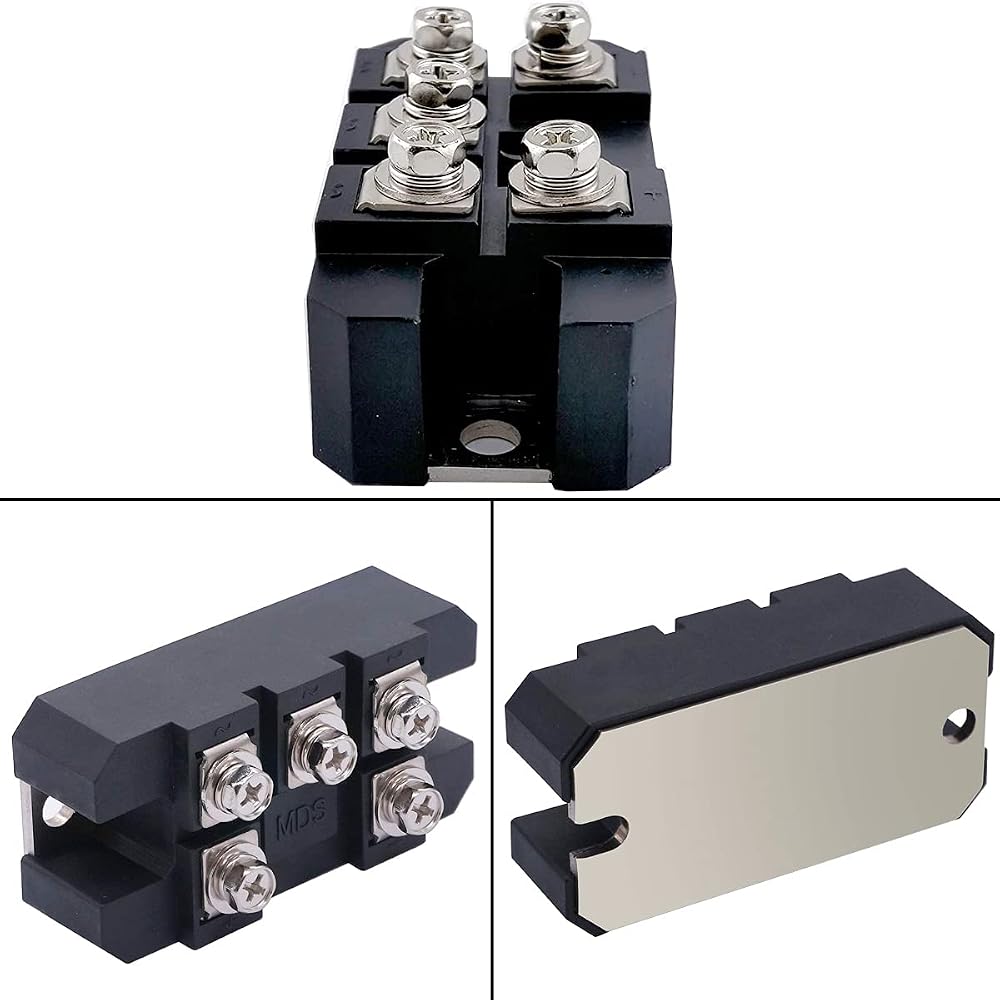

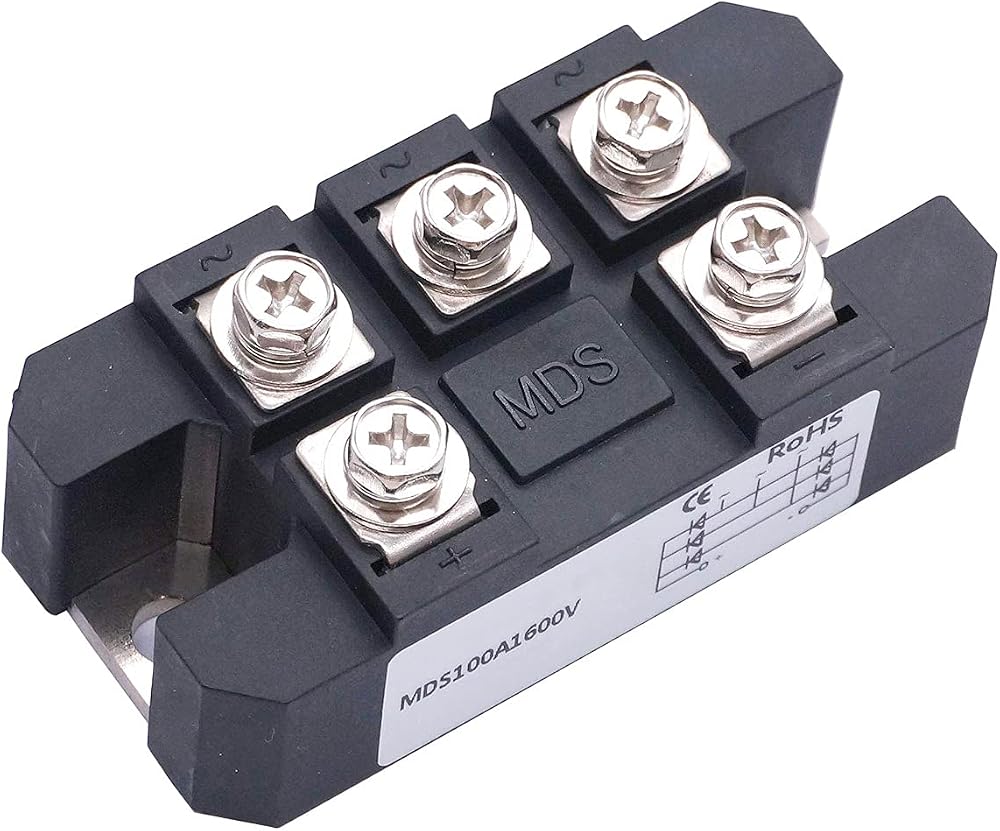

Bridge Rectifier MDS 100A 1600V Diode Bridge Rectifier Full Wave Diode Module 3 Phase 5 Terminal Rectification Module

Sorry, this product is not available

Special Features

  • Model: MDS-100A is designed for three phase full wave rectification, which has six diodes connected in a three phase bridge configuration.
  • High quality: made of high-quality materials, fully crimped structure, excellent temperature characteristics and power cycling capabilities.
  • Maximum limit: average forward rectification current: 100A; repetitive peak reverse voltage: 1600V
  • Application scope: instrument equipment DC power supply, PWM variable frequency rectifier power input, DC motor excitation power supply, switching power supply and auxiliary current input, inverter current, inverter welding machine.

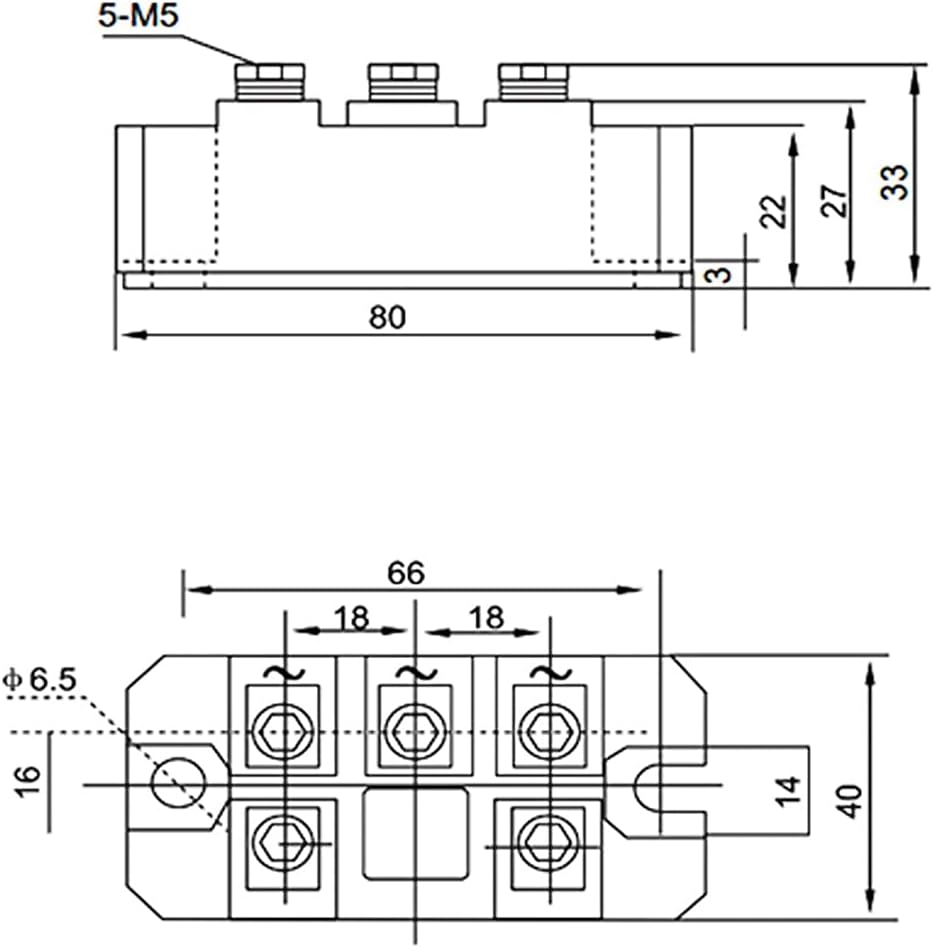

  • Parameters: Phase: Three Phase; Terminals: 5; Production Size: 80 x 40 x 32mm/ 3.1" x 1.6" x 1.2" (L*W*T); Mounted Hole Dia.: 6mm / 0.24"

Description

Product description
Features:
High quality bridge rectifiers used for conversion of an alternating current input into a direct current output.
Well welded structure with good temperature and power cycle ability ensures a more stable performance. Designed for 3 Phase, maximum average forward rectified current is 100A.
It has a large over-current capacity, good heat dissipation and low voltage drop. This high power bridge rectifier can be widely used for power supply.

Specifications:
Material: Metal, plastic
Model: MDQ100S1600V
Maximum Average Forward Rectified Current: 100A
Peak Voltage: 1600V
Phase: 3 Phase
Pin: 5

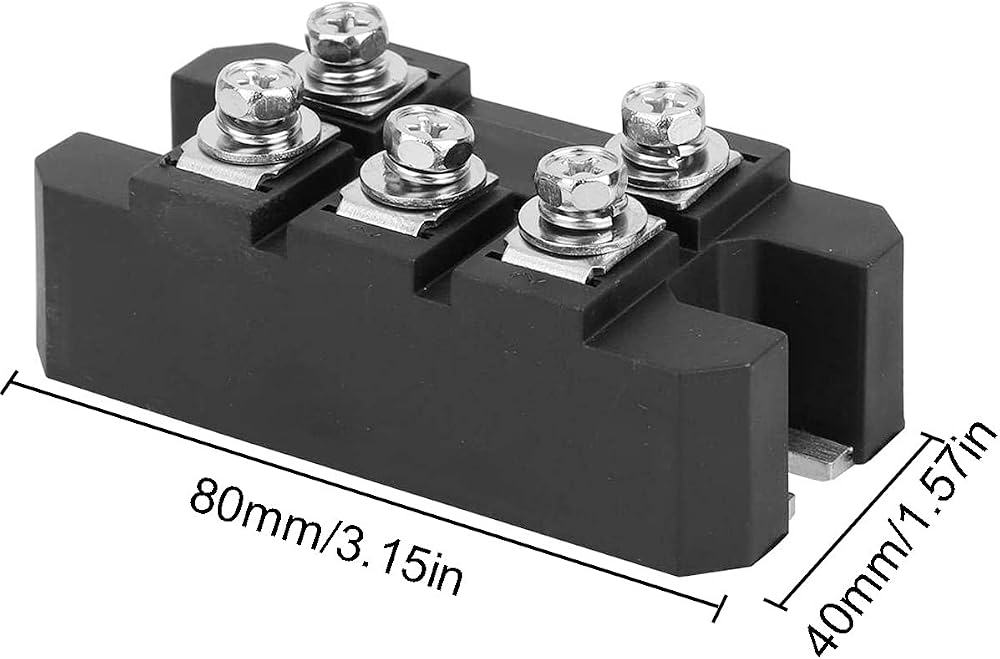

Size: 8*4*3cm/3.1*1.6*1.2in
Hole Diameter: 0.6cm/0.2in

Package Includes:
1 x Bridge Rectifier
