2PCS 1.54 Inch OLED I2C IIC Display Module 12864 128x64 Pixel SSD1309 Driver I2C Serial Interface Display Board Module Compatible with Raspberry Pi(Blue)

SAR 73
Brand
JUZITAO
Weight
33 g
All electronics ship with US style plugs. You may need a voltage converter or a plug adapter.
– 1 +

Special Features

  • Resolution: 128 x 64, View angle: > 160°, Support voltage: 3.3V-5V DC, Power consumption: 0.04W during normal operation, full screen lit 0.08W
  • Embedded Driver IC: SSD1309. Communication: I2C/IIC Interface, only need two I / O ports
  • No backlight is required, and the display unit can be self-luminous. It has ultra-high contrast, bright and clear dots, and it is easy to read even small fonts
  • No embedded fonts inside the OLED controller, user can create the fonts through the font generation software.
  • Package Includes: 2pcs 1.54 inch OLED Modules(blue).

Description

Specification:
Item Type: Display Screen Module

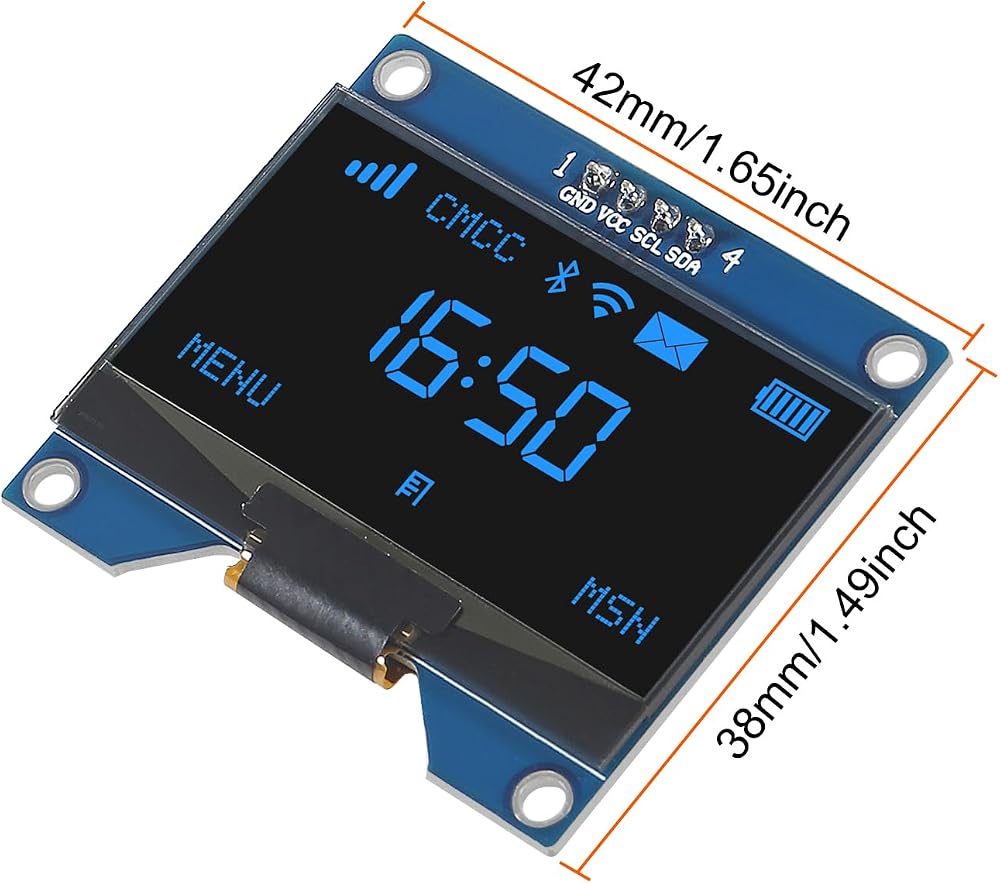

Display Size: 1.54in
Resolution: 128 x 64
Driver IIC: SSD1309, compatible with SSD1306
Interface: SPI interface I2C interface
Drive Voltage: 3.3V-5V
Optional Style: Display White, Display Blue
Product description
OLED self-luminous, no backlight
High resolution: 128x64 (same resolution as 12864, high PPI)
Large viewing angle: greater than 160° (a screen with the largest viewing angle in the display)
Ultra-low power consumption: normal display 0.06w (far lower than TFT display)
Wide voltage power supply (3V~5V), compatible with 3.3V and 5V level logic, no need for level conversion chips

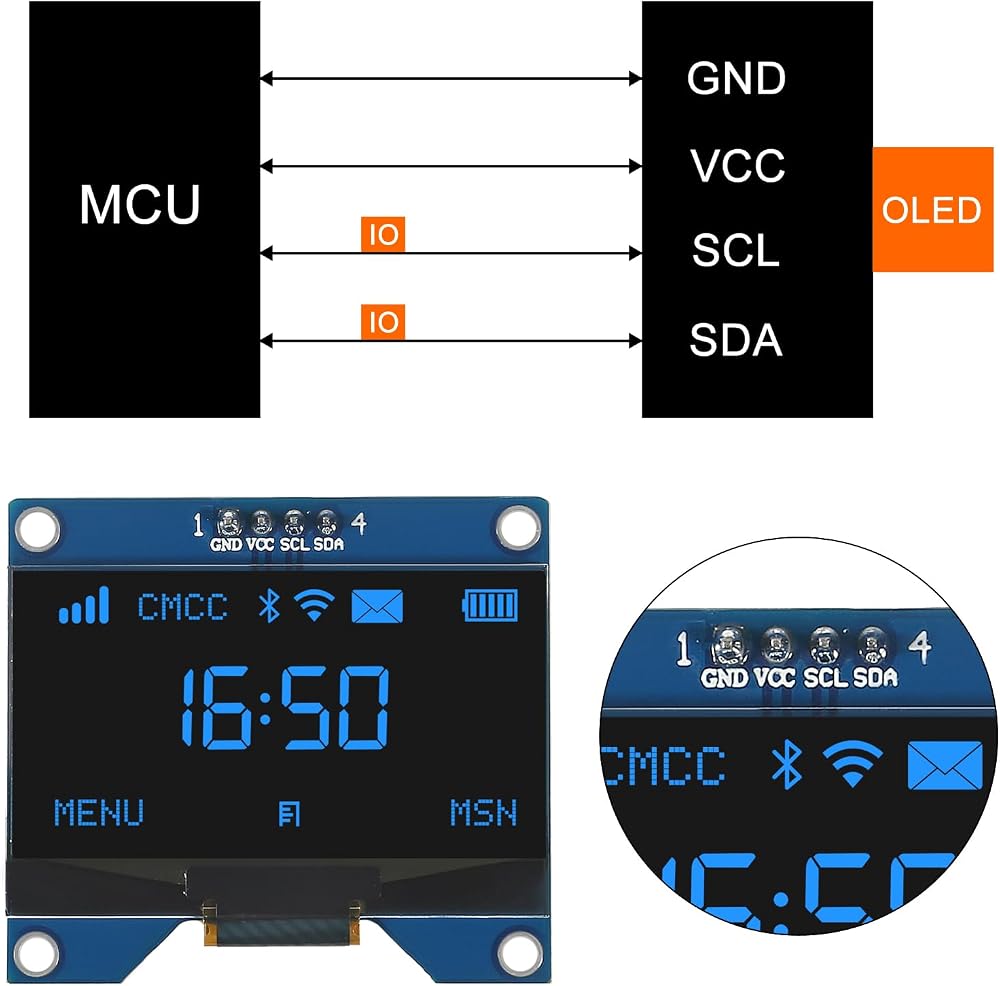

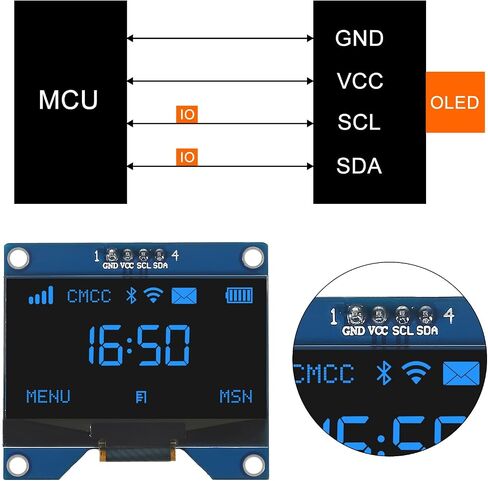

The IIC interface only needs 2 IOs to light up easily

Applications:
MP3, MP4, watch. Head-mounted displays. Meters and other intelligent instruments. Design any pretty patterns for your beloved electronic devices!

Package include:
2PCS 1.54 Inch OLED I2C IIC Display Module(with protective box)
