3 Line 10A 250VAC Micro Limit Switch SPDT Waterproof Switch with Roller Lever and Pre Wired(pack of 2pcs) in Saudi Arabia 3 Line 10A 250VAC Micro Limit Switch SPDT Waterproof Switch with Roller Lever and Pre Wired(pack of 2pcs) in Saudi Arabia 3 Line 10A 250VAC Micro Limit Switch SPDT Waterproof Switch with Roller Lever and Pre Wired(pack of 2pcs) in Saudi Arabia 3 Line 10A 250VAC Micro Limit Switch SPDT Waterproof Switch with Roller Lever and Pre Wired(pack of 2pcs) in Saudi Arabia 3 Line 10A 250VAC Micro Limit Switch SPDT Waterproof Switch with Roller Lever and Pre Wired(pack of 2pcs) in Saudi Arabia 3 Line 10A 250VAC Micro Limit Switch SPDT Waterproof Switch with Roller Lever and Pre Wired(pack of 2pcs) in Saudi Arabia 3 Line 10A 250VAC Micro Limit Switch SPDT Waterproof Switch with Roller Lever and Pre Wired(pack of 2pcs) in Saudi Arabia 3 Line 10A 250VAC Micro Limit Switch SPDT Waterproof Switch with Roller Lever and Pre Wired(pack of 2pcs) in Saudi Arabia

3 Line 5A 250VAC Micro Limit Switch SPDT Waterproof Switch with Lever and Pre Wired(Pack of 2pcs)

SAR 47
Brand
EPLZON
Weight
35 g
Style5A--WS1
– 1 +

Special Features

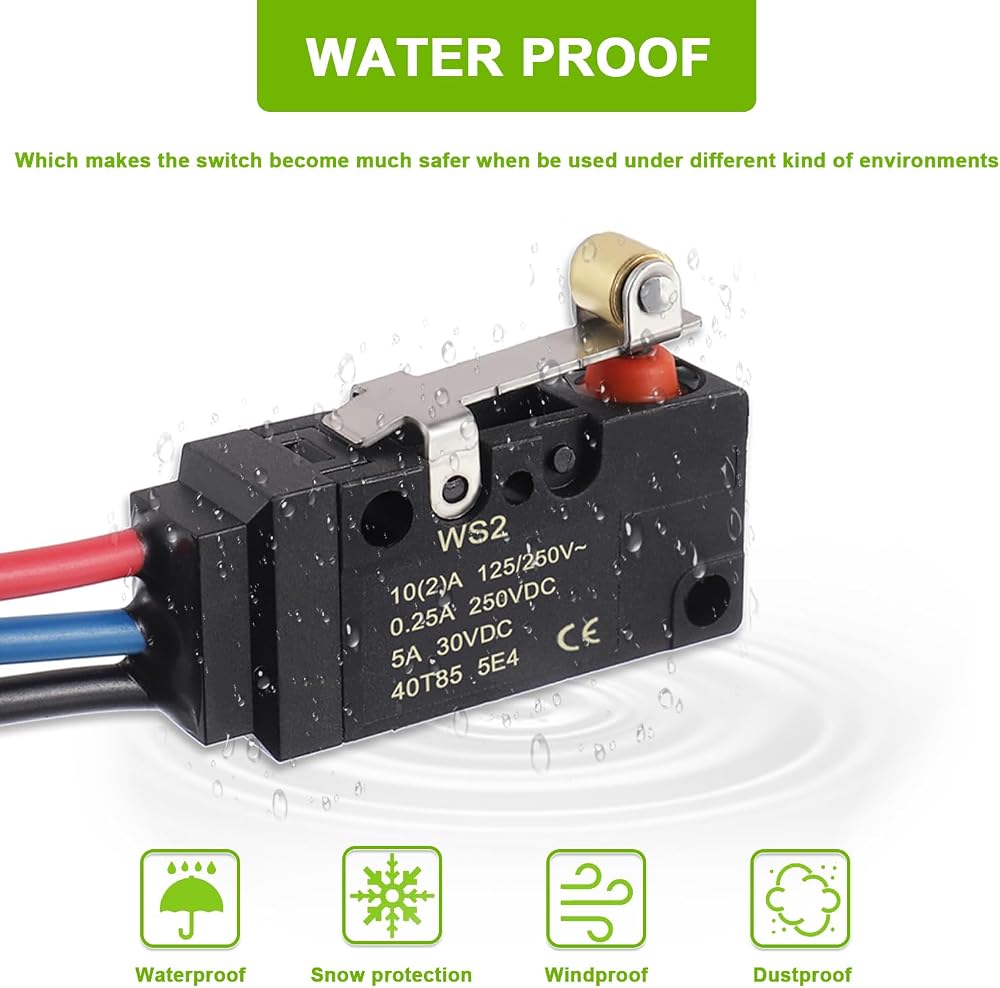

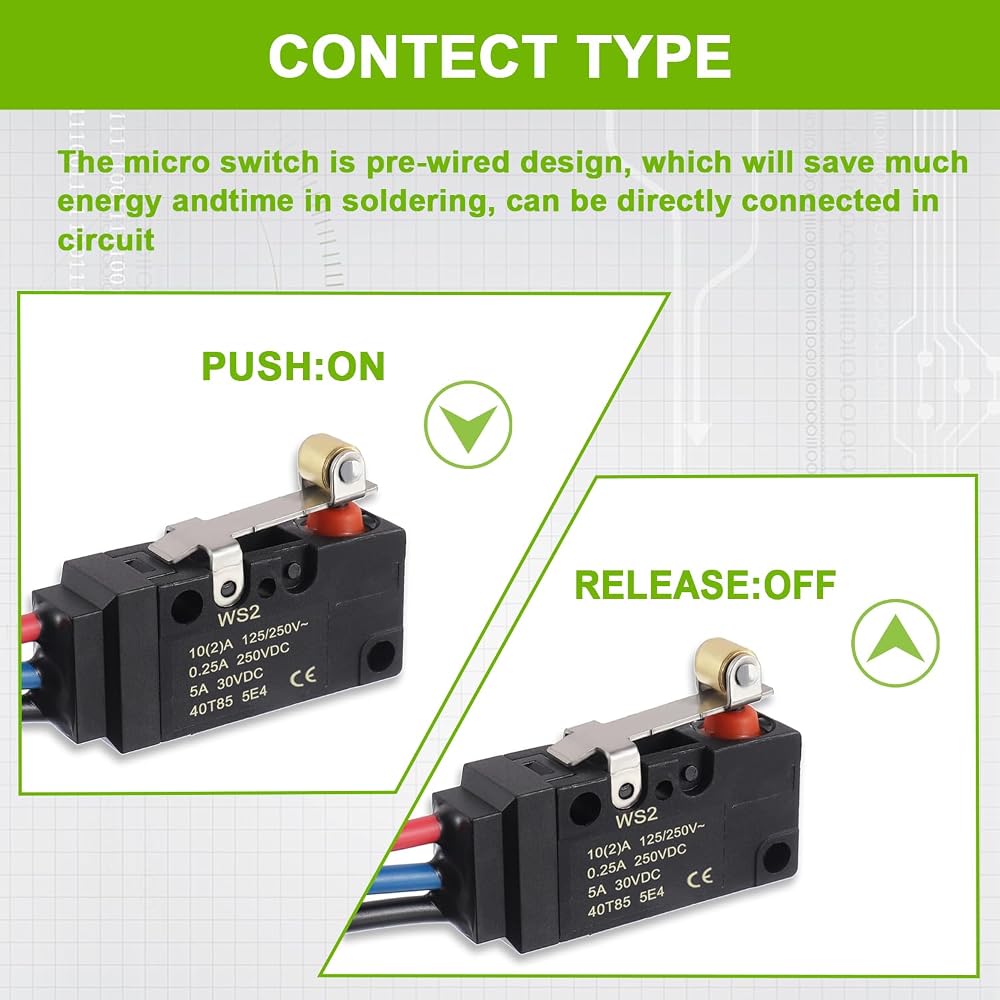

  • ✅ Contact type: 1NC+1NO+1COM; Operating structure: self reset; Rated voltage: AC220V; Rated current: 10A; Waterproof coefficient: IP67
  • ✅Dimension:32mm x 10mm x 15mm (LxWxH);Working temperature: -25~85 ℃

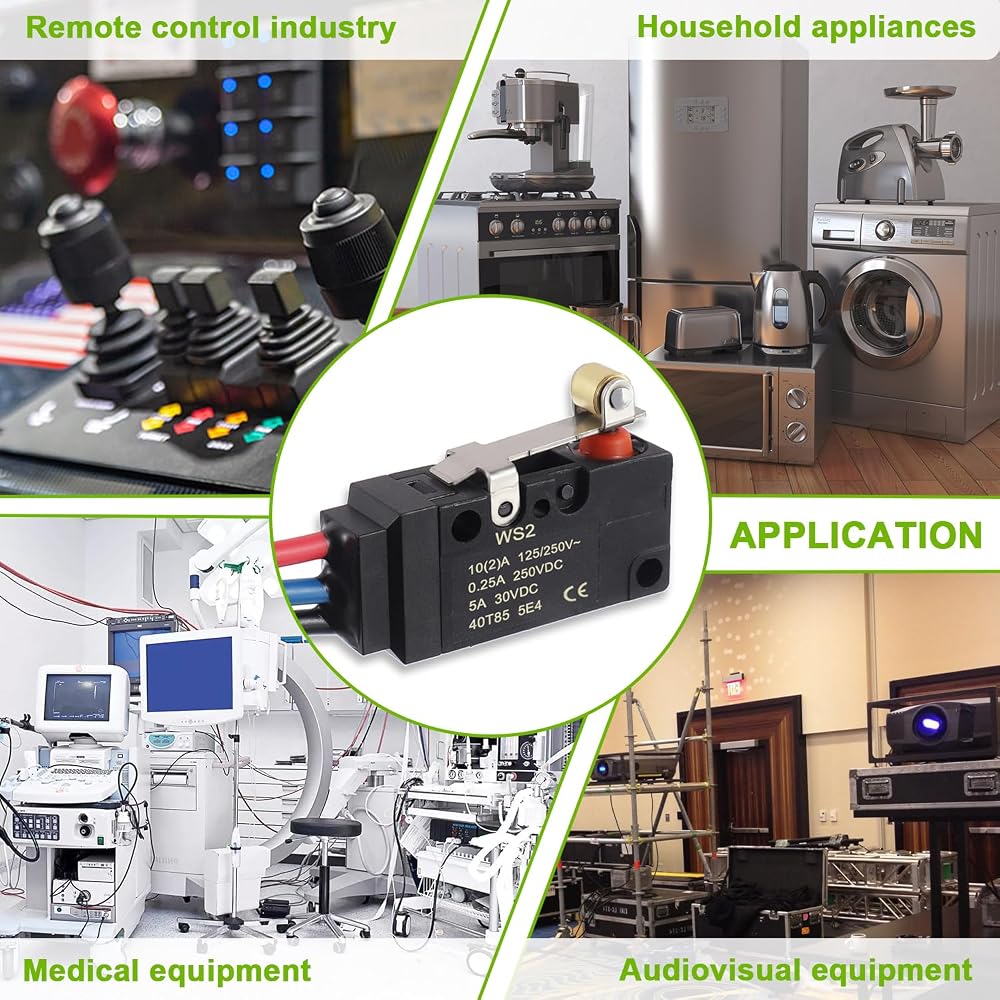

  • ✅Can be used in environment resistant places application, outdoor apparatus such as automobile, vending machine, refrigerator,ice machine, bath equipment, water heater and air-conditioner etc.

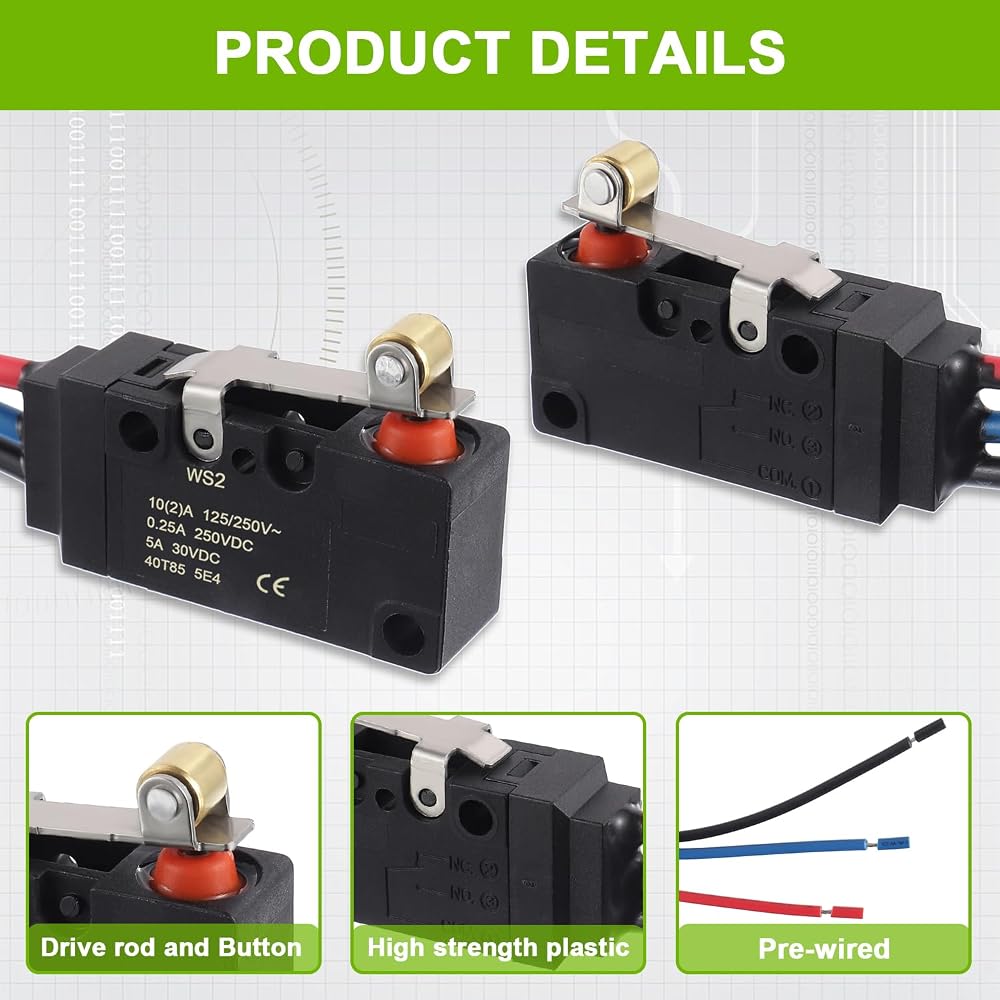

  • ✅Removable Lever: Micro switch with lever design, different from other microswitches, the lever of this microswitch is removable, you can remove or change the lever according to your own needs.
  • ✅With Pre-wired: This micro on off switch is pre-wired design, which saves much energy and time to solder the switch, can be directly connected into the systems.

Description

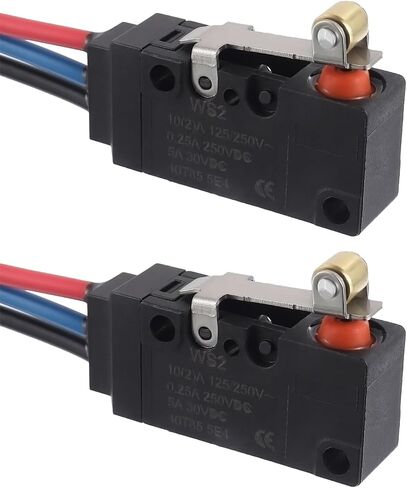

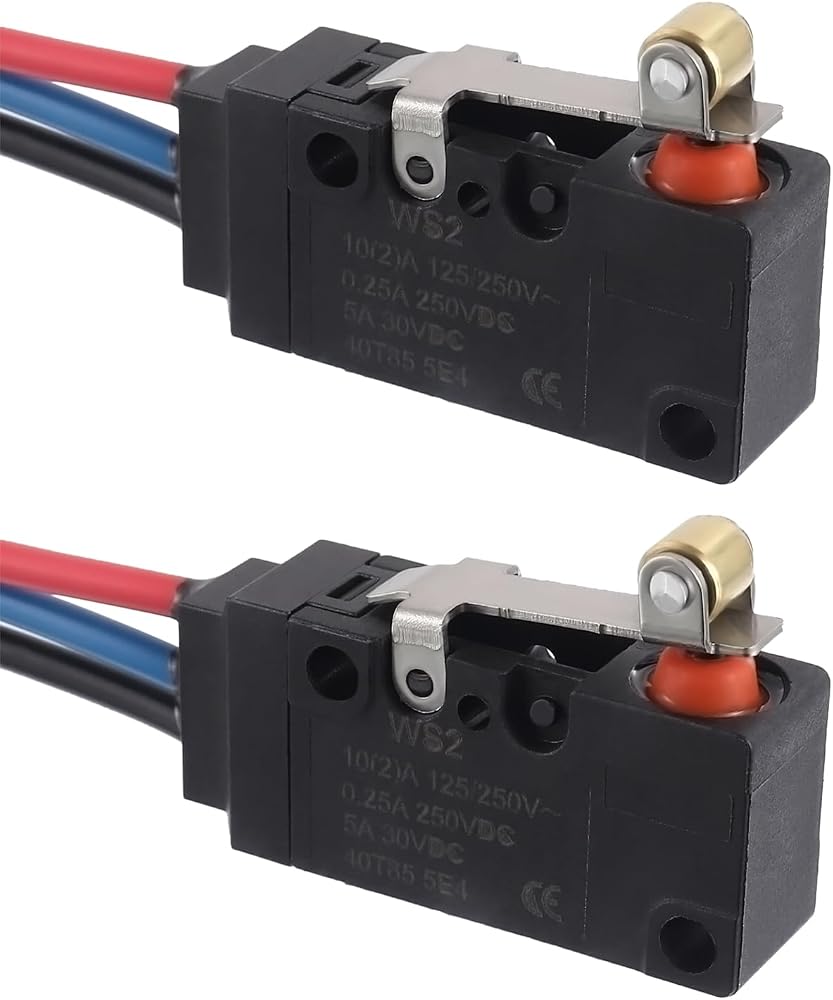

EPLZON 3 Line Micro Limit Switch with Roller Lever and Pre Wired
Regarding installation precautions:
Please turn off the power when installing, disassembling, wiring work and maintenance check, otherwise, electric shock and burn will happen.

Please do not damage the sealed rubber around the button in the process of usage.

Please install switch on flat surface. If it is installed in uneven surface, switch deflection, malfunction and cover breakage will happen.

Specifications:
Product type: Side outlet
Agreed heating current: 15A
Operating frequency: 100 times/minute
Operating speed: 60 times/minute
Operating force: 50gf ± 30gf

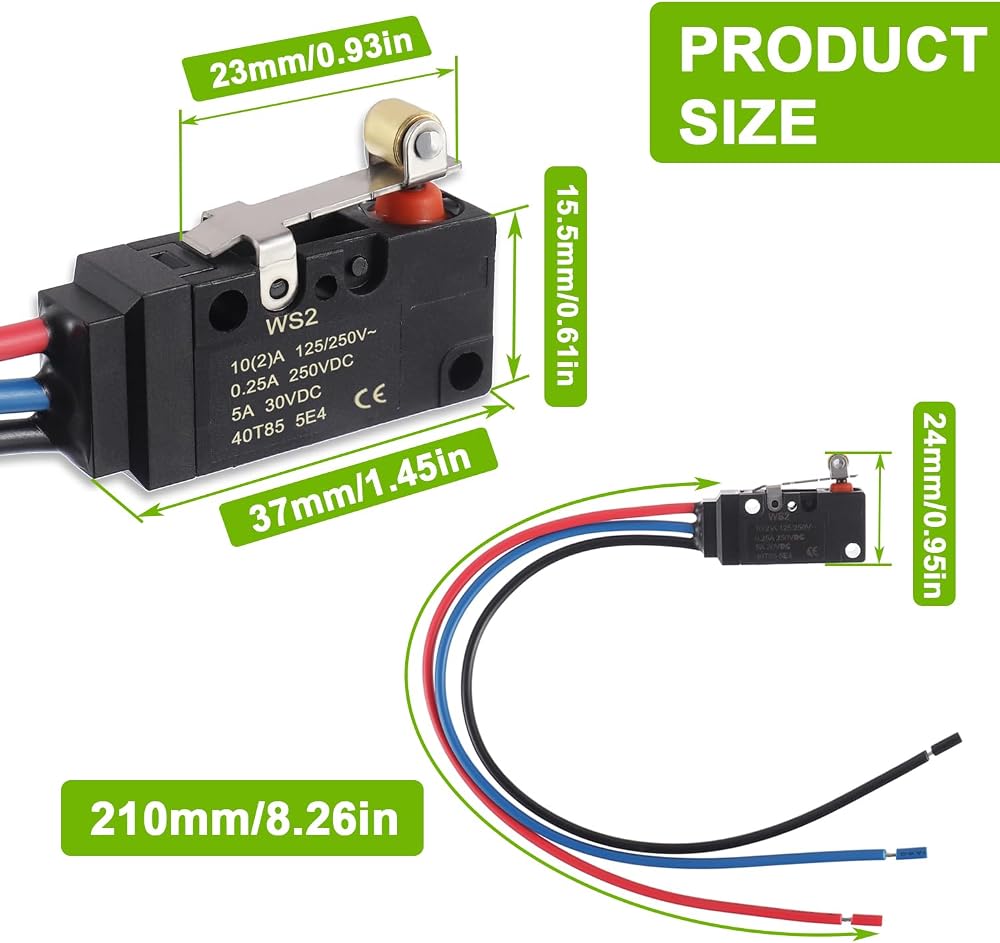

External dimensions: 32mm x 10mm x 15mm (LxWxH)
Color: Black
Wiring method: welding

Package include：
2pcs * 3 Line Micro Limit Switch
