Features
- Adopt the Direct Digital Synthesizer (DDS) technology and provide stable, precise, pure and low distortion signals
- The standard 3-pin power plug increases the grounding protection and effectively eliminates the leakage current on the BNC terminal

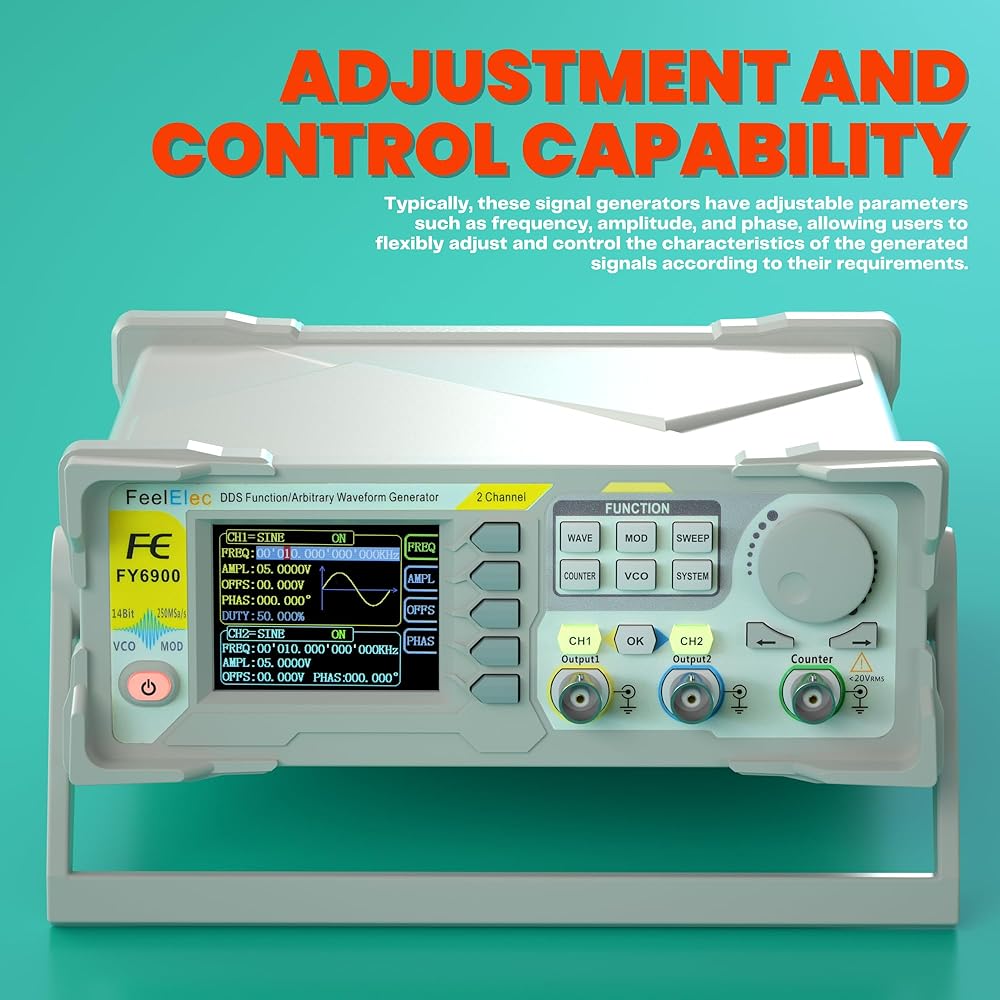

- 2.4 inch TFT Color LCD with 320×240 resolution, displaying parameters and graphics of the two channels at the same time
- Enable to store 64 arbitrary waveform data files, each one of waveform storage depth 8192 points * 14bits

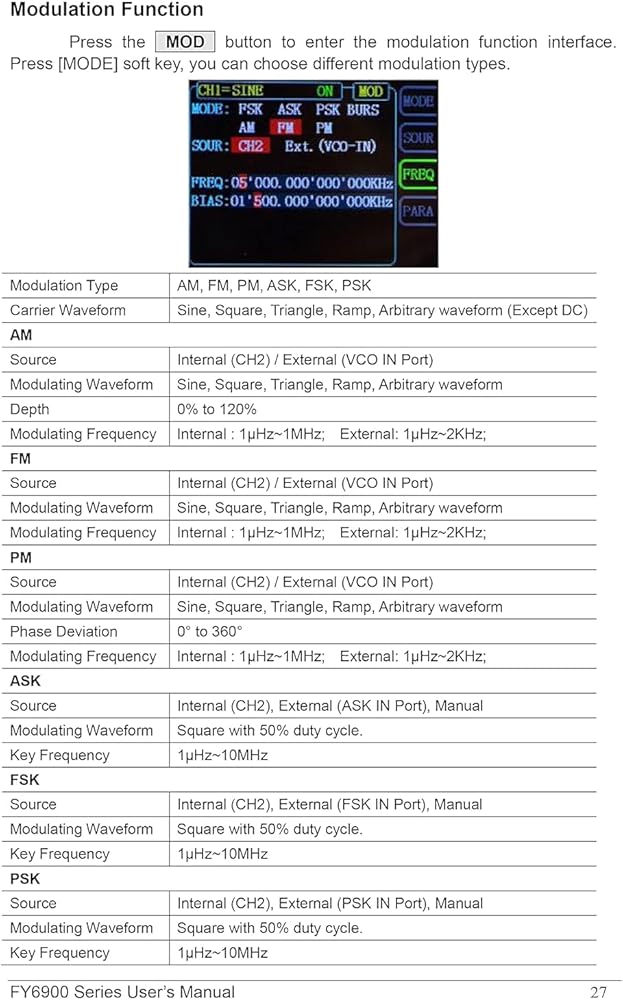

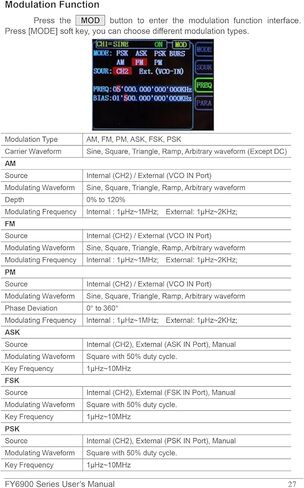

- Various modulation types: AM, FM, PM, ASK, FSK and PSK modulations
- Standard dual full functional channels which are equivalent to two independent generators.
- Channel SYNC Function: Support waveform copy and state copy between channels
- Precisely adjust the phases of the two channels, Precision can be 0.01°
- Minimum amplitude resolution can be up to 1 mV. Amplitude range is 0~20Vpp
- Duty-cycle of each channel can be adjusted independently0.01%-99.99%, the adjusting resolution is 0.01%
-10V~+10V DC Offset function; Resolution 0.001V
- Output short-circuit protection: All channels can work more than 60 seconds when the load is short-circuited
Specifications
- Material: ABS

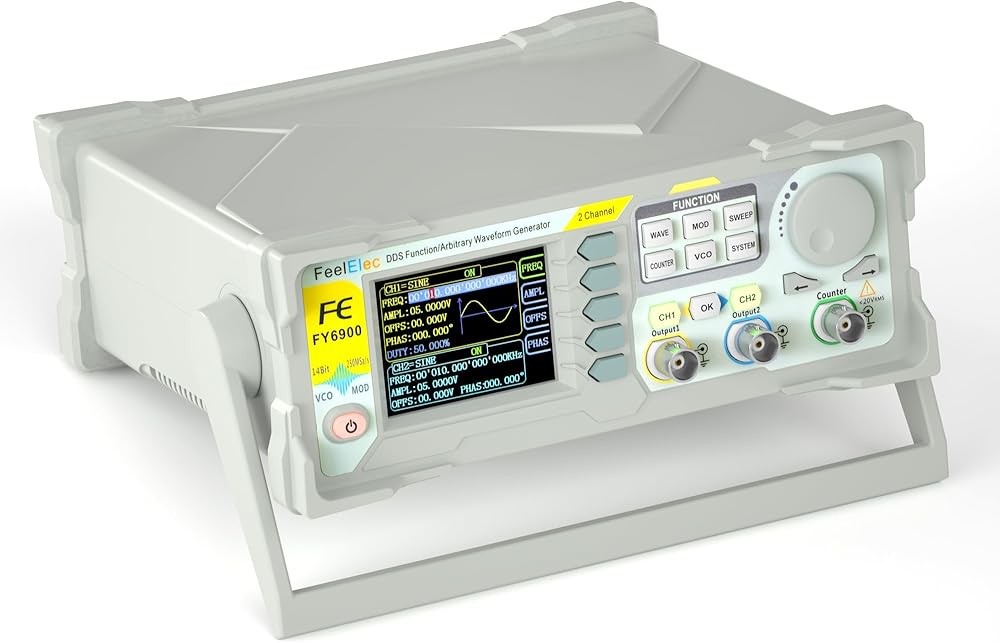

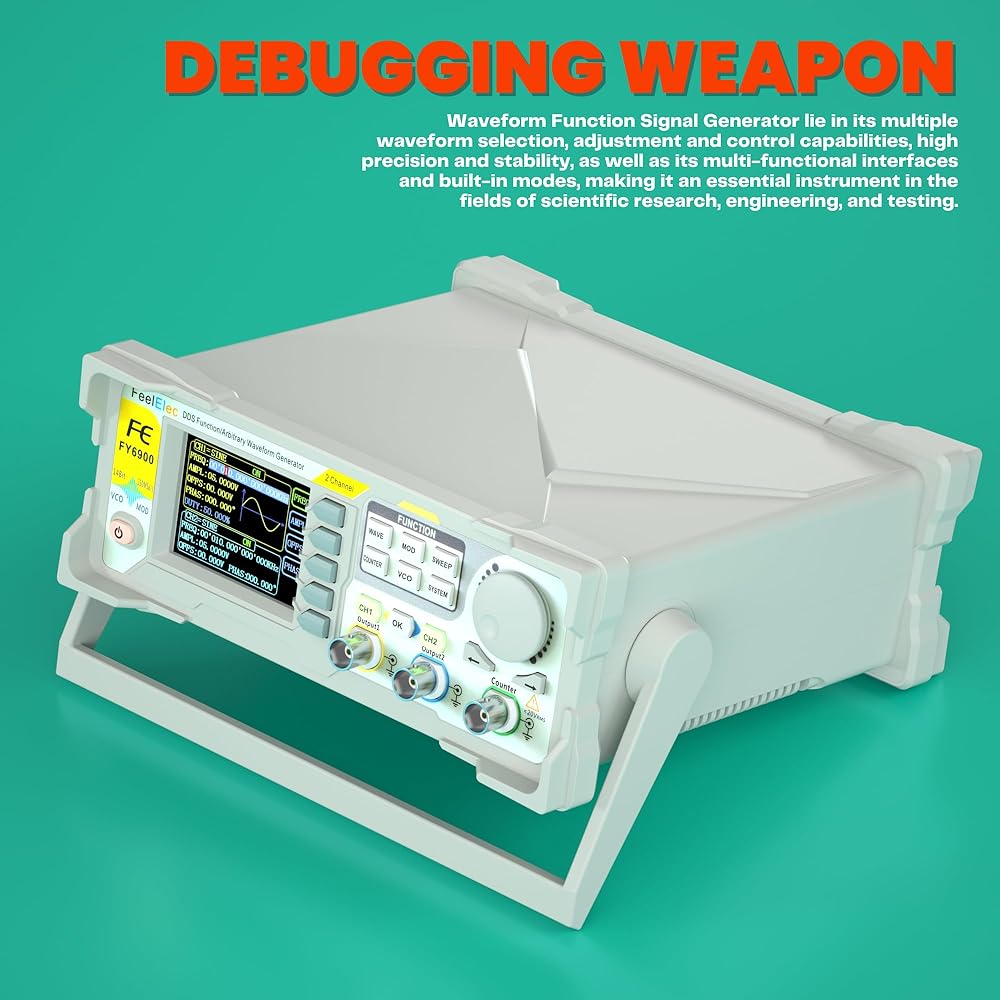

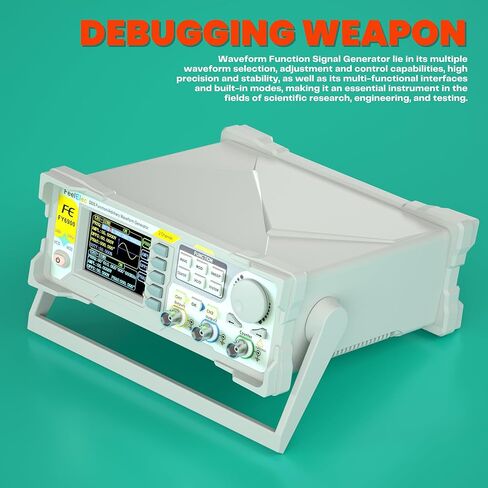

- Model: FY6900
- Supply Voltage: AC100V~240V
- Sine: 0~60MHz
- Square: 0~25MHz
- Ramp, Triangle: 0~10MHz
- Pulse: 0~10MHz
- TTL/CMOS: 0~10MHz
- Arbitrary Waveform: 0~10MHz
- Min. pulse width: 20ns(All m
- Accuracy: ±20ppm
- Stability: ±1ppm/ 3hours
- Amount (Save & Load): 20
- Position (Save & Load): 01 to 20 (01 for start default value)

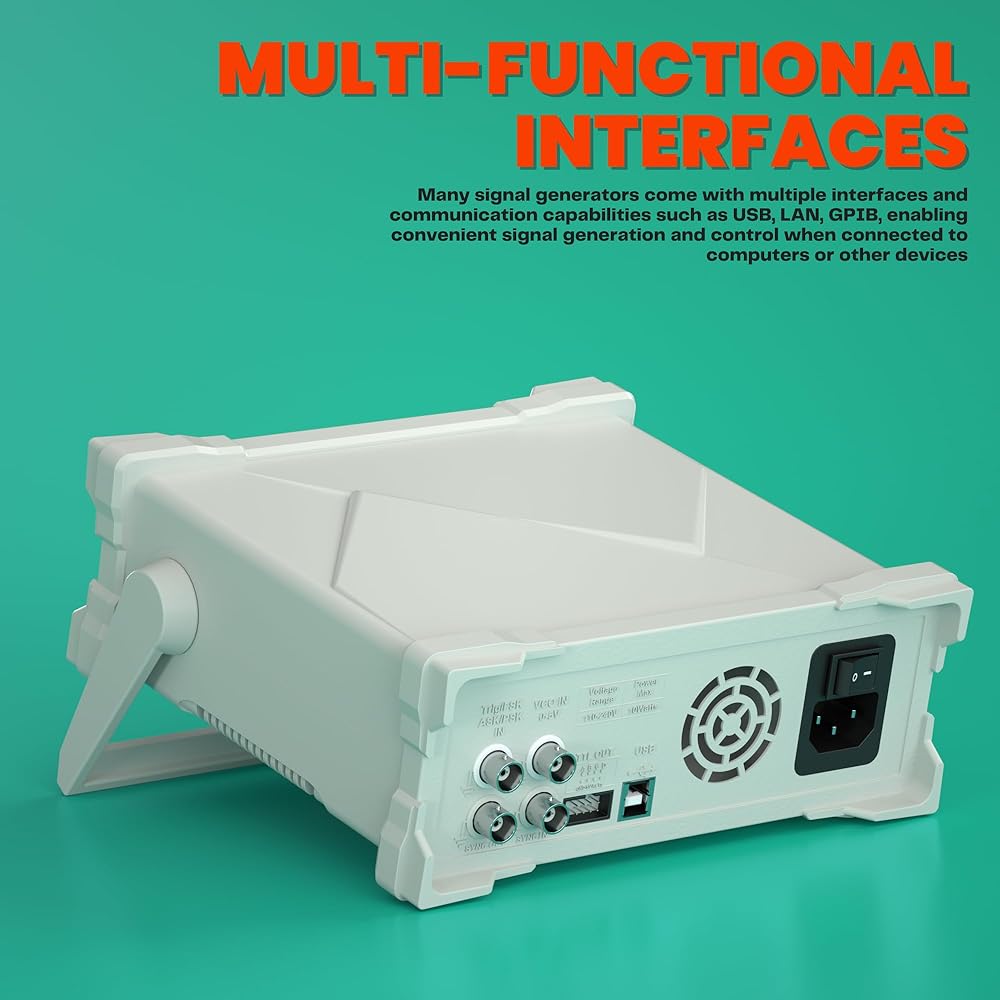

- Type: USB to Serial interface
- Communicating Speed: 9600bps (Industrial standard)
- Protocol: Command line mode, providing communication protocols.

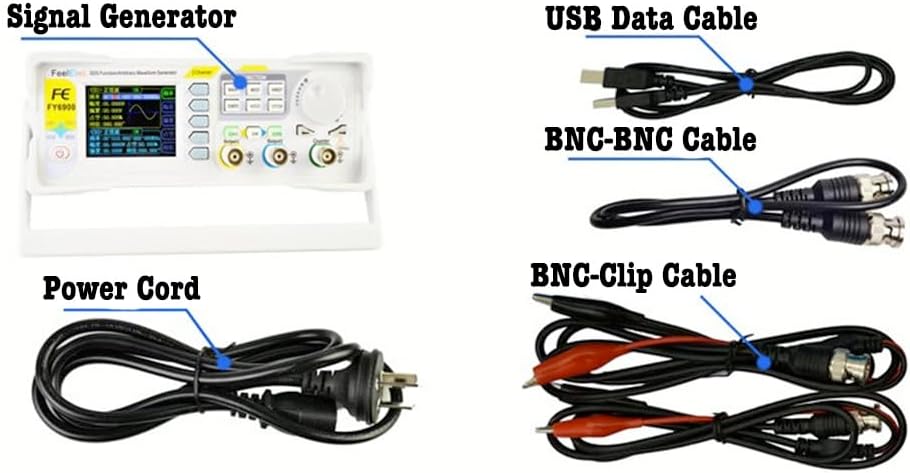

Package Content
- 1 x Signal Generator
- 1 x USB Cable
- 1 x Power Cable
- 1 x BNC-BNC Cable
- 2 x BNC-Clip Cable
