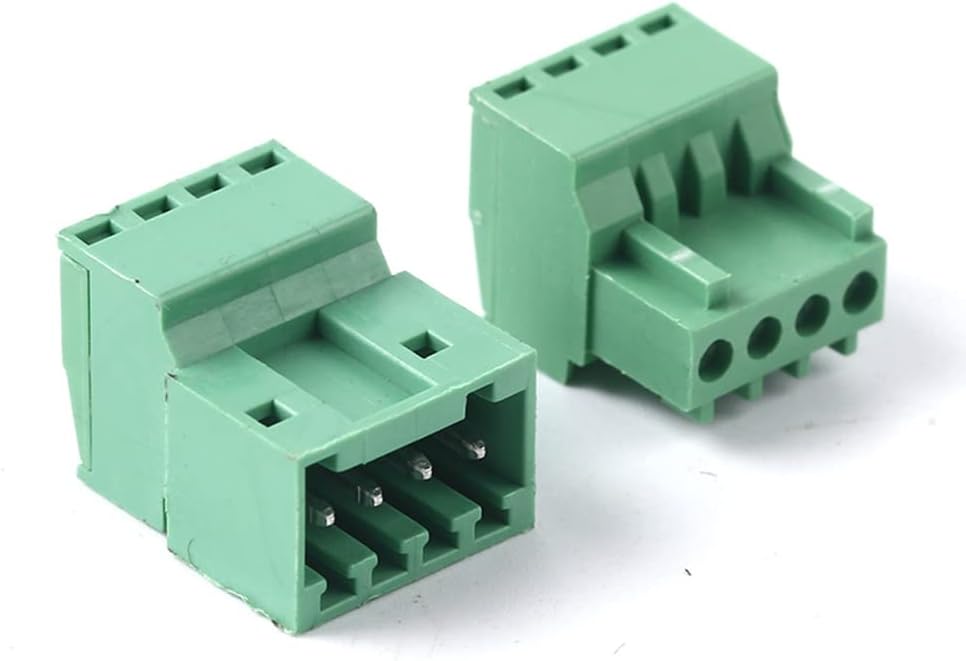

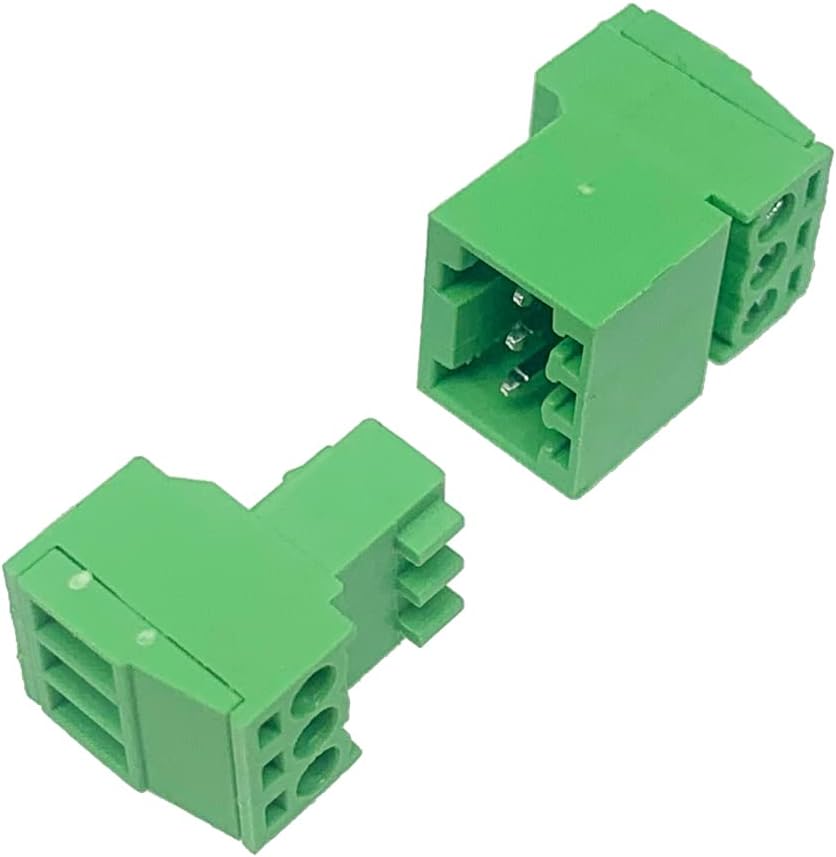

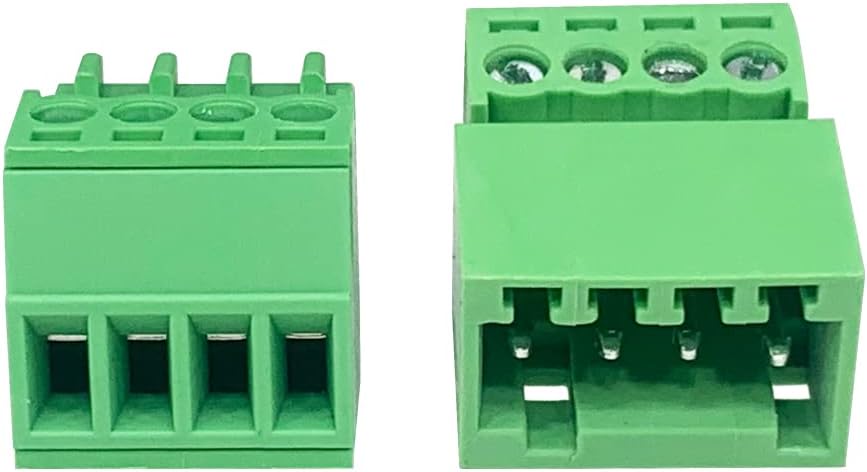

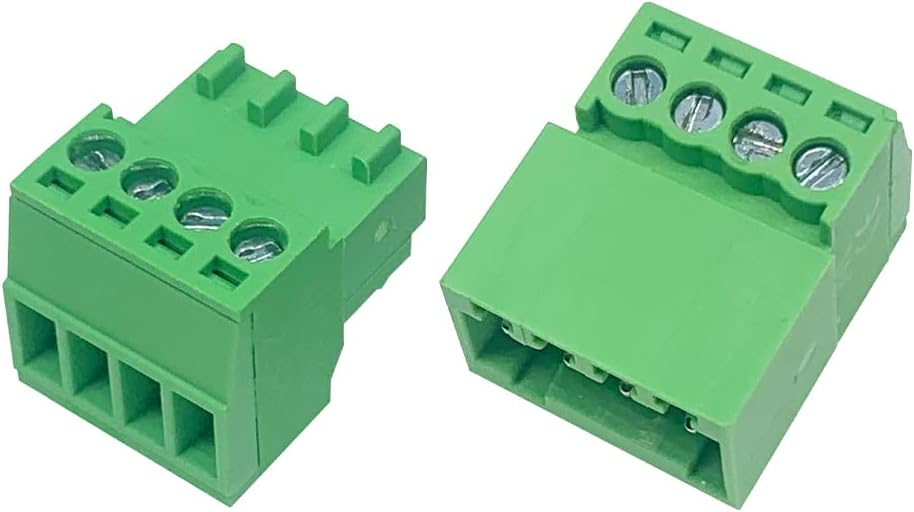

Jienk 5Set 4-Pin 125V 4A 2.54mm 0.1" Pitch PCB Mount Screw Terminal Block Connector for 26-18AWG Cable

Sorry, this product is not available
Brand
Jienk

Special Features

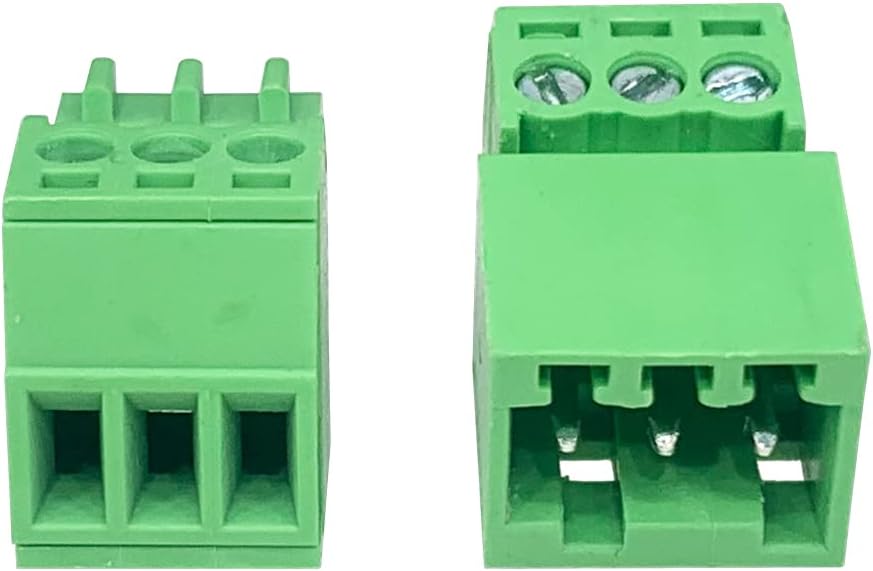

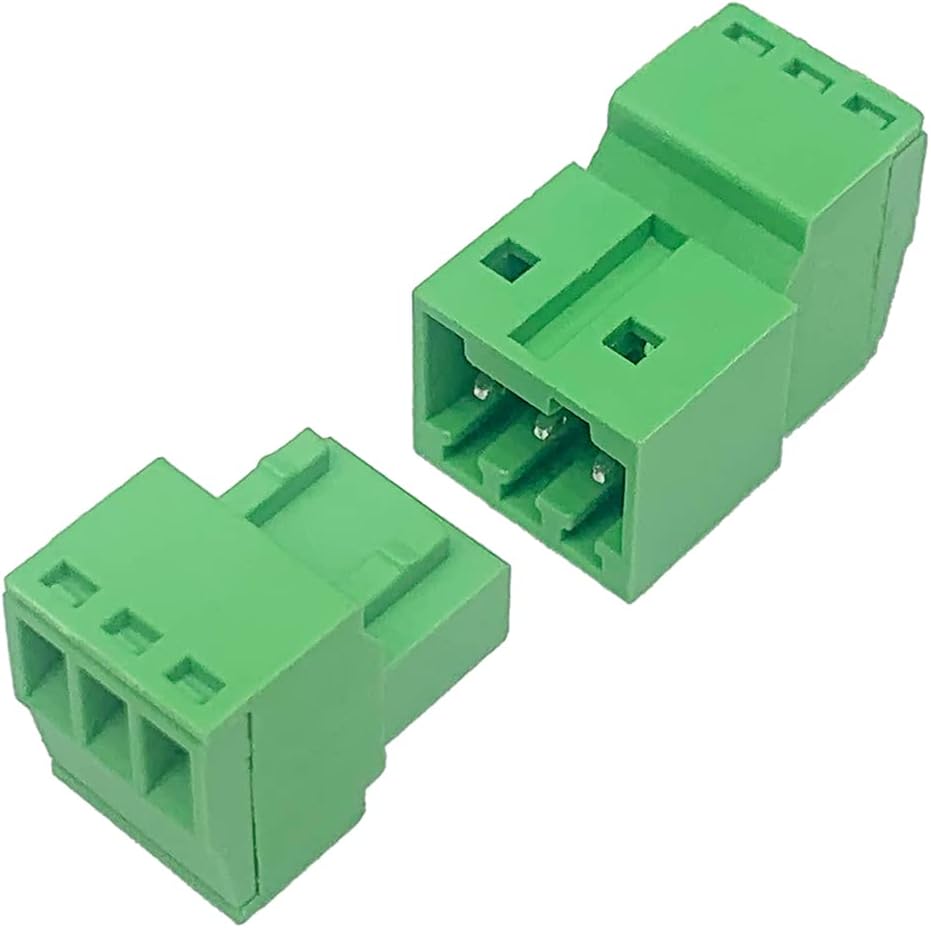

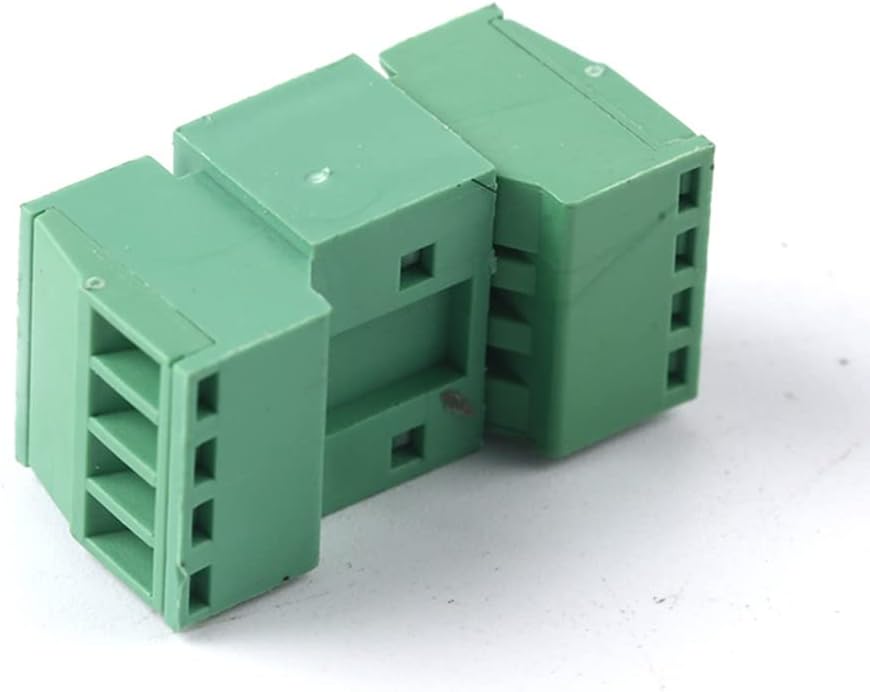

  • 【Product Name】4 Pin, Plug-In 2.54mm/0.1" PCB Terminal Block
  • 【Fit for Cable】AWG 26-18; Terminal Distance :2.54mm/0.1"
  • 【Rated Voltage】125V, Rated Current：4A
  • 【Easy to Use】No soldering required. Just use a small screwdriver to open up the terminal blocks, slide in your stranded or solid-core wire, and re-tighten. Save you from solder trouble, no need to purchase expensive tool. Great time and money saver.
  • 【Application】: PCB terminal is widely used in electronic equipment, such as small electronic watches, calculates, general computer, communication electronics equipment automatic control system, domestic appliance and warning devices, etc.

Description

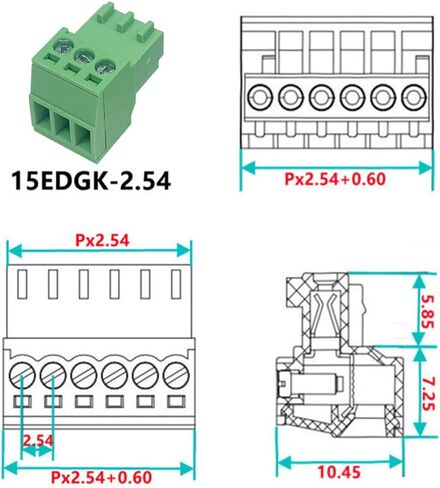

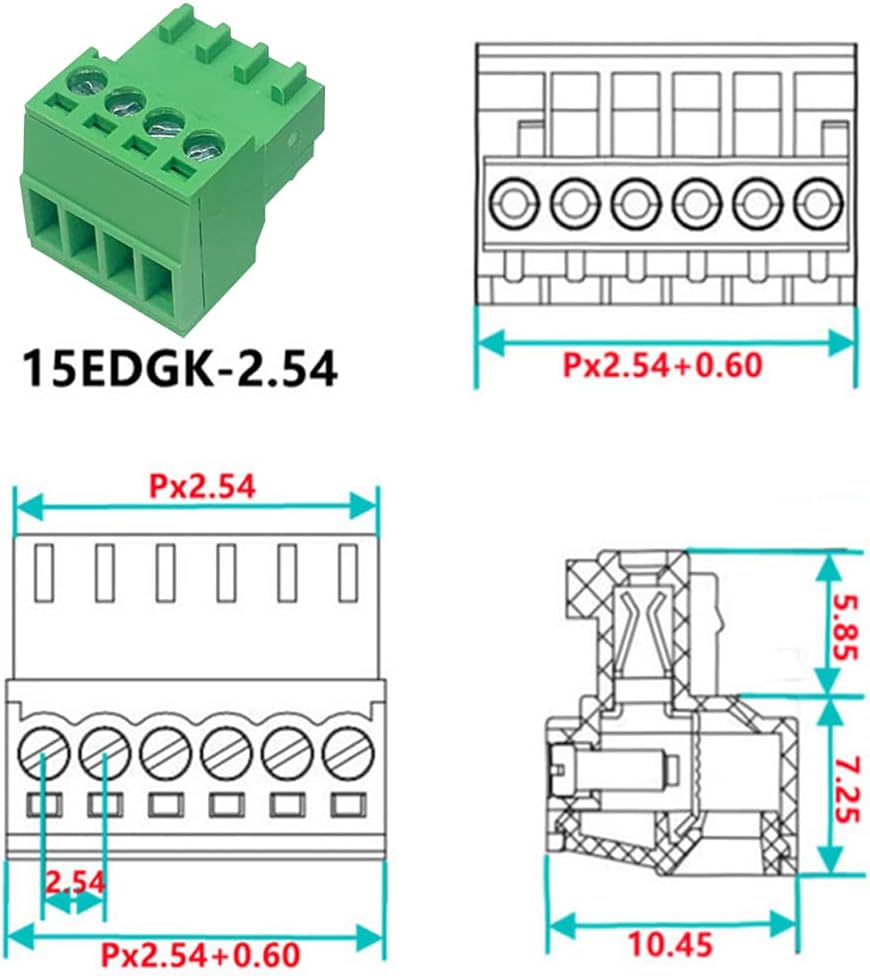

Specification
Material: Plastic + Copper
Pin Header: Brass, Tin plated
Screw: M1.6, steel, tin plated
Housing: PA66, UL94V-0

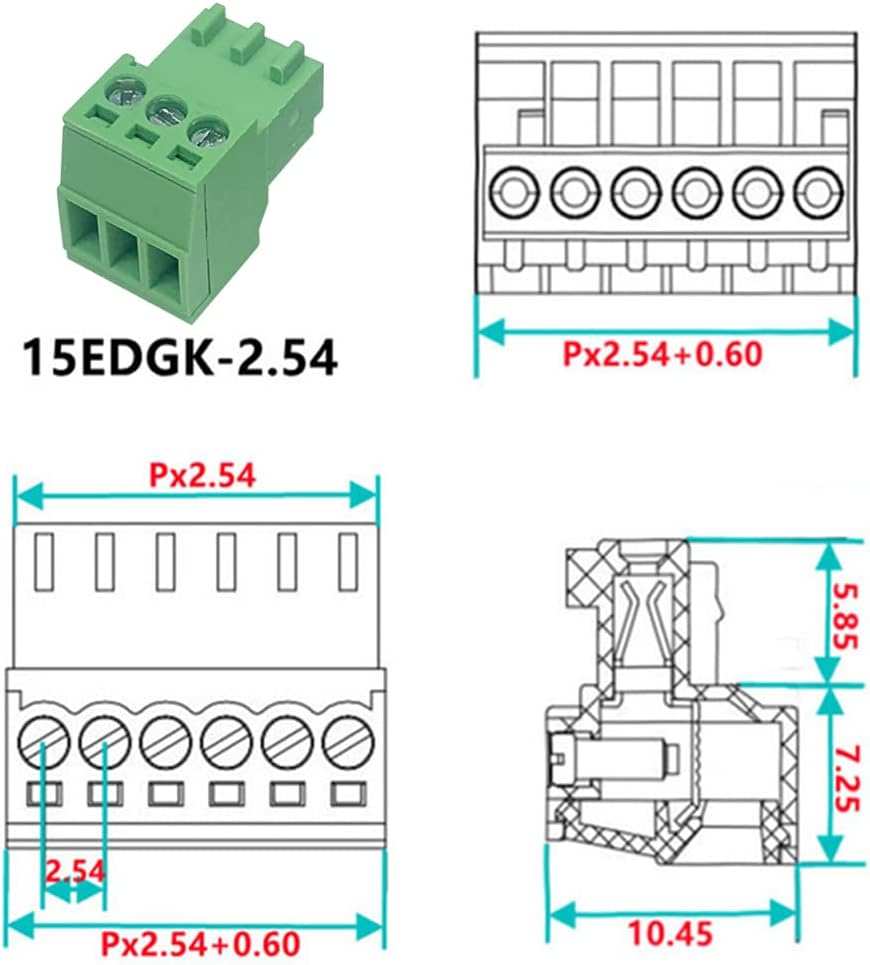

Terminal Pitch: 2.54mm/ 0.1inch

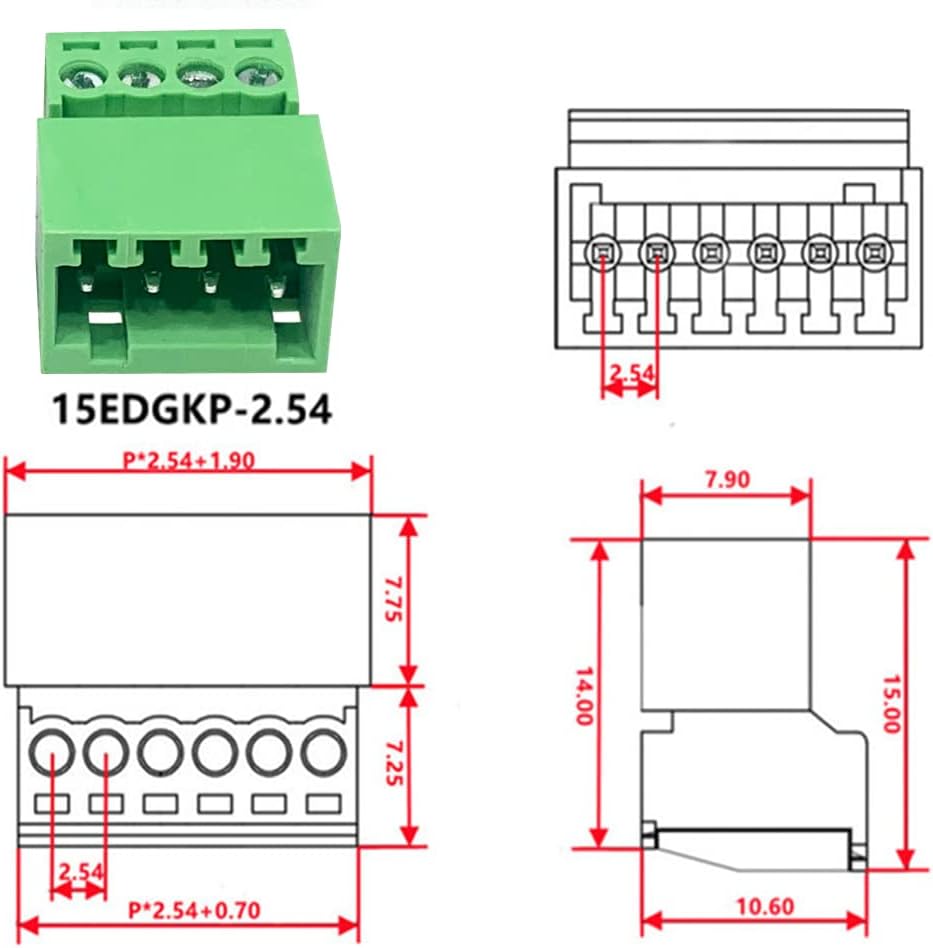

Module：15EDGKP
Type: 4-Pin
Rated Value: 125V
Rated Current：4A
Wire Range: 26-18AWG(0.1mm²-0.5mm²)
Temperature range: -40 degrees Celsius~105 degrees Celsius
Stripping length: 5-6mm
Maximum tightening torque: 0.1Nm(0.88lb-in)
Package content

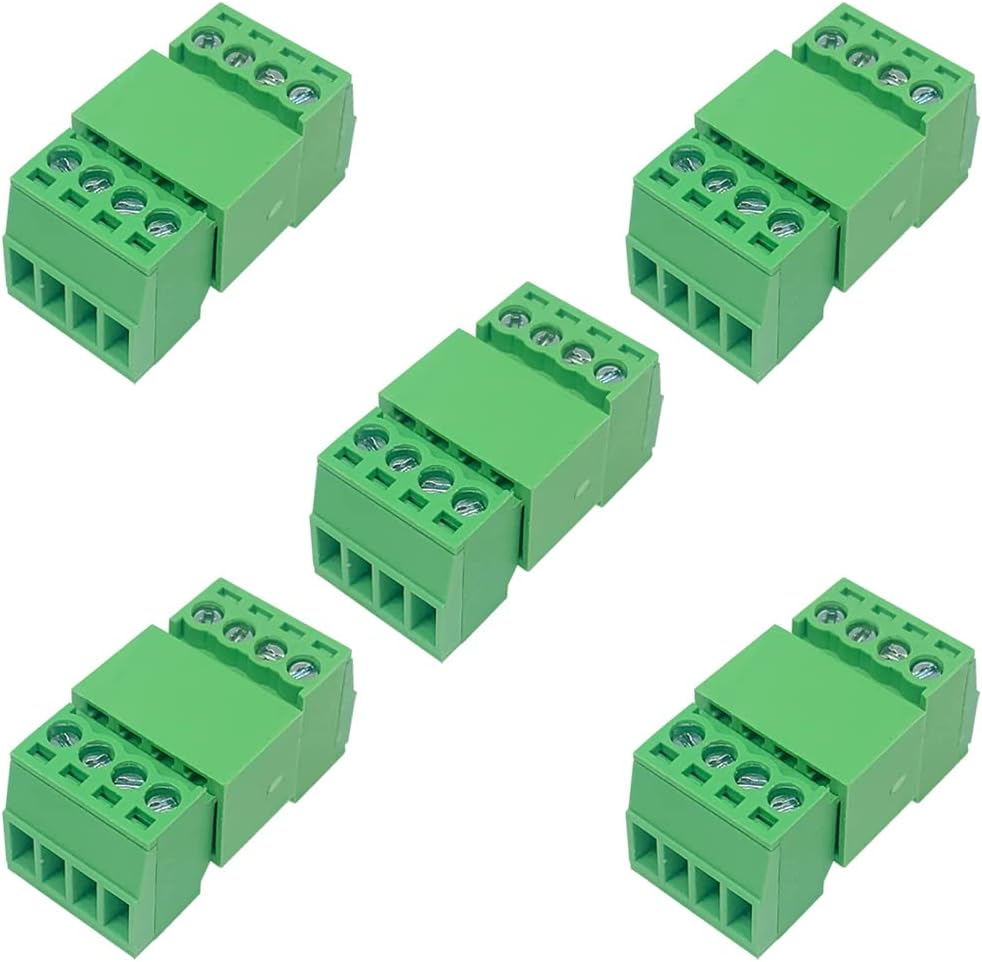

5Set x 4-Pin 2.54mm PCB Terminal Blocks
