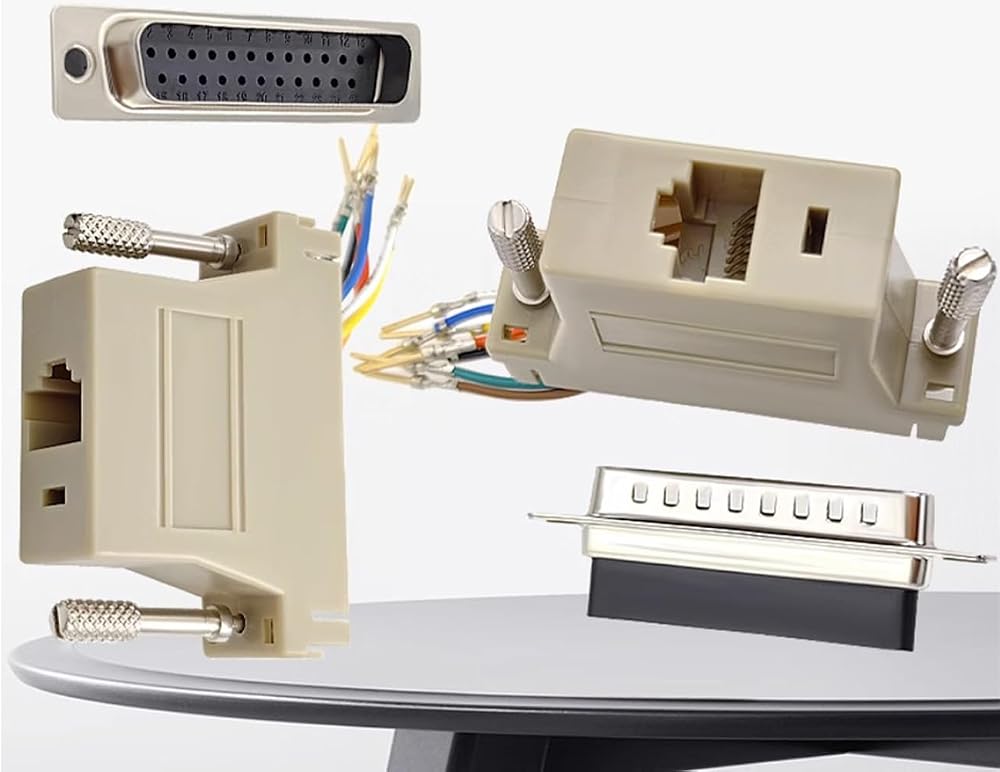

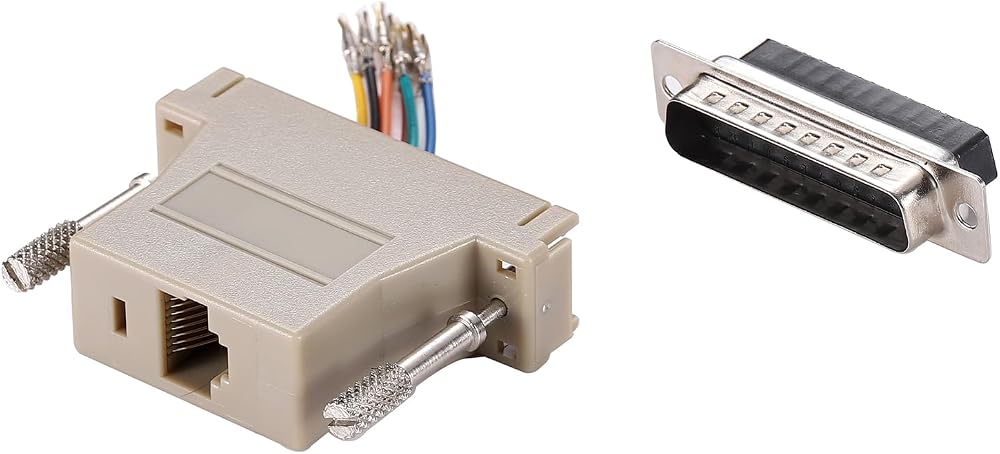

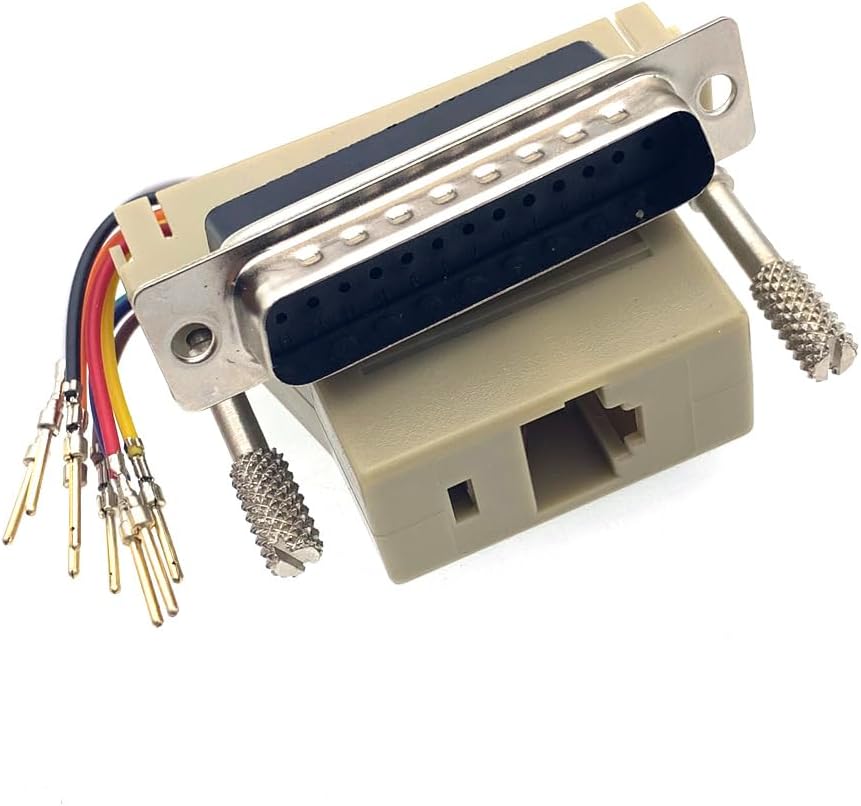

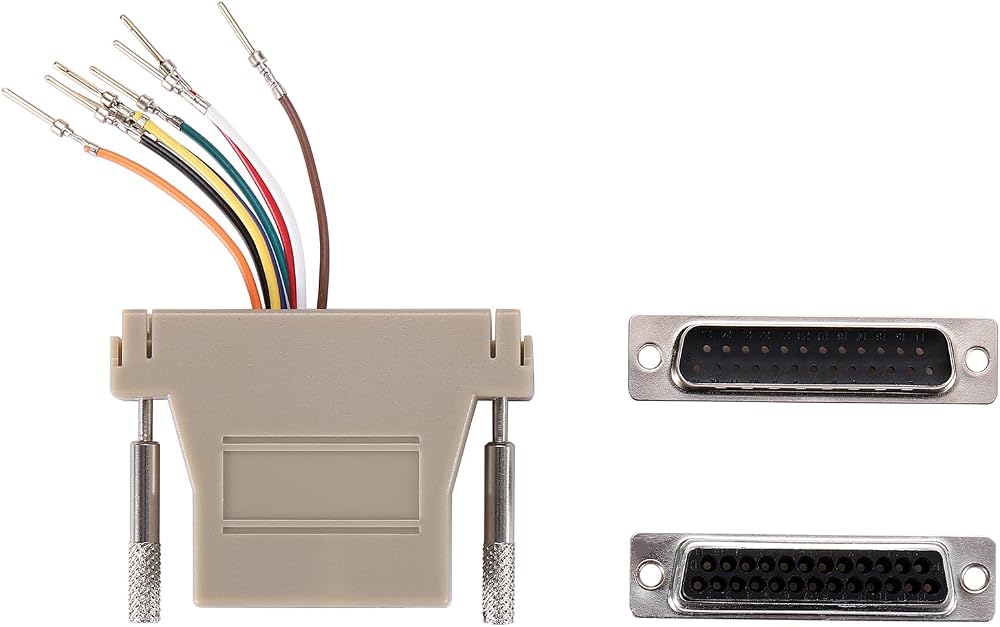

A DB25 male to RJ45 adapter is a device that allows you to convert a serial connection from a DB25 (also known as a DE-25) connector to an RJ45 connector, commonly used in Ethernet networking. It enables the connection between devices that utilize different types of connectors.
Specifications:
Product name: DB25 male to RJ45 female module
Shell material: ABS
Wire: 1007 # 26 tinned copper wire
Requires no external power
RJ45 Pin Outs: 1-Blue, 2-Orange, 3-Black, 4-Red, 5-Green, 6-Yellow, 7-Gray, and 8-White
DB25 Pin Definition: 1.SHIELD(Shield Ground); 2.TxD(Transmitted Data); 3.RxD(Received Data); 4. RTS(Request to Send); 5. CTS(Clear to Send); 6.DSR(Data Set Ready); 7.GND(System Ground); 8.DCD(Data Carrier Detect); 9.RESERVED; 10.RESERVED; 11.STF(Select Transmit Channel); 12.SCD(Secondary Carrier Detect); 13.SCTS(Secondary Clear to Send); 14.STXD(Secondary Transmit Data); 15.TCK(Transmission Signal Element Timing); 16.SRXD(Secondary Receive Data); 17.RCK(Receiver Signal Element Timing); 18.LL(Local Loop Control; 19.SRTC(Secondary Request to Send); 20.DTR(Data Terminal Ready); 21.RL(Remote Loop Control); 22.RI(Ring Indicator); 23.DSR(Data Signal Rate Selector); 24.XCK(Transmit Signal Element Timing); 25.TI(Test Indicator)
Package includes:
10 PCS DB25 Male to RJ45 Modular Adapter
