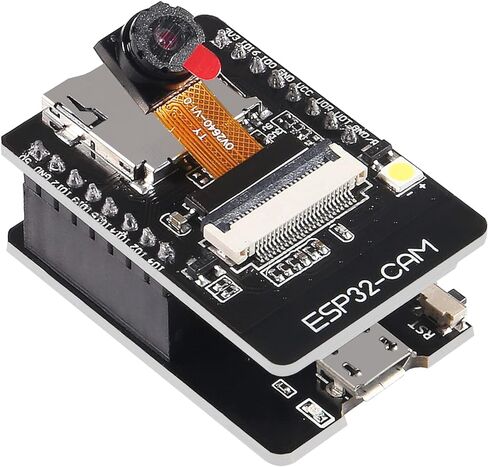

1PCS ESP32-CAM-MB, ESP32-CAM WiFi Bluetooth Board ESP32-CAM-MB Micro USB to Serial Port CH340G with OV2640 2MP Camera Module Dual Mode Compatible with Arduino IDE Arduino Raspberry Pi in Saudi Arabia 1PCS ESP32-CAM-MB, ESP32-CAM WiFi Bluetooth Board ESP32-CAM-MB Micro USB to Serial Port CH340G with OV2640 2MP Camera Module Dual Mode Compatible with Arduino IDE Arduino Raspberry Pi in Saudi Arabia 1PCS ESP32-CAM-MB, ESP32-CAM WiFi Bluetooth Board ESP32-CAM-MB Micro USB to Serial Port CH340G with OV2640 2MP Camera Module Dual Mode Compatible with Arduino IDE Arduino Raspberry Pi in Saudi Arabia 1PCS ESP32-CAM-MB, ESP32-CAM WiFi Bluetooth Board ESP32-CAM-MB Micro USB to Serial Port CH340G with OV2640 2MP Camera Module Dual Mode Compatible with Arduino IDE Arduino Raspberry Pi in Saudi Arabia 1PCS ESP32-CAM-MB, ESP32-CAM WiFi Bluetooth Board ESP32-CAM-MB Micro USB to Serial Port CH340G with OV2640 2MP Camera Module Dual Mode Compatible with Arduino IDE Arduino Raspberry Pi in Saudi Arabia

1PCS ESP32-CAM-MB, ESP32-CAM WiFi Bluetooth Board ESP32-CAM-MB Micro USB to Serial Port CH340G with OV2640 2MP Camera Module Dual Mode Compatible with Arduino IDE Arduino Raspberry Pi

SAR 53
Brand
UMLIFE
Weight
9 g
Color1 PCS
All electronics ship with US style plugs. You may need a voltage converter or a plug adapter.
– 1 +

Special Features

  • Low power consumption: deep sleep current is as low as 6mA; It is a small 802.11b/g/n Wi-Fi + BT/BLE SoC module
  • HK-ESP32-CAM-MB adopts Micro USB interface, convenient and reliable connection method, convenient to apply to various IoT hardware terminal occasions
  • A new WiFi+Bluetooth dual-mode development board based on ESP32 design, using PCB on-board antenna, with 2 high-performance 32-bit LX6CPU, using 7-level pipeline architecture, main frequency adjustment range 80MHz to 240Mhz
  • Features: the board fully compliant with WiFi 802.11b/g/n/e/i and Bluetooth 4.2 standards, have 9 GPIO ports, built-in 520 KB SRAM plus 4MB PSRAM, support UART/SPI/I2C/PWM and other interfaces, STA/AP/STA+AP working mode, maximum 4G TF card, image WiFI upload, multiple sleep modes, secondary development, etc.
  • HK-ESP32-CAM-MB support TF card,picture WiFI upload,STA/AP/STA+AP working mode,multiple sleep modes,UART/SPI/I2C/PWM/ADC/DAC and other interfaces,Smart Config/AirKiss one-click network configuration and secondary development.

Description

Specifications:
Up to 240MHz, up to 600 DMIPS
Built-in 520 KB SRAM, external 4M PSRAM
Working voltage: 4.75-5.25V

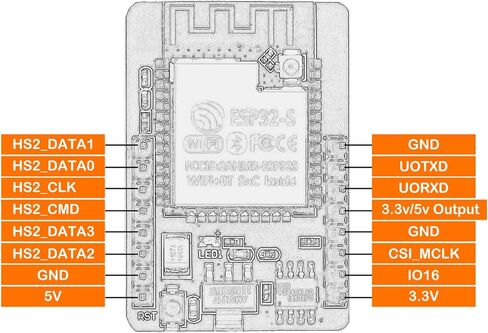

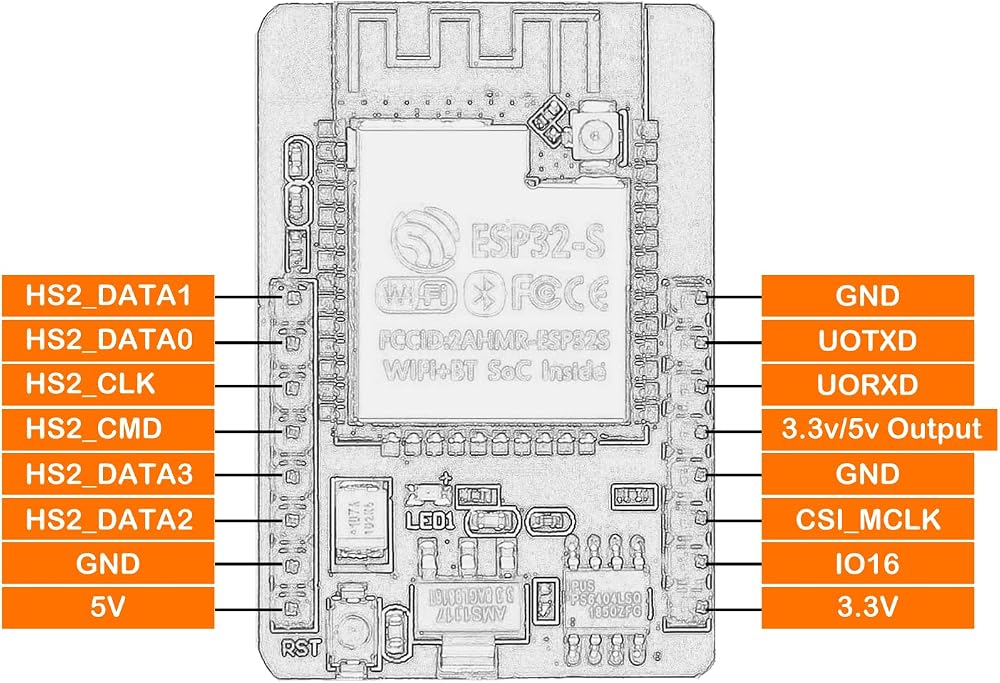

IO port: 9
Wi-Fi: 802.11b/g/n/e/i
4.2BR/EDR and BLE standard
Serial port rate: default 115200bps
Spectrum range: 2400 ~2483.5MHz
Antenna form: onboard PCB antenna, gain 2dBi
Image output format: JPEG (only OV2640 support), BMP, GRAYSCALE

Feature:

1.Ultra-small 802.11b/g/n Wi-Fi + BT/BLE SoC module
2.Low-power dual-core 32-bit CPU suitable for application processors
3.Supports OV2640 and OV7670 cameras with built-in flash
4.Support image WiFI upload
5.Support TF card
6.Support multiple sleep modes
7.Embedded Lwip and FreeRTOS
8.Support UART / SPI / I2C / PWM / ADC / DAC and other interfaces
9.Support STA / AP / STA + AP working mode
10.Support Smart Config / AirKiss one-click distribution network
11.Support serial local upgrade and remote firmware upgrade (FOTA)

Package Included:

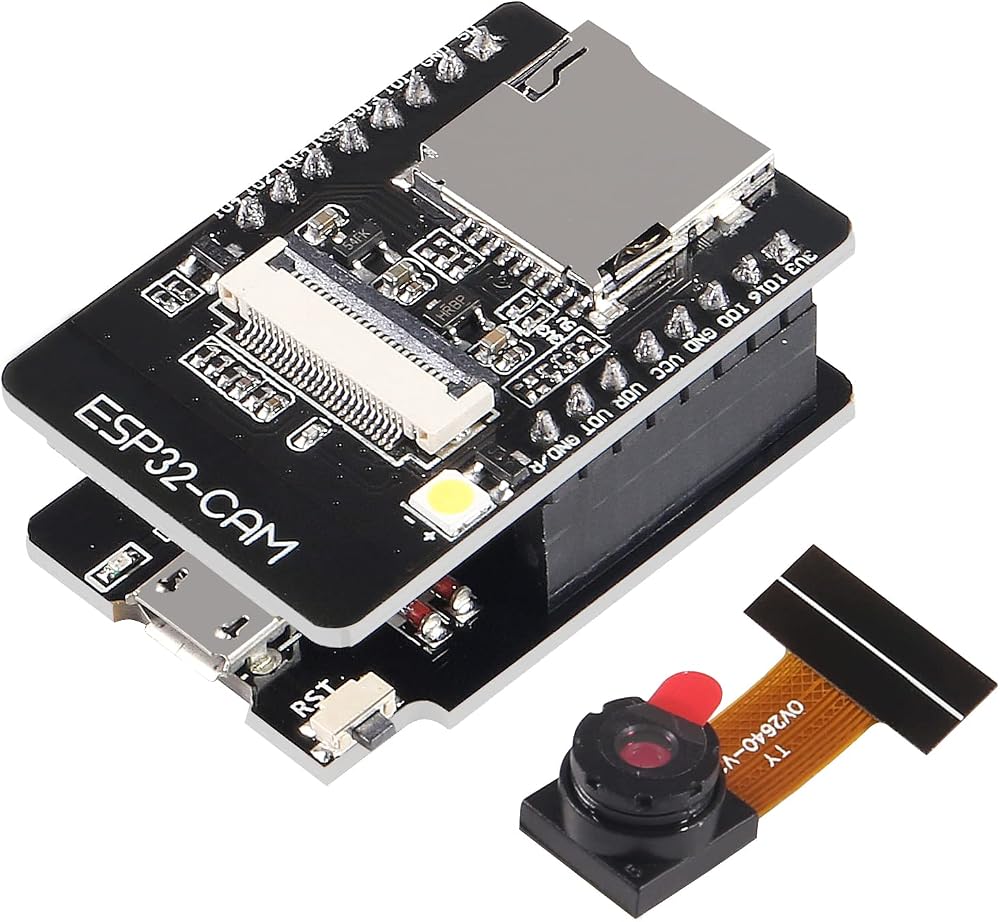

1 x ESP32-CAM-MB Camera Module
1 x USB-TTL Serial Adapter Module
