HAYEAR 4K UHD Digital Microscope Camera High Speed 4K 1080P 60fps HDMI Measurement Camera Color CMOS USB Storage Dual HDMI USB3.0 Output Compatible Windows/iOS Support Calibration (HY-6805)

SAR 2,157
Brand
HAYEAR
– 1 +

Special Features

  • Measurment: It supports HDMI and USB calibration. Camera builds in HDMI measurement. For USB measurement, customer needs to install the softwarefirst.

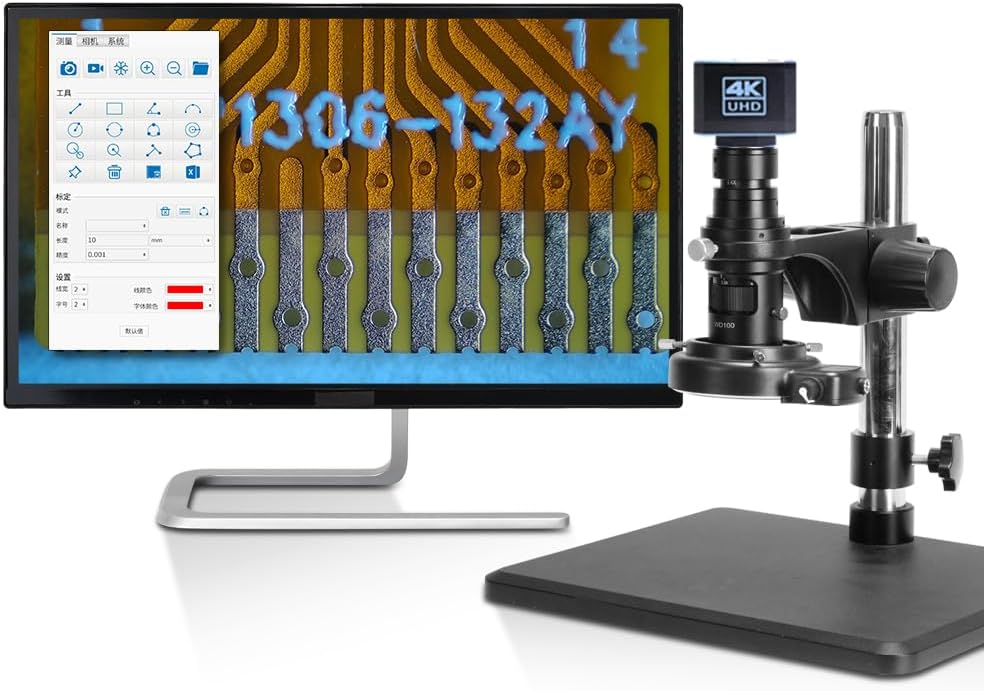

  • Functions: This camera needs to use with microscope or lenses. It controls by USB mouse, easy to wake up the menu and set different parameters you might need. It has mirro/ flip/ One key white blance/ Same monitor/ Same screen comparison, etc.. It is powerful for education/ PCB inspection/ Jewelry inlay/ biological research/ Precision testing and other industries.

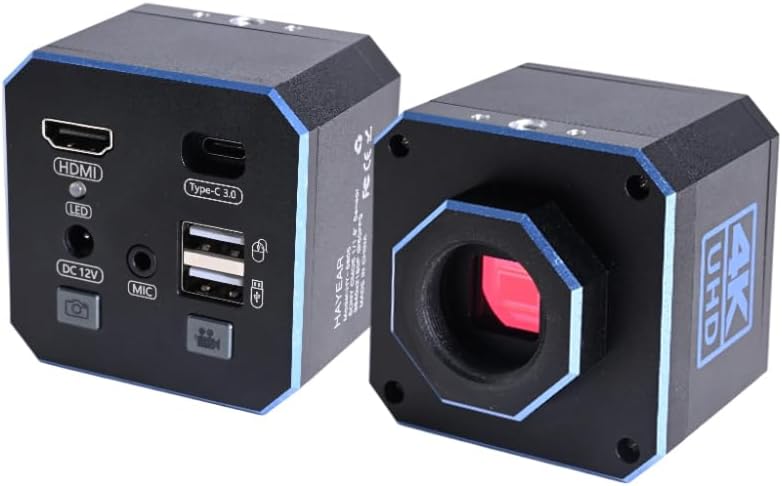

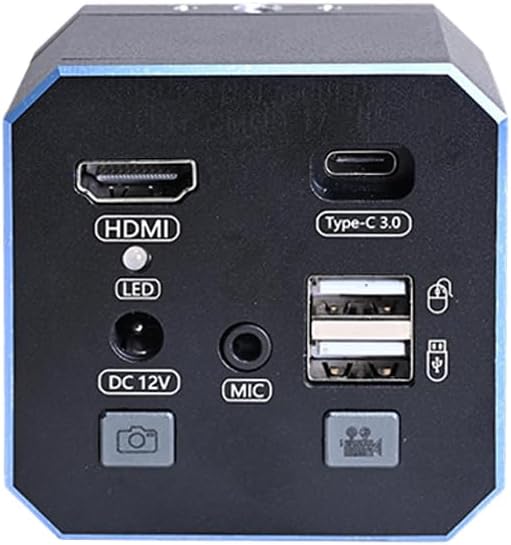

  • Simultaneous output: This camera supports HDMI and USB simultaneous output. Both outputs are real time witout lag off. Via HDMI output, it is 4K 60fps. Via USB output, it is 4K 30fps. You can take snap shots or videos the same time via HDMI and USB.
  • Additonal: The Ultra Version has an additional USB port for outfit USB devices, like the USB step switch, USB shutter, both for easy image snap shots.
  • Additonal: The Ultra Version has an additional USB port for outfit USB devices, like the USB step switch, USB shutter, both for easy image snap shots.

Description

Model :HY-6805

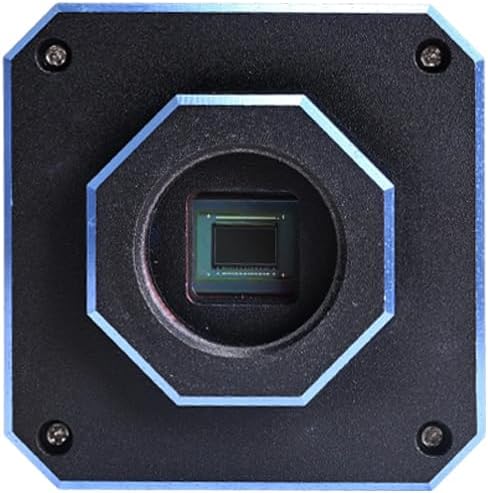

Image Sensor size: 1/1.8"
Video Output: 4K/1080P FHD (Via HDMI )
Pixel Size: 2.0 × 2.0μm
Resolution: 3840×2160
Frame Rate: 4K@60FPS, 1080P@60FPS
Image resolution: 3840 × 2160 (8MP)
USB Video :3840x2160@60FPS;1920x1080P@60FPS
USB Port :Type-C 3.0
Simultaneous output : Supports HDMI and USB synchronous output
Digtical Magnification:15X digital zoom in and zoom out
Microphone :Support external dual channel microphone 3.5mm
Lens interface: Standard C / CS mount
Storage: USB Disk storage
Language: Chinese/ English,
Working Voltage: DC 12V/1000mA
Compatible system: Windows/ MacSO/ Linux
Measurement tools: Point spacing measurement, rectangle measurement, Angle measurement, arc measurement, radius circle measurement, diameter circle measurement, three-point fixed circle measurement, concentric circle measurement, center distance measurement, point-circle distance measurement, point-line distance measurement, polygon measurement.
Other functions: Support ONE PUSH, Auto/ Manual White Balance, Vertical rotation, horizontal mirroring, monochrome (black and white) image, image comparison, same screen comparison Buid-in Measurment Function, USB Mouse control

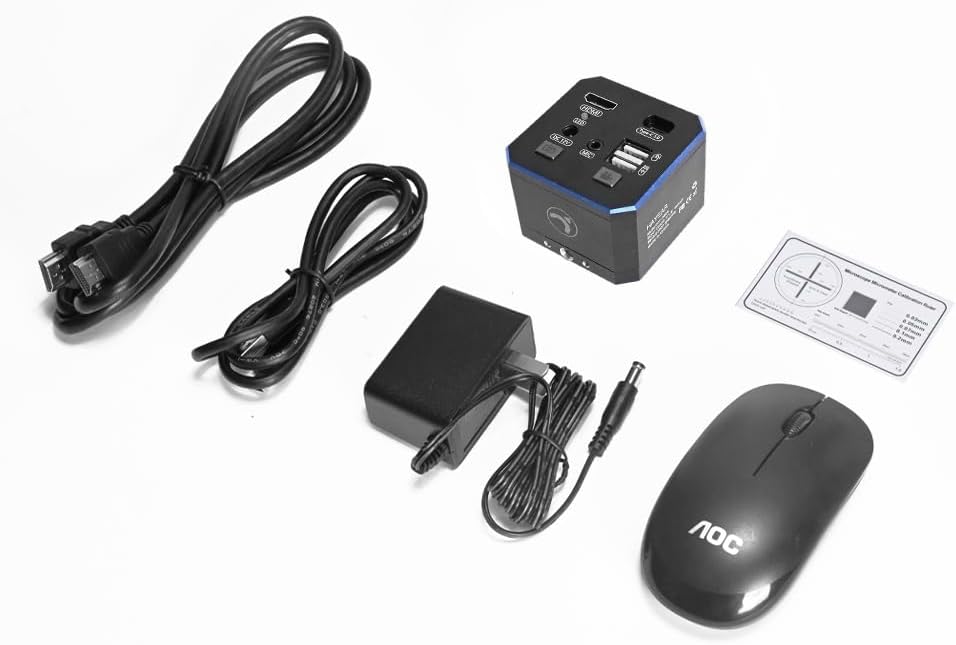

Package Including:
1 x 4K camera
1 x USB mounse
1 x HDMI cable
1 x power supply US plug
1 x USB cable
1 x calibration scale film
