Attention:
- Compatible with DJI O4 Pro Air Unit, you must choose the ""Dual Heat Sink"" version.
- The ""Dual Heat Sink"" works directly compatible with DJI O4 air unit lite. Compatible with DJI O4 PRO air unit, simply add the adapter frame.

Specification:
- Item name: heat sink/thermal pad
- Heat sink material: aluminum alloy
- Adapter frame material: 3D printed TPU (Note: Only the Dual Heat Sink version includes)
- Hole spacing: 25.5mm(1.00inch)
- Length of heat sink: 30mm(1.18inch)
- Height after install: 8mm(0.31inch)
- Dual version metal plate weight: about 5.3g
- Single version metal plate weight: about 2.6g
- Used for RC drone.

2 types for your refer:
- dual heat sink, fits most 2-5inch drone model,compatible with DJI O4 lite/O4 pro
- single heat sink, fits 1-2inch drone model

Feature:
- Constructed from 1060 aluminum alloy, it features excellent thermal conductivity.
- The precisely cut and aligned heat sink ensures a tight fit with the chip.
- For better heat transfer, you can apply a 1mm thermal pad on the chip. This is optional and depends on your needs.
- It can be fixed on 2-inch and larger racks using 20mm and 25.5mm mounting holes together with printed parts. It keeps a 2mm gap from the base plate for better heat dissipation and prevents easy falling off.

Note:
- The video transmission, drone model, propeller and others in picture shown will not include.
- Size is manual measurement, there are exist errors.
- Due to unavoidable factors such as monitor, shooting angle, light source, etc., the color in the picture may have a very slight color difference with the goods you receive. Everything is subject to the goods you receive.

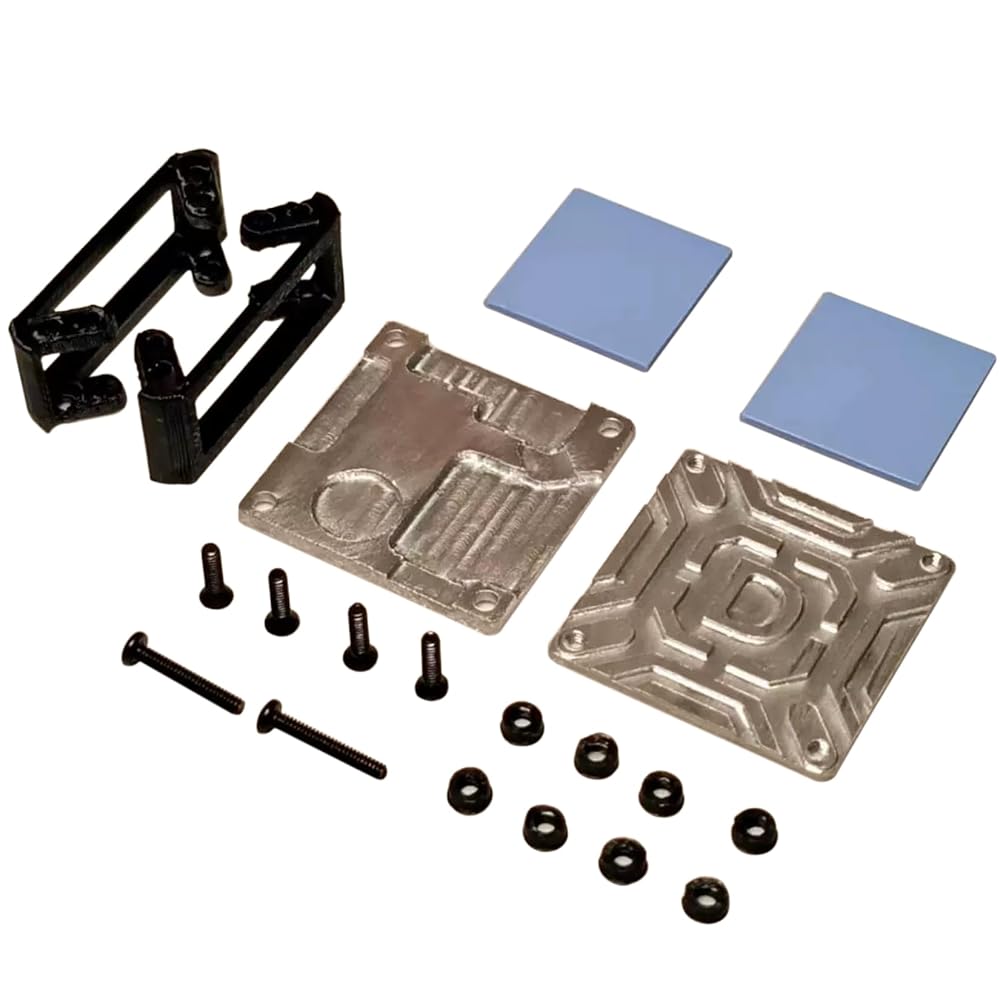

Package include:
1set x heat sink
