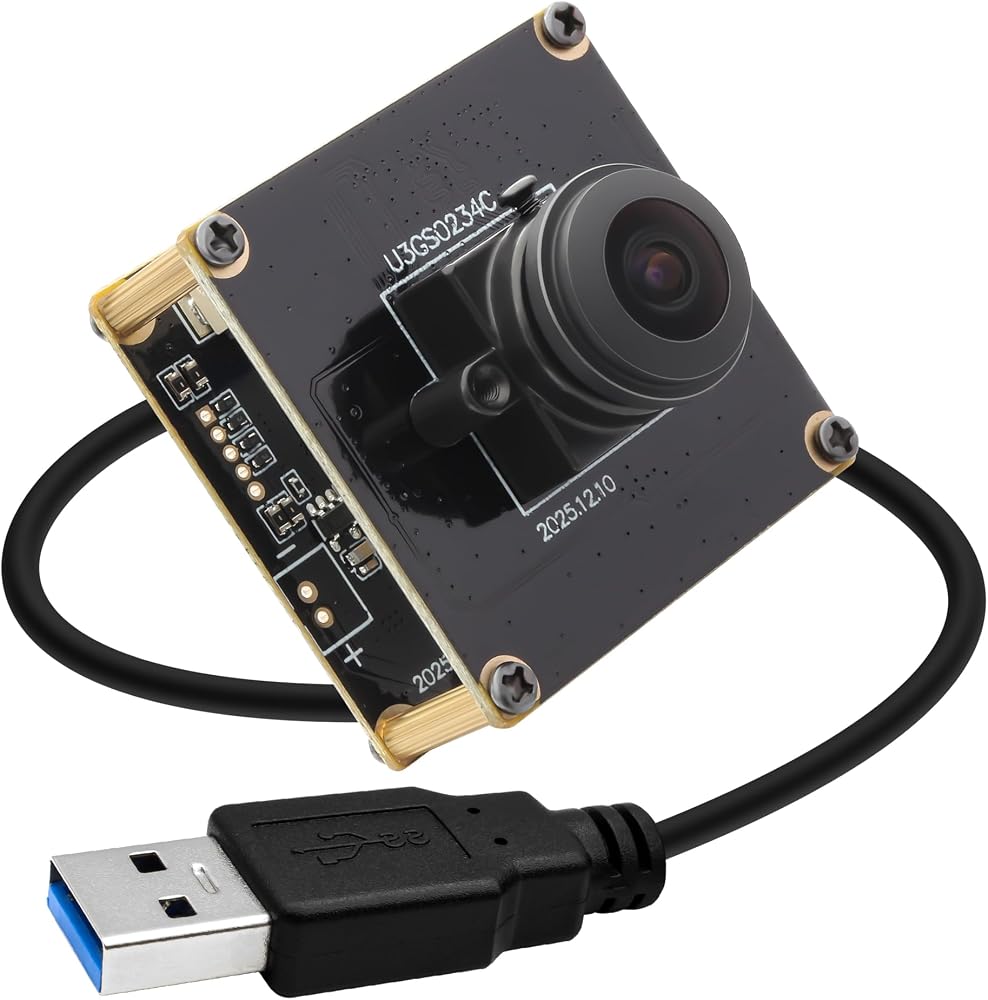

SVPRO 2MP USB 3.0 Global Shutter Camera, High Speed 120fps 200fps Type-C Webcam with 126° (H) M12 Lens, UVC Computer Camera for Windows, Linux, Mac, Android in Saudi Arabia

SVPRO 2MP USB 3.0 Global Shutter Camera, High Speed 120fps 200fps Type-C Webcam with 126° (H) M12 Lens, UVC Computer Camera for Windows, Linux, Mac, Android L180 - M12 (FOV 200°)

SAR 569
Brand
SVPRO
Category
Webcams
ColorL180 - M12 (FOV 200°)
– 1 +

Special Features

  • Global Shutter Ar0234 Sensor: Features 1/2.6‑inch AR0234 global shutter CMOS sensor; captures sharp, distortion‑free frames for fast‑moving objects and eliminates rolling‑shutter jello artifacts for reliable motion capture
  • High Frame‑Rate Performance: Delivers up to 200fps @1280×720 and 120fps @1920×1200 under USB 3.0; supports MJPEG and YUY2 output formats for high‑speed inspection, motion analysis and varied industrial vision workflows
  • USB 3.0 Type‑C & UVC Plug‑And‑Play: USB 3.0 Type‑C interface provides 5Gbps bandwidth for low‑latency real‑time streaming; UVC‑compliant, no extra drivers required; compatible with Windows, Linux, macOS, Android; backward compatible with USB 2.0
  • Low‑Distortion M12 Wide‑Angle Lens: 2MP industrial USB 3.0 camera fitted with M12 wide‑angle lens for 126° field‑of‑view with minimal distortion; delivers broad scene coverage compared to standard lenses, suited for surround surveillance, vehicle backup and machine‑vision project
  • Metal Industrial Housing & Broad Compatibility: Rugged full‑metal enclosure for good heat dissipation and mechanical protection; 3‑side 1/4‑inch mounting threads for flexible installation; works for machine vision, robotics, ITS, factory automation, 3D scanning, Raspberry Pi OpenCV / V4L2 development, DIY maker and embedded‑vision applications

Description

Camera specifications: :
Sensor: 1/2.6-inch AR0234 sensor
Shutter type: Global shutter
Interface & connector: USB 3.0, 20-pin connector (USB 3.0 Type-C connector optional)
Maximum resolution: 1920 (H) * 1200 (V)
Standard resolution: 1920 (H) * 1200 (V)
Dynamic range: 70 dB
Compression format: MJPEG/YUV2 (YUYV)

Performance:: :
Resolution & frame rate via USB 3.0
1920x1200 MJPEG 120 fps/YUY2 80 fps 1920x1080 MJPEG 120 fps/YUY2 80 fps
1600x1200 MJPEG 120 fps/YUY2 80 fps 1280x960 MJPEG 120 fps/YUY2 120 fps
1280x720 MJPEG 200 fps/YUY2 200 fps 640x480 MJPEG 200 fps/YUY2 200 fps
512x512 MJPEG 120 fps/YUY2 120 fps
Resolution and frame rate under USB 2.0
1920x1200 MJPEG 120 fps/ YUY2 5 fps 1920x1080 MJPEG 120 fps/ YUY2 5 fps
1600x1200 MJPEG 120 fps/ YUY2 5 fps 1280x960 MJPEG 120 fps/ YUY2 5 fps
1280x720 MJPEG 200 fps/ YUY2 10 fps 640x480 MJPEG 200 fps/ YUY2 30 fps
512x512 MJPEG 120 fps/ YUY2 10 fps

Adjustable parameters: Brightness, contrast, saturation, hue, sharpness, gamma, white balance, backlight compensation, exposure
Power supply: USB 3.0, 20-pin connector
Operating voltage: 5 V DC
Operating current: 165 mA – 210 mA
Operating temperature: -10 °C to 70 °C, storage temperature: -20 °C to 80 °C
USB cable: 2m
Operating system requirements: Windows, Linux, macOS, Android
