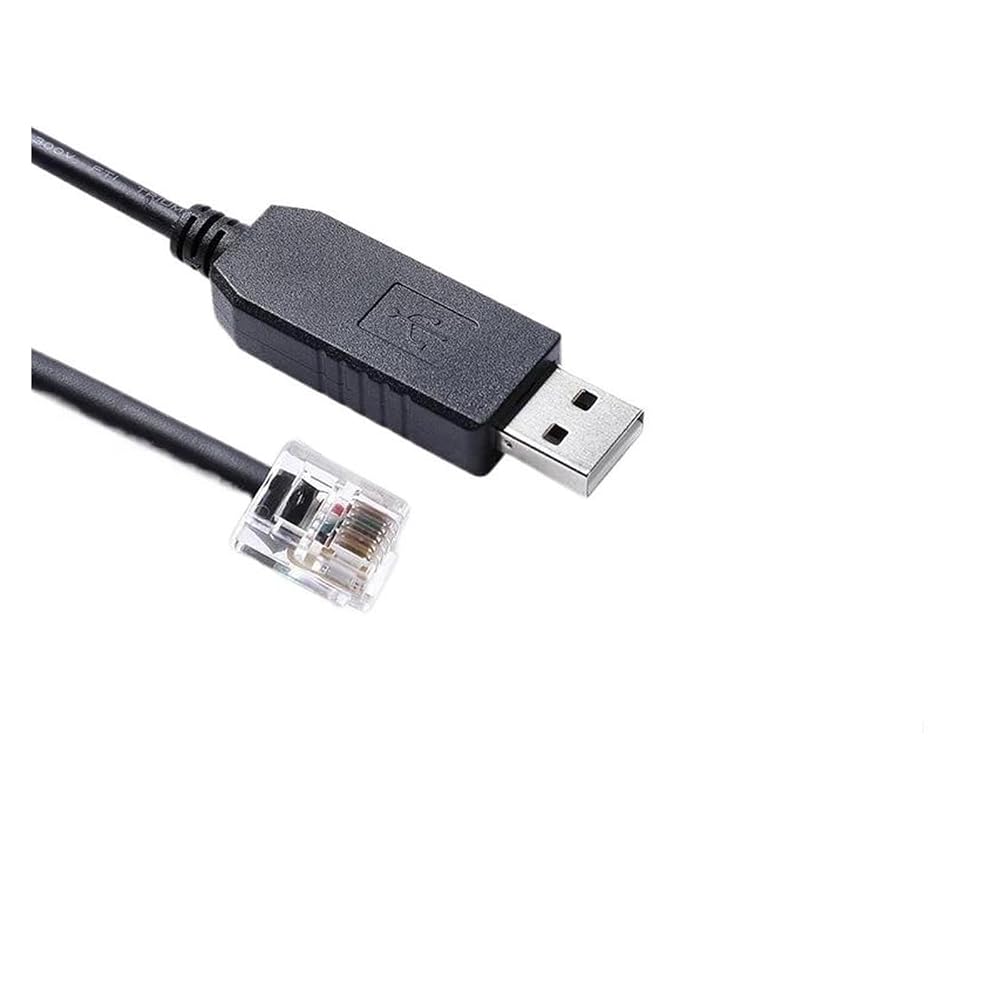

Synscan Goto Hand Control PC cord PL2303 USB RS232 to RJ12 6P6C for Connecting PC and HC Firmware Updating
Material: p/;vc Outer Jacket
cord: 28AWG*3C, OD3.5
Conductor Wire: bare copper
Color: Black
Chipset: PL2303GT/PL2303GC
TY>pe: USB to RS232
Length: 100cm, 180cm, 300cm optional, other length can be customized
Connector: Nickel plated shell, plated contacts
Housing: USB black housing
USB side can be molded
Standard Pinout: 2-RXD, 3-GND, 5-TXD
Application: for Synscan V5 Hand control Firmware updating and connecting to a computer
Molding: p/;vc material, complaint
Testing: 3 times electrical inspection, appearance inspection
Package: PE Bag
The SynScan V5 hand controller can communicate with a computer via the RS-232 port or the USB port at the bottom of the controller. In this way you can use many commercially available planetarium software programs to control your GoTo telescope or mount, essentially bypassing the hand controller's interface. If you choose to use the serial port, the computer must also have an RS-232C serial port (which most don't have these days); otherwise, an optional USB-to-Serial adapter is required. the SynScan hand controller to the computer using either
A) A USB TY>pe A to TY>pe B cord connecting the USB port on the hand controller to a USB port on the computer, or
B) The RJ12 to DB9 serial cord (or RJ12 to USB RS232 serial cord) connecting it from the serial port of the hand controller to a serial port on your computer.
About PL2303GT
PL2303GT USB to RS232 Serial Bridge Controller With Built-in RS232 Transceiver
USB Interface
Single-chip USB to RS232 asynchronous serial data transfer interface.
Fully Compliant with USB 2.0 specification (Full-Speed ).
UHCI/OHCI (USB 1.1), EHCI (USB 2.0), xHCI (USB 3.1) Host Controller Compatible.
Royalty-free USB to Virtual Com Port (VCP) drivers for , , Linux, and An/dro/id.
Highly integrated USB 1.1 FS Transceiver. Integrated termination resistors and pull-up resistor to reduce PCB external co/mpone/nts.
Supports OTPROM (One-Time Programmable ROM) for USB device descriptors configuration. OTPROM can be programmed directly through USB port.
Each IC has ID (for Serial Number).
Supports bus-power, self-power and high-power USB device configuration.
Supports USB Selective Suspend (Remote Wakeup enabled).
Supports 3.3V VBUS voltage operation
UART Interface (RS232)
Built-in RS232 Transceiver:
o Meets EIA/TIA-232F standards with 5.0V power supply
o Guaranteed 1000kbps transmission rate under loading
o Three RS232 Drivers design
o Five RS232 Receivers (always active)
o Latch-up fr;/ee
RS232 Serial Port Output Interface:
o Full UART RS232 interface pins (TXD, RXD, RTS, CTS, DTR, DSR, DCD, and RI)
o Flexible baud rate support up to 1Mbps
o 5, 6, 7 or 8 data bits
o Odd, Even, Mark, Space, None parity
o ON/E, ON/E and a half, or two stop bits
o Hardware and Software Flow Control
o Provides RS232 shutdown indicator pin
1024-byte bi-directional data FIFO buffers (768-byte receive/256-byte transmit) for faster data throughput.
Configurable Transmit (TX) and Receive (RX) pins using configurable GPIO pins.
Model Number : BE-2303GT-232-6P6C
TY>pe : Serial cord
Color : Black
Connector A : USB 2.0 TY>pe A Male
Connector B : RJ12 6P6C
cord Length : 1.0M 1.8M 300cm
Chipset : PL2303GT
Interface : RS232
