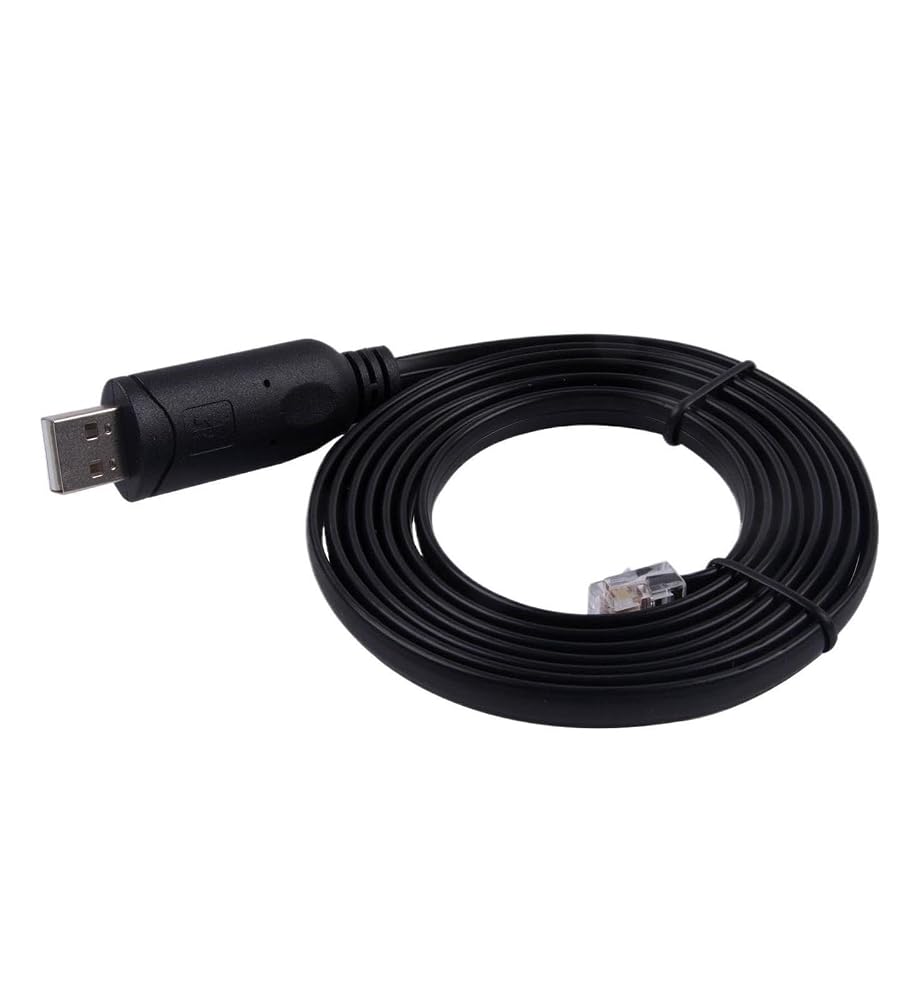

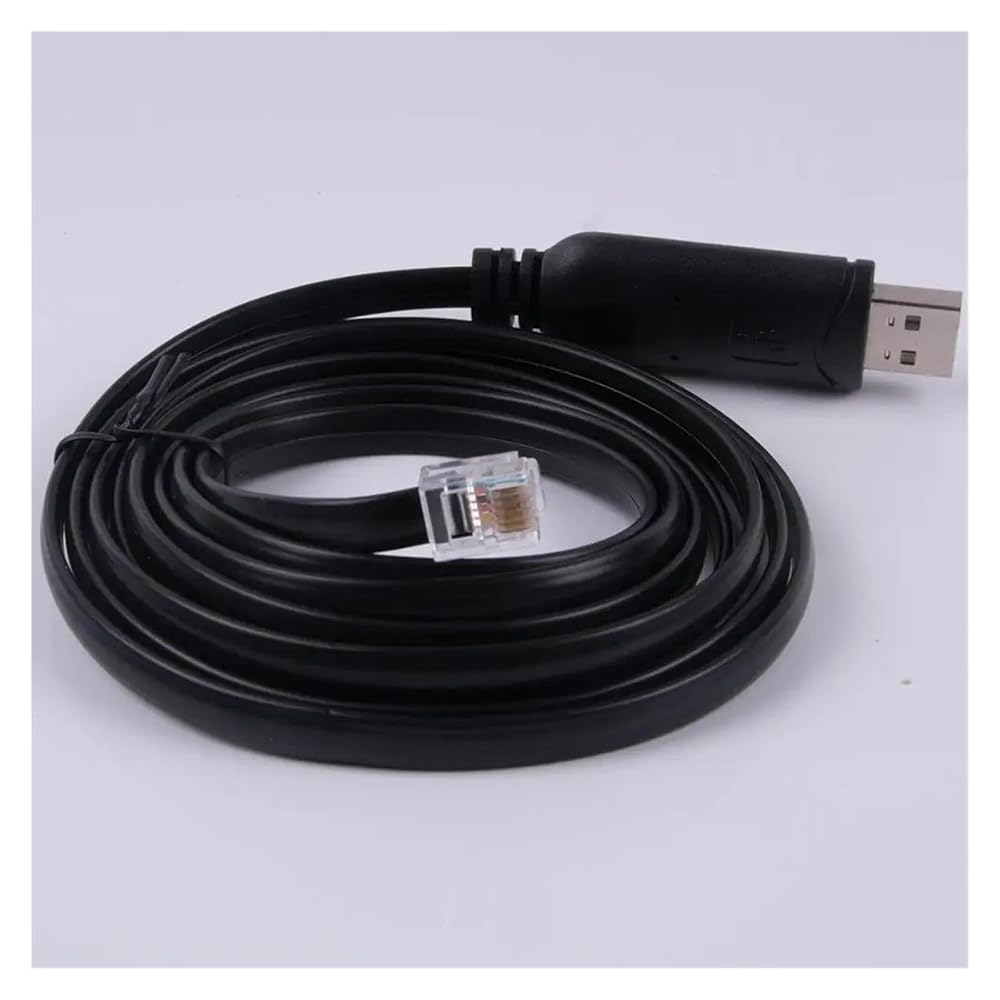

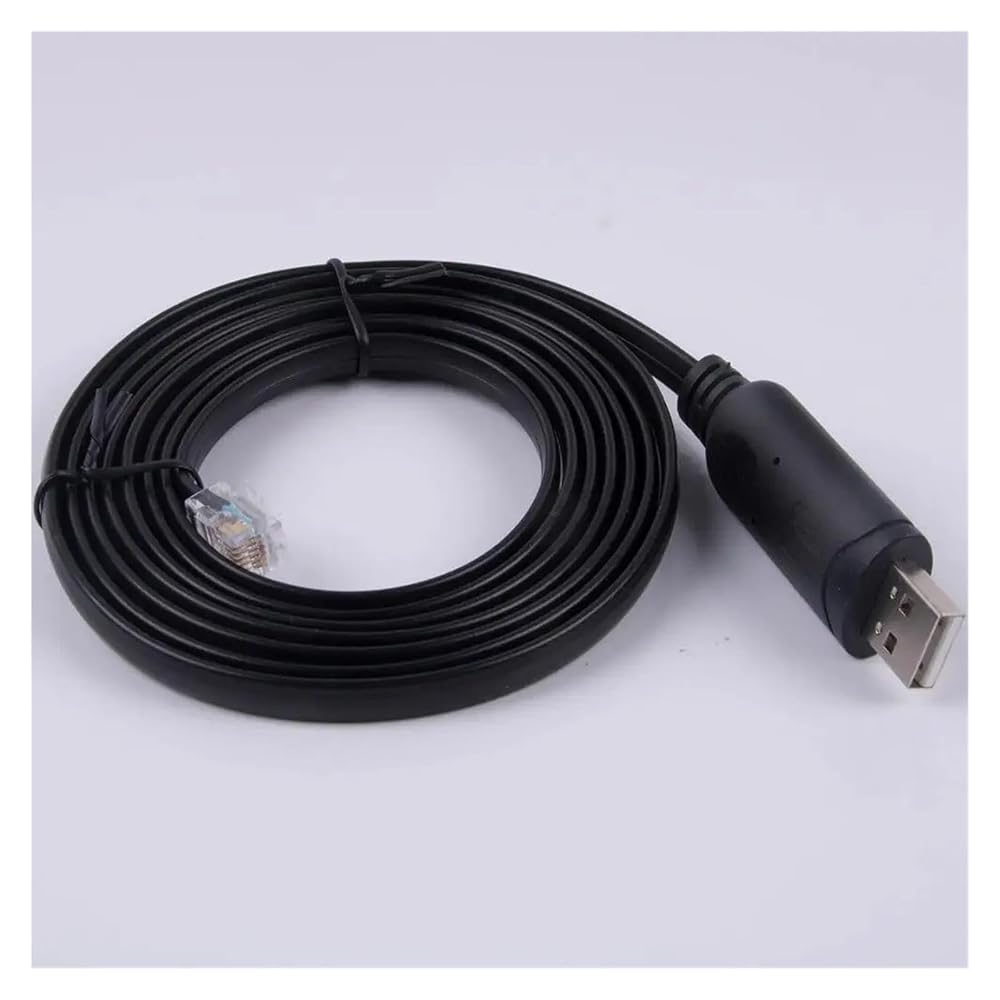

USB to RJ12 6P6C RS232 F&T>D*I Serial Converter for A;/PC PDU cord for A;/PC 940-0144
All F&T>D*I chipset. For reliable and compatible replacement cord for A;/PC PDU cord 940-0144, Our durable molded cord is for computers with no DB9 serial port. Connecting to a USB port, this cord provides a convenient replacement to the A;/PC 940-0144 and A;/PC 940-0144A PDU cord.
USB RS232 to RJ12 Serial Converter cord
Geniune F&T>D*I Chip import from UK . Quality Stable .
Mutiple Sys/tem Support .

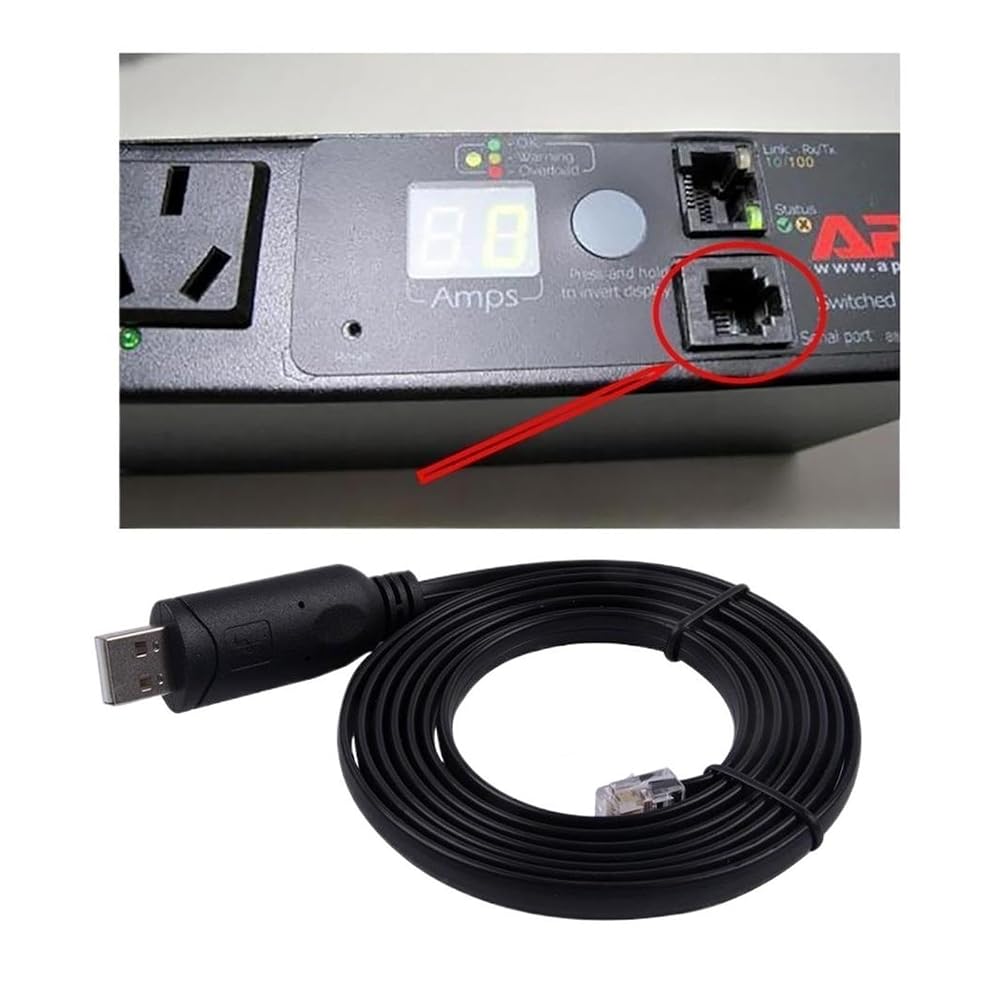

Compatible with A;/PC metered and switched PDU:
AP78xx
AP79xx
AP86xx
AP88xx
AP89xx
AP7000
AP8000
AP9000
AP6000
AP7721
AP7723
AP7730
AP7752
F&T>D*I F&T>D*I chip + RS232 Level Shifter with the best compatibility and stability.
Operating Sys/tem support:
From F&T>D*I company drivers support
10
8.1
8.1 x64
8
8 x64
Server201 2 Server 2008 R2
7 7 x64
Server 2008 Server 2008 x64
Vista Vista x64
Server 2003 Server 2003 x64
XP XP x64
ME 98 Linux
OS X OS 9 OS 8
CE.NET (Version 4.2 and greater)
An/dro/id
RT
Package:
1 X 3.94ft F&T>D*I USB to RJ12 6P6C cord
Note:
The FT232R is the latest device to be added to FTDI?s range of USB UART interface Integrated Circuit Devices. The FT232R is a USB to serial UART interface with optional clock generator output, and the FTDIChip-ID? security dongle feature. In addition, asynchronous and synchronous bit bang interface modes are available. USB to serial designs using the FT232R have been further simplified by fully integrating the external EEPROM, clock circuit and USB resistors onto the device.
The FT232R adds two functions compared with its predecessors, effectively making it a "3-in-1" chip for some application areas. The internally generated clock (6MHz, 12MHz, 24MHz, and 48MHz) can be brought out of the device and used to drive a microcontroller or external logic. A number (the FTDIChip-ID?) is burnt into the device during manufacture and is readable over USB, thus forming the basis of a security dongle which can be used to customer application software from being copied.
Single chip USB to asynchronous serial data transfer interface.
Entire USB protocol handled on the chip - No USB-specific firmware programming required.
UART interface support for 7 or 8 data bits, 1 or 2 stop bits and odd / even / mark / space / no parity.
Fully assisted hardware or X-On / X-Off software handshaking.
Data transfer rates from 300 baud to 3 Megabaud (RS422 / RS485 and at TTL levels) and 300 baud to 1 Megabaud (RS232).
In-built support for event characters and line break condition.
USB FTDIChip-ID? feature.
configurable CBUS I/O pins.
Auto transmit buffer control for RS485 applications.
Transmit and receive drive signals.
48MHz, 24MHz,12MHz, and 6MHz clock output sig/nal Options for driving external MCU or FPGA.
FIFO receive and transmit buffers for high data throughput.
256 Byte receive buffer and 128 Byte transmit buffer utilising buffer smoothing technology to allow for high data throughput.
Adjustable receive buffer timeout.
Synchronous and asynchronous bit bang interface options with RD# and WR# strobes.
CBUS bit bang option.
Integrated 1024 bit internal EEPROM for I/O configuration and storing USB VID, PID, serial number and product description strings.
Device supplied preprogrammed with USB serial number.
Support for USB suspend / resume.
Support for bus powered, self powered, and high-power bus powered USB configurations.
Integrated 3.3V level converter for USB I/O .
Integrated level converter on UART and CBUS for interfacing to 5V - 1.8V Logic.
True 5V / 3.3V / 2.8V / 1.8V CMOS drive output and TTL input.
High I/O pin output drive option.
Integrated USB resistors.
Integrated power-on-reset circuit.
Fully integrated clock - no external crystal, oscillator, or resonator required.
Fully integrated AVCC supply filtering - No separate AVCC pin and no external R-C filter required.
UART sig/nal inversion option.
USB bulk transfer .
3.3V to 5.25V Single Supply Operation.
Low operating and USB suspend current.
Low USB bandwidth consumption.
UHCI / OHCI / EHCI host controller compatible.
USB 2.0 Full Speed compatible.
-40°C to 85°C extended operating temperature range.
Drivers are available which allow F&T>D*I devices to work with the following operating systems:
10
8.1 x64
8
8 x64
Server2012
Server 2008 R2
7
7 x64
Server 2008
Server 2008 x64
Vista
Vista x64
Server 2003
Server 2003 x64
XP
XP x64
ME
98
Linux
OS X
OS 9
OS 8
CE.NET (Version 4.2 and greater)
An/dro/id
RT
Support for WinCE7.0
Initial functional testing conducted by F&T>D*I has shown that the F&T>D*I drivers function as expected on CE 7.0
Support for older versions of Desktop
NOTE: have ended support for certifying XP and VISTA through their WHCK test program. As such current builds will still work on XP and VISTA but are not certified.
Differences in Driver API
For most of these operating systems two types of driver are available: Virtual COM Port (VCP) drivers and direct (D2XX) drivers. The VCP driver emulates a standard PC serial port such that the USB device may be communicated with as a standard RS232 device. The D2XX driver allows direct access to a USB device via a DLL interface.
TY>pe : Serial cord
Chip : FT232RL
sig/nal : RS232
APPLICATION : AP78xx, AP79xx, AP86xx, AP88xx, AP89xx
Connector : USB to RJ12
feature 01 : RJ12 Console cord
feature 02 : rs232 converter cord
feature 03 : For 940-0144 A;/PC pdu cord
