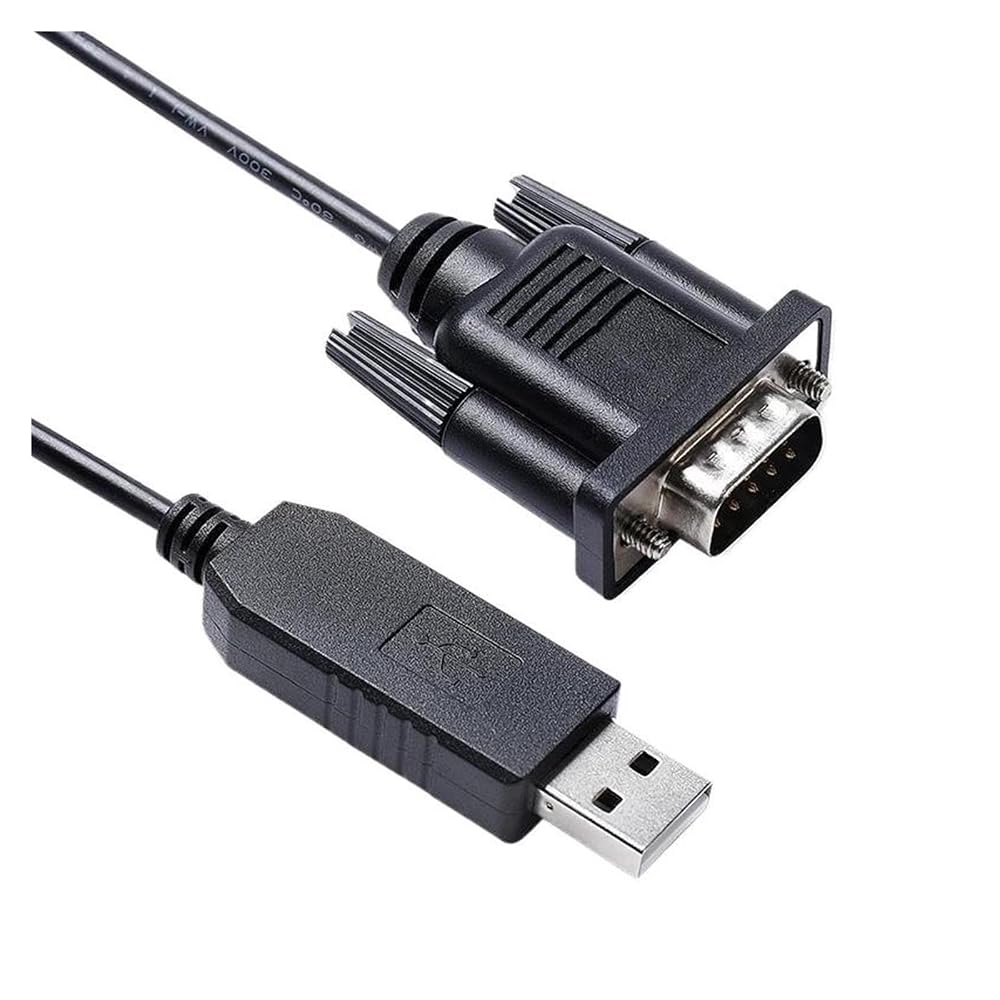

F&T>D*I FT232RL USB RS232 Serial to DB9 Male Programming cord for IC-PCR100 IC-PCR1000 ST-9M
Material: p/;vc outer jacket
cord: 26AWG*5C, OD4.0
Color: Black
cord Length: 1.8M, 300cm in stock, other length can be customized
Connector A: USB 2.0 TY>pe A male
Connector B: DB9 male
Chipset: F&T>D*I FT232RL
Level: USB to Serial RS232
Application:
Compatible with ST-9M
for IC-PCR100 IC-PCR1000
About F&T>D*I FT231
FT231X Full Speed USB to Full Handshake UART
Key Hardware Features
This USB2.0 Full Speed IC offers a compact bridge to full handshake UART interfaces. The device is a UART, capable of operating up to 3MBaud, with low power consumption (8mA). The FT231X includes the complete FT-X series feature set and enables USB to be added into a Sys/tem design quickly and easily over a UART interface.
Single chip USB to asynchronous serial data transfer interface.
Entire USB protocol handled on the chip. No USB specific firmware programming required.
Fully integrated 2048 byte EEPROM for storing device descriptors and CBUS I/O configuration.
Fully integrated clock generation with no external crystal required plus optional clock output selection enabling a glue-less interface to external MCU or FPGA.
Data transfer rates from 300 baud to 3 Mbaud.
512 byte receive buffer and 512 byte transmit buffer utilizing buffer smoothing technology to allow for high data throughput.
F&T>D*I's royalty-free Virtual Com Port (VCP) and Direct (D2XX) drivers the requirement for USB driver development in most cases.
Configurable CBUS I/O pins.
Transmit and receive drive signals.
UART interface support for 7 or 8 data bits, 1 or 2 stop bits and odd / even / mark / space / no parity
Synchronous and asynchronous bit bang interface options with RD# and WR# strobes.
Bat*/tery Detection. May be used by mobile devices to detect the presence of a on the USB port to enable higher current / faster of batteries.
Device supplied pre-programmed with USB serial number.
Supports bus powered, self powered and high-power bus powered USB configurations.
Integrated +3.3V level converter for USB I/O.
True 3.3V CMOS drive output and TTL input.
(operates down to 1V8 with external pull and is also 5V tolerant)
Configurable I/O pin output drive strength.
Integrated power-on-reset circuit.
UART sig/nal inversion option.
Internal 3.3V/1.8V LDO regulators
Low operating current of 8mA (typical) and USB suspend current of 125uA (typical) current.
Low USB bandwidth consumption.
UHCI/OHCI/EHCI host controller compatible.
USB 2.0 Full Speed compatible.
Extended operating temperature range: -40°C to 85°C
Available in compact Pb-free 20 Pin SSOP and QFN packages (both compliant).
Typical Applications
USB to RS232/RS422/RS485 Converters
Upgrading Peripherals to USB
Cellular and Cordless USB data transfer cables and interfaces
Interfacing MCU/PLD/FPGA based designs to USB
USB and Low Bandwidth Video data transfer
PDA to USB data transfer
USB Sma/*rt Card Readers
USB Instrumentation
USB Industrial Control
USB MP3 Player Interface
USB FLASH Card Reader and Writers
Set Top Box PC USB interface
USB Digital Camera Interface
USB Hardware Modems
USB Wireless Modems
USB Bar Code Readers
Dedicated Port (DCP) detection enabling Bat*/tery at higher current for faster times.
Package : Yes
Model Number : ST-9M
TY>pe : Serial cord
Color : Black
cord Length : 6FT/1.8M
Connector A : USB 2.0 TY>pe A Male
Connector B : DB9 Male
Chipset : F&T>D*I FT232RL
