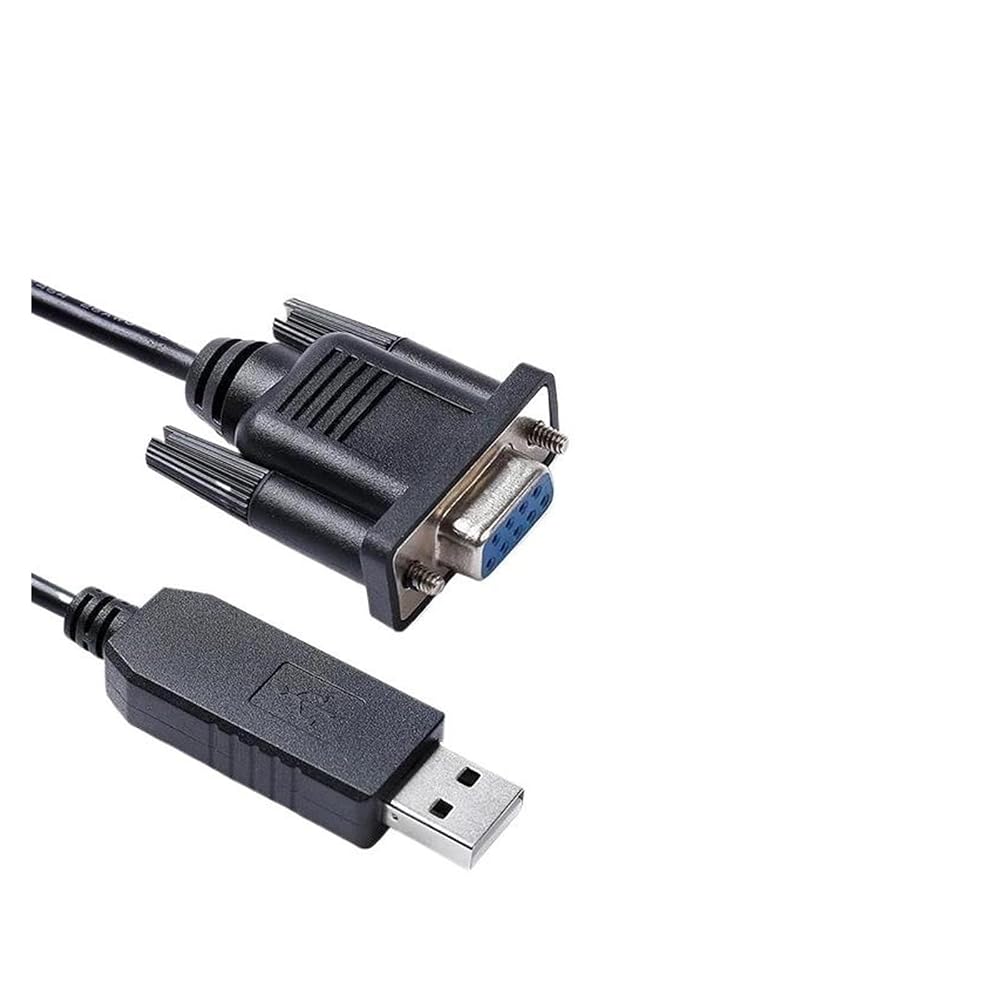

PL2303 USB Programming cord for TS-2000 TS-480HX TS-480SAT TS-590S TS-590SG FT-450D IC-7000 ST-9F
Material: p/;vc outer jacket
cord: 26AWG*5C, OD4.0
Color: Black
cord Length: 1.8M, 300cm, 5.0M in stock, other length can be customized
Connector A: USB 2.0 TY>pe A male
Connector B: DB9 female
Chipset: PL2303GT
Application: for TS-2000 TS-480HX TS-480SAT TS-590S TS-590SG FT-450D IC-7000 ST-9F
ABOUT PL2303GT
The PL2303GT chip is ON/E of the latest G-Series IC product added to the popular PL2303 USB to Serial
(UART) Bridge Controller family, replacing the PL2303RA USB to RS232 serial chip. It provides an advanced
full-featured single-chip bridge solution for connecting a full-duplex UART asynchronous serial interface
device to any all Serial Bus (USB) capable host. The PL2303GT provides highly compatible USB
drivers to simulate the traditional COM port (via virtual COM Port) on most operating systems allowing
existing serial UART applications based on COM port to easily migrate and be made USB ready.
PL2303GT integrates a high baud rate RS-232 transceiver that meets the EIA/TIA-232F and CCITT V.28
communications interface specifications. The RS-232 transceiver is a 3-transmitters and 5-receivers device
with a high-efficient pump circuit embedded. This high-efficient pump circuit with 1uF external
capacitors provides the bipolar output to the transmitters, and makes the transmitters to deliver the RS-232
output voltage levels. Under normal operation, PL2303GT operates at very low power consumption with
guaranteed data rate up to 1000kbps. PL2303GT also has an active-low shutdown indicating pin that can
serve as a shutdown indicator for special application purposes.
The PL2303GT is pin-to-pin compatible with the PL2303RA chip. It also integrates an RS-232
transceiver, an internal precise clock generator (no external crystal required), USB 1.1 transceiver, Serial
Interface Engine (SIE), LDO voltage regulator, power-on- reset (POR), FIFO data buffers, and OTPROM.
The PL2303GT added several features and enhancements:
Integrated termination resistors and pull-up resistor to reduce PCB external co/mpone/nts.
USB drivers for different OS platforms with faster performance and advanced features.
Precise baud rate generator (up to 1Mbps).
OTPROM can be programmed directly through USB (no high voltage generator required).
Larger TX/RX FIFO data buffers (1024-byte).
Supports 3.3V VBUS voltage operation.
USB Serial Number for each IC.
4 GPIO pins (all input at power-up) with easy to use SDK. Can also be configured as TX/RX access LEDs, and I2C EEPROM (EE_SCL, EE_SDA) interface in OTPROM.
The PL2303GT is to support a wide-range of serial RS232 application including mobile,
embedded, industrial, consumer, , navigation, and wearable solutions in mind. It provides a
footprint that could easily fit in to any connectors and handheld devices. With very power
consumption in either operating or suspend , the PL2303GT is perfect for bus powered operation
with plenty of power left for the attached devices.
Royalty-Free Driver Support
10, 8, 7, Vista, XP, ( Certified WHQL Drivers)
- Update Driver installation available in 7 and above (32/64-bit)
Server 2003, 2008, 2008 R2, 2012, 2016, 2019
Embedded Industry, Point-of-Service (WEPOS), and POSReady
Embedded Compact, Embedded CE, CE
OS X
Linux OS 3.18 and above (Support Linux 5.5 in-box driver and above)
An/dro/id 3.2 and above
TY>pe : Serial cord
Color : Black
cord Length : 1.8M 300cm 5.0M
Connector A : USB 2.0 TY>pe A Male
Connector B : DB9 female
Chipset : PL2303GT
