Fitment:

For 2008-2015 Chevy Captiva Sport 2.4L 3.6L 3.0L

For 2008-2010 Saturn Vue2.4L 3.5L 3.6L

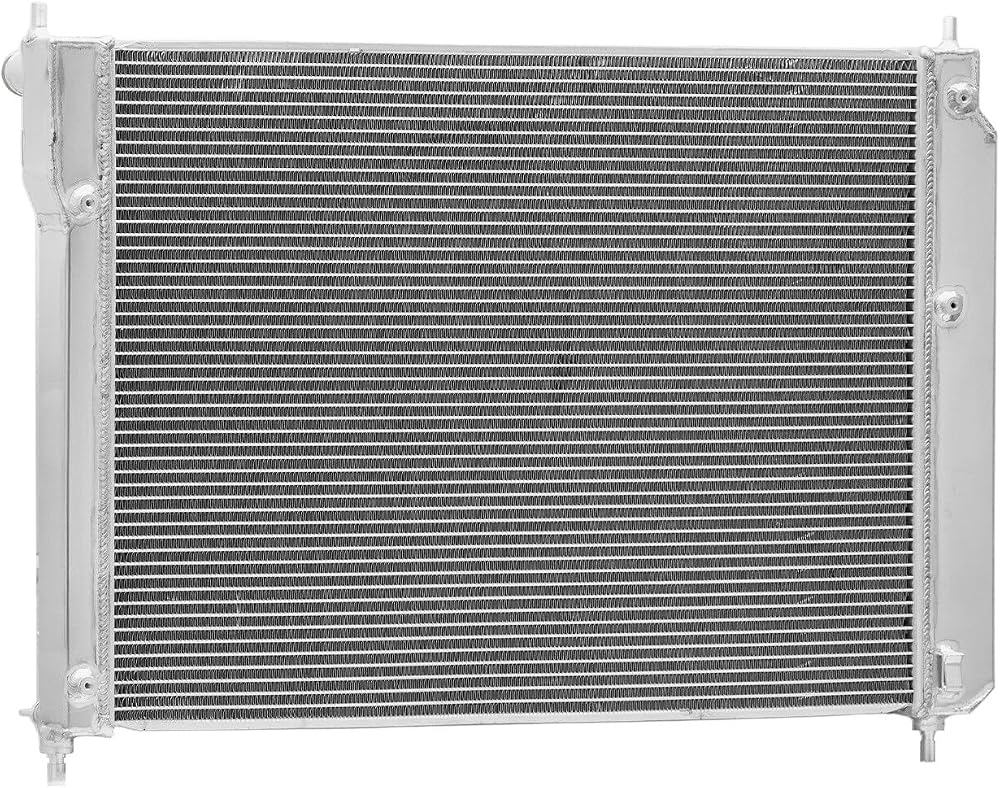

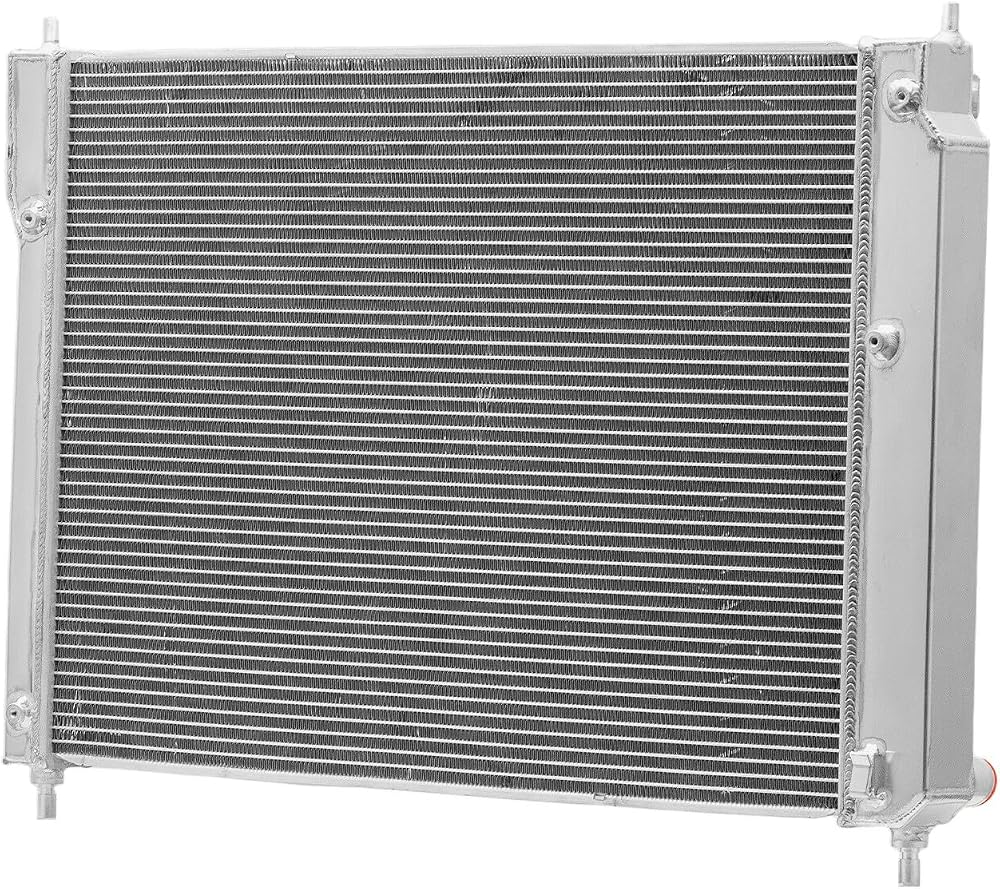

Radiator Specifics:

Material: Aluminum

High Performance Racing Spec.

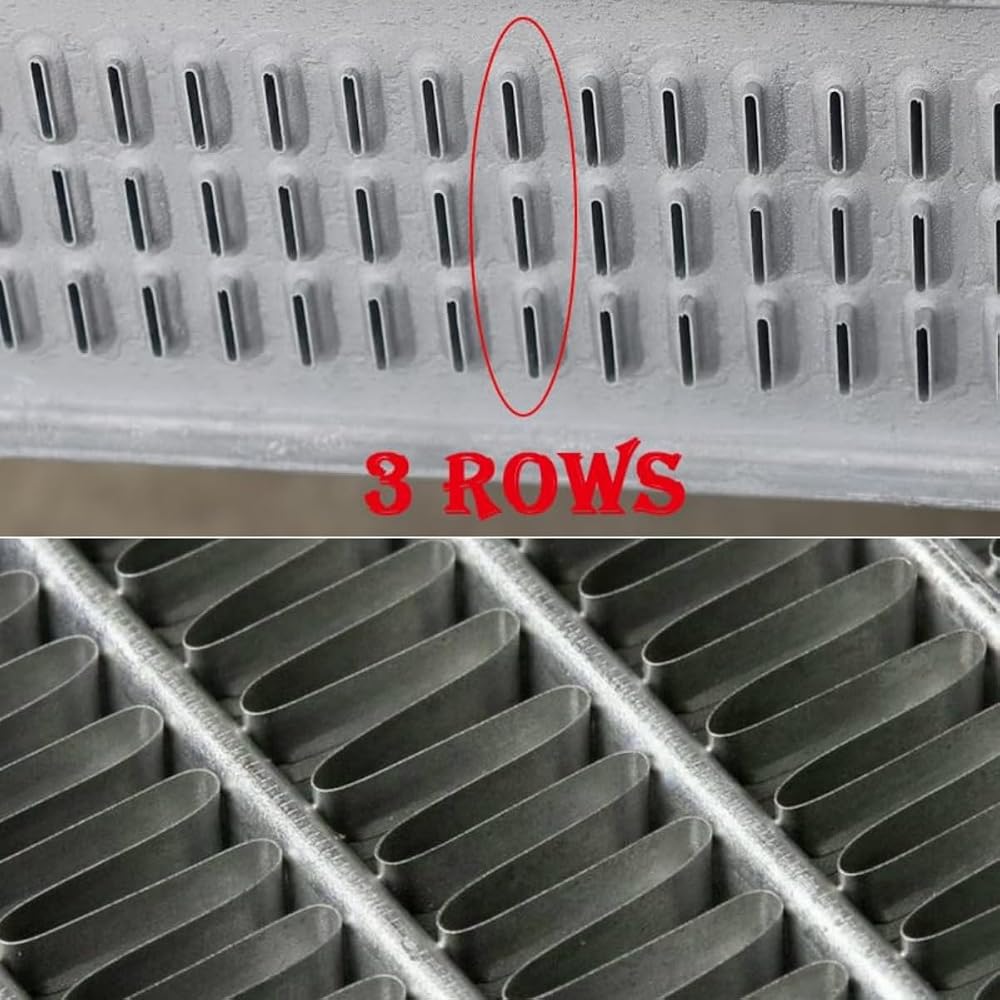

3-Row of tubes Core Racing Design

Down Flow Or Cross Flow Type: Cross Flow

Core Height ：26-1/2"

Core Width ：19-3/4"

Overall Height ：23-4/5"

Overall Width ：31 1/10"

Inlet Diameter：1 5/16in.

Outlet Diameter：1 5/16in.

Fan Specifics:

Diameter : 12'' (Blade to Blade)

Voltage: DC 12 Volts

Wattage: 90W

Fan Thickness: 2.5"

Number of Blades: 10 S-Type blades

Maximum Fan CFM（Cubic Feet per Minute）: 2150cfm

Maximum Fan RPM（Revolution(s) Per Minute）: 2000±10%

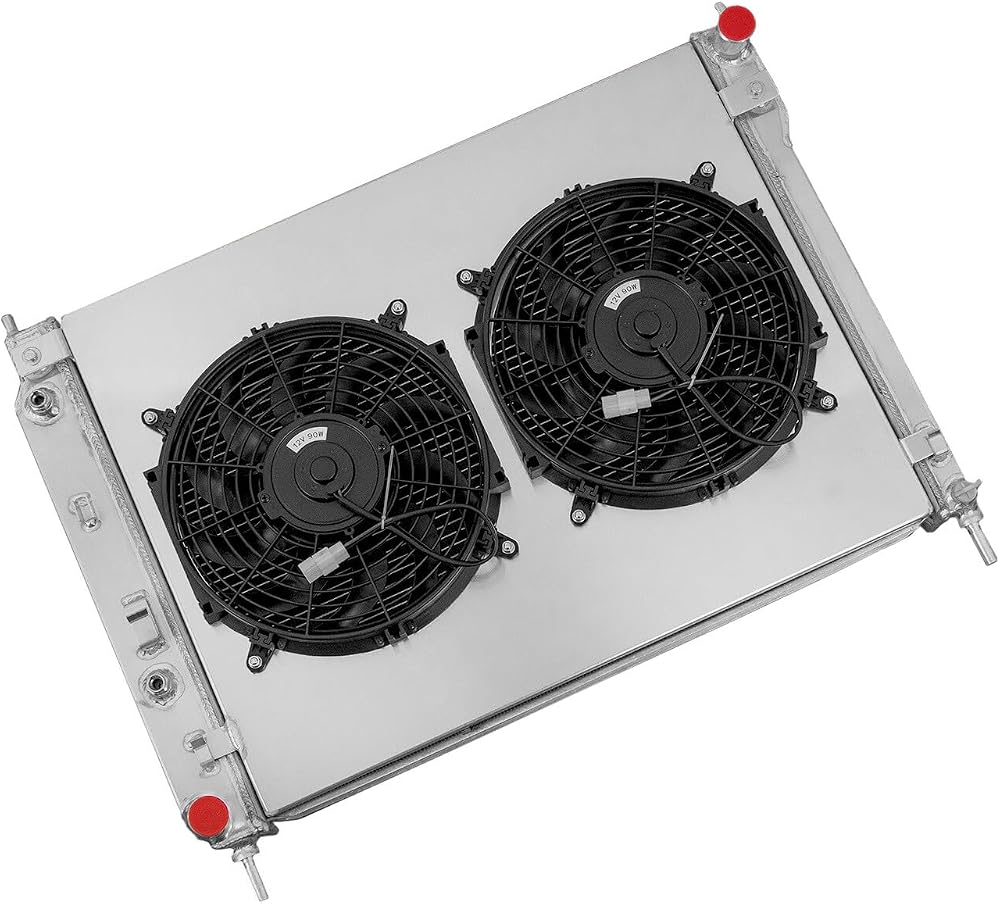

Package Include:

1 X 3-Row Aluminum Radiator

1 X Aluminum Shroud

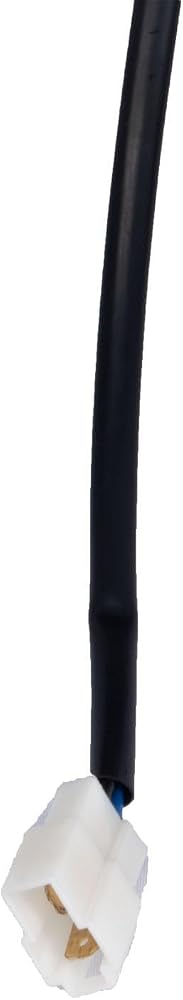

2 X 12" Fans (Includes mounting kits)

Description：

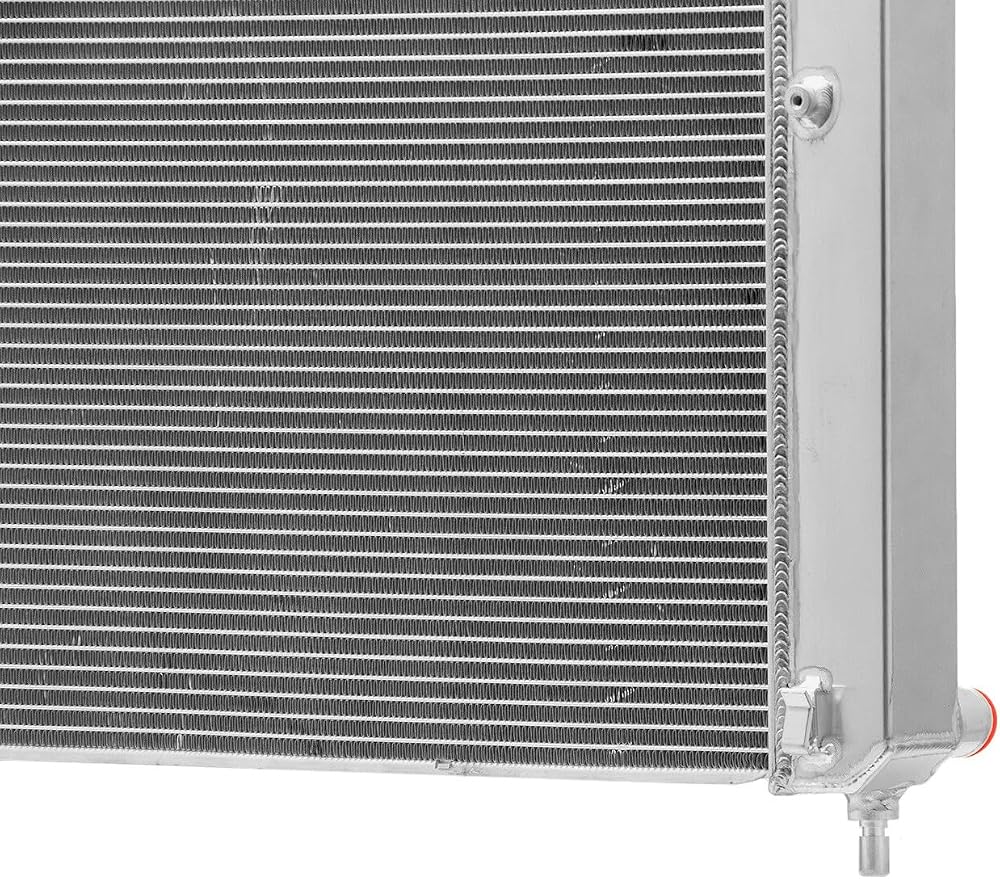

The core of the radiator is welded in vacuum brazing furnace, no epoxy.The Radiator are 100% welded by TIG.Stronger & Higher Capacity for Coolant than OEM units,Made of High Quality Full Aluminum Construction.

This aluminum radiator is designed to provide maximum cooling efficiency to prevent premature engine failure. Its light-weight, and high-heat transferring aluminum features a tube and fin design that, dramatically increases surface area that enables the heat to dissipate more efficiently. This Aluminum Radiator is at least 35% to 45% more efficient than stock ones. Most importantly, it has a much higher capacity for coolant than stock ones, which means that your cooling system will be more efficient and will be more resistant to temperature surges.

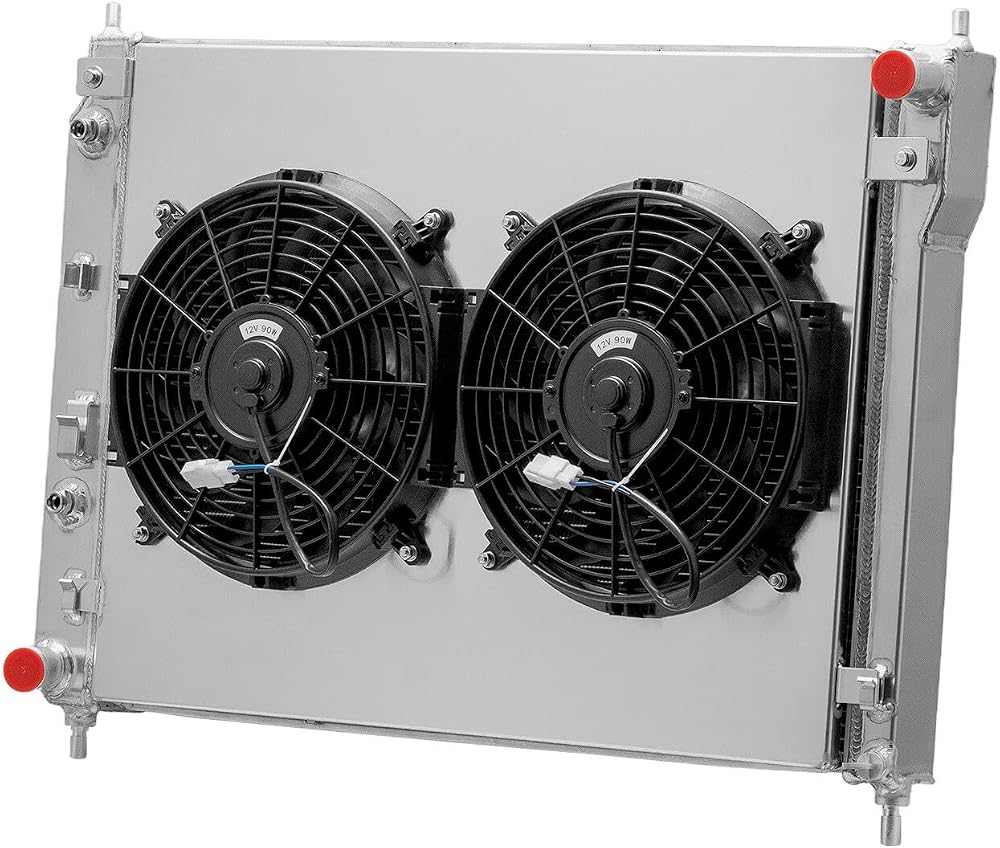

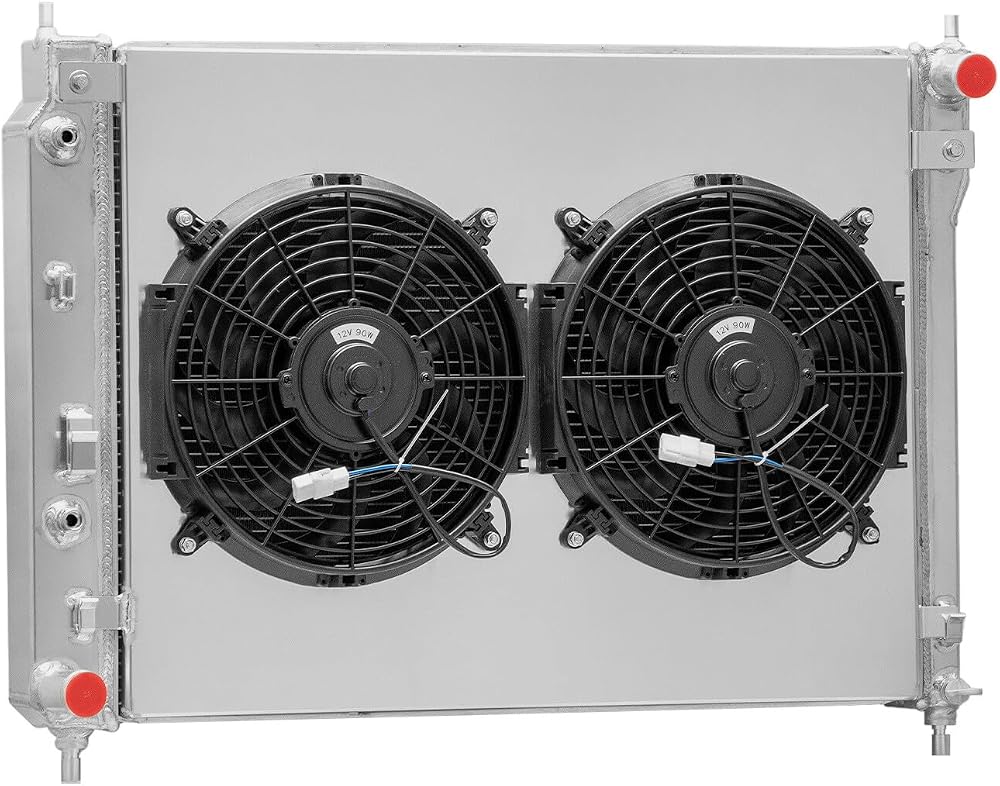

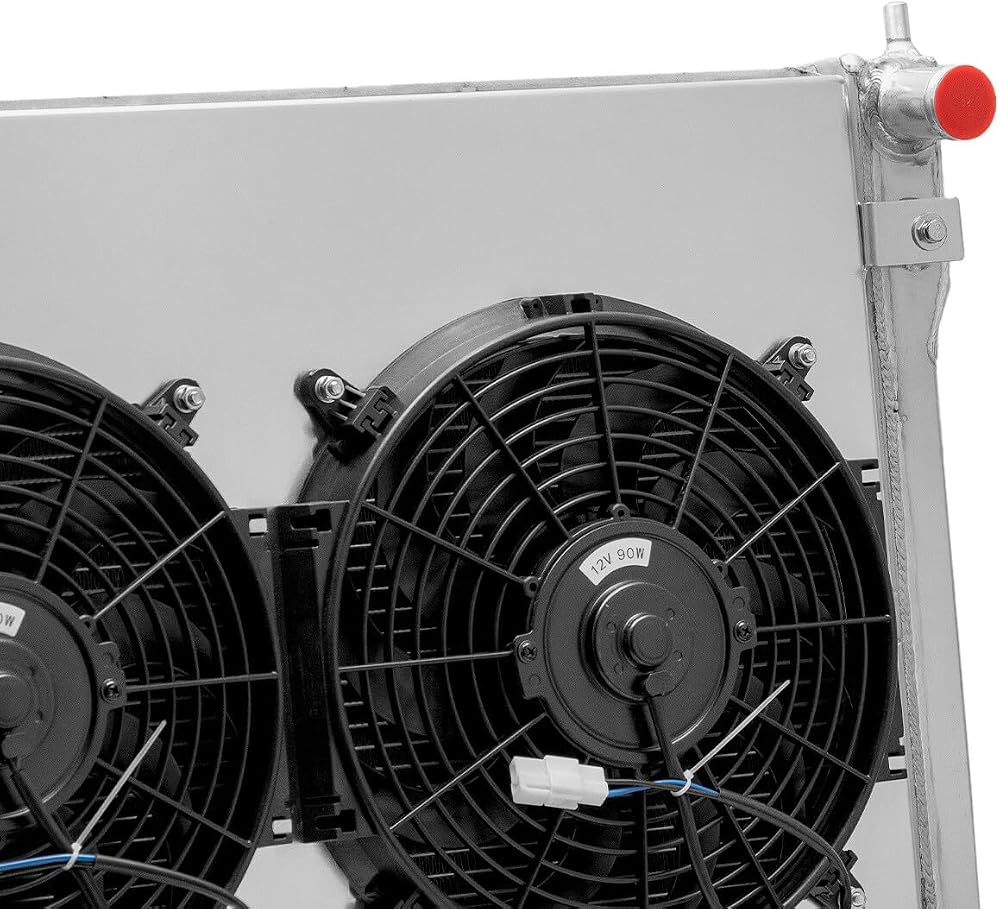

Aluminum Shroud+Fan：

The fan and the fan shroud effectively drive the heat over and out the engine compartment rather than thrusting it into the front of the engine.
