Fitment:

For 2005-2007 Chevy Corvette V8 6.0L

For 2008-2013 Chevy Corvette V8 6.2L

For 2006-2013 Chevy Corvette V8 7.0L

For 2003-2004 Chevy SSR V8 5.3L

For 2005-2006 Chevy SSR V8 6.0L

For 2008-2009 Saab 9-7x V8 6.0L

OE/OEM Part Number: CU2714 RAD2714 DPI2714

Interchange Part Number: 21996495, 21559, GM3010510, 1886, CU2714, 8163

Superseded Part Number: 15196386, 52494386

Radiator Specifcs:

High Performance Racing Spec.

2-Row of tubes Core Racing Design

Petock Drain:OEM style brass petcock drain

Core Dimensions: 17 1/4" H x 23-2/5" W

Overall Dimensions: 20-1/4" H x 28-1/2" W

Inlet Size: 1.3"

Outlet Size: 1.3"

Transmission Oil Cooler：5/8-18UNF

Transmission Oilcooler: include with fast connector

Fan Specifics:

16" Fan

Voltage: DC 12 Volts

Maximum Fan CFM: 2150 cfm

Wattage: 120 Wattage

Thickness (in): 2.95"

Number of Blades: 10 S-Type blades

Maximum Fan RPM: 2,250 rpm

Amp Draw: 10 amps

Thermostat Kit:

Universal fit for any automotive vehicle and electric fan.

Activates by grounding electric fans at preset temperature.

180'F turn-on temperature, 165'F turn-off temperature.

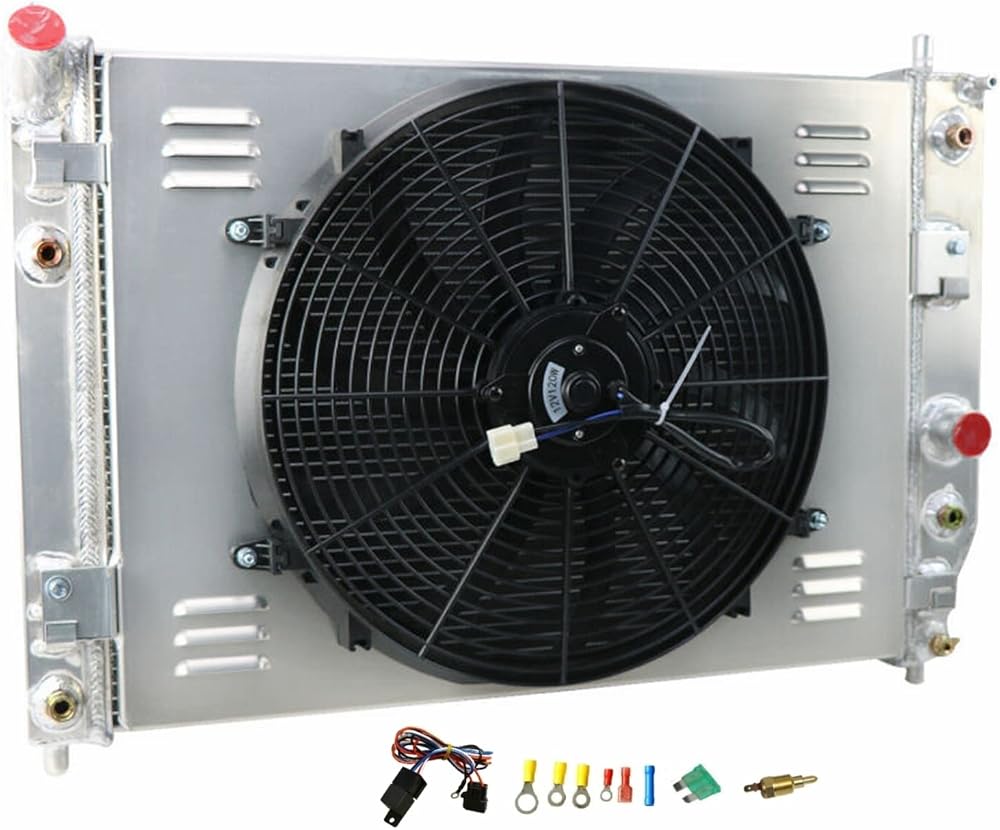

Package Include:

1 X 2-Row AA5052 Aluminum Radiator

1 X AA5052 Aluminum Shroud

1 X 16" Fans (Includes mounting kits)

1 X Thermostat Relay Kit

Features:

- Shuttered design AA5052 fan shroud to guaranteed airflow passes high efficiently.

- S blade fans, Push or Pull Type design,lightweight plastic durable material.

- Additional with thermostat,professional matching advice, consider for every detail and needed
