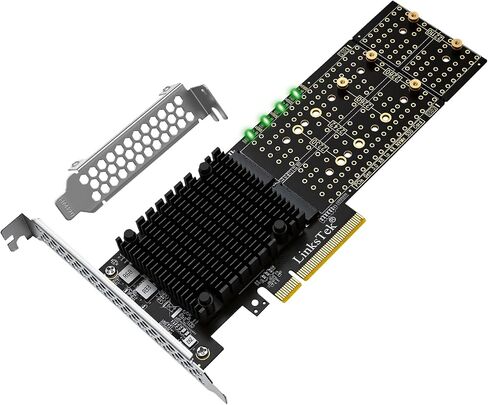

PCIE-PEX8747M8 PCIE 3.0 x8 Interface to 4-Port NVME M.2 SSD Expansion Card for Desktop PCs, Broadcom PLX PEX8747 PCIE Gen 3.0 Switch, 64Gb/s Bandwidth, On-Card PCIE Bifurcation, for Storage & Boot

SAR 449
Brand
LinksTek
Category
Internal Cards
Weight
110 g
– 1 +

Special Features

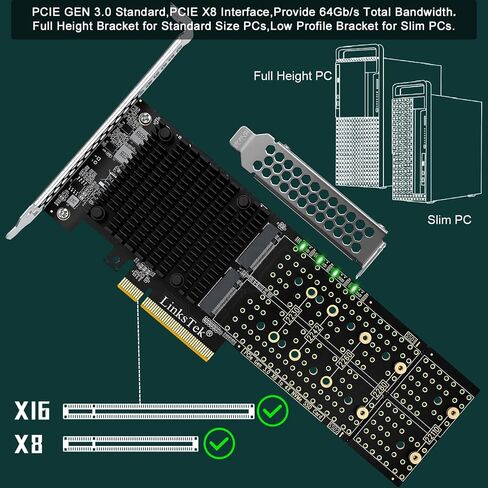

  • 1. This PCIE-PEX8747M8 is a PCIE Gen 3.0 x8 to 4-Port NVME M.2 SSD expansion card that effectively expands 8x PCIE lanes from motherboard to 16X PCIE lanes by using 4x NVME M.2 physical slots. It provides 64Gb/s total bandwidth for 4x 32Gb/s max NVME M.2 SSDs on desktop PCs and NAS systems without requiring PCIE Bifurcation support, making it ideal for video editing, data storage, and gaming.

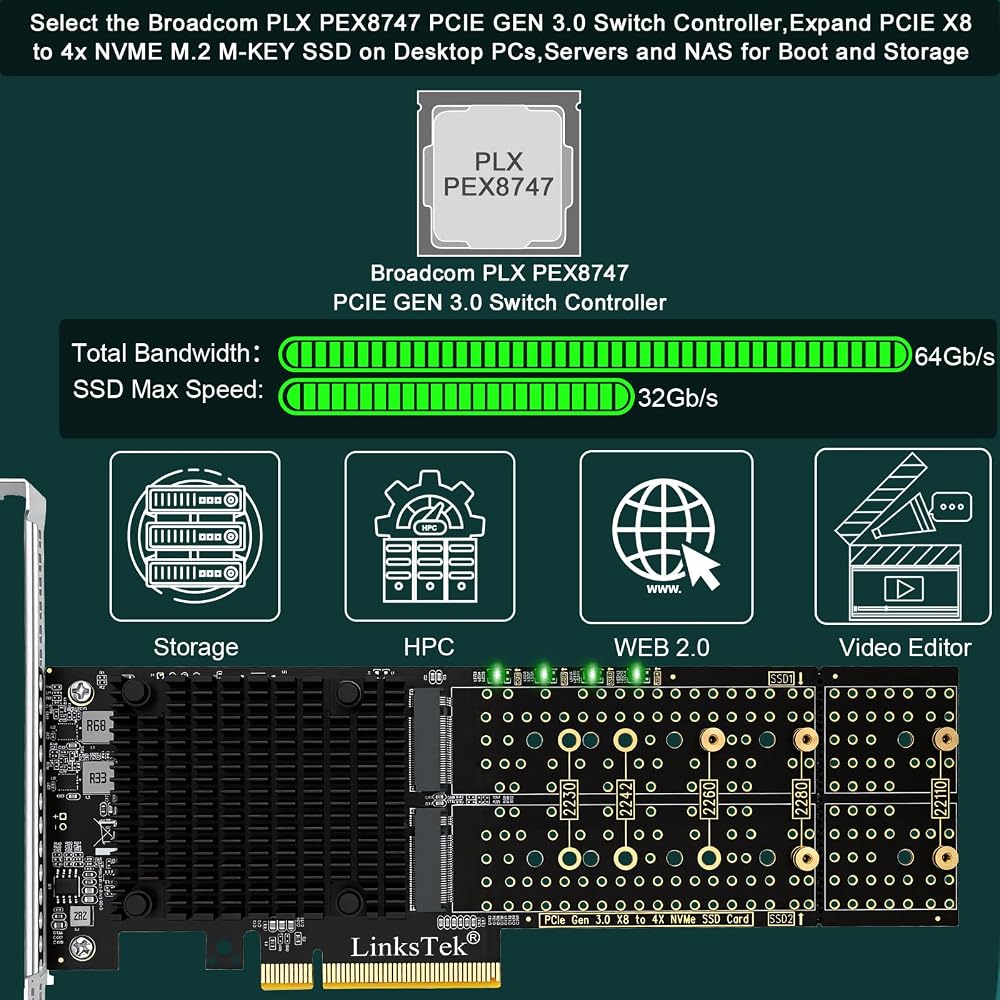

  • 2. Active On-Card PCIE Bifurcation, Not Require Motherboard PCIE Bifurcation. The PCIE PEX8747M8 is built on the Broadcom PLX PEX8747 PCIE Gen 3.0 switch. It draws 8x PCIE lanes (64Gb/s) from motherboards, expands to 16 PCIE lanes, then assigns these lanes into 4x PCIE Gen 3.0 x4 links (32 Gb/s each) via 4x physical NVME M.2 slots. This enables users to install and run 4x NVME M.2 SSDs at full speed 32 Gb/s.

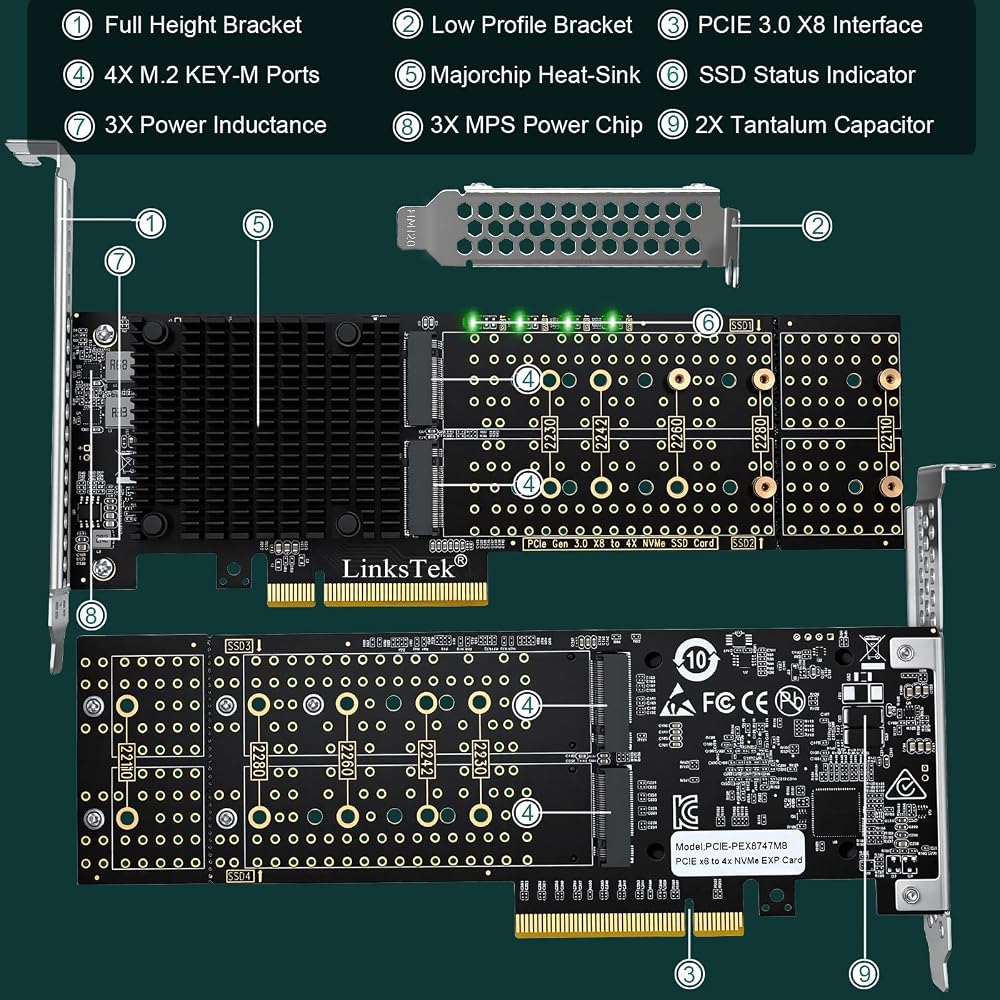

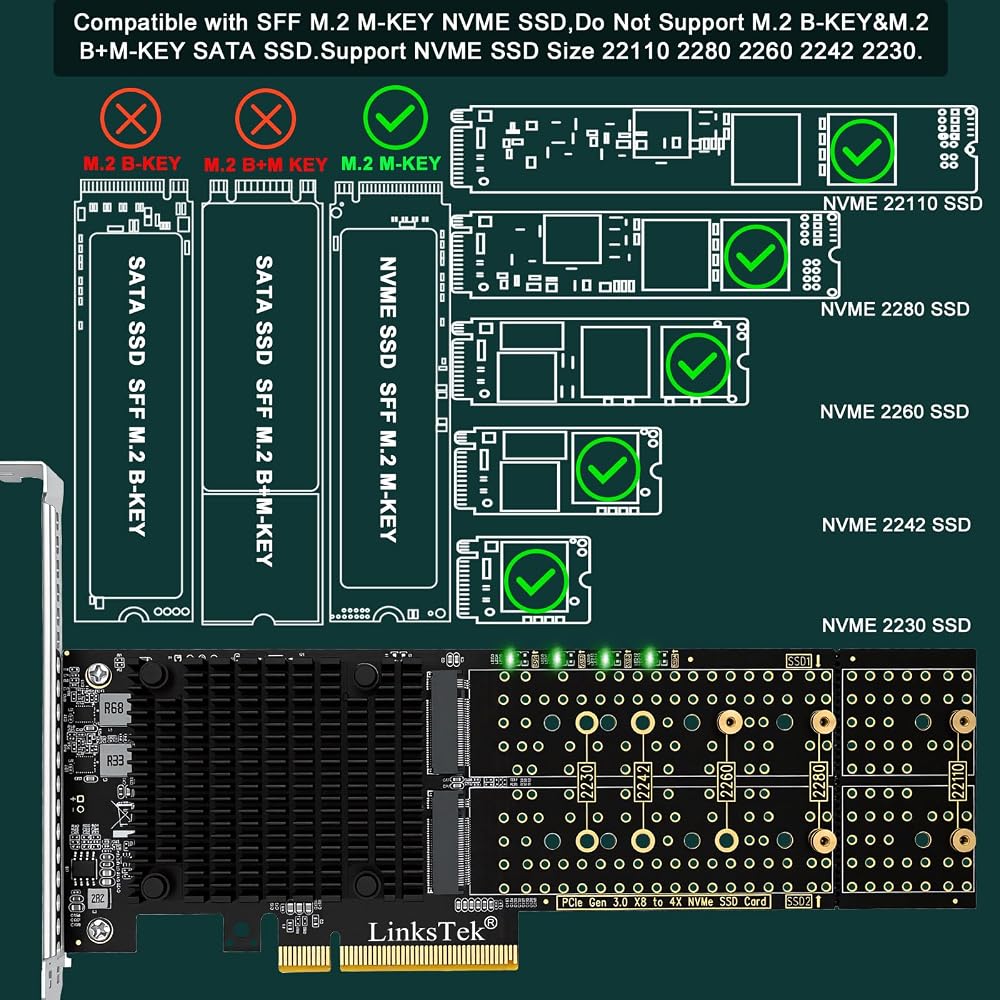

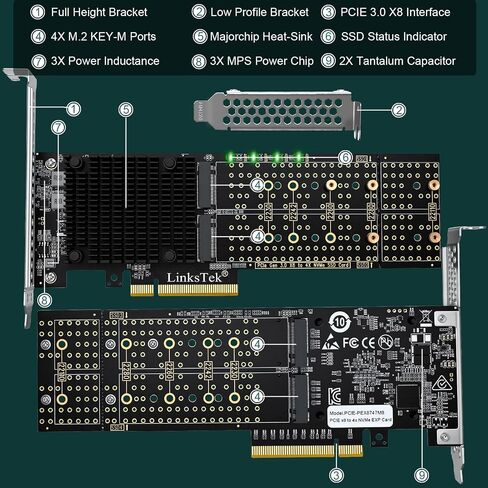

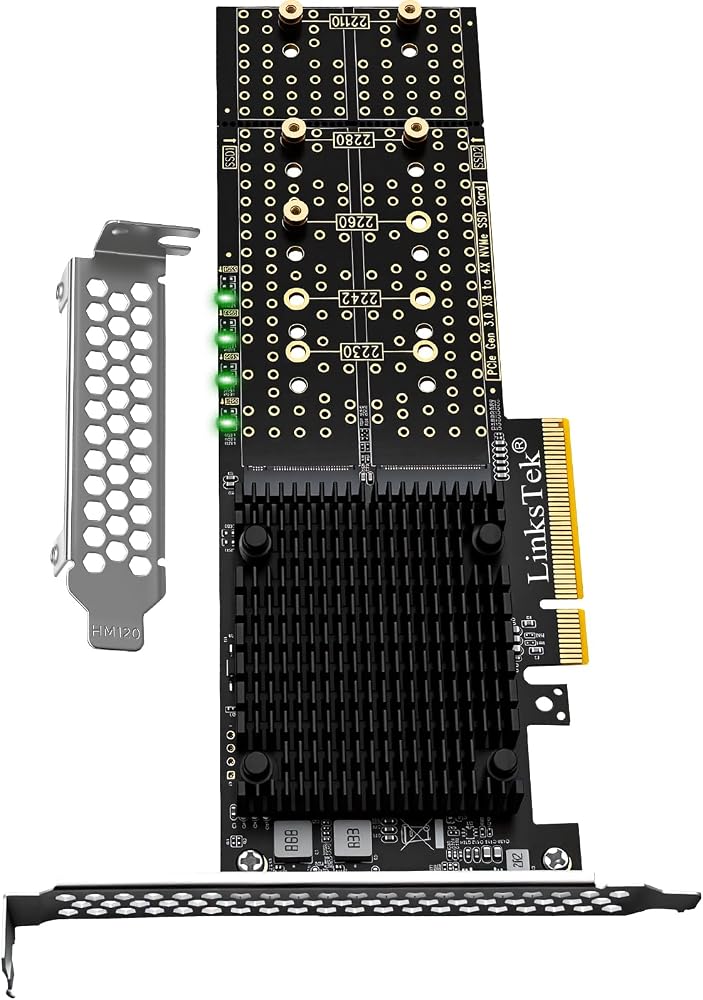

  • 3. Host Interface: PCIE Gen 3.0 x8; Device Slot: 4x NVME M.2 Key-M slots; PCIE Upstream: PCIE Gen 3.0 x8, 64 Gb/s; PCIE Downstream: 4× PCIE x4 links, 32 Gb/s max per NVME M.2 slot; M.2 SSD Form Factors: 2230, 2242, 2260, 2280, 22110; NVME Protocol: 1.3, 1.4, 2.0; RAID Function: No hardware RAID, software RAID supported; SSD Features: Supports data storage and UEFI (GPT) boot from NVME M.2 SSDs.

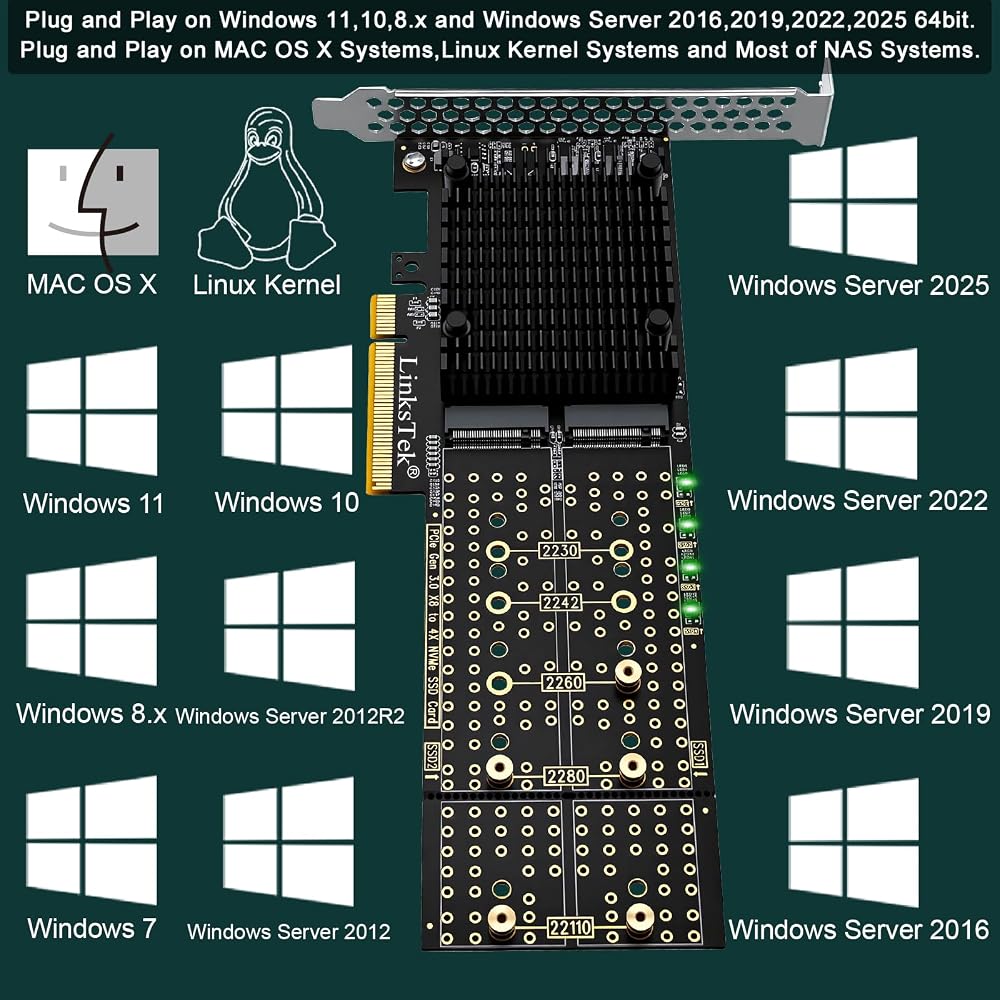

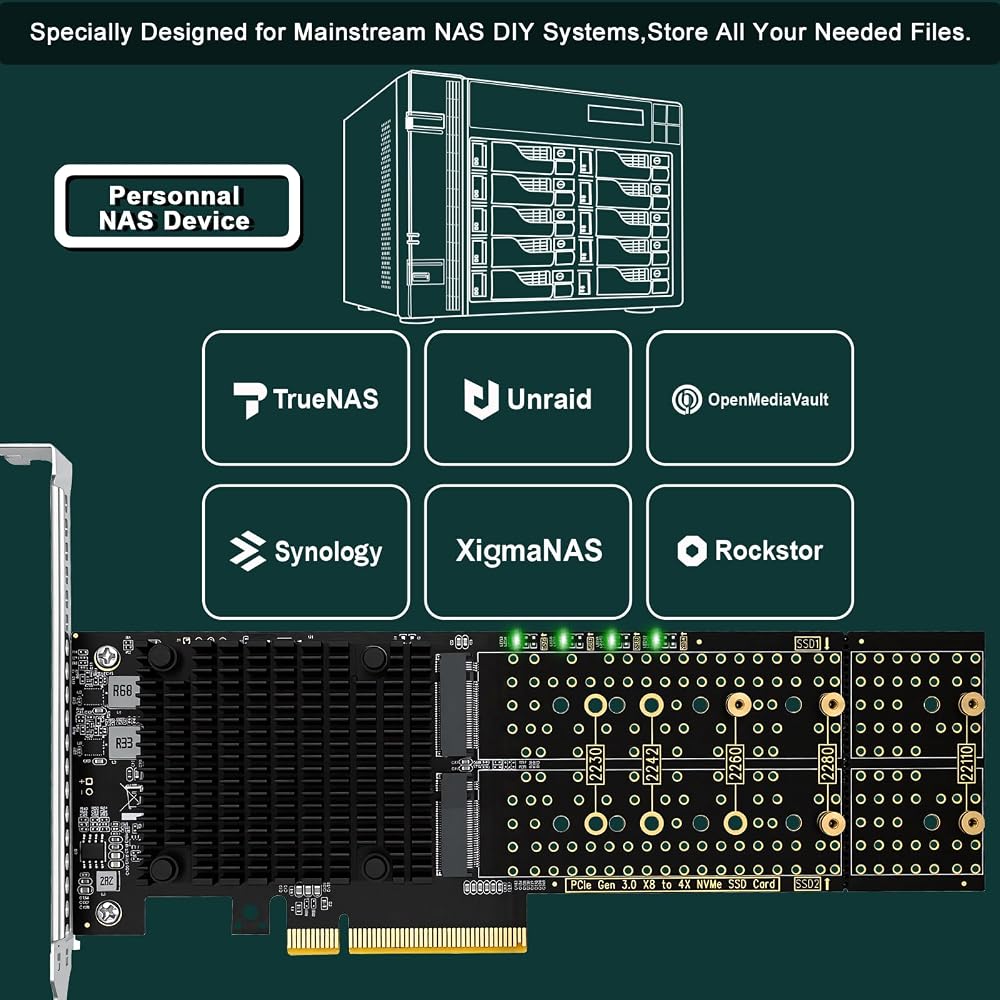

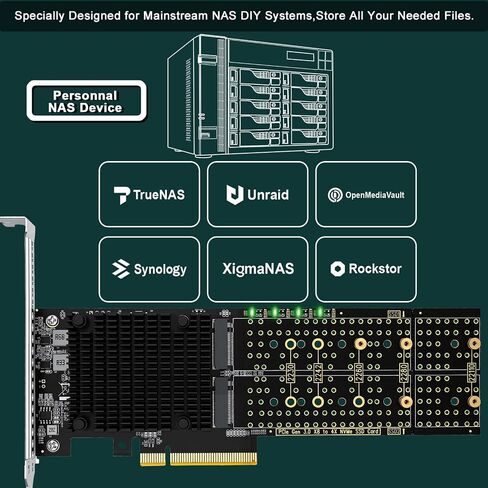

  • 4. Plug-and-Play Compatibility: Windows: Windows 7, 8.x, 10, 11 64bit and Windows Server 2025, 2022, 2019, 2016, 2012 R2, and 2012 64bit. Virtualization: VMware ESXi, Proxmox VE, and other major hypervisors. Linux: Ubuntu, RHEL, Debian, and other kernel-based distributions. NAS: True NAS, Synology DSM, QTS, AiNAS, Unraid and more. MAC OS: Fully supported for storage expansion, NOT recommended boot.

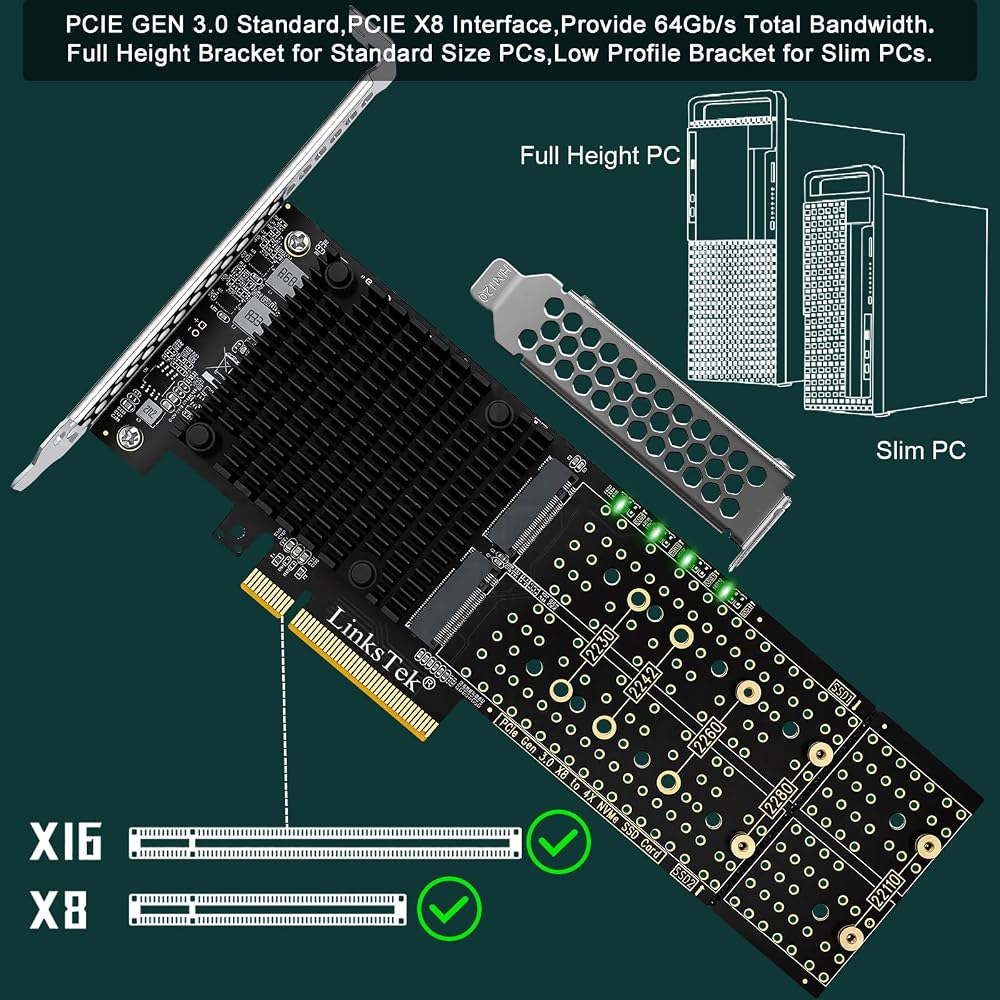

  • 5. Complies with PCIE Gen 3.0 (8 GT/s/lane), delivering a total bandwidth of 64Gb/s and ensuring each NVME M.2 SSD achieves speeds up to 32Gb/s. Fully compatible with PCIE Gen 4.0 and Gen 5.0, operating at the card maximum native speed of 32Gb/s per drive. Backward compatible with PCIE Gen 2.0, providing a reduced bandwidth of 40Gb/s, with each NVME M.2 SSD capable of reaching up to 20Gb/s.
