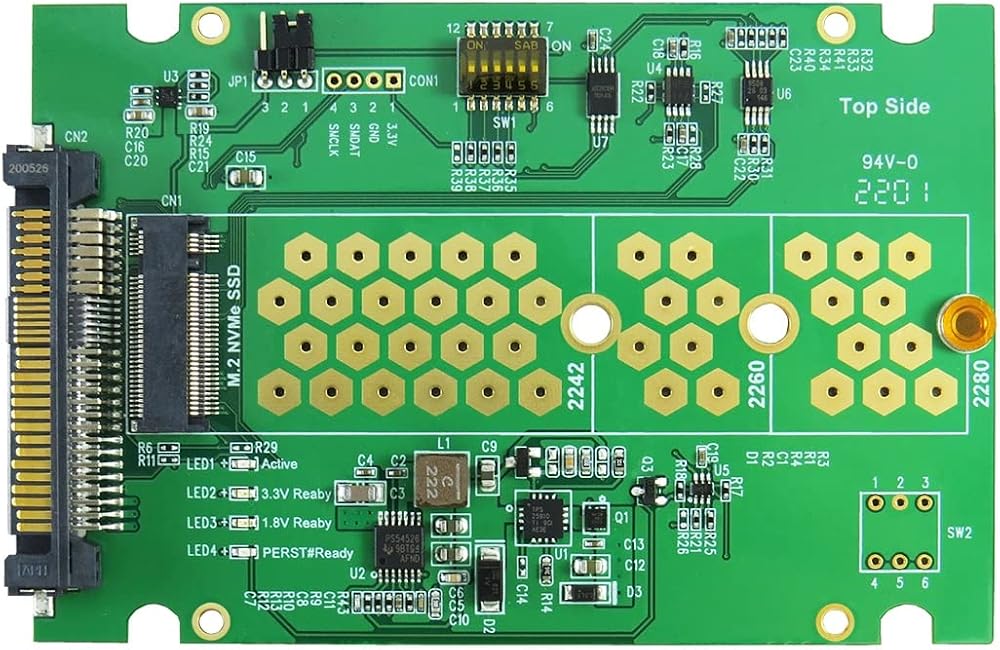

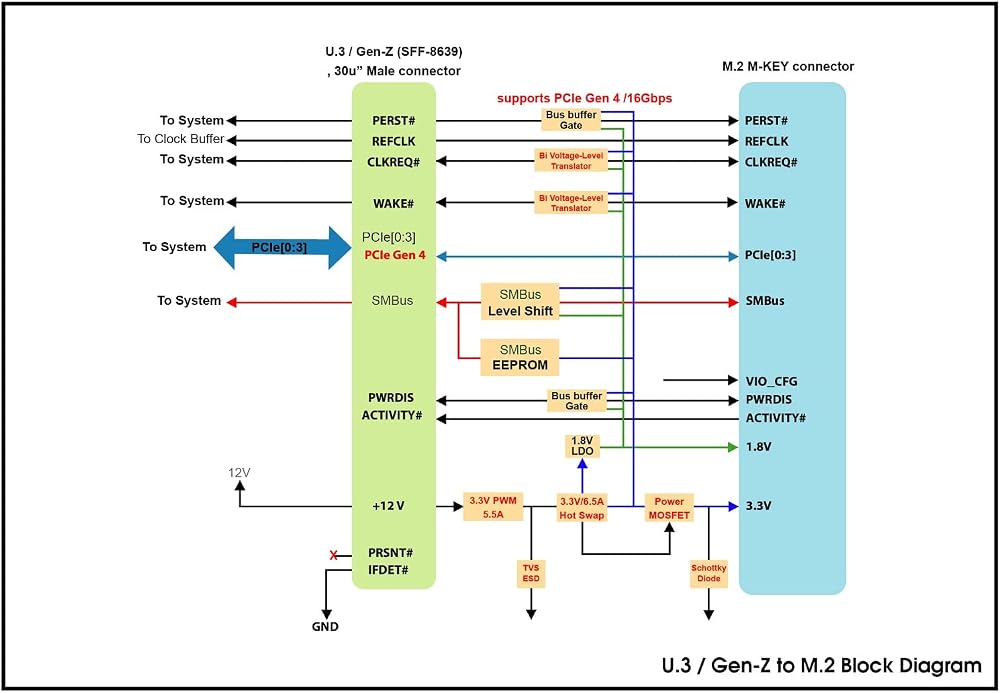

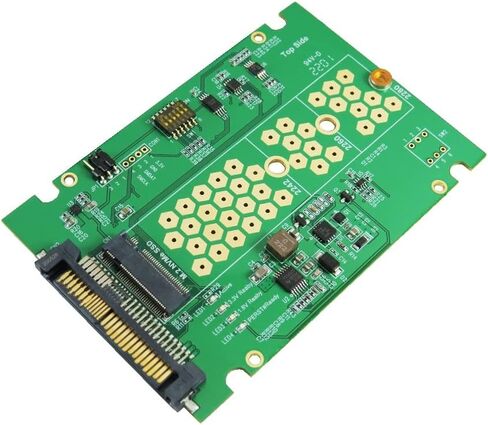

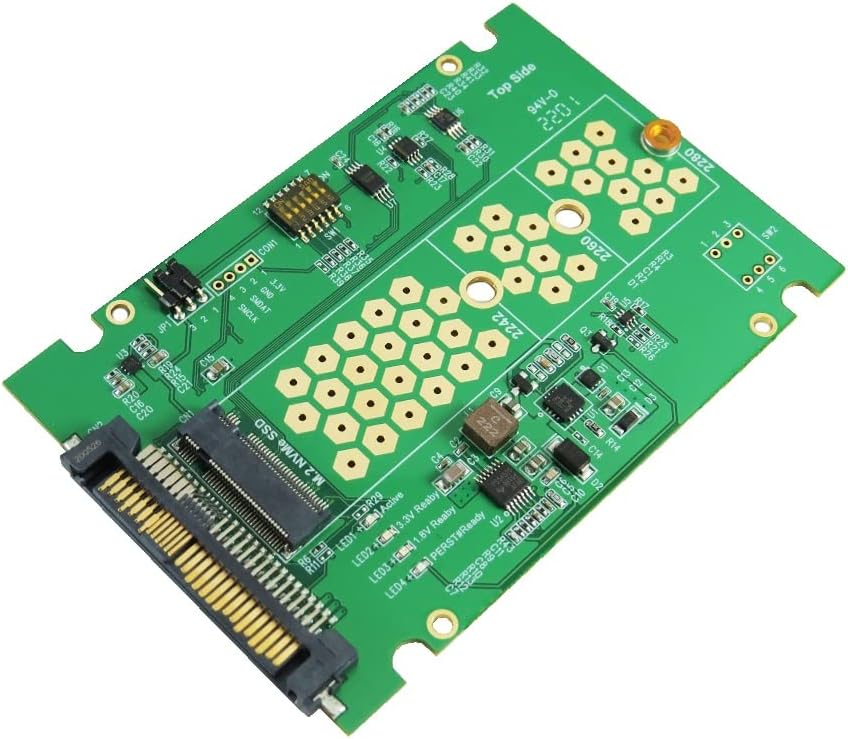

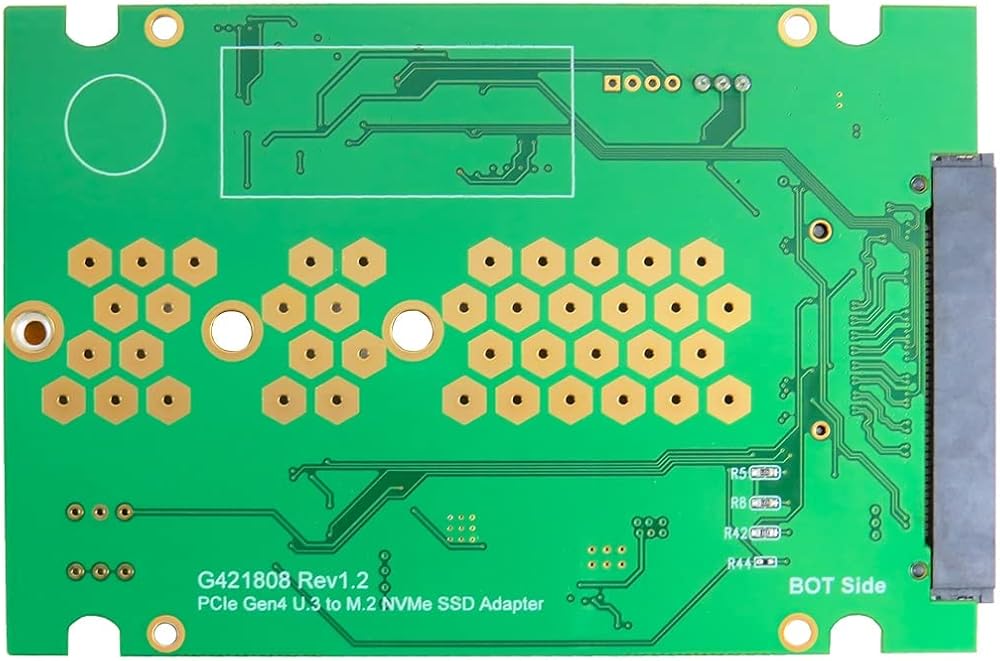

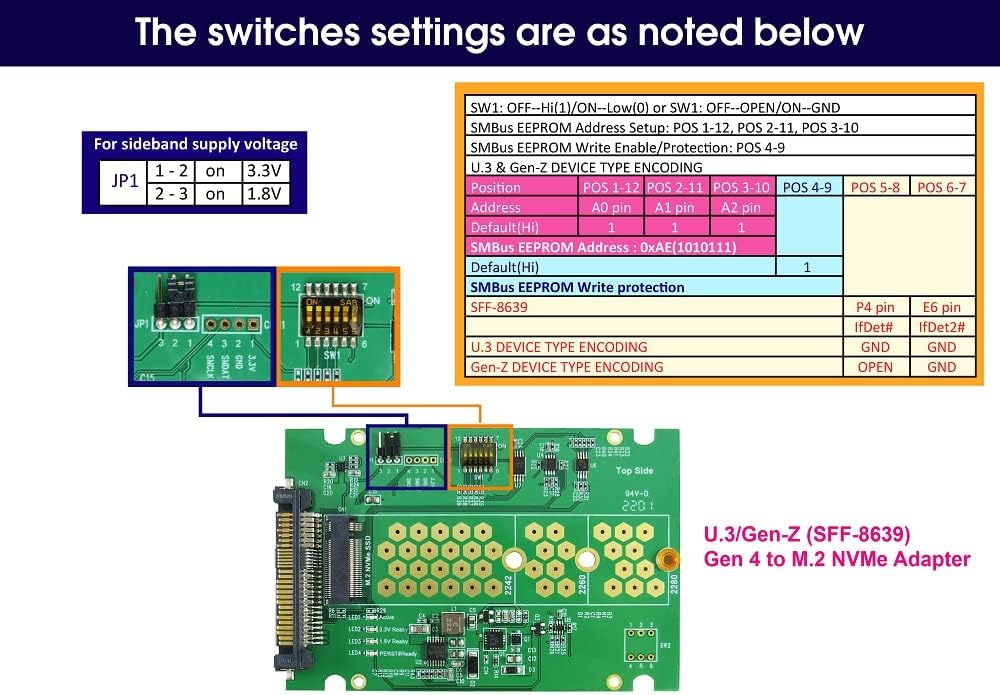

PCIe Gen 4 16GT/s Gen-Z(SFF-8639) to M.2 NVMe Adapter. With wake# and CLKREQ# signals, they are from M.2 to U.2. With SMBUS signals, they are from M.2 to U.2 including level shift and repeater. With SMBUS 64K EEPROM. Feaures :
M.2 NVMe to Gen-Z(SFF-8639) convert
Build in SFF-8639 connector, pin-out defined by SFF-9402 Rev1.1
PWM synchronous buck converter Power for M.2 NVMe SSD
4A maximum output current
Short circuit protection
In-rush current suppression
Thermal shutdown protection
ESD HBM (Human Body Mode)/2KV
Built-in power Load Switch with controlled turn on, can support a maximun continuous current of 5A
Supports CLKREQ#, WAKE#
Supports M.2 /1.8V to 3.3V/ Gen-Z SMB_CLK, SMBDATA Level Shift
Supports M.2 /1.8V to 3.3V/ Gen-Z SMB_CLK, SMB_DATA isolated, repeater
Built-in SMBUS EEPROM 256KB
D1 Green LED on indicates M.2 NVMe SSD power ready
D3 RED LED Blinking indicates M.2 active status
Specifications Compliant with NVM Express 1.2
Support PCI Express Base Specification Rev 3.1
Support SSD_Form_Factor_Version1_a
Compliant with PCI Express M.2 Specification Version 1.2
Compliant with PCIe SFF-8639 Module Specification Rev 3.0
Compliant with SFF-TA-1001 Rev1.1
Supports the following form factor M.2(NGFF) SSD Type 2242-D2-B-M: 42mm(L) x 22mm(W)
Type 2260-D2-B-M: 60mm(L) x 22mm(W)
Type 2280-D2-B-M: 80mm(L) x 22mm(W)

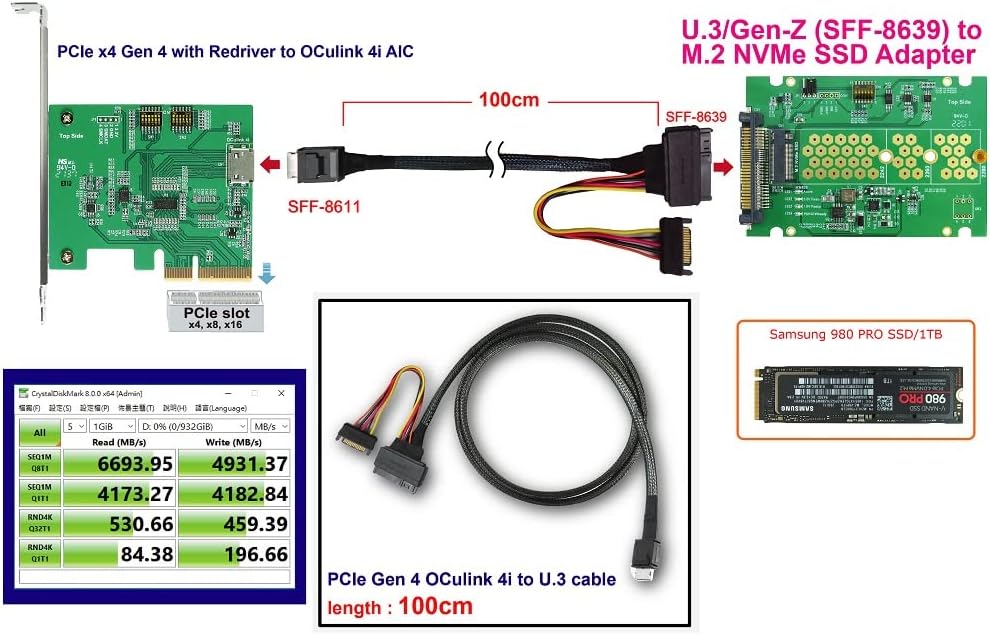

Micro SATA Cables PN # GENZ-1666-M
