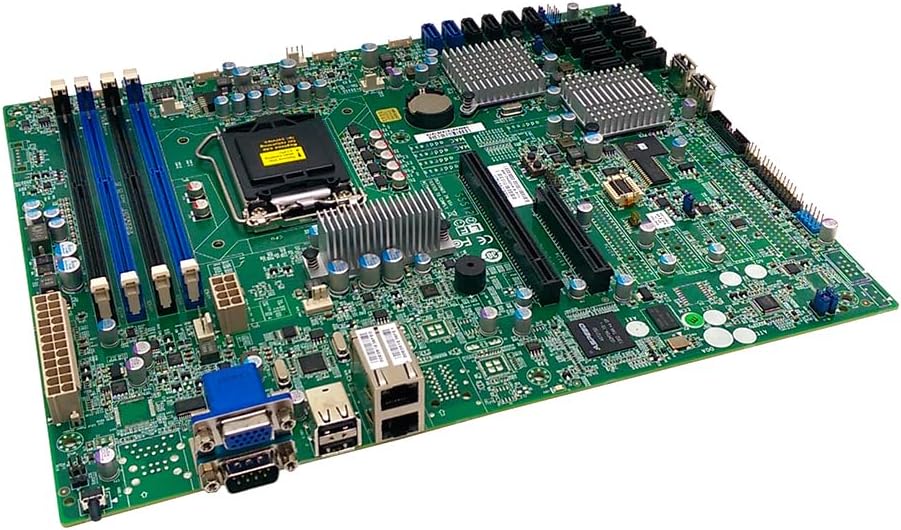

Server Motherboard S5512WG2NR-B-SYN Compatible Replacement Spare Part for Tyan S5512 Intel Socket LGA1155 DDR3 SATA 6GB/s USB 2.0 ATX.

Tyan Part Number: S5512WG2NR S5512WG2NR-B-SYN
Model Number: S5512

Specifications:

Processor
- Socket Type: LGA 1155
- Sockets: 1
- Supported CPU Series: Intel Xeon E3-1200, i3-2100 (32nm / 22nm) series processors
- Thermal Design Power (TDP) wattage: Max up to 95W
Chipset
- Super I/O: Nuvoton 5577D
- PCH: Intel C204
Memory
- DIMM: 4x DIMM slots
- DIMM Type / Speed: Unbuffered ECC DDR3 1600/1333
- Capacity: Up to 32GB
- Memory channel: 2 Channels
- Memory voltage: 1.5V
LAN
- Ports: 2x
- Controller: Intel 82574L
Storage
- SATA
- Connector: 8x SATA
- Controller: Intel C204
- Speed: (2) 6.0 Gb/s (blue color), (4) 3.0 Gb/s (black color)
- RAID: RAID 0/1/10/5 (Intel RST)
Graphic
- Connector type: D-Sub 15-pin
- Resolution: Up to 1600x1200@60Hz
- Chipset: Aspeed AST2150
Input /Output
- USB: USB 2.0 ports (2 at rear, 2 vertical onboard)
- COM (2) ports (1 at rear, 1 via cable)
- VGA (1) D-Sub 15-pin VGA port
- RJ-45 (2) GbE ports
- Front Panel: (1) 2x12-pin SSI front panel header
- SATA: (4) SATA-II and (2) SATA-III connectors
- Power: SSI/ATX 24-pin + 8-pin power connectors
Physical Dimension
- Form Factor ATX
- Board Dimension 12"x9.6" (305x243.8mm)
Regulation
- FCC (DoC) Class B
- CE (DoC) Yes
RoHS: RoHS 6/6 Compliant Yes
