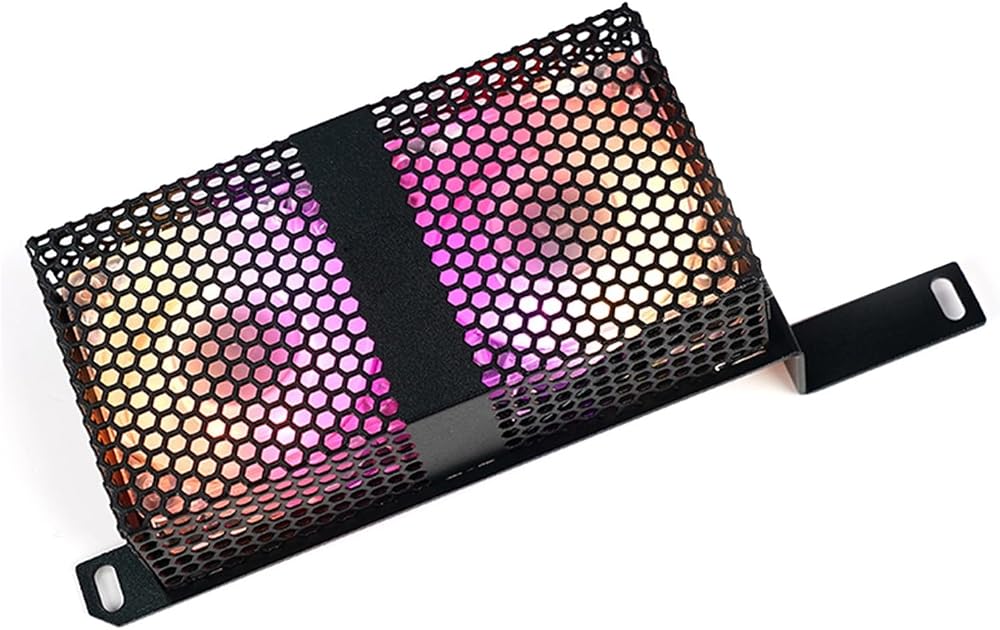

Cooling Pads
Product style: without holes, with holes (optional)
Product color: black, white (optional)
Rated voltage: fan 12V, LED 5V
Rated current: fan 0.06A, LED 0.24A
Power Consumption: Fan 0.72W (Max), LED 1.2W
Power Consumption: 1.2W
Speed: 800-4200RPM±10%
Air volume: 13-9.11 CFM
Wind pressure: 0.08-1.6mmH2O
Noise: 9.6-25.3 dB-A
Fan terminal: 4PIN PWM/LED 3Pin ARGB
Bearing type: hydraulic bearing
Fan size: about 50*50*20mm/1.96*1.96/0.78inch
Radiator size: about 120*62*28.1mm/4.72*2.44*1.11 inches
Product weight: 220 grams
Installation sequence:
1. The fixing screws replace the fixing screws of the main board, and screw into the corresponding fixing holes of the main board
2. Screw the fixing screw into the fixing screw to fix
If the copper column of the chassis itself is an M3 inner bud, you need to use the transfer copper column to screw in the fixing screw first, and then screw it into the hole of the motherboard copper column.
notes:
Due to different monitors and lighting effects, the actual color of the item may be slightly different from the color shown on the picture. Thank you!
Due to manual measurement, please allow 1-2cm measurement deviation.
1 x Radiator Kit
