this motherboards helps users work smarter by delivering an efficient and productive experience. Featuring stable functionality and high-quality assembly, motherboards provide not only optimized professional workflows but also less troubleshooting and longevity.
Motherboard chip
Integrated chip sound card/network card
Main chipset Z77
Chipset description Using Z77 chipset
Display chip CPU built-in display chip (requires CPU support)
Audio chip integrated Realtek ALC887 8-channel audio chip
Network card chip onboard Atheros AR8151 Gigabit network card
Processor specifications
CPU type Core i7/Core i5/Core i3/Pentium/Celeron
CPU socket LGA 1155
CPU description Support 22nm processor
Memory specifications
Memory type 4×DDR3 DIMM
Maximum memory capacity 32GB
Memory description Support dual-channel DDR3 2800 (overclocking)/1600/1333/1066MHz memory
Storage expansion
PCI-E standard PCI-E 3.0 standard
PCI-E slot 2×PCI-E X16 graphics card slot, 2×PCI-E X1 slot
PCI slot 2 × PCI slot
Storage interface
3×SATA II interface; 2×SATA III interface
I/O interface
USB interface 8 × USB2.0 interface (4 built-in + 4 backplane); 4 × USB3.0 interface (2 built-in + 2 backplane)
Video interface 1×DVI interface, 1×VGA interface, 1×HDMI interface
Power connector One 8-pin, one 24-pin power connector
Other interfaces

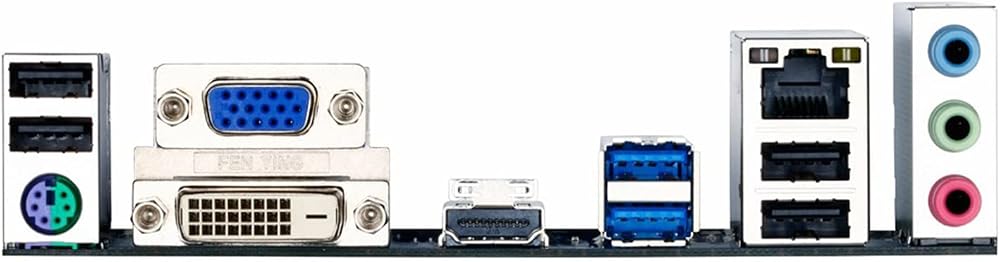

1×RJ45 network interface, audio interface, PS/2 keyboard and mouse universal interface
Board type
Motherboard board type ATX board type
Dimensions 30.5×21.5cm
