this motherboards helps users work smarter by delivering an efficient and productive experience. Featuring stable functionality and high-quality assembly, motherboards provide not only optimized professional workflows but also less troubleshooting and longevity.
Please note the motherboard of these chips:
H61 / H67 / P67 only supports Intel 2nd Generation CPU before leaving factory. If you use Intel 3rd Generation CPU, please make sure you will upgrade BOSI. Otherwise, do not use Intel third-generation CPUs.
H110 / B150 / Z170 / H170 chips only support Intel 6th generation CPUs before leaving the factory. If you use Intel 7th generation CPUs, please make sure you upgrade BOSI. Otherwise, do not use Intel seventh-generation CPUs.

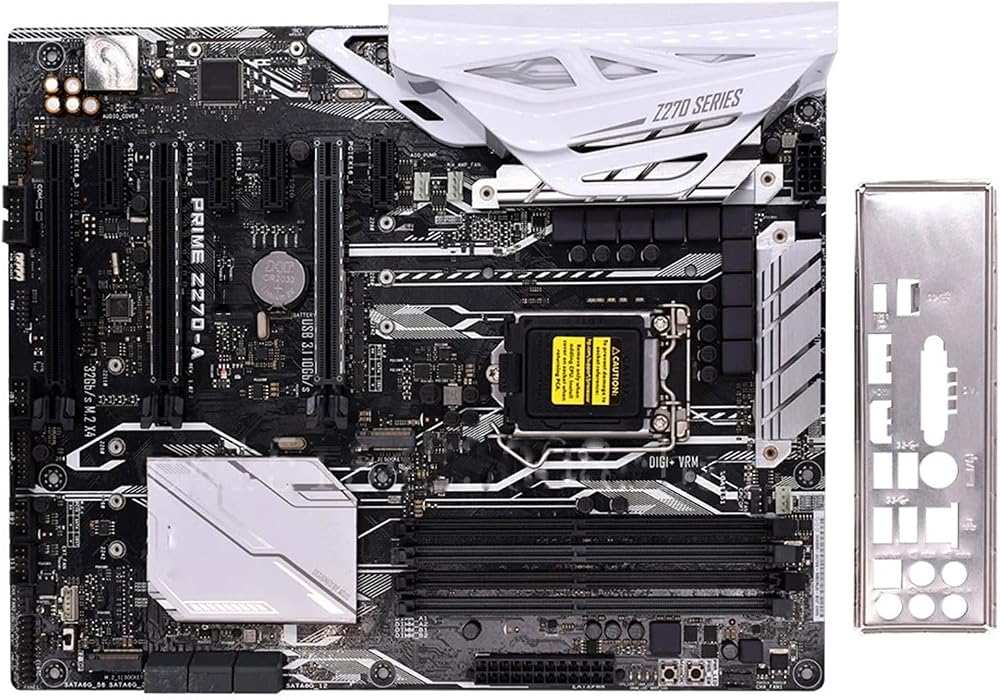

PRIME Z270-A parameters
Main chipset: Intel Z270
Audio chip: integrated SupremeFX S1220 8 sound
Memory type: 4 × DDR4 DIMM
Maximum memory capacity: 64GB
Motherboard type: ATX board type
Dimensions: 30.5 × 24.4cm
Power socket: one 8-pin, one 24-pin power supply
Power mode: 10 phase
Integrated chip sound card / network card
Main chipset Intel Z270
Chipset description with Intel Z270 chipset
Display chip CPU built-in display chip (requires CPU support)
Audio chip Integrated SupremeFX S1220 8-channel audio chip
NIC chip Onboard Intel I219V Gigabit NIC
Processor specification
CPU type 7th/6th generation Core i7/i5/i3/Pentium/Celeron
CPU socket LGA 1151
CPU description Support for Intel 14nm processor
Memory specification
Memory Type 4×DDR4 DIMM
Maximum memory capacity 64GB
Memory Description Supports dual channel DDR4 3733 (overclocking) / 3600 (overclocking) / 3466 (overclocking) / 3400 (overclocking) / 3866 (OC) / 3333 (overclocking) / 3300 (overclocking) / 3200 (overclocking) / 3000 (overclocking) /2800 (overclocking) / 2666 (overclocking) / 2400 (overclocking) / 2133MHz memory
Storage extension
PCI-E standard PCI-E 3.0
PCI-E slo
