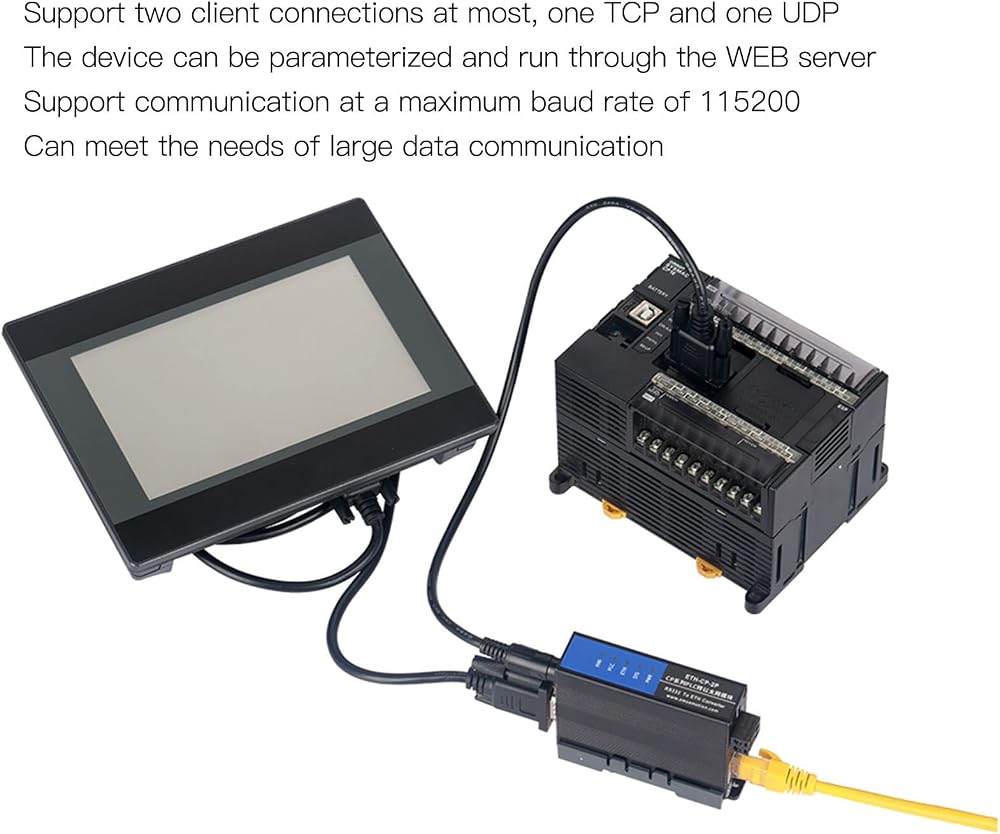

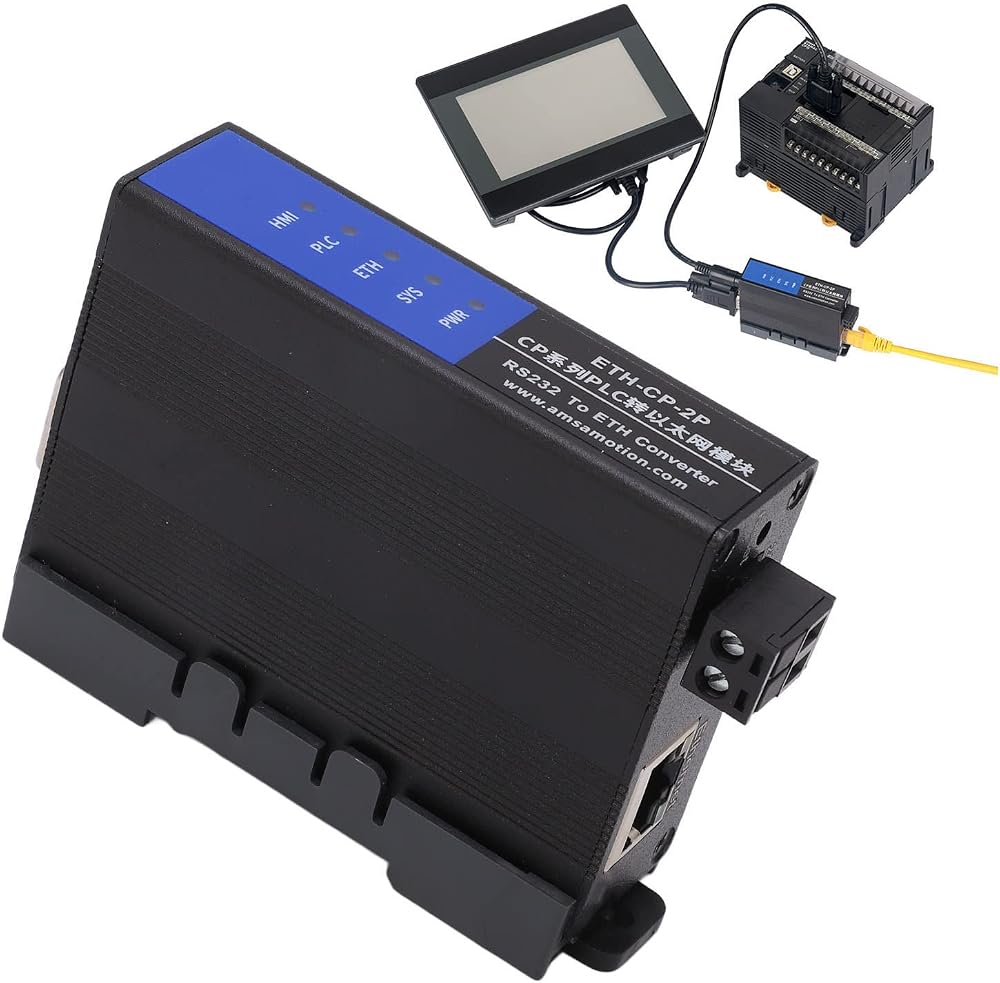

[MULTI FUNCTION] THIS MODULE EXPANDS AN RS232 PORT OF THE PLC TO AN ETHERNET COMMUNICATION PORT AND A TOUCH SCREEN COMMUNICATION PORT, ENABLING PLC NETWORKING AND COMMUNICATION WITH TOUCH SCREEN. IT RESTORES PLC COMMUNICATION FUNCTION.
[TWO CLIENT CONNECTABLE] SUPPORTS UP TO TWO CLIENT CONNECTIONS, ONE AND ONE UDP, WITH PARAMETERIZATION AND OPERATION VIA THE WEB SERVER.
[FAST TRANSMISSION RATE] COMMUNICATES AT A MAX BAUD RATE OF 115200, SUITABLE FOR LARGE DATA TRANSFERS. COMPATIBLE WITH CX PROGRAMMER FOR ETHERNET COMMUNICATION.
[SIMPLE POWER SUPPLY] NO EXTERNAL POWER NEEDED, DIRECTLY POWERED FROM PLC'S RS232 PORT. CONVENIENT AND EFFICIENT.
[HIGH SAFETY] FEATURES ANTI-REVERSE CONNECTION DESIGN FOR POWER CIRCUIT, ENSURING SAFE AND RELIABLE USAGE. IDEAL FOR INDUSTRIAL SIGNAL ACQUISITION AND CONTROL.

Spec:
Item Type: PLC to Ethernet Conversion Module
Material: ABS

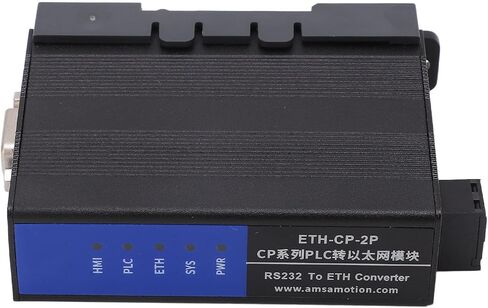

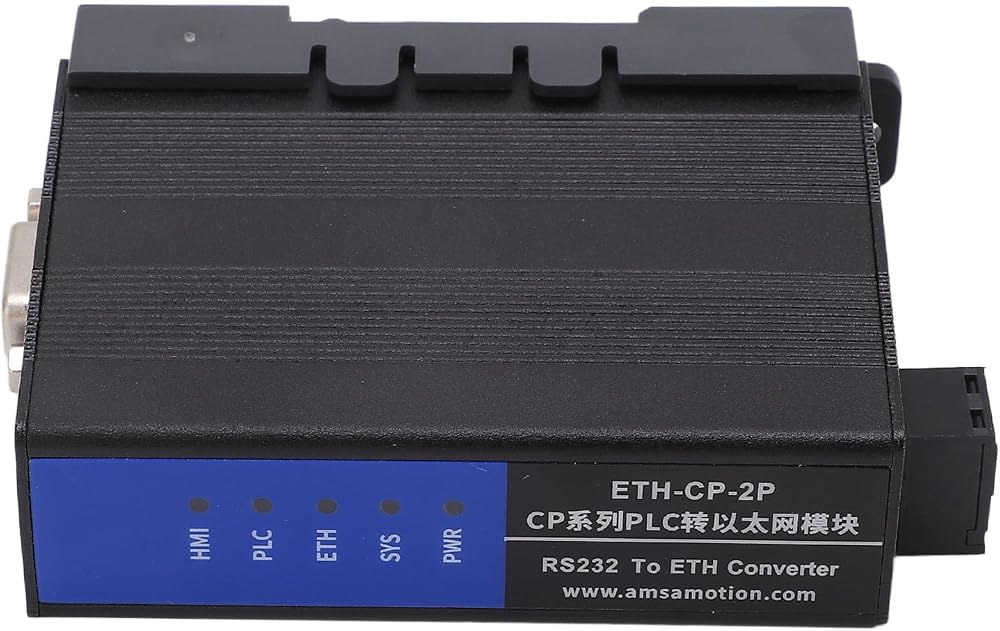

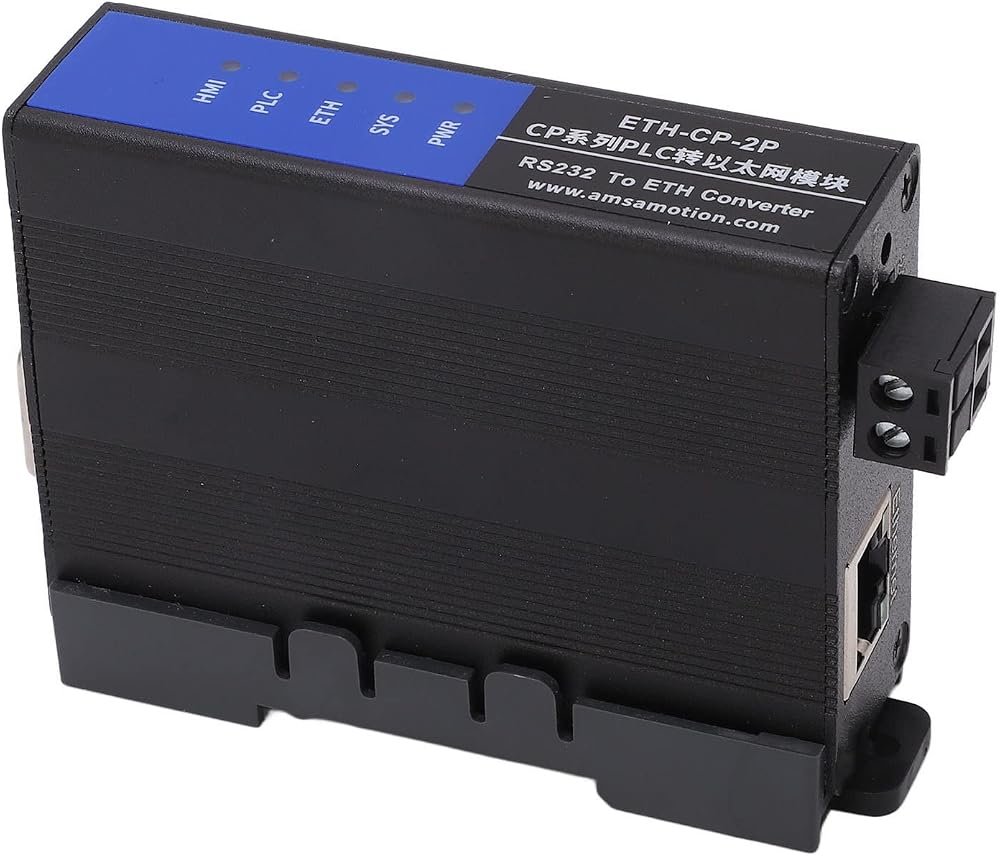

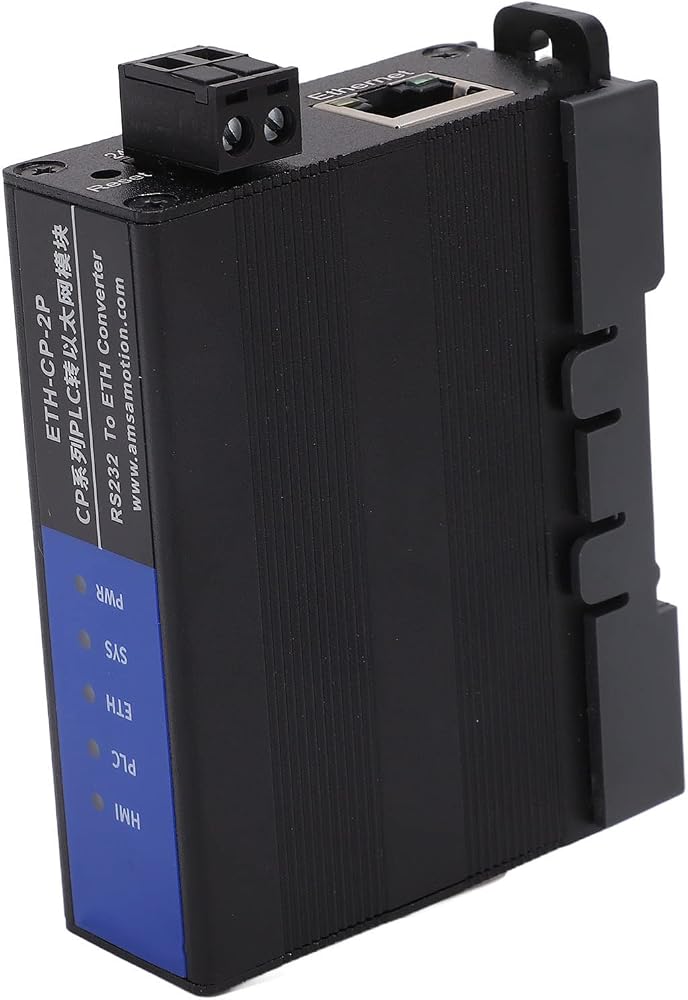

Indicator Lights: PWR, SYS, ETH, PLC, HMI five indicators
Connection with CX Programmer: Ethernet
Communication Protocol: FINS , FINS UDP
Support PLC : CP1E, CP1L, CP1H with 232 serial ports
Ethernet Interface: IEEE802.3 compatible, LINK ACTIVE indicator, line sequence adaptive

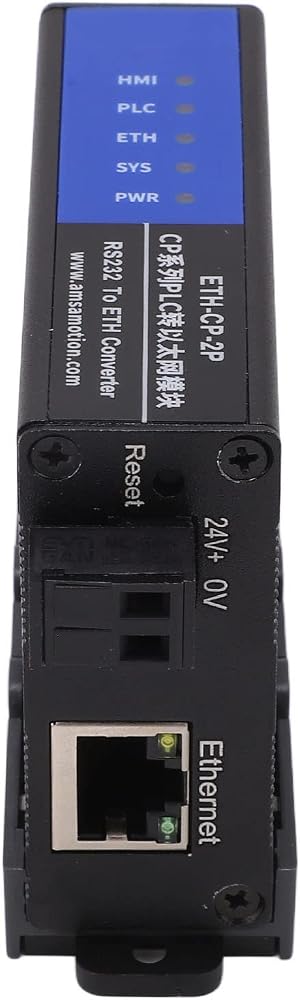

Interface Type: RJ45 female socket
Transmission Rate: 10/100Mbps
Protocol Support: FINS Ethernet
IP: The default lP is 192.168.1.170
Port Number x 1: Fixed port: 9600
Client Quantity: Maximum support for two client connections (one , one UDP)
Communication Distance Height: 100 meters
PLC Port (Connected to PLC): For Omron RS232
Interface Type: DB9 communication female port
Transmission Rate: According to PLC settings
Protocol Support: For Omron programming port protocol
HMI Port (Connected to HMl): For Omron RS232
Interface Type: DB9 communication female port
Transmission Rate: Default 9.6K, baud rate adaptive
Protocol Support: For Omron programming port protocol
