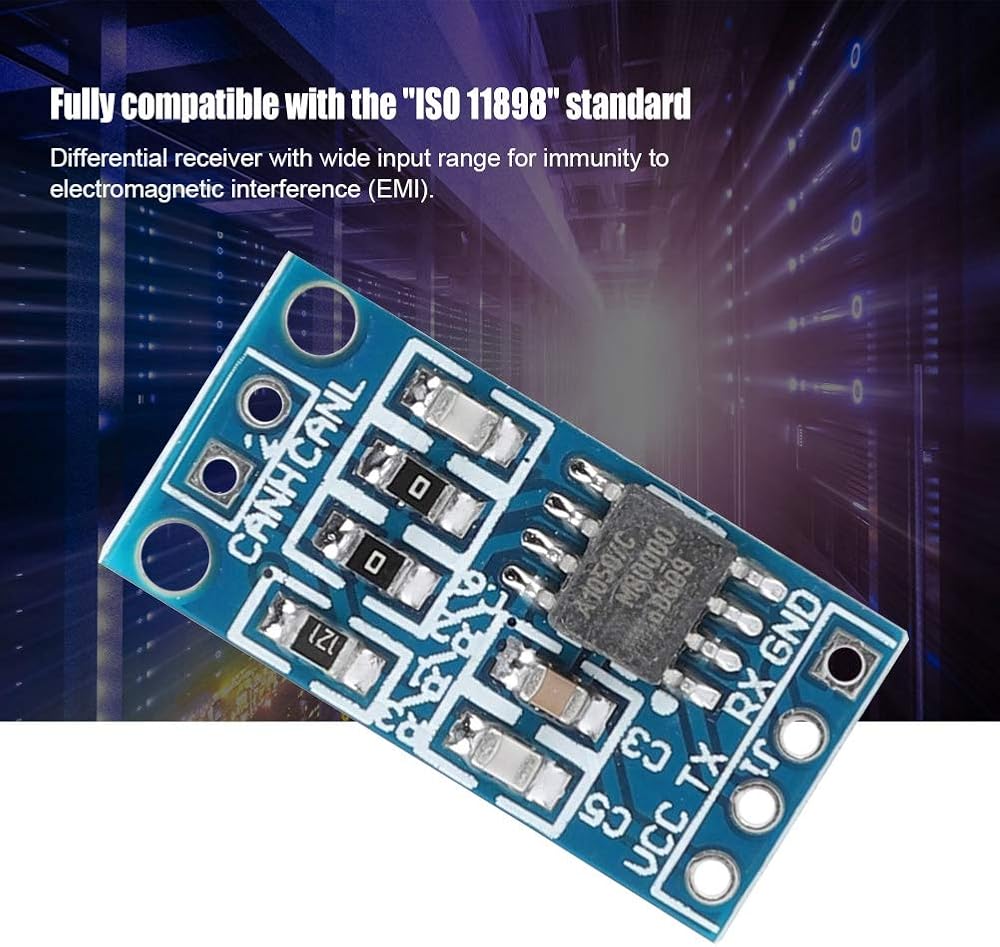

1. [COMPATIBILITY] Fully compliant with ISO 11898 standard for seamless integration.

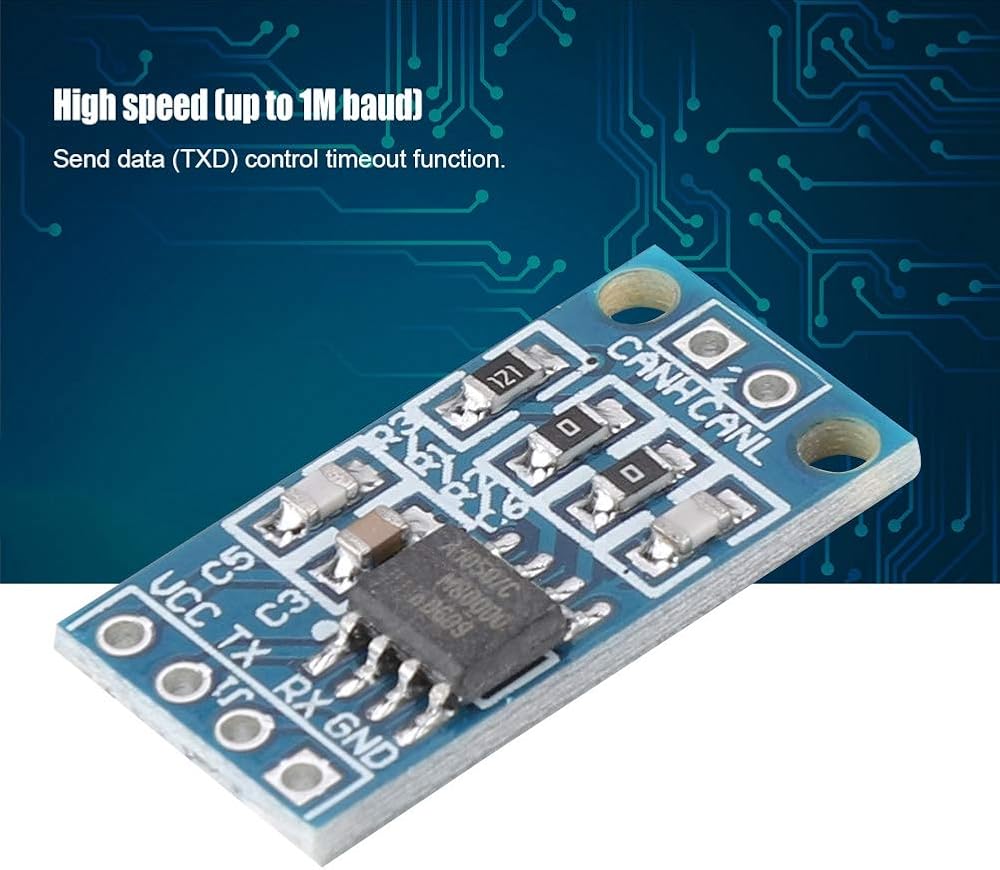

2. [HIGH SPEED] Operates at speeds of up to 1 Mbauds for efficient data transfer.
3. [EMI IMMUNITY] Wide input range differential receiver for protection against electromagnetic interference.

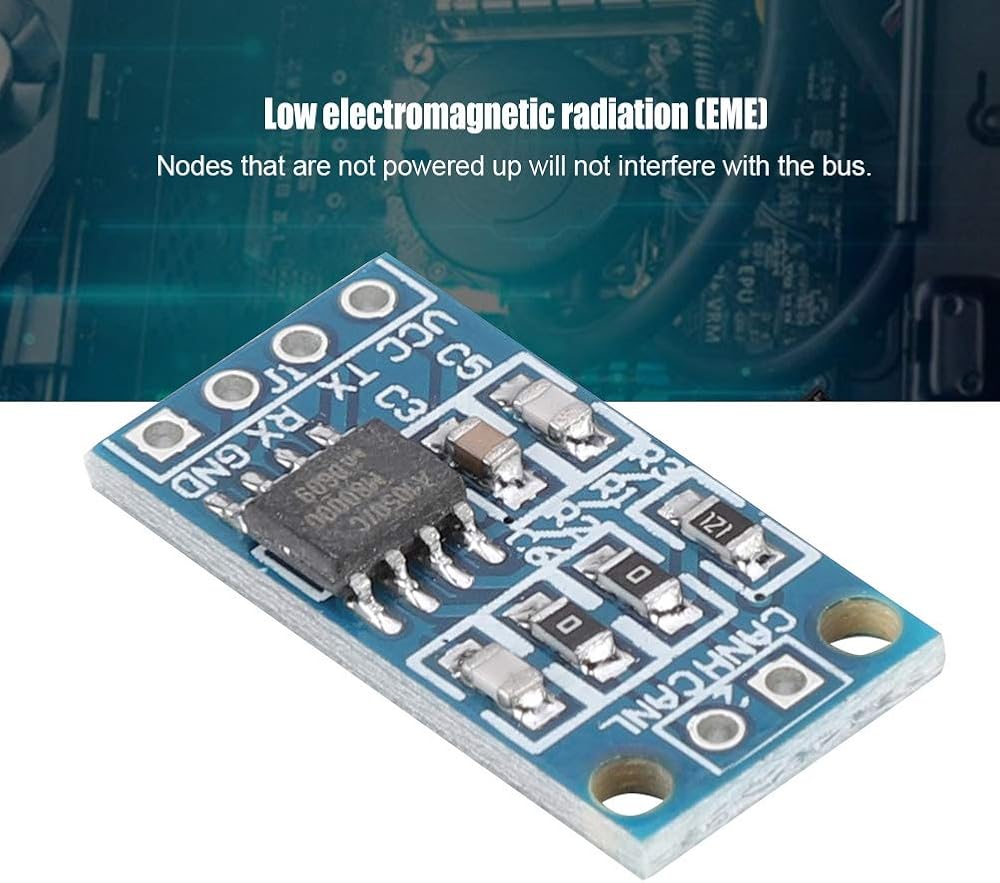

4. [ENERGY EFFICIENCY] Nodes that are not powered on do not interrupt bus communication, ensuring smooth operation.
5. [IMPROVED PERFORMANCE] CANH and CANL match significantly improved to minimize electromagnetic emissions.

Specifications:
The TJA1050 is the interface between the Controller Area Network (Controller Area Network) protocol controller and the physical bus. The TJA1050 offers different transmit powers for the bus and different reception powers for the CAN controller. The TJA1050 is the successor to the PCA82C250 High Speed CAN Transceiver. The TJA1050 has achieved significant improvements in the following areas: CANH and CANL are ideally suited to minimize electromagnetic emissions. Performance is improved when there is no live node.
Features:
1. Fully compliant with ISO 11898.
2. High speed (up to 1MB Baud).
3. Low electromagnetic radiation (EME).
4. Differential receiver with wide input range for immunity to electromagnetic interference (EMI).
5. The node that is not powered on does not affect the bus.
6. Transmit data based on control timeout (TXD).
7. Turn off the silent mode during transmission.
8. Automatically protect bus pins during transients.
9. Input stage compatible with 3.3V devices.
10. Thermal protection.
11. Short circuit protection for power and ground.
12. Can connect at least 110 nodes.
Data Techniques:
Package size: about 22*11.5*3cm/8.66*4.53*1.18 inches
Mnemonic Technical Data Condition Minimum Maximum Unit
Power supply VDC 4.75 5.25V
VCANH Pin DC Voltage CANH 0 VDC Without Time Limit -27 +40 V
VCANL Pin DC Voltage CANL 0 VDC without time limit -27 +40 V
Vi(dif)(bus) Different bus input voltage regulation 1.5 3 V
tPD(TXD-RXD) Propagation delay time from TXD to RXD VS = 0V; see Figure 7 -250
Ambient temperature Tamb -40 +125°C
Package List:
1 x module
